Atess солнечный инвертор высокочастотный 30 кВт 50 100 120 150 трехфазный Солнечный Pv сетевой
- Категория: >>>
- Поставщик: Sunpal Energy Co. Ltd.
Сохранить в закладки 1601275414902:
Описание и отзывы
Характеристики
Product Description
ATESS is a global supplier of solar energy storage inverters dedicated to developing and delivering affordable clean energy to all corners of the world, providing customers around the world with the possibility of energy independence.
Atess HPS series inverter, large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity. HPS series inverter is designed for energy storage system, it converts DC current generated by battery bank into AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load.
Atess HPS series inverter, large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity. HPS series inverter is designed for energy storage system, it converts DC current generated by battery bank into AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load.
ATESS inverter features
4 x units can be paralleled for up to 600kW of load Excellent and seamless transfer between on/off grid Programmable work modes
Touchscreen LCD user interface
Generator remote control
HPS has Zero export function even when a Diesel
Generator is connected
Touchscreen LCD user interface
Generator remote control
HPS has Zero export function even when a Diesel
Generator is connected
Atess inverter Specifications
Commerical hybrid solar inverter series
Model | HPS30 | HPS50 | HPS100 | HPS120 | HPS150 | |||||
AC (Grid-connected) | ||||||||||
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW | |||||
Voltage range | 360V - 440V | 360V - 440V | 360V - 440V | 360V - 440V | 360V - 440V | |||||
Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||
AC connection | 3/N/PE | 3/N/PE | 3/N/PE | 3/N/PE | 3/N/PE | |||||
AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA | |||||
AC(Off-grid) | ||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA | |||||
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW | |||||
DC (Battery and PV) | ||||||||||
Max. PV open-circuit voltage | 1000V DC | 1000V DC | 1000V DC | 1000V DC | 1000V DC | |||||
Max. PV power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp | |||||
PV MPPT voltage range | 480V-800V DC | 480V-800V DC | 480V-800V DC | 480V-800V DC | 480V-800V DC | |||||
Battery voltage range | 352-600V | 352-600V | 352-600V | 352-600V | 352-600V | |||||
Communication | ||||||||||
Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |||||
Certificate | ||||||||||
CE , MEA , PEA , AS 4777.2，EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011 , EN 50549-1:2019, IEC62109.1 , IEC62109.2, NRS 097-2-1:2017, G99, VDE-AR-N 4105:2018,DIN VDE V 0124-100:2020-06 | ||||||||||
Atess Working Principle
Hybrid solar energy storage inverter working principle
Model | SP-30KW | SP-50KW | SP-100KW | SP-150KW | |||
Rated power | 30kw | 50kw | 100kw | 150kW | |||
Sunpal 585w | 54pcs | 90pcs | 180pcs | 270pcs | |||
Conbiner box | 1pc | 1pc | 1pc | 1pc | |||
Hybrid inverter | ATESS HPS30 | ATESS HPS50 | ATESS HPS100 | ATESS HPS150 | |||
Lithium Battery | 51.2kWh x 1 | 51.2kWh x 2 | 51.2kWh x 3 | 51.2kWh x 4 | |||
PV cables 4mm2 | 600m | 800m | 1200m | 1800m | |||
MC4 connector | 20 pairs | 40 pairs | 60 pairs | 80 pairs | |||
Mounting system | Roof/Ground/Water | ||||||
SP585M-72H
Peak Power Watts: 585Wp
Maximum Power Voltage: 43.22V
Maximum Power Current: 12.96A
Open Circuit Voltage: 50.68V
Short Circuit Current: 13.76A
Dimensions: 2278×1134×30mm
Weight: 27.8kg
Maximum Power Voltage: 43.22V
Maximum Power Current: 12.96A
Open Circuit Voltage: 50.68V
Short Circuit Current: 13.76A
Dimensions: 2278×1134×30mm
Weight: 27.8kg
Commercial Hybrid Inverter
HPS 30-150KW
HPS 30-150KW
* All-in-one hybrid inverter
Battery, load, grid, solar connection all supported
* Programmable working mode
Peak-shaving, back-up, use the system however you want it
* Scalable design
Quadruple capacity by paralleling 4 units
* Dry contact output
Supports remote control of DG
Battery, load, grid, solar connection all supported
* Programmable working mode
Peak-shaving, back-up, use the system however you want it
* Scalable design
Quadruple capacity by paralleling 4 units
* Dry contact output
Supports remote control of DG
Sunpal Hi-Rack system is designed for commercial battery storage system, with more than 10 years design life and deeper DOD. Hi-Rack system is equipped with an intelligent battery control unit in each battery cluster, ensuring high-safety and high-effificiency system operation.
DC Fuses, DC Breaker, DC SPD
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Support full lifecycle data storage to ensure data security and reliability
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 30,35mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 30,35mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Sunpal Project Case
Why Choose Us
Sunpal is a distributor and wholesaler of solar energy systems. We have worked with hundreds of B2B customers from more than 50 countries.
Our business partners include installers, EPCs, distributors, wholesalers and manufacturers.
Our portfolio includes all things photovoltaic: panels, inverters and optimizers, battery storage, charging stations, mounting systems and PV accessories.
FAQ
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q2:What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3: How can I make sure it's a secure transaction ?
A3: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money.
Q4:What Certificate can we provide?
A4:CE , MEA , PEA , AS 4777.2，EN 61000-6-4:2007+A1:2011, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011, EN 50549-1:2019, IEC62109.1, IEC62109.2, NRS 097-2-1:201, G99, VDE-AR-N4105:2018, DIN VDE V 0124-100:2020-06.
Q5:Why choose us?
A5:With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center
Q2:What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3: How can I make sure it's a secure transaction ?
A3: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,
Alibaba will release us the money.
Q4:What Certificate can we provide?
A4:CE , MEA , PEA , AS 4777.2，EN 61000-6-4:2007+A1:2011, EN61000-6-2:2005, EN62109-1:2010, EN62109-2:2011, EN 50549-1:2019, IEC62109.1, IEC62109.2, NRS 097-2-1:201, G99, VDE-AR-N4105:2018, DIN VDE V 0124-100:2020-06.
Q5:Why choose us?
A5:With strong R&D, manufacture and quality control of inverter products;
We have built a comprehensive sales & marketing network and experienced after-service center
Похожие товары

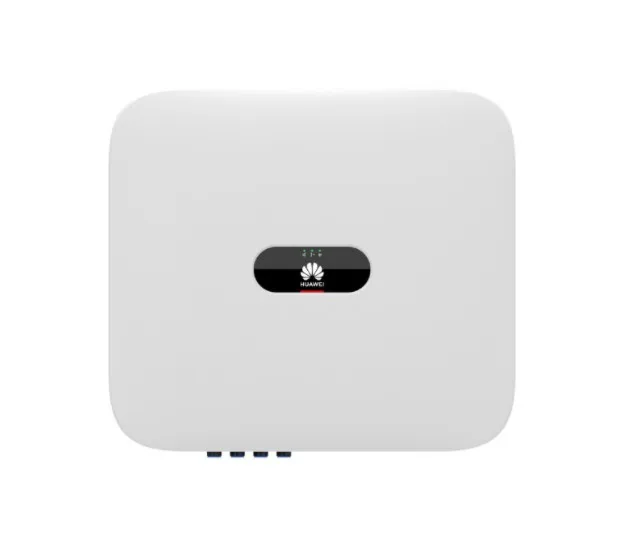

Hua Wei Solis Growatt Goodwe 30 кВт/36 кВт солнечный инвертор Sun2000-30/36/40 ktlm3 40 Солнечная система несколько продуктов от производителя
164 472,60 ₽ - 169 955,02 ₽
На сетке инвертор 350 Вт 300 500 600 700 MPPT PV солнечная панель система питания сетчатый микро
5 471,46 ₽ - 6 129,35 ₽

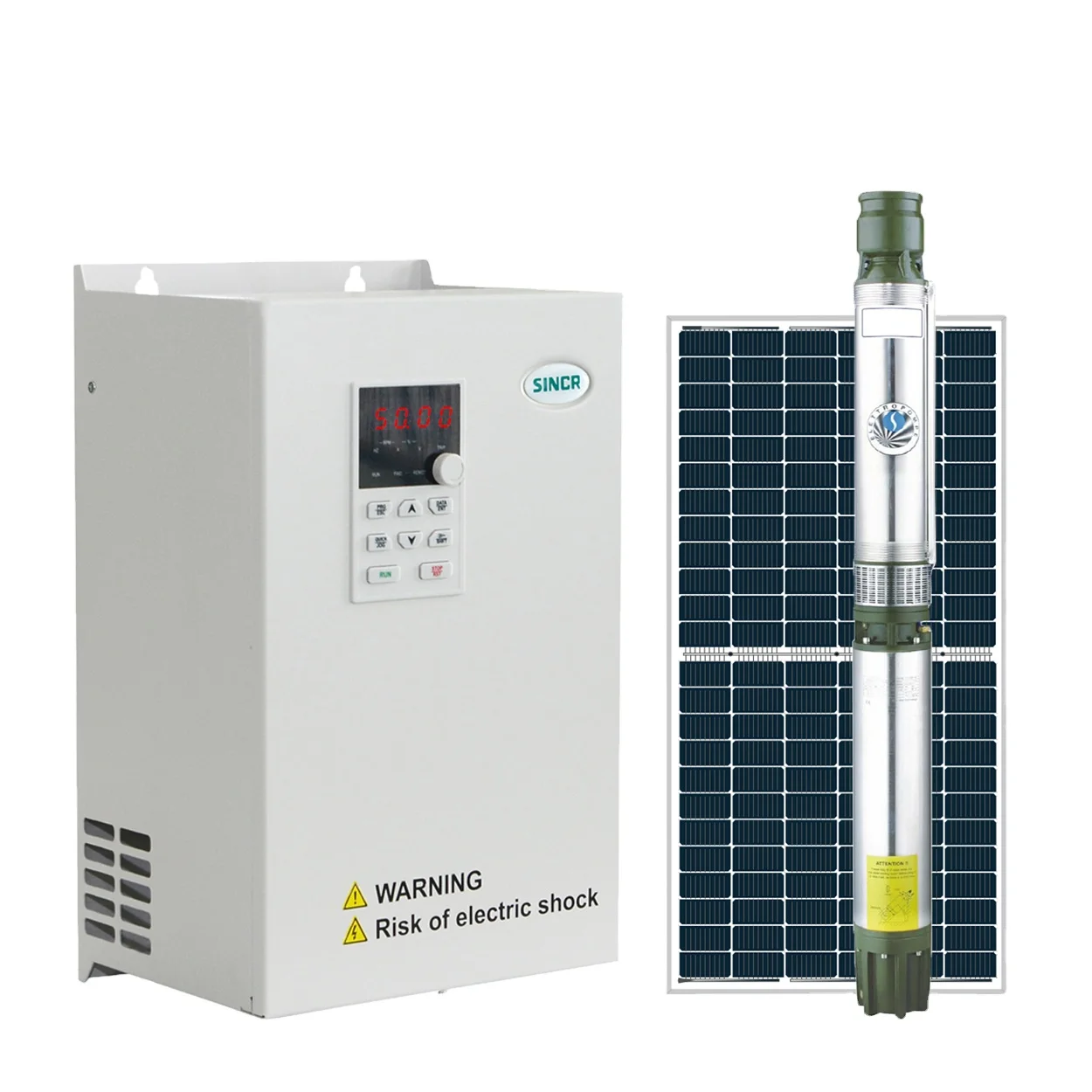

3-фазный солнечный насос инвертор с mppt и vfd солнечная панель инвертором для 2hp моторный
16 995,51 ₽

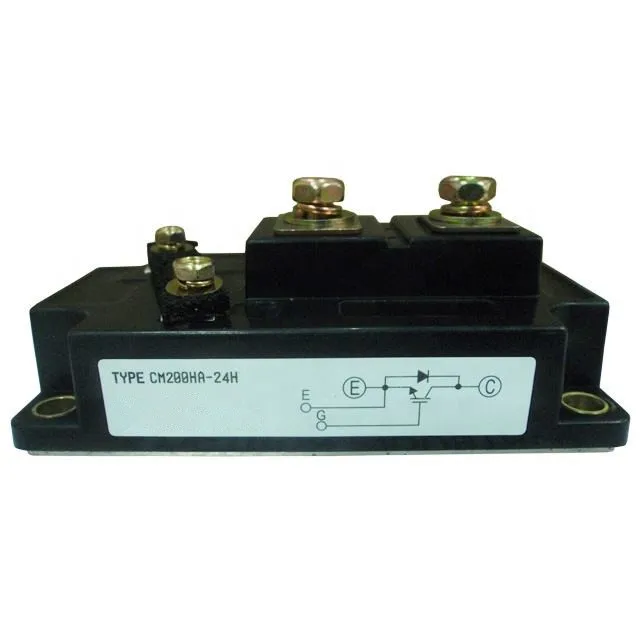

Детали лифта 200A 1200V CM200HA-24H IGBT модуль
4 934,18 ₽

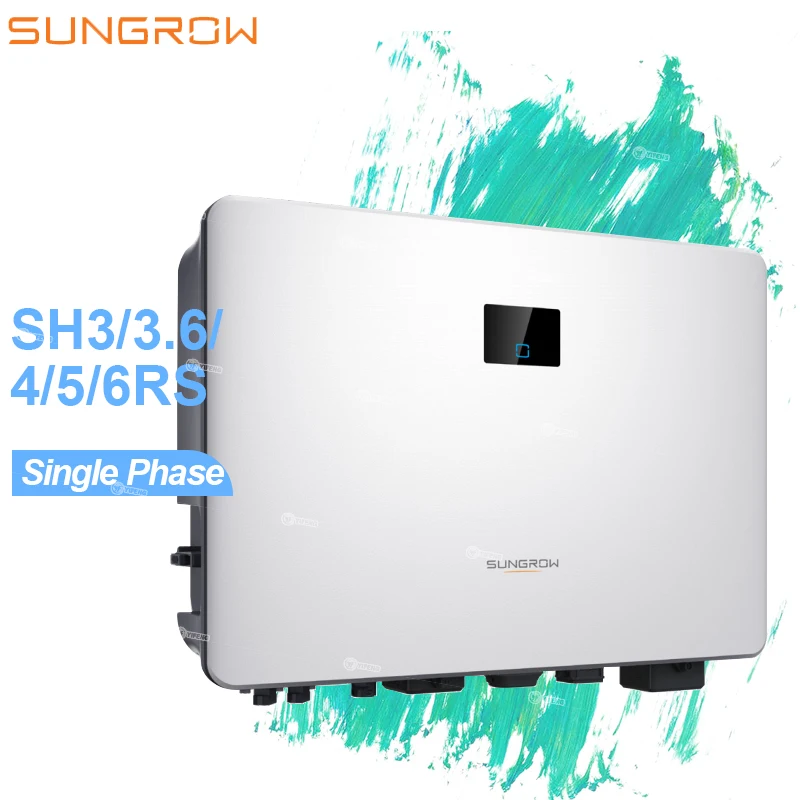

Sungrow Гибридный солнечный инвертор 50 кВА кВт 100 однофазный
57 017,17 ₽ - 74 560,92 ₽
3 6 кВт 5 однофазный MPPT чистый синусоидальный инвертор 24 В 48 солнечный с поддержкой Wi-Fi/GPRS удаленного мониторинга

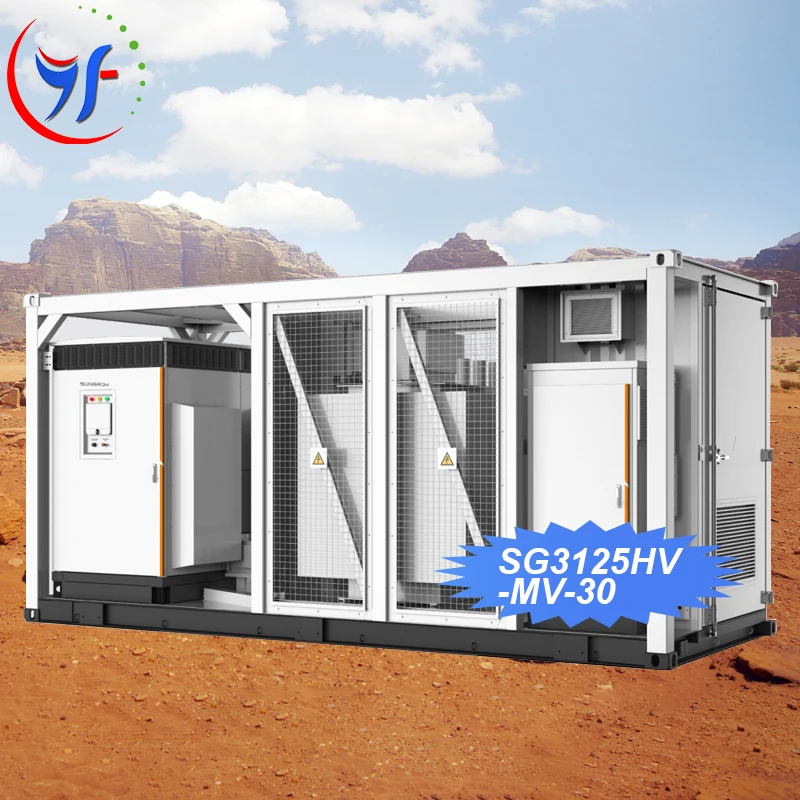

SG3125HV-MV-30 центральный инвертор PV модульный DC 1500V система станция под ключ для интегрированного MV трансформатора
