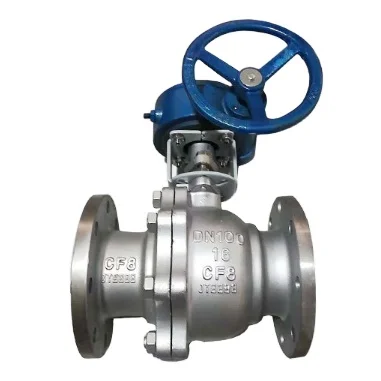

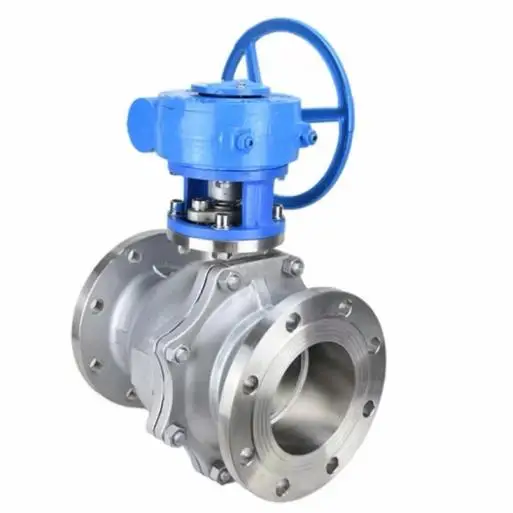

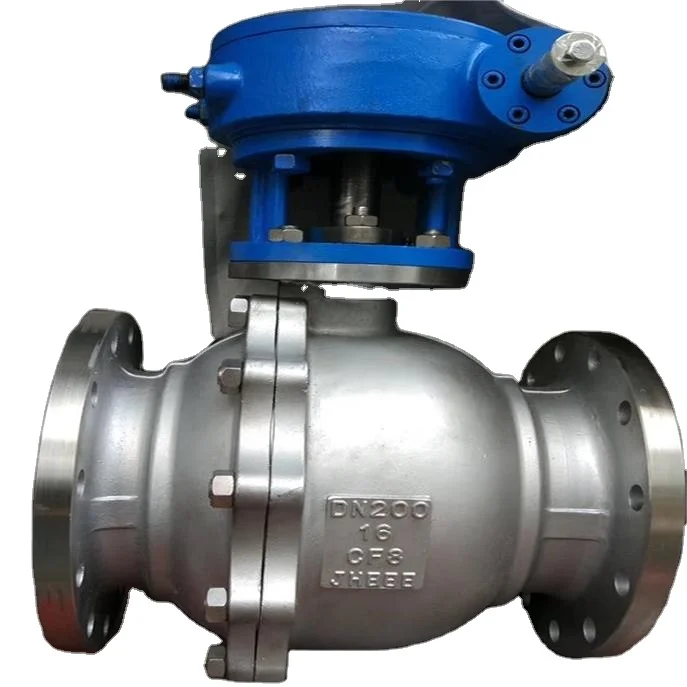

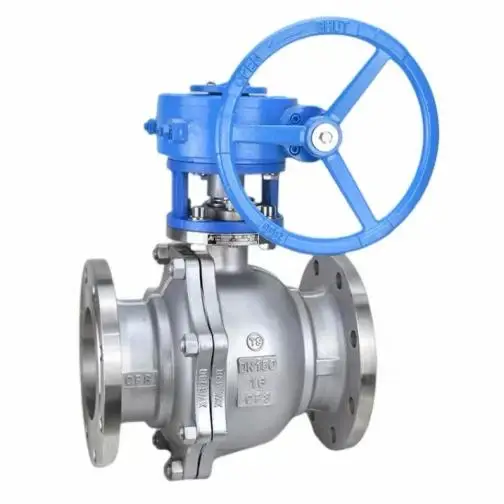

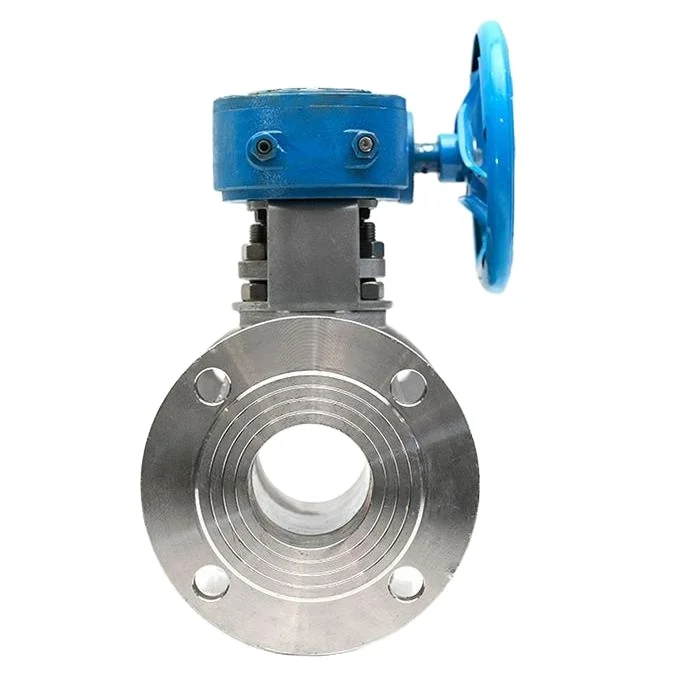

30 лет заводского производства шаровой клапан из нержавеющей стали червячный фланец гидравлический
- Категория: >>>
- Поставщик: Sichuan Jinhongshun Fluid Technology Co. Ltd.
Сохранить в закладки 1601276476993:
Описание и отзывы
Характеристики
Company Profile
Canton Fair.
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD.
3. Project of Hangzhou asian games village
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
Products Description
Among the various valves, the flow resistance of the ball valve is the smallest, and when the full-diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe are equal in diameter and form a diameter, and the medium can flow through almost without loss.
Suitable for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other
media.
The ball valve can be fully closed and fully opened by rotating 90°, and the opening and closing are fast. Compared with gate valves and globe valves of the same specifications, ball valves are small in size and light in weight, which is convenient for pipeline installation.
Suitable for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other
media.
Main features
1. Turbine switch is adopted, the switch is slow and easy to control the flow.
2. Using spring loading, when the valve is abnormally pressurized, the valve can automatically relieve pressure.
3. Easy switching.
4. Long service life.
5. Structural characteristics; It has the characteristics of full warp, emergency sealing, fire prevention and so on.
6. Flexible operation: the valve seat and stem bearing with small friction coefficient and good self-lubrication are adopted, which greatly reduces the operating torque of the valve. This enables flexible operation of the valve for a long time, even when no sealing grease is supplied
7. Sealing emergency grease injection rescue: due to the unexpected failure of the valve seat seal due to foreign matter or fire in the medium, the grease injection valve provides a quick connection with the grease injection gun, which is convenient and quick to inject the sealing grease into the sealing part of the valve seat to alleviate leakage.
2. Using spring loading, when the valve is abnormally pressurized, the valve can automatically relieve pressure.
3. Easy switching.
4. Long service life.
5. Structural characteristics; It has the characteristics of full warp, emergency sealing, fire prevention and so on.
6. Flexible operation: the valve seat and stem bearing with small friction coefficient and good self-lubrication are adopted, which greatly reduces the operating torque of the valve. This enables flexible operation of the valve for a long time, even when no sealing grease is supplied
7. Sealing emergency grease injection rescue: due to the unexpected failure of the valve seat seal due to foreign matter or fire in the medium, the grease injection valve provides a quick connection with the grease injection gun, which is convenient and quick to inject the sealing grease into the sealing part of the valve seat to alleviate leakage.
Relevant implementation standards
Design standards:GB/T12237,AP16D,ANSI B16.34
Flange connection structure length:GB/T12221,AP16D,ANSI B16.10
Length of structure (welded):GB/T15188.1,AP16D,ANSI B16.10
Connection flange:GB/T9113,JB/T79,Hg20592,ANSI B16.5、B16.47
Butt weld ends:GB/T12224,ANSI B16.25
Trials and inspections:GB/T9092,AP16D,AP1598
Flange connection structure length:GB/T12221,AP16D,ANSI B16.10
Length of structure (welded):GB/T15188.1,AP16D,ANSI B16.10
Connection flange:GB/T9113,JB/T79,Hg20592,ANSI B16.5、B16.47
Butt weld ends:GB/T12224,ANSI B16.25
Trials and inspections:GB/T9092,AP16D,AP1598
item | value | ||||
Application | General | ||||
Port Size | DN15~DN200 | ||||
Warranty | 3 years | ||||
Place of Origin | China | ||||
Shanghai | |||||
Model Number | Q341F-16P | ||||
Power | Hydraulic | ||||
Temperature of Media | High temperature, Low temperature, Medium temperature, Normal temperature | ||||
Brand Name | |||||
Structure | Ball | ||||
Media | Water | ||||
Customized support | OEM, ODM, OBM, Software reengineering | ||||
Design basis | GB series | American Standard series | |||
Design standards | GB/T12237 | AP16D | ANSI B16.34 | ||
Flange connection structure length | GB/T12221 | AP16D | ANSI B16.10 | ||
Length of structure (welded) | GB/T15188.1 | AP16D | ANSI B16.10 | ||
Connection flange | GB/T9113 JB/T79 Hg20592 | ANSI B16.5、B16.47 | |||
Butt weld ends | GB/T12224 | ANSI B16.25 | |||
Trials and inspections | GB/T9092 | AP16D | AP1598 | ||
Main parts and materials:
Part name | material |
Left valve body | CF8 |
sphere | F304 |
Sealing rings | PTFE |
Right valve body | CF8 |
Stem | F304 |
bracket | Q235 |
Main structure and connection dimensions
DN | d1 | L | H | W | Wt(kg) |
15 | 13 | 108 | 59 | 130 | 2.5 |
20 | 19 | 117 | 63 | 130 | 3 |
25 | 25 | 127 | 75 | 160 | 5 |
40 | 38 | 165 | 95 | 230 | 7 |
50 | 64 | 191 | 142 | 400 | 15 |
65 | 64 | 191 | 142 | 400 | 19 |
80 | 76 | 203 | 152 | 400 | 19 |
100 | 102 | 229 | 178 | 650 | 33 |
125 | 127 | 356 | 252 | 1050 | 58 |
150 | 152 | 394 | 272 | 1050 | 93 |
200 | 203 | 457 | 342 | 1410 | 160 |
FAQ
Похожие товары
30 лет Заводское производство шаровой клапан литой стальной рычаг внутренний резьбовой мини-шаровой

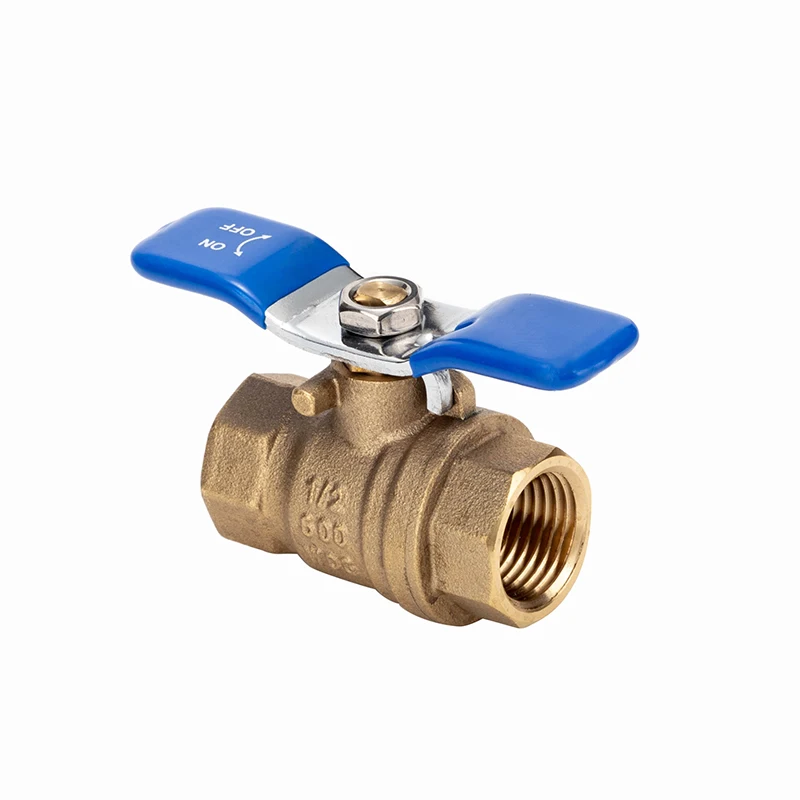

2-дюймовый латунный шаровой клапан
109,11 ₽ - 132,26 ₽
Шаровой клапан с резьбой высокого давления хорошее уплотнение долговечный шаровой из нержавеющей стали
30 лет заводского производства шаровой клапан гидравлический из нержавеющей стали червячный фланец
Fm одобренный оптовым заводским производителем Q11F-16P трехкомпонентный шаровой клапан с высокой платформой

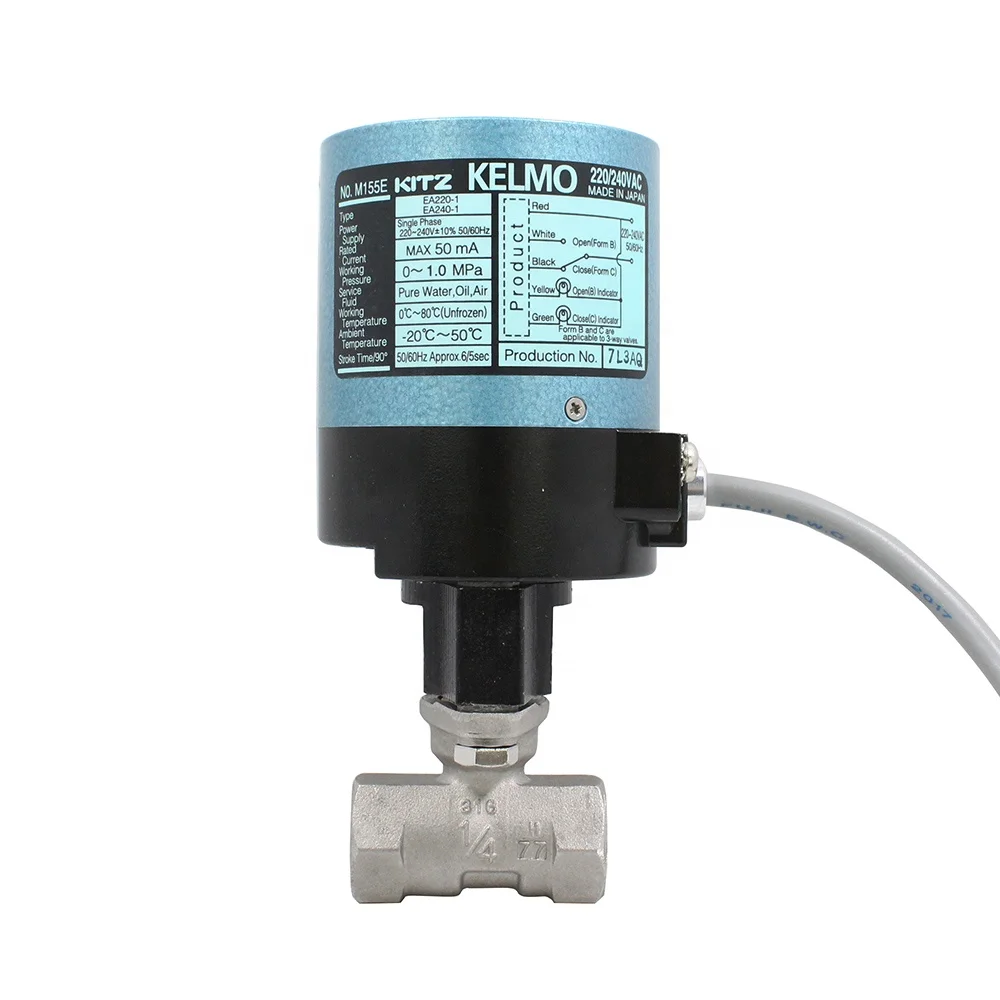

Электрические приводы типа KITZ класс 10K литые шаровые краны из нержавеющей стали EA200-UTGE для промышленности
