Product Overview
Mining Machinery 1500A New Type Wet Milling Machine Gold Ore Wheel Milling Machine Rolling Double-Wheel Stone Milling Machine
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

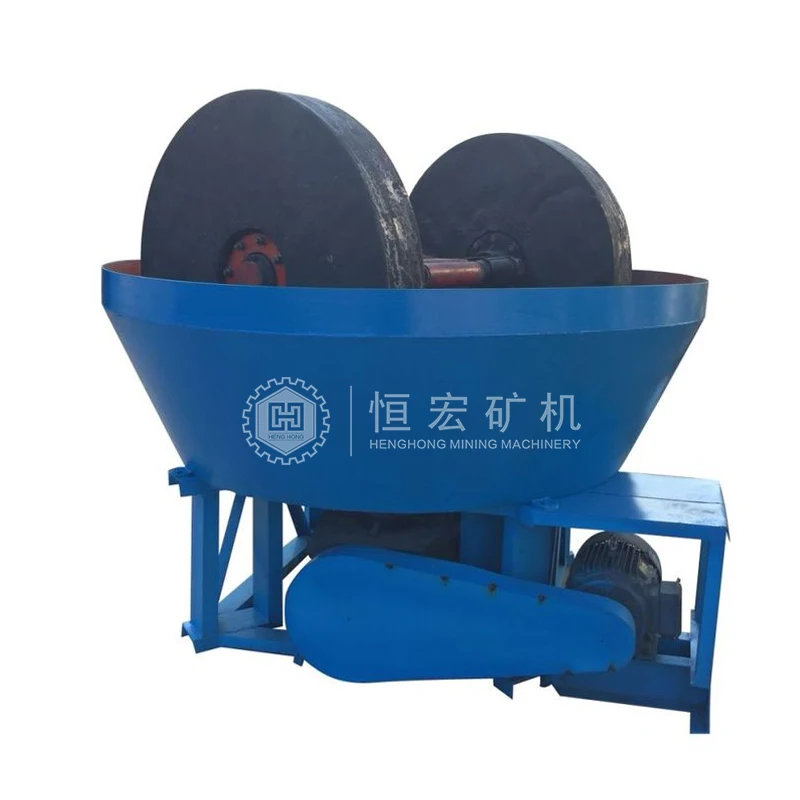

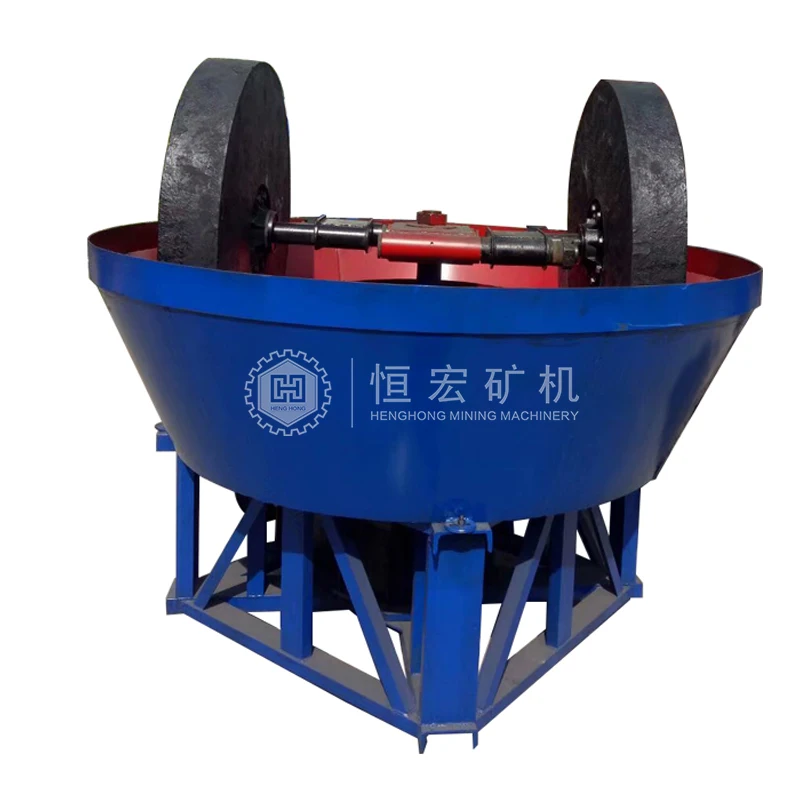

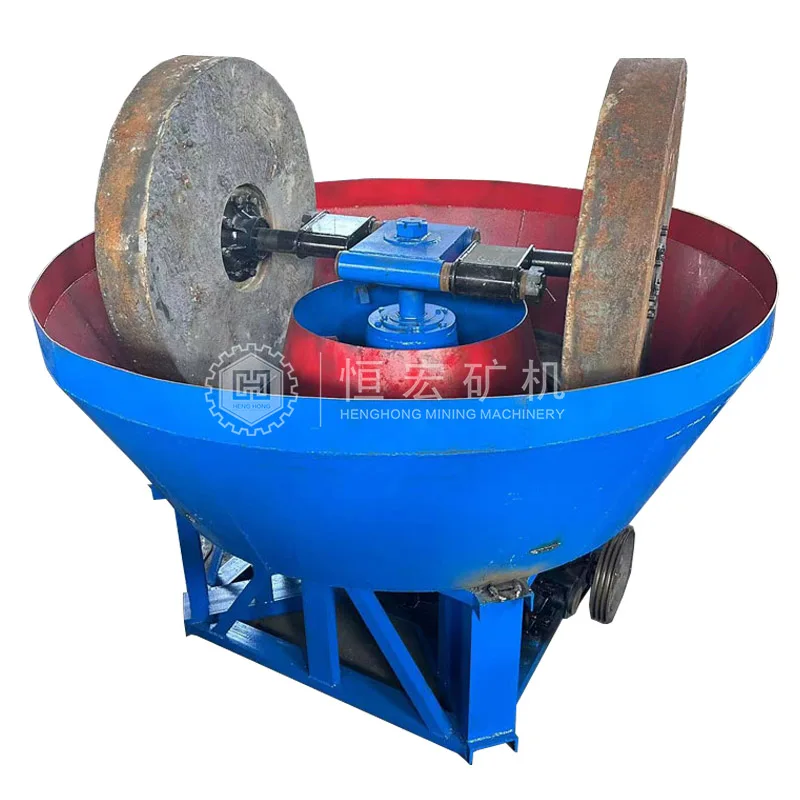

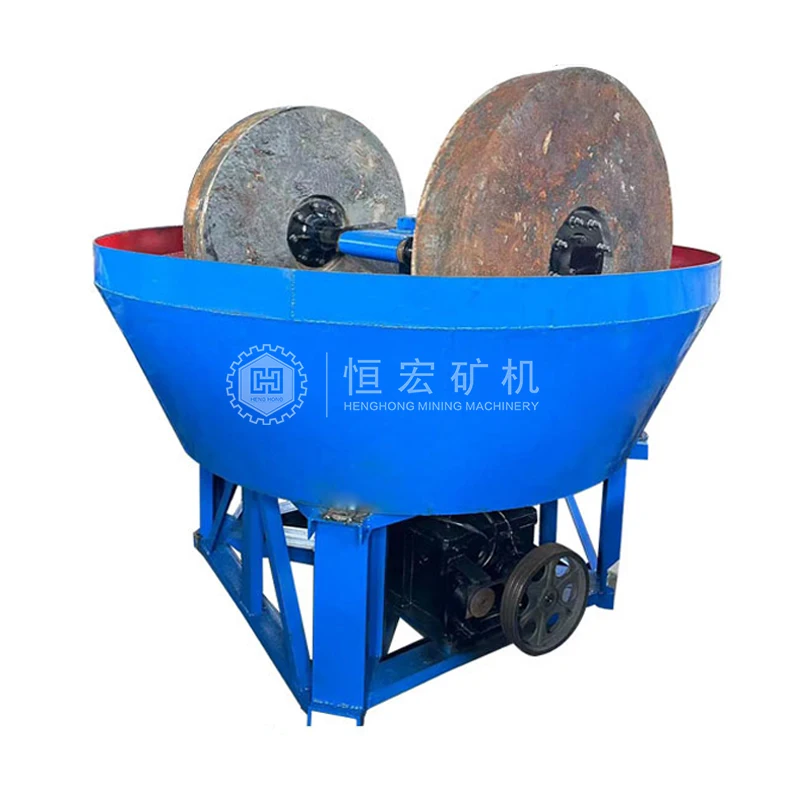

Wet Pan Mill Introduction
Wet pan mill also called gold stamp mill,gold grinding machine,gold round mill, gold grinding pan,edge runner mill,gold roller pan machine etc, it is versatile ore grinding equipment not only for grinding the minerals but also for gold amalgam. It is a best replacement for medium-small capacity ball mill, owing to the excellent performance for wet crushing, small investment and high output.
Product Parameters
Model | Specification (mm) | Feeding Size(mm) | Discharge size (mm) | Capacity （t/h） | Speed（r/min） | Power (KW) | Weight (KG) |
1600A | 1600*400*200*500±20 | ＜30 | 0.07-0.6 | 4-5 | 20-22 | 30 | 14.5 |
1500A | 1500*350*150*460±20 | ＜30 | 0.07-0.6 | 3-4 | 20-22 | 22 | 13.5 |
1500B | 1500*300*150*420±20 | ＜30 | 0.07-0.6 | 2.5-3 | 20-22 | 18.5 | 13.5 |
1400A | 1400*350*150*350±20 | ＜20 | 0.07-0.6 | 2-2.5 | 21-23 | 15 | 8.5 |
1400B | 1400*300*150*350±20 | ＜20 | 0.07-0.6 | 1.5-2 | 21-23 | 15 | 8.5 |
1300A | 1300*250*150*350±20 | ＜20 | 0.07-0.6 | 1.5 | 21-23 | 11 | 7.5 |
1300B | 1300*200*150*350±20 | ＜20 | 0.07-0.6 | 1-1.5 | 21-23 | 11 | 7.5 |
1200A | 1200*200*80*270±20 | ＜20 | 0.07-0.6 | 0.9-1.2 | 21-23 | 7.5 | 5.5 |
1200B | 1200*180*80*250±20 | ＜20 | 0.07-0.6 | 0.8-1.0 | 16-18 | 7.5 | 5.5 |
1100B | 1100*180*80*250±20 | ＜20 | 0.07-0.6 | 0.6-0.8 | 16-18 | 5.5 | 4.5 |
1000 | 1000*200*80*250±20 | ＜20 | 0.07-0.6 | 0.5 | 16-18 | 5.5 | 4 |
900 | 900*150*60*200±20 | ＜15 | 0.07-0.6 | 0.3 | 17-19 | 5.5 | 3 |
Working Principle
Working Principle: Wet pan mill adopts the working mode of the wheel-type grinding: firstly, the electric motor drives the power to the speed reducer, and the torque is transmitted to the upper horizontal shaft through the large vertical shaft driven by the speed reducer.Then, the tie rods installed at both ends of the horizontal axis are transmitted to the grinding wheel, so that the grinding wheel generates driving force, and the counterclockwise rotation motion is performed along the horizontal direction of the horizontal axis. The working wheel can not only revolve around the large vertical axis of the wet mill, but also rotate around the central axis of the roller, and the grinding disc is fixed. The added ore material is subjected to the pressing force from the weight of the drum itself in the mill. When the roller rotates and rotates, the huge friction generated by the grinding disc is completely crushed after repeated extrusion, smashing and grinding.
Main Features
3) Low energy consumption, No noise.
4) Simple structure, easy to operate and maintenance.
5) Professionally-designed, thus its technical data is reasonable. 6) Wearable grinding roller, longer service life.
1) Uniform grinding, fine output size can be 0.6-0.07mm.
2) Lower cost than ball mill machine.3) Low energy consumption, No noise.
4) Simple structure, easy to operate and maintenance.
5) Professionally-designed, thus its technical data is reasonable. 6) Wearable grinding roller, longer service life.
Packing & Delivery
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity (LCL or FCL), container have 20GP/40GP/40HQ etc;
※ Other ways as customer requested (such as the buyer can arrange their own cooperated forwarder to pick up the goods from our factory).

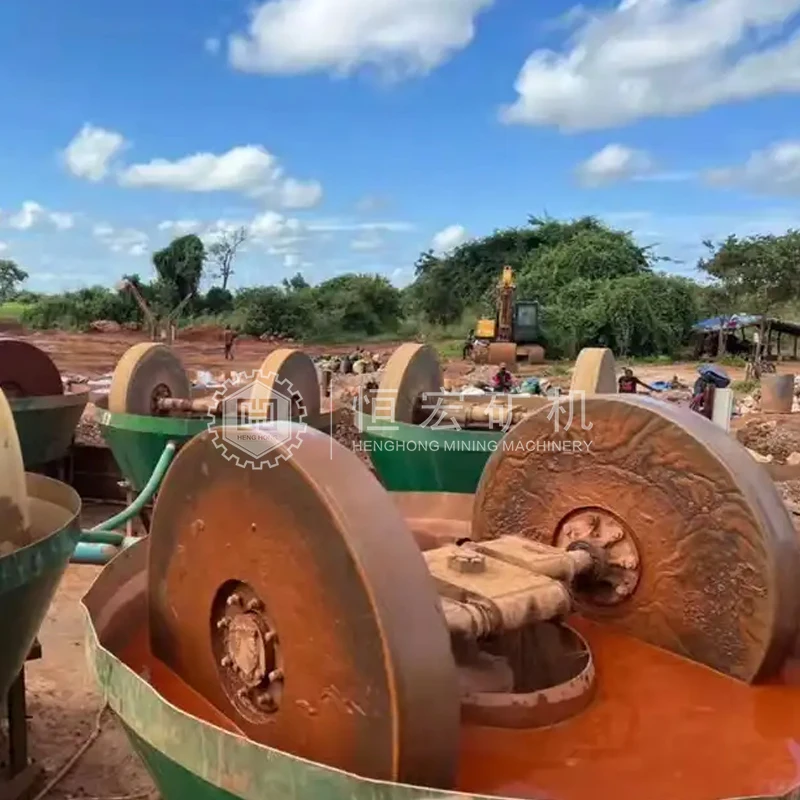

Successful Project
Wet Pan Mill Project in Zimbabwe
Wet Pan Mill Project in Uzbekistan
Wet Pan Mill Project in Peru
Wet Pan Mill Project in Thailand
Wet Pan Mill Project in Mexico
Wet Pan Mill Project in Indonesia
Wet Pan Mill Project in Sudan
Wet Pan Mill Project in Mongolia
Wet Pan Mill Project in Australia
Related Products
FAQ
Q1: Are you manufacturer or trade company?
A1: We are One-stop service and original manufacturer has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Похожие товары
Shanghai Zenith XZM221 запасные части для мельницы измельчения порошка имеют достаточный запас шлифовального кольца
14 500,00-14 800,00 $
Shanghai Zenith XZM268 запасные части для мельницы измельчения порошка имеют достаточный запас шлифовального кольца
14 500,00-14 800,00 $

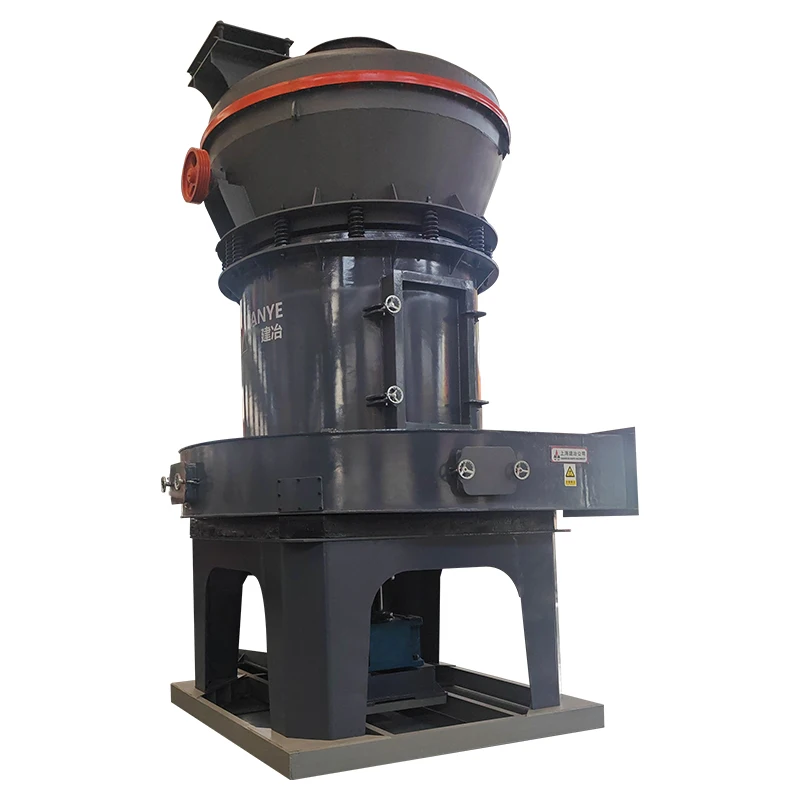

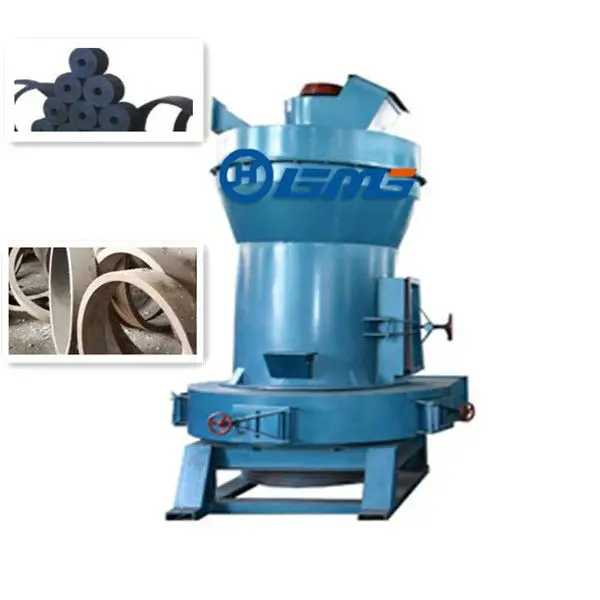

YGM75 Raymond mill grinding
Мельница Raymond-высокая эффективность низкое энергопотребление длительный срок службы! Экономьте деньги с нашей доступной ценой!
100 000,00 $

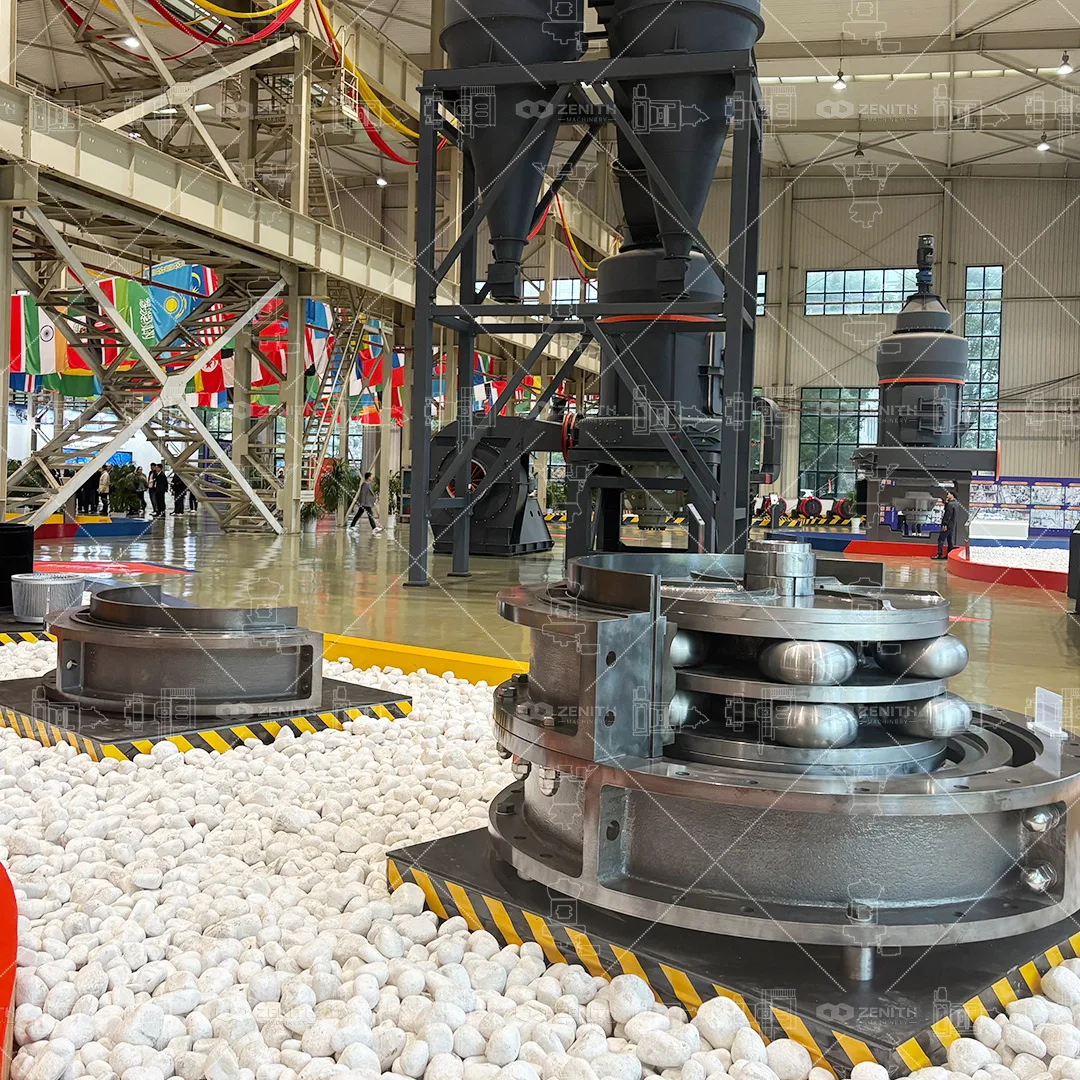

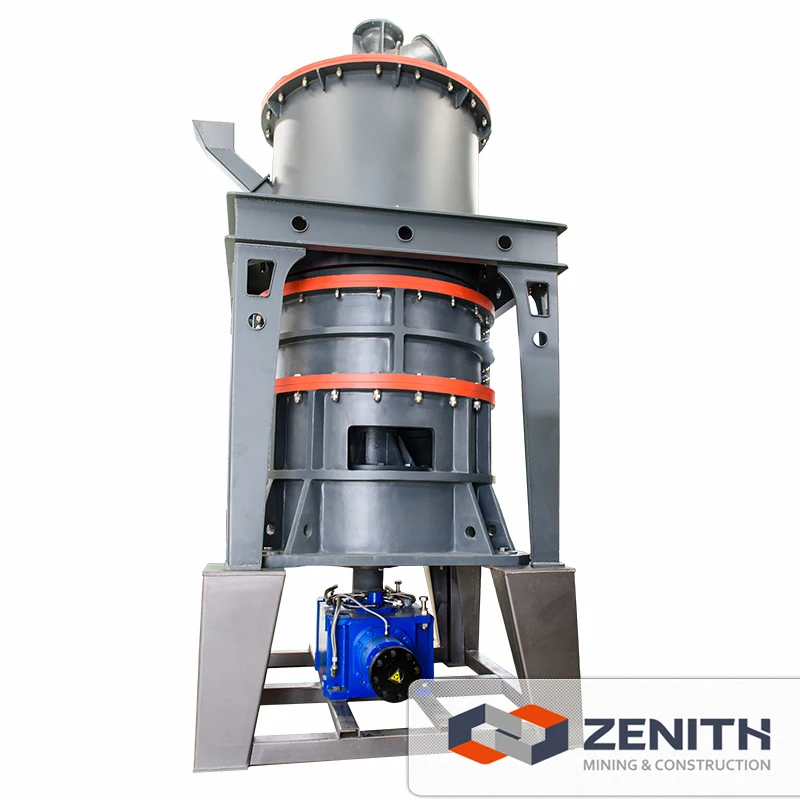

Shanghai Zenith XZM микро-порошковая мельница создает высококачественный Бентонитовый Порошок для гранул стального завода
14 500,00-14 800,00 $

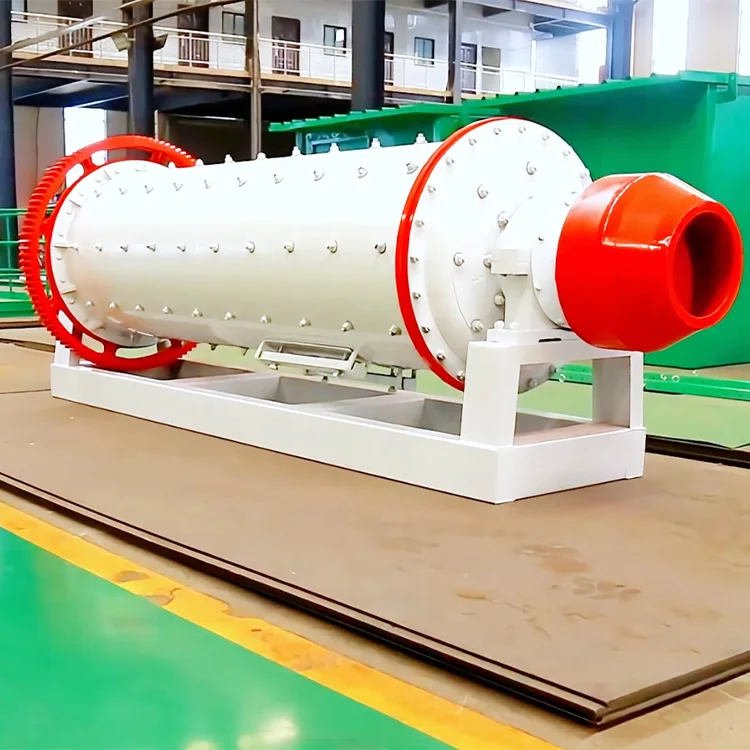

Высококачественная китайская мини хромитовая шаровая мельница для измельчения золотой руды
12 400,00-18 600,00 $

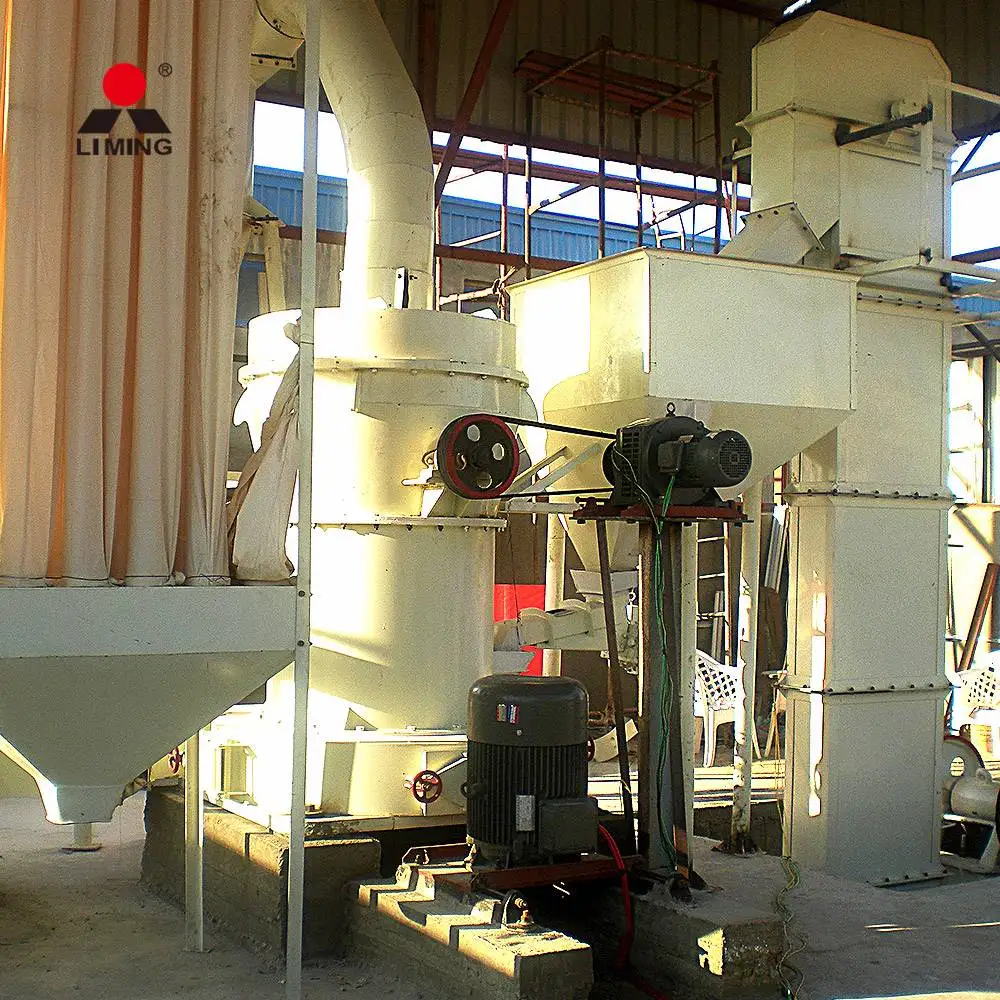

Напрямую с фабрики известняк Raymond шлифовальный станок
