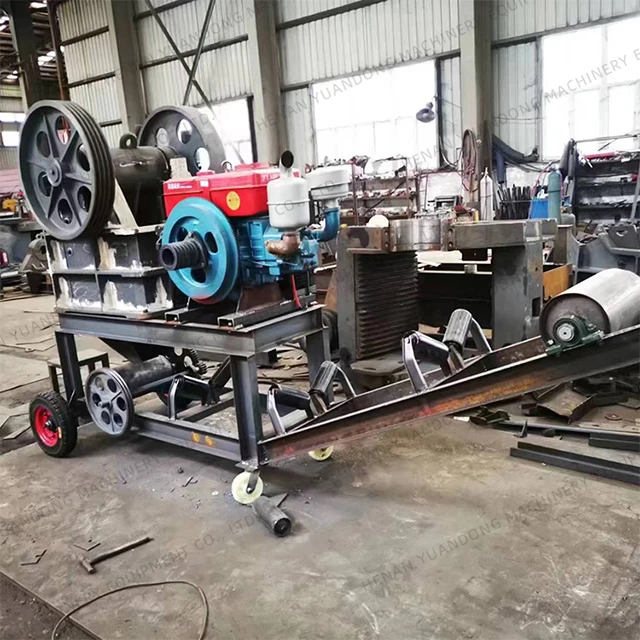

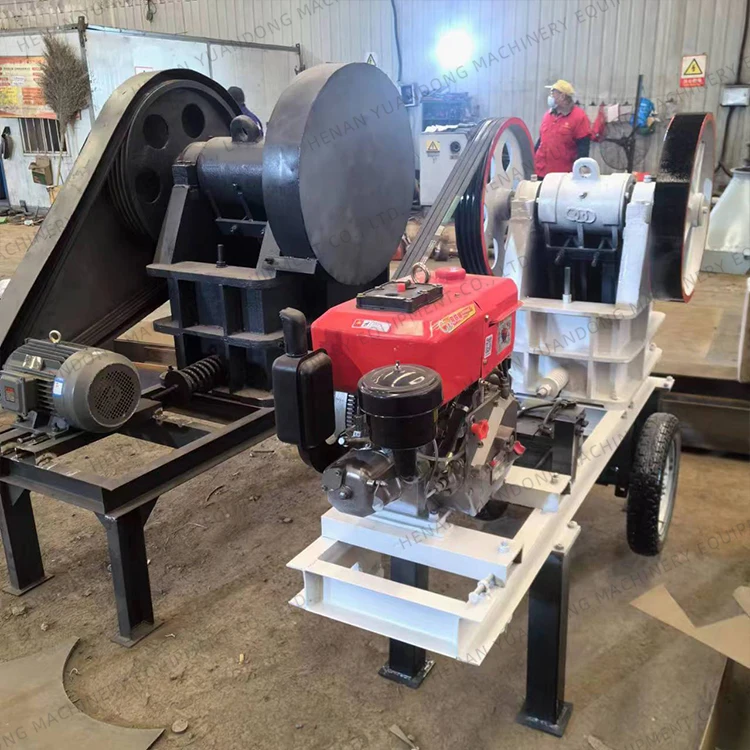

Портативная Мобильная Дробильная дробилка с большим коэффициентом дробления 250*400 600x900 устройством регулировки размера
- Категория: >>>
- Поставщик: Henan Yuandong Machinery Equipment Co. Ltd.
Сохранить в закладки 1601276937091:
Описание и отзывы
Характеристики
Product Description

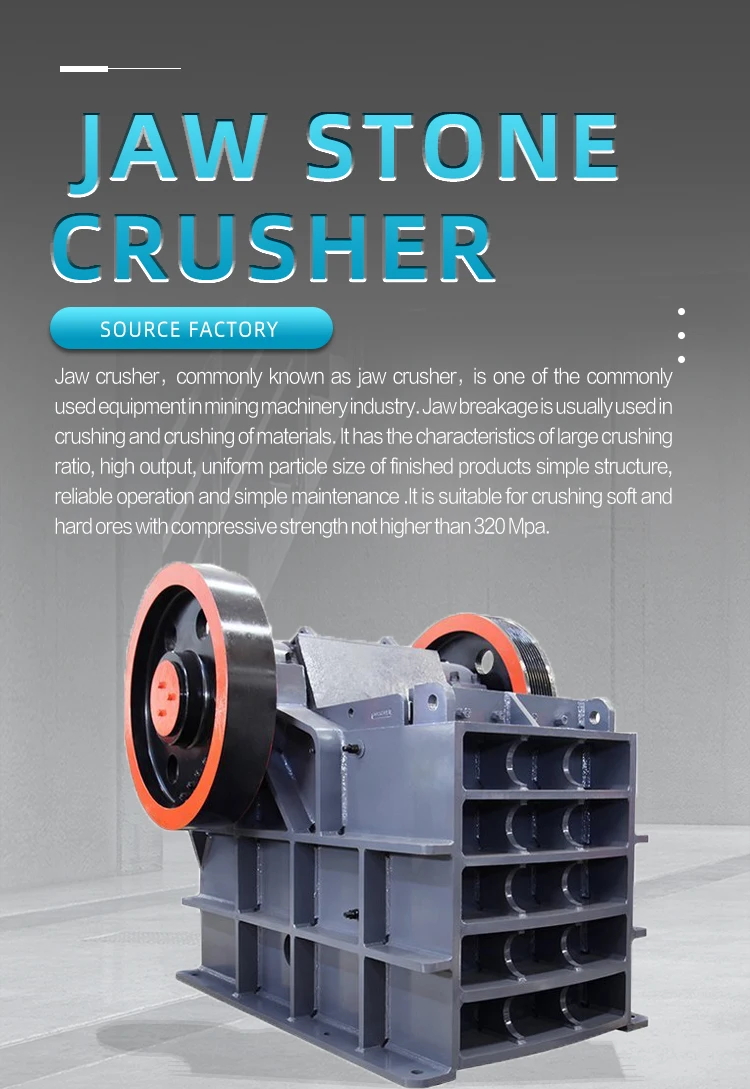

Jaw Crusher Machine
Jaw crusher is a type of crushing equipment for reducing different materials into smaller
sizes in mining, metallurgy, chemical, construction, industries, etc. It is also known as the primary jaw crusher since usually used in the first stage of coarse crushing.
The material which the jaw crusher deals with is large. The rock reduced by jaw crusher is ready for impact crusher and cone crusher to do the medium and fine crushing. Jaw crusher is currently the most common crushers for sale in the world. Equipped with high-manganese-steel jaw plates, it can crush ores, rocks, steel slag, and other hard materials.Crushing Plant
The material which the jaw crusher deals with is large. The rock reduced by jaw crusher is ready for impact crusher and cone crusher to do the medium and fine crushing. Jaw crusher is currently the most common crushers for sale in the world. Equipped with high-manganese-steel jaw plates, it can crush ores, rocks, steel slag, and other hard materials.Crushing Plant
Various Models
Model | PE-250×400 | PE-400×600 | PE-500×750 | PE-600×900 | PE-750×1060 |
Inlet size (mm | 250×400 | 400×600 | 500×750 | 600×900 | 750×1060 |
Max.feed size(mm) | 210 | 340 | 425 | 500 | 630 |
Outlet size（mm） | 20-60 | 40-100 | 50-100 | 65-160 | 80-140 |
Capacity(t/h) | 5-20 | 16-60 | 40-110 | 50-180 | 110-320 |
Eccentric shaft speed (r/min) | 300 | 275 | 275 | 250 | 250 |
Power(kw) | 15 | 30 | 55 | 75 | 90-110 |
Machine size(mm) | 1300×1090×1270 | 1730×1730×1630 | 1980×2080×1870 | 2190×2206×2300 | 2660×2430×2800 |
Weight(t) | 2.8 | 7 | 12 | 17 | 29 |
Product Details
Working Principle

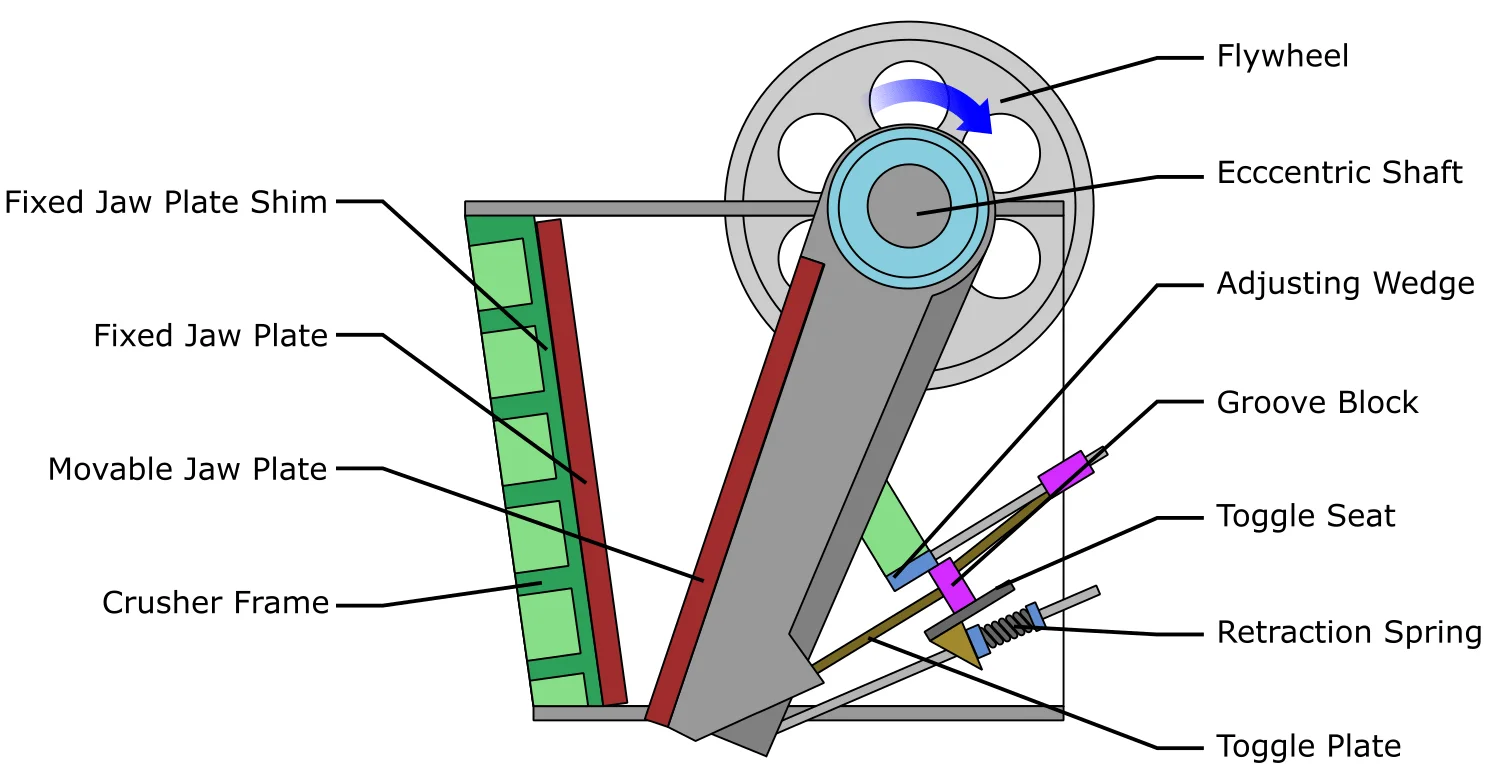

The crushing part of the jaw crusher is composed of two jaw plates, one is a fixed plate, which is vertically fixed on the inner front wall of the machine body, the other one is a movable plate, which is inclined and fixed to form a wide upper and narrow lower crushing cavity with the fixed plate. The movable jaw plate makes periodic reciprocating movements against the fixed jaw
plate. When separating, materials enter the crushing chamber and when closed, materials between the two plates will be crushed and split. In addition, the narrow bottom of the crushing chamber is used to size the discharge material. After crushing, materials will be discharged from the bottom of the machine.
plate. When separating, materials enter the crushing chamber and when closed, materials between the two plates will be crushed and split. In addition, the narrow bottom of the crushing chamber is used to size the discharge material. After crushing, materials will be discharged from the bottom of the machine.
Even particles
High capacity
Large crushingratio Convenient maintenance
Simple structure Low production cost

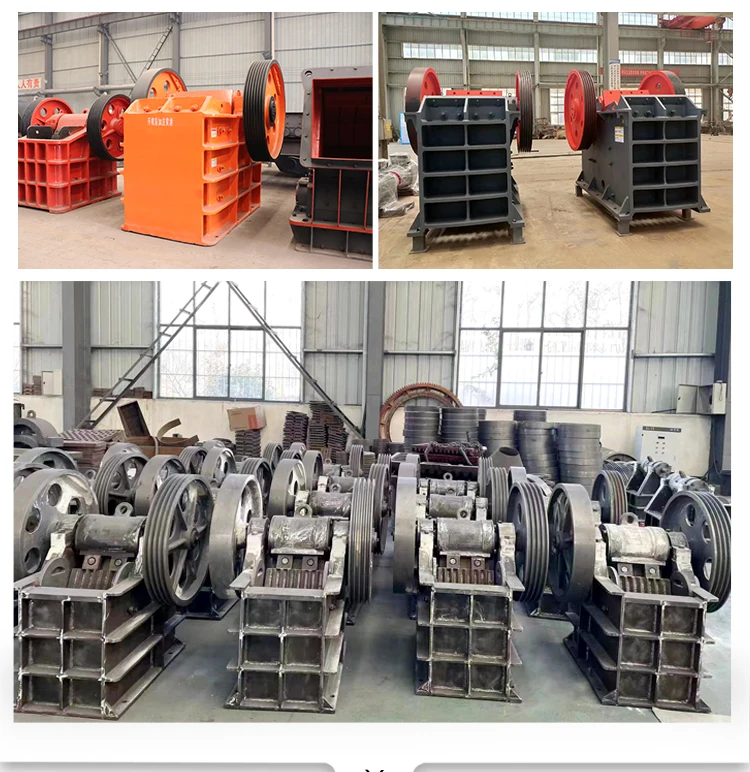

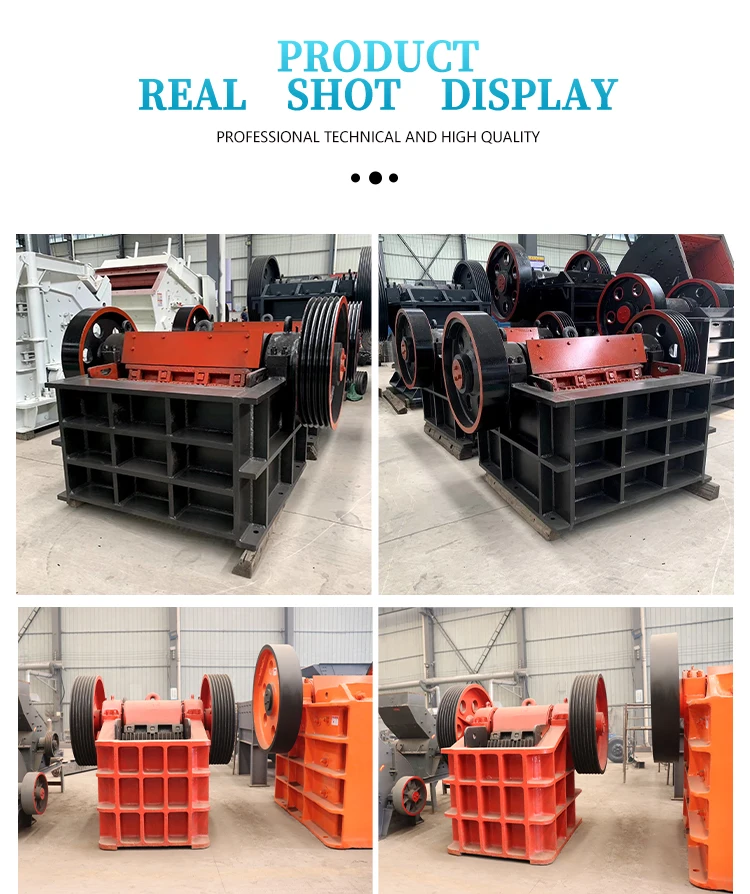

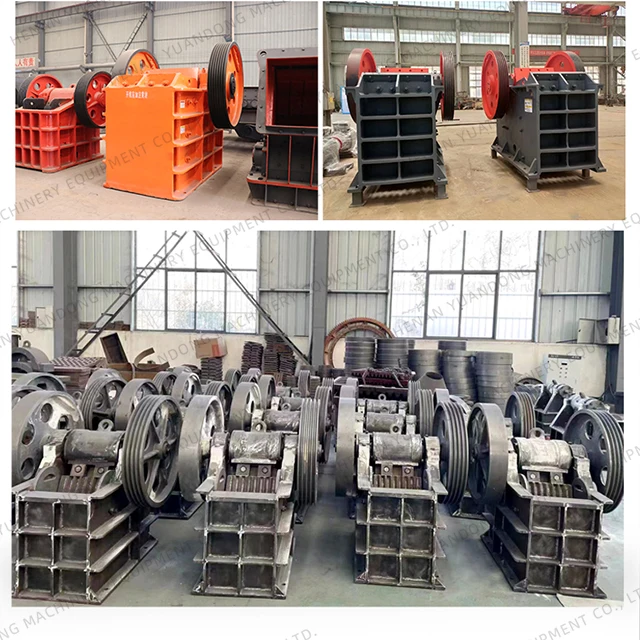

Product Display

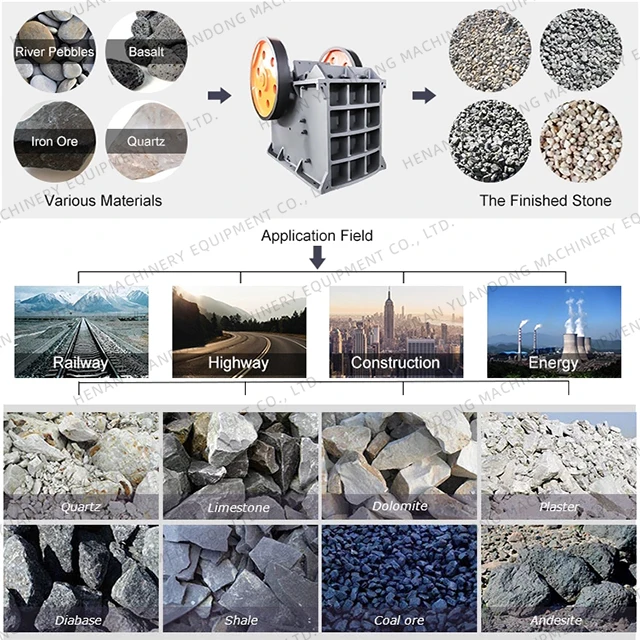

Performance and Application
The jaw crusher can process almost all the rocks and minerals, such as basalt, pebble, iron ore, limestone, granite, quartz stone, shale, gravel, river pebble, blue stone, gypsum, construction waste, building aggregates, etc. In other words, it can turn all types of stones into useful materials.
It is widely used to crush ore and large pieces of material in mining smelting, building material, road railway construction, water conservancy, and chemical industry,etc.
Our Advantages
Yuandong offers jaw crushers with the advantages of simple structure, reliable work, low
operating cost. It can meet a wide range of output requirements and crush the materials into ideal size high-efficiently.
operating cost. It can meet a wide range of output requirements and crush the materials into ideal size high-efficiently.
1.High Reliability
The movable jaw assembly is composed of high-quality steel castings, and the heavy eccentric shaft is processed by forging stock so that the equipment has extraordinary reliability and durability.
The movable jaw assembly is composed of high-quality steel castings, and the heavy eccentric shaft is processed by forging stock so that the equipment has extraordinary reliability and durability.
2. High Strength
We adopt the finite element analysis technology, and the integral cast steel bearing block guarantees the complete cooperation with the frame, greatly enhances the radial strength of the bearing block so that the equipment has a higher strength.
We adopt the finite element analysis technology, and the integral cast steel bearing block guarantees the complete cooperation with the frame, greatly enhances the radial strength of the bearing block so that the equipment has a higher strength.
3.Strong Bearing Capacity
Larger and more durable eccentric shaft bearings and toothed guard plates make the equipment has a stronger bearing capacity, higher output and longer service life.
Larger and more durable eccentric shaft bearings and toothed guard plates make the equipment has a stronger bearing capacity, higher output and longer service life.
Packing & Delivery

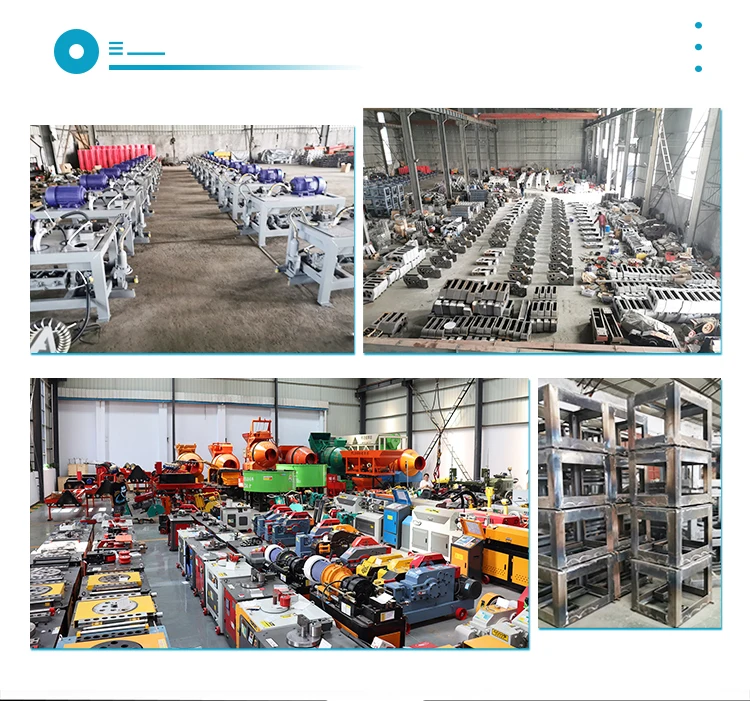

Company Profile
