Концентратор для промывки железной руды
576 823,00 ₽ - 643 379,50 ₽
Горячая распродажа мобильный завод по добыче золота
- Категория: >>>
- Поставщик: Henan Hengtailong Machinery Co. Ltd.
Сохранить в закладки 1601280322513:
Описание и отзывы
Характеристики
Product Description
1-2tph High Performance Process Plant Gold Cil Mini CIP Plant Machine
Hard carbon particles (much larger than the ore particle sizes) can be mixed with the ore and cyanide solution mixture.
The gold cyanide complex is adsorbed onto the carbon until it comes to an equilibrium with the gold in solution.
The gold cyanide complex is adsorbed onto the carbon until it comes to an equilibrium with the gold in solution.
Because the carbon particles are much larger than the ore particles, the coarse carbon can then be separated from the slurry by screening using a wire mesh.
Product Application
In addition to separate gold, the process can also be used for flotation of copper ore, lead and zinc ore, hematite ore, tin ore,graphite ore, tungsten ore and other metals and non-metal ore.
Working Principle
Timesaver in the leaching process, thus reducing the production expenditure. Besides, advanced extraction technology improving the efficiency of gold extraction.
The CIL production line is wider use than CIP in the mineral industry.
Gold Processing Steps,Introduction of gold CIL production line:
A.RAW MATERIAL PREPARATION:Vibration feeder- conveyor belt- crusher -Crushing- grinding- leaching- desorption electrolysis-tailings dehydration.
B.LEACHING and elimination: The thickened material is leached from eight agitators; a qualified reagent is added to the first setof agitators, and the activated carbon is lifted from the last set of agitators to the second set of agitators via an airlift to resist electric currents The activated carbon from the second set of agitators is raised to a carbon screen to obtain gold-loaded carbon, and the remaining slurry is returned to the first set of agitators And then into the tailwater treatment phase.
C.Tail Water Treatment:The tailings will be raised to pressure filter, filter cake known as tailings, through the belt conveyor and truck transport to the yard, filtrate into the circulating water tank for reuse.
D.AURIFEROUS CARBON TREATMENT: Gold powder is obtained by batch treatment of gold-containing carbon by desorption and electrolysis equipment.
The dust enters the furnace and turns to the bar.
The gold-containing carbon after electrolysis can be returned to the final stage of the reprocessing flowchart.
Main Equipment
This complete CIP gold process plant includes a feeding machine, jaw crushers, fine jaw crusher, belt conveyor, vibration screen,ball mill, thickener, leaching & adsorption agitation tanks, desorption electrolysis system, tailing water recycle system,and all the other needed accessories.

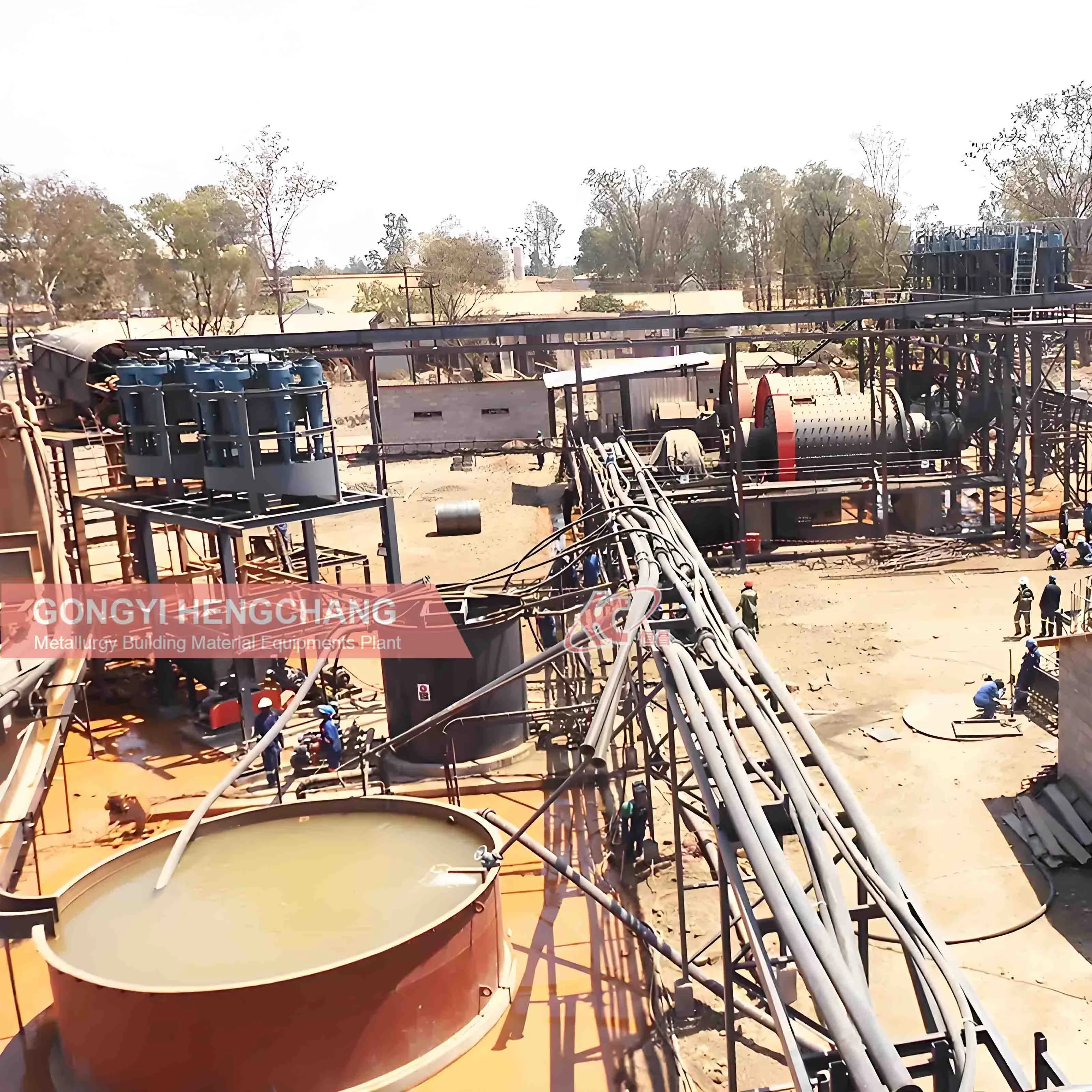

Crushing and Grinding system

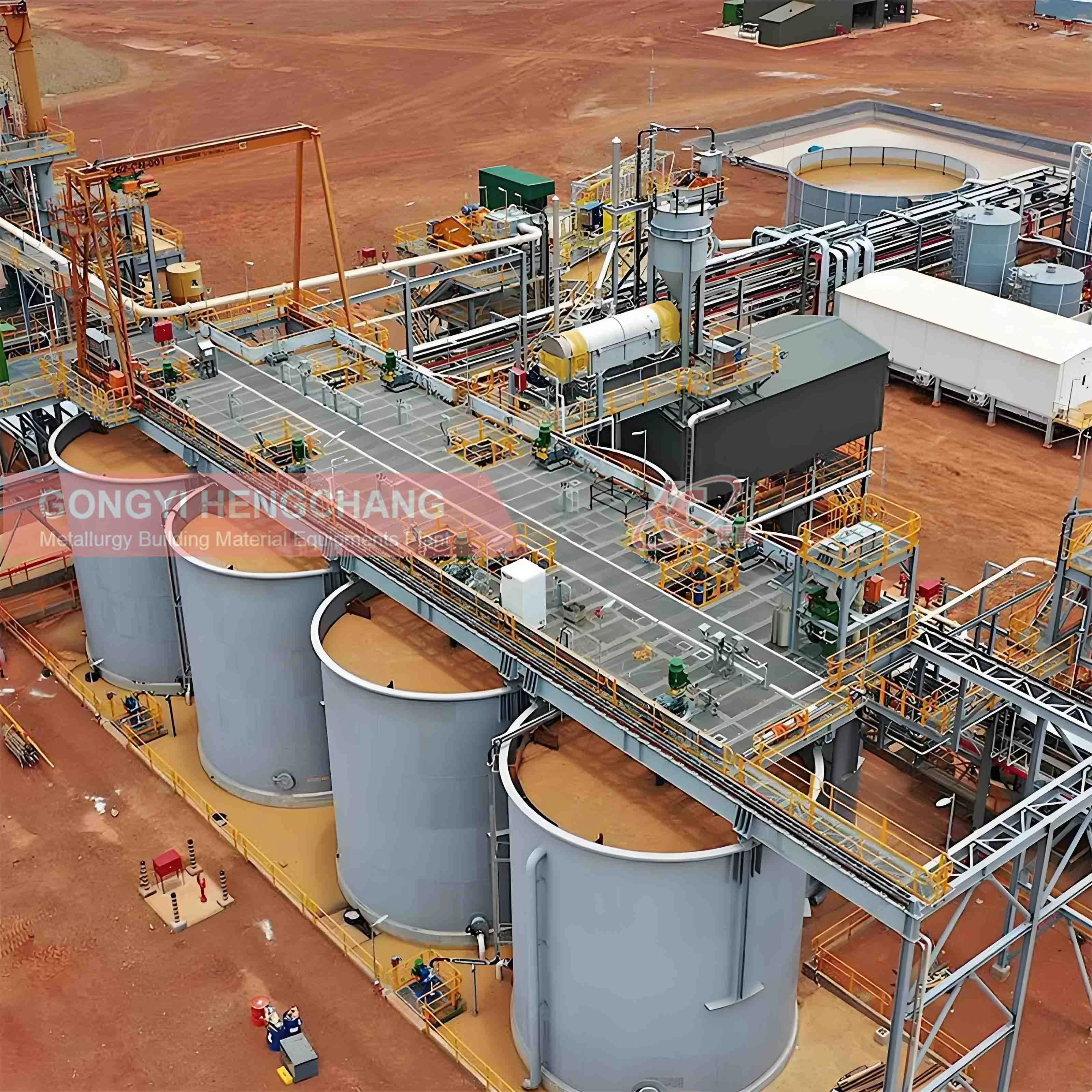

Leaching System
Fter the ore pulp adding cyanide, it will be pumped to leaching tank, usually we adopts 8 leaching tanks, installed in stair-stepping, the toppest two is preleaching tank, will add actived carbon from lowest one, then use carbon lifting pump and carbon screen to lift the gold carried carbon one by one till highest. After leaching, gold mud in grade about 30-40% will feed
into electrolysis machine or melting furnace to separate gold and carbon, after this step, the carbon can be recycled by acid and
water washing tank. At last the gold grade will be at 98% above.
into electrolysis machine or melting furnace to separate gold and carbon, after this step, the carbon can be recycled by acid and
water washing tank. At last the gold grade will be at 98% above.
Thickening Syetem
Under the thickner, there is enough space to build several warehouse and install a chemical mix tank.
Company Profile
Gongyi Hengchang Metallurgical Building Materials Equipment Factory is located in Zhengzhou, Henan Province, China, specializing in the research and development, manufacturing, and sales services of mining equipment. We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
Customer Visits
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
Похожие товары
Концентратор для добычи золота
432 617,25 ₽ - 554 637,50 ₽
Установка для обогащения золотистой руды
550 334,50 ₽
Профессиональный производитель установка для обработки золотого хвоста один резервуар CIP
550 334,50 ₽

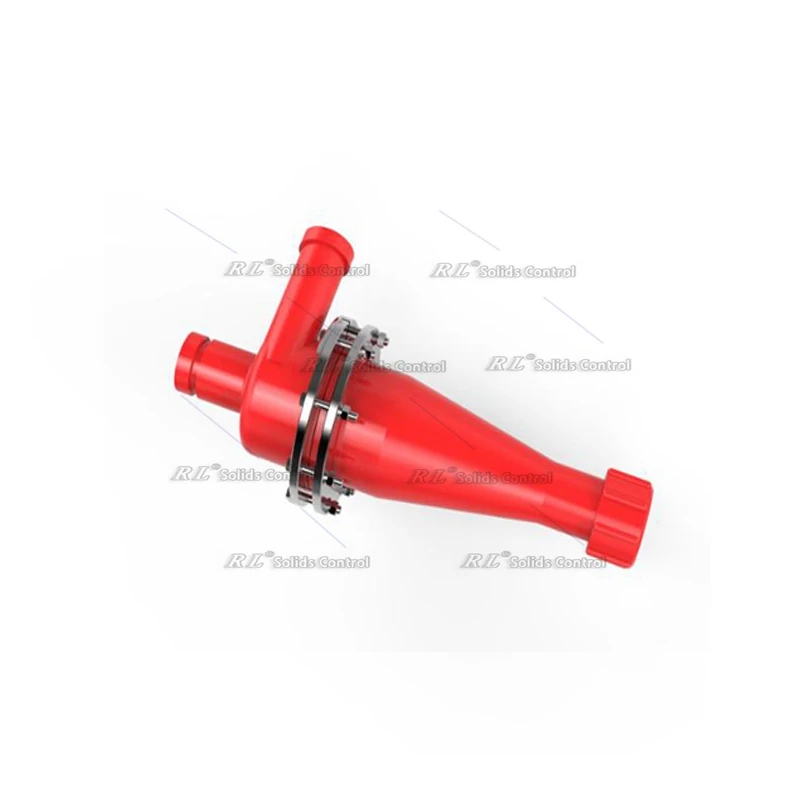

Эффективный сепаратор гидравлический циклон
8 874,20 ₽ - 9 761,62 ₽

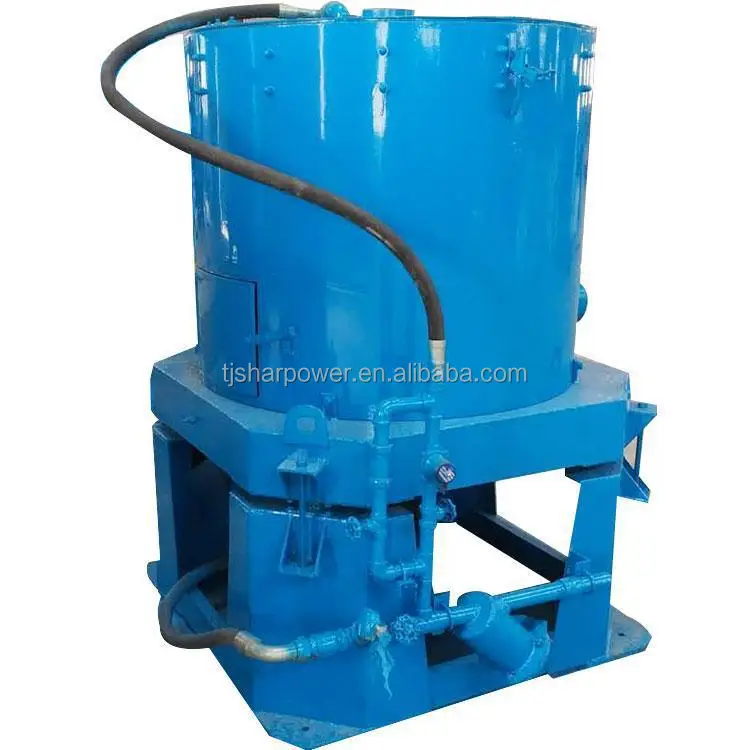

Рафинирование золота SHARPOWER STLB20 STLB30 STLB60 STLB80 STLB100Mini гравитационный горный сепаратор
