Eybond Wi Fi Bluetooth/ Мониторинг беспроводной сети всех инверторов бренда система солнечной батареи

Сохранить в закладки 1601280472438:


Цена:10,92-11,85 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




Wi-Fi






Bluetooth




Wi-Fi+Bluetooth






                    power stations: 4000000+ stations                             Super compatible: 500+ brands and models
                    Large users: 3000000+ users                                      High capacity: 250+GW
                    Wide distribution: 50+ countries                                 Strong cooperation: 5500+ partners





SmartESS APP










Dessmonitor Web



















































































































































































Product modelWi-Fi.ModuleBLE.ModuleWFBLE.Module
Basic parameter

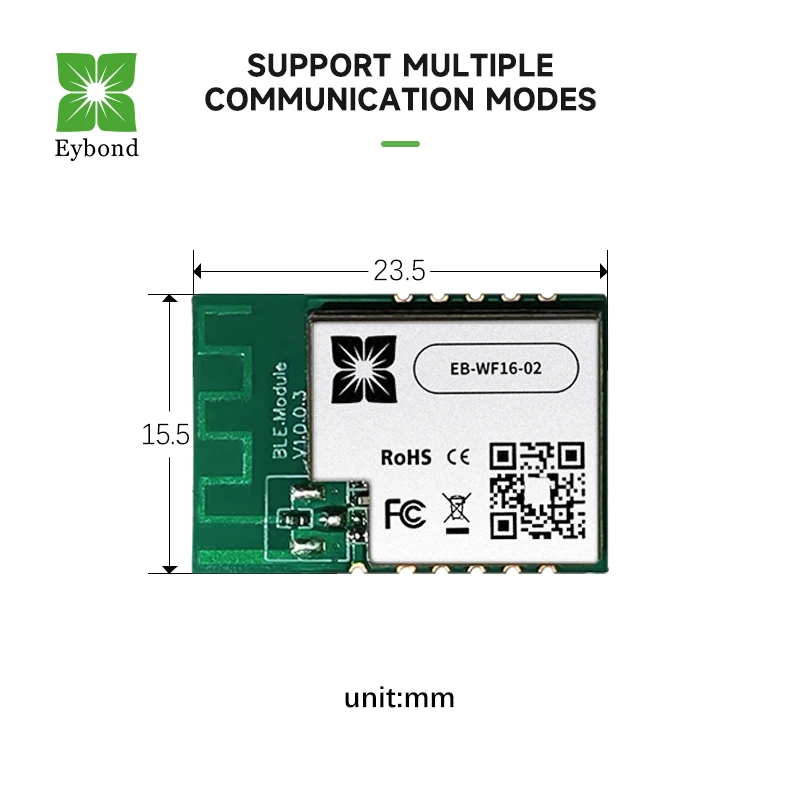

 Dimension 23.5*15.5mm 23.5*15.5mm 23.5*15.5mm

 Weight


 ≤1g ≤1g ≤1g
 Docking mode SMD11 SMD11 SMD11
 Rated voltage 3.3V±5% 3.3V±5% 3.3V±5%
 Working current 500mA(3.3V) 500mA(3.3V) 500mA(3.3V)
 Operating temperature -40℃~+85℃ -40℃~+85℃ -40℃~+85℃
 Storage temperature -40℃~+90℃ -40℃~+90℃ -40℃~+90℃
Communication parameter
 Local communication   mode TTL TTL TTL
 Public network access   mode Wi-Fi BLE Wi-Fi
 Baud rate 9600bps(default) 9600bps(default) 9600bps(default)
 Operating frequency Wi-Fi 2.4GHz 2.4G Wi-Fi 2.4GHz
 Communication   standard 802.11b/g/n  / 802.11b/g/n
 Maximum transmission   rate 1Mbps 1Mbps 1Mbps
 Communication   distance 50~100M 20M 50~100M
 Antenna gain 1.7dBm 1.6dBm 1.7dBm
 Antenna Onboard Antenna /IPEX Terminal /ANT Onboard Antenna /IPEX Terminal /ANT Onboard Antenna /IPEX Terminal /ANT
Other parameters
 Guard dog Software watchdog Software watchdog Software watchdog
 Connecting channel AT instruction
 At command, support   Bluetooth, serial port and   other channels

 AT instruction
 Working mode Through-transmission mode Through-transmission mode Through-transmission mode
 View/set parameters AT instruction AT instruction AT instruction
 Connecting channel TCP/UDP BLE TCP/UDP/BLE
 Number of connected   devices 1 PC 1 PC

 1 PC


 Warranty period
 1 year


 1 year


 1 year

 Certification CE,RoHS CE,RoHS CE,RoHS
 Wireless working mode STA/AP/AP+STA STA/AP/AP+STA STA/AP/AP+STA
 Security mechanism WEP/WPA-PSK/WPA2-PSK WEP/WPA-PSK/WPA2-PSK WEP/WPA-PSK/WPA2-PSK




Existing project customization services


_02.pngDomain name and logo customization                                             APP customization



_04.pngWechat small programs customization                                          Administrator customization

New project customization service




                    Private cloud deployment                                                     Intelligent hardware customization


_09.png                                Solution consulting                                                                 Software project development

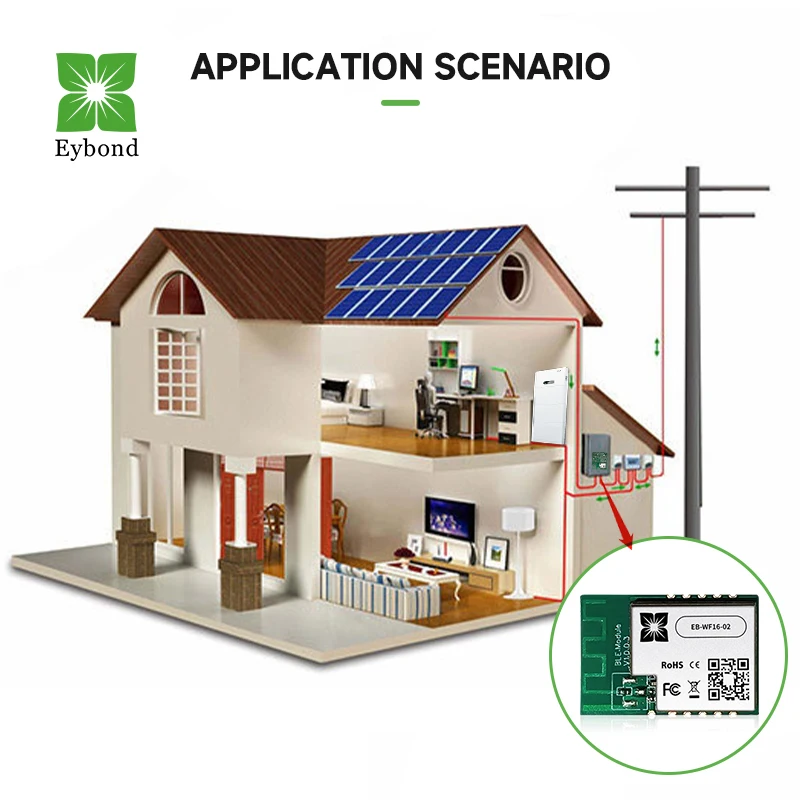

                                                                Application scenario







                                        PACKAGING AND LOGISTICS

    Since 2014, it has rich experience in the research and devel-opment and manufacturing of new energy data communication and other products, and has obtained more than 150 inventionpatents.
    We have a team of 200+ senior R&D engineers, occupying20,000 square meters in the central area of Shenzhen, to pro-vide you with R&D products and provide the best service.







Packaging & Shipping


1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, it will take 3-7 working days to arrive in most countries.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it, it takes about 2-7 days to arrive.
3.If goods are large quantity and you not need the goods so urgently, you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.





FAQ


Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to yourrequirements.
Q3: Whether the product can be customized logo?
A3: For bulk orders, we support custom logo.
Q4: How about the delivery time?
A4: For regular orders, it takes about 3-7 days for production, and it may take15-30 days for bulk orders or customized orders.
Q5: What are your delivery and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one that suits youbest. Sample orders 100%in advance, bulk orders 100% balance.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products. please contact to your sales person.
Q7: How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detailphotos for checking if you cannot get enough information in the product page
Q8: How can we get samples from you?


A8: Provide samples. Usually we need 5 days to arrange samples. If we do nothave business records with you before, we need to charge sample cost and mailexpress freight.
Q9: How do l choose the right datalogger to connect to my inverter? Can youhelp with the choice?
A9: Please provide the brand and model of the inverter, the nameplate of theinverter, the interface information, the communication protocol, we can helpyou choose the right datalogger.
