Product Description

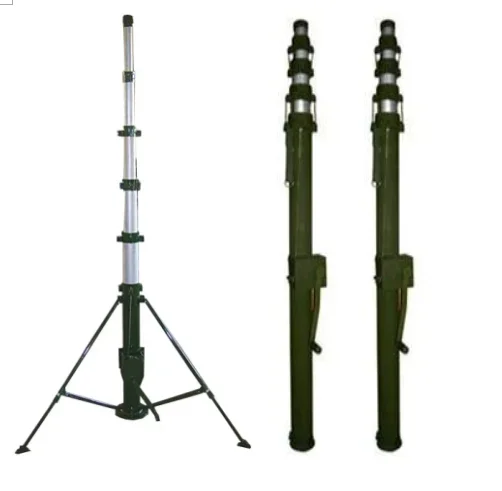

What is the manual mast
Winch operated telescopic masts are perfectly designed for elevating head-loads without the need for electric power. These Mechanically driven units are engineered with precision steel cable and pulley systems which lift and lower the sections of the mast. Popular units include elevated lifts of 13ft, 19ft, 24ft, 30ft and 39ft. It is suitable for permanent wall mount, stand alone or portable use.
Advantages
(1) Simple to deploy by a single person----Under one minute;
(1) Simple to deploy by a single person----Under one minute;
(2) Automatic locking collars;
(3) Maintenance free;
(4) Strong tube collars.
The Specification of Manual Crank Telescopic Mast | ||
Extended height | 6m | |
Retracted Height | 1.3m | |
No. Of section | 7 sections | |
Material | Main pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: galvanized steel wire(OD: 2mm) | |
Color | The whole unite will be in green when closed, but when extended, the main pole is in origin color of aluminum alloy only with top 4cm of each pole section in green color. | |
Lifting Method | Hand Winch lifting | |
Accessories | Pulling cord box with handle bars——3 units Ground anchor——3 pieces Handle lifting bar——2 pieces 304 stainless steel stakes——6 pieces Tripod——1 unit Top plate——1 piece | |
Type | Lighting Tower | |
Model Number | TAL-M6-1.3-60 | |
Packaging Details | Each unit of aluminium telescopic mast to be wrapped with poly tapes, then 2 sets to be packed into a plywood case | |

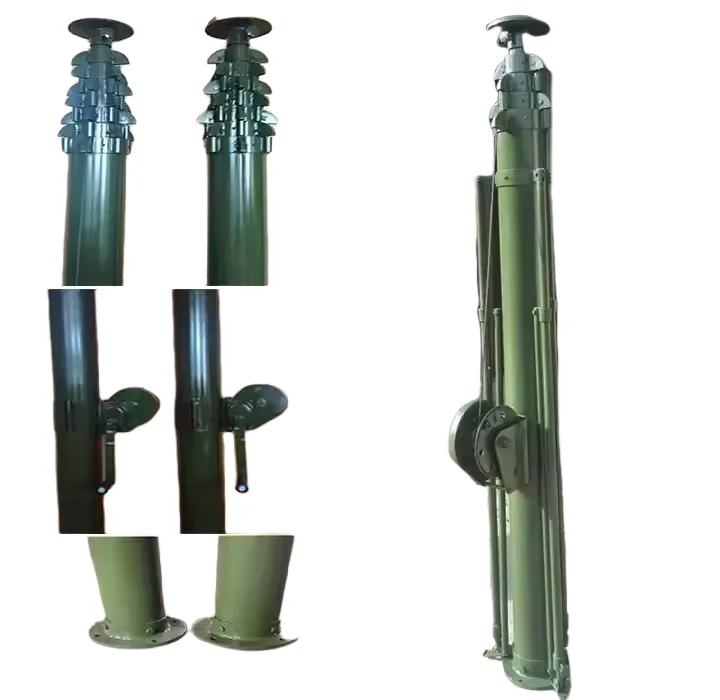

Accessories
Application

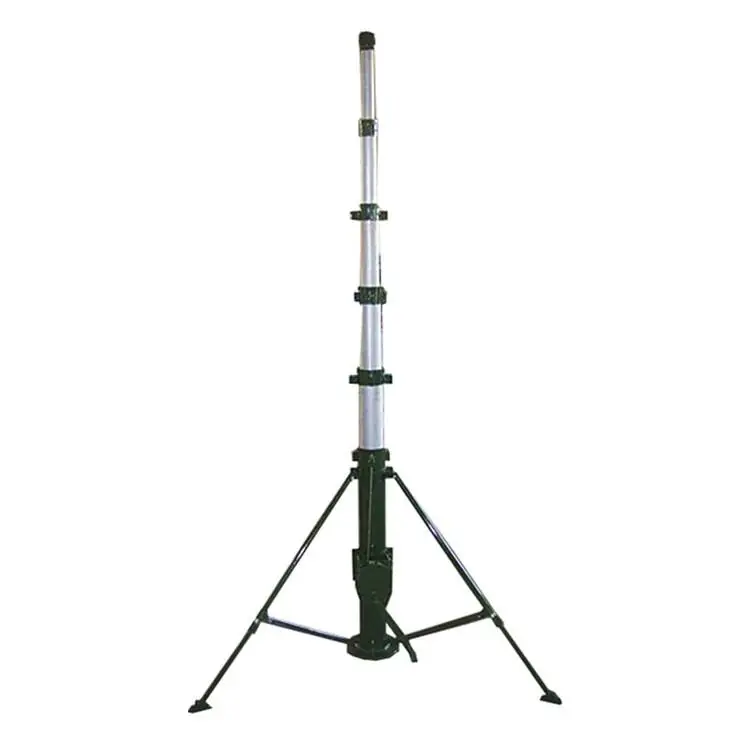

6m Manual Telescopic Mast Telescopic Light Tower Payload 60kg
This product can be used on the ground, vehicle and ship use. Widely used in public security, fire, communications,
meteorology,municipal construction, all areas of a variety of natural disasters, emergency scene nighttime rescue etc; for nearly unlimited use.
meteorology,municipal construction, all areas of a variety of natural disasters, emergency scene nighttime rescue etc; for nearly unlimited use.
Installation Procedure
To be installed on the ground
* Determine the mounting position ofthe mast and ground anchor, hitting one nail per 120 degrees.
* Ground anchor is nailed to the direction of the mast.
* The base is fixed with the ground nail, and the direction of the three pulling holes is aligned with the direction of the three
ground anchors, and the three hanging boxes are respectively hung on the three pull rings.
* The handle bar of the mast is inserted into the bottom of motorized telescopic mast, and the hand crank is rotated clockwise,and the mast body is vertical to the ground until the required height is reached.
* Ground anchor is nailed to the direction of the mast.
* The base is fixed with the ground nail, and the direction of the three pulling holes is aligned with the direction of the three
ground anchors, and the three hanging boxes are respectively hung on the three pull rings.
* The handle bar of the mast is inserted into the bottom of motorized telescopic mast, and the hand crank is rotated clockwise,and the mast body is vertical to the ground until the required height is reached.
To be installed on the vehicle
* Determine the installation position, the bottom plate and the vehicle axis should be parallel, and the area should be equivalent to the size of the body floor area, so that the handle bar has a revolving space.
*The mast is perpendicular to the horizontal plane of the vehicle in the installation of the bottom plate and car clamp of the mast.
* During the whole installation, the position of bottom plate and car clamp must be ensured at the same time.
* Car clamp and bottom bracket should be installed on the object which can not be displaced.
* The clamps can not be installed too tight, so as to avoid the deformation and normal work of the mast.
*The mast is perpendicular to the horizontal plane of the vehicle in the installation of the bottom plate and car clamp of the mast.
* During the whole installation, the position of bottom plate and car clamp must be ensured at the same time.
* Car clamp and bottom bracket should be installed on the object which can not be displaced.
* The clamps can not be installed too tight, so as to avoid the deformation and normal work of the mast.
Packing & Delivery
One unit of aluminium manual telescopic mast to be wrapped with Poly tapes, then 2 units to be packed into a plywood case.
Shipping
International Shipping We ship to most countries. However, international buyers are advised to inquire first. Delivery time depends on the destination country.
Payment
1. Telegraphic Transfer
We accept a direct Bank to our bank account. It’s easy and convenient and if you have an online banking solution you don’t even need to go to the bank to make the payment. The payment is cleared in a few days. Details are included with Your order confirmation, which is sent to You immediately after placing Your order. To send us your payment notification, according to our payment instructions (once payment is made), follow the link in your order confirmation.
2. Western Union
Western Union is easy and reliable transfer. Some of the features are: I. Payment is normally cleared within 1 business day. II. Details are included with Your order confirmation, which is sent to You immediately after placing Your order. To send us your payment notification, according to our payment instructions (once payment is made), follow the link in your order confirmation.
3. Money Gram
Money Gram is easy and reliable transfer method, it’s features are very similar to Western Union. Details are included with Your order confirmation, which is sent to You immediately after placing Your order. To send us your payment notification, according to our payment instructions (once payment is made), follow the link in your order confirmation.
4. PayPal
You can also decide to use your PayPal account to complete your order.
Why Choose Us
What Service Can We Provide
1. Products can be customized as per your drawing with the workable quantity;
2. Search for related products and accessories to meet your requirements;
3. Small order of one package for stocks or sample order for one piece acceptable;
4. Supply multi-way fastdoor to door delivery and all possible shipping ways to save your time, lower your cost and bring
you in convenience;
5. Professional after-sales service for Guide usage and maintenance;
6. OEM/ODM service available for the buyers;
7. One year free after-sale warranty after delivery.

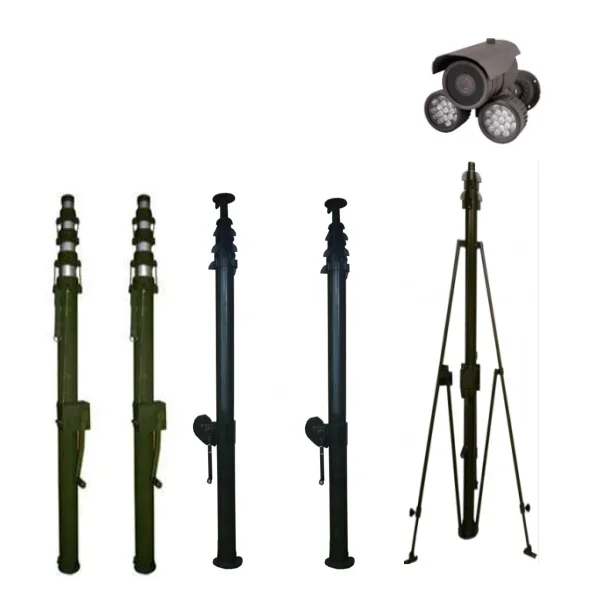

Catalogue of Manual Crank Telescopic Mast for your reference | ||||||||||||
Model No. | Extended height(m) | No.of Section | Retracted height(m) | Outer tube range(mm) | Self weight (kg) | Max.payload (kg) | ||||||
TAL-M3-1-30 | 3 | 4 | 1.0 | 42-83 | 15 | 30 | ||||||
TAL-M4-1.5-30 | 4 | 3 | 1.5 | 42-69 | 15 | 30 | ||||||
TAL-M4-1.6-10 | 4 | 3 | 1.6 | 30-55 | 14 | 10 | ||||||
TAl-M5-1.65-10 | 5 | 4 | 1.65 | 42-83 | 17 | 10 | ||||||
TAL-M5-1.1-10 | 5 | 8 | 1.1 | 30-105 | 20 | 15 | ||||||
TAL-M5-1.5-60 | 5 | 5 | 1.5 | 42-98 | 20 | 60 | ||||||
TAl-M6-1.5-100 | 6 | 6 | 1.5 | 69-160 | 55 | 100 | ||||||
TAL-M6-1.3-60 | 6 | 7 | 1.3 | 40-130 | 32 | 60 | ||||||
TAL-M7-1.8-30 | 7 | 7 | 1.8 | 40-105 | 23 | 30 | ||||||
TAl-MB-1.5-20 | 8 | 8 | 1.5 | 40-130 | 34 | 20 | ||||||
TAL-M9-1.8-30 | 9 | 7 | 1.8 | 40-105 | 25 | 30 | ||||||
TAL-M9-1.8-100 | 9 | 7 | 1.8 | 60-160 | 43 | 100 | ||||||
TAl-M9-1.9-5 | 9 | 7 | 1.9 | 30-114 | 25 | 5 | ||||||
TAL-M10-1.95-10 | 10 | 7 | 1.95 | 30-114 | 26 | 10 | ||||||
TAL-M10-2-40 | 10 | 7 | 2 | 42-132 | 31 | 40 | ||||||
TAL-M12-2.2-10 | 12 | 7 | 2.2 | 30-114 | 28 | 10 | ||||||
TAl-M12-2-40 | 12 | 8 | 2.2 | 42-132 | 44 | 40 | ||||||
TAL-M15-2.6-10 | 15 | 8 | 2.6 | 30-132 | 58 | 10 | ||||||
TAL-M16-2.6-10 | 16 | 8 | 2.6 | 42-160 | 35 | 10 | ||||||
TAL-M18-2.7-10 | 18 | 9 | 2.7 | 42-200 | 47 | 10 | ||||||
TAL-M18-3.2-30 | 18 | 9 | 3.2 | 42-200 | 48 | 30 | ||||||
TAL-M20-2.95-10 | 20 | 9 | 2.95 | 42-200 | 55 | 10 | ||||||
TAL-M20-3.20-20 | 20 | 8 | 3.2 | 42-160 | 58 | 20 | ||||||
TAL-M25-3.4-10 | 25 | 10 | 3.4 | 42-230 | 72 | 10 | ||||||
TAL-25-3.6-10 | 25 | 9 | 3.6 | 42-200 | 140 | 10 | ||||||
Why Choose Us
1. Our team has 29 years of importing and exporting experience since 1995.
2. Talents is an over 18years gold supplier on Alibabasince 2007;
3. Talents had built up a strict and complete quality control system;
4. Our main products passed the CE authentication.
FAQ
Q1: How long is warranty?
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are available
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are available
About us
Company Profiles
Talents is an experienced designer, supplier and exporter focuses on manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube. Talents provides different types of telescopic masts to the main market of Europe (25%), Mid East(20%), America (25%)and Asia(15%), helping the customers there to get a competitive advantage in their market place and won their praise with the certificate of CE. Since Talents was founded in 1995, Talents team gained large amount of specialized knowledge and experience of solutions and designing of the products and update them as time going on to meet varieties demands of the customers all over the world.
Workshop
6m Manual Telescopic Mast Telescopic Light Tower Payload 60kg
Contact Us
