Высокая емкость 500tph каменная дробилка многоцилиндровая гидравлическая конусная цена
- Категория: >>>
- Поставщик: Henan Anshun Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601292281186:
Описание и отзывы
Характеристики

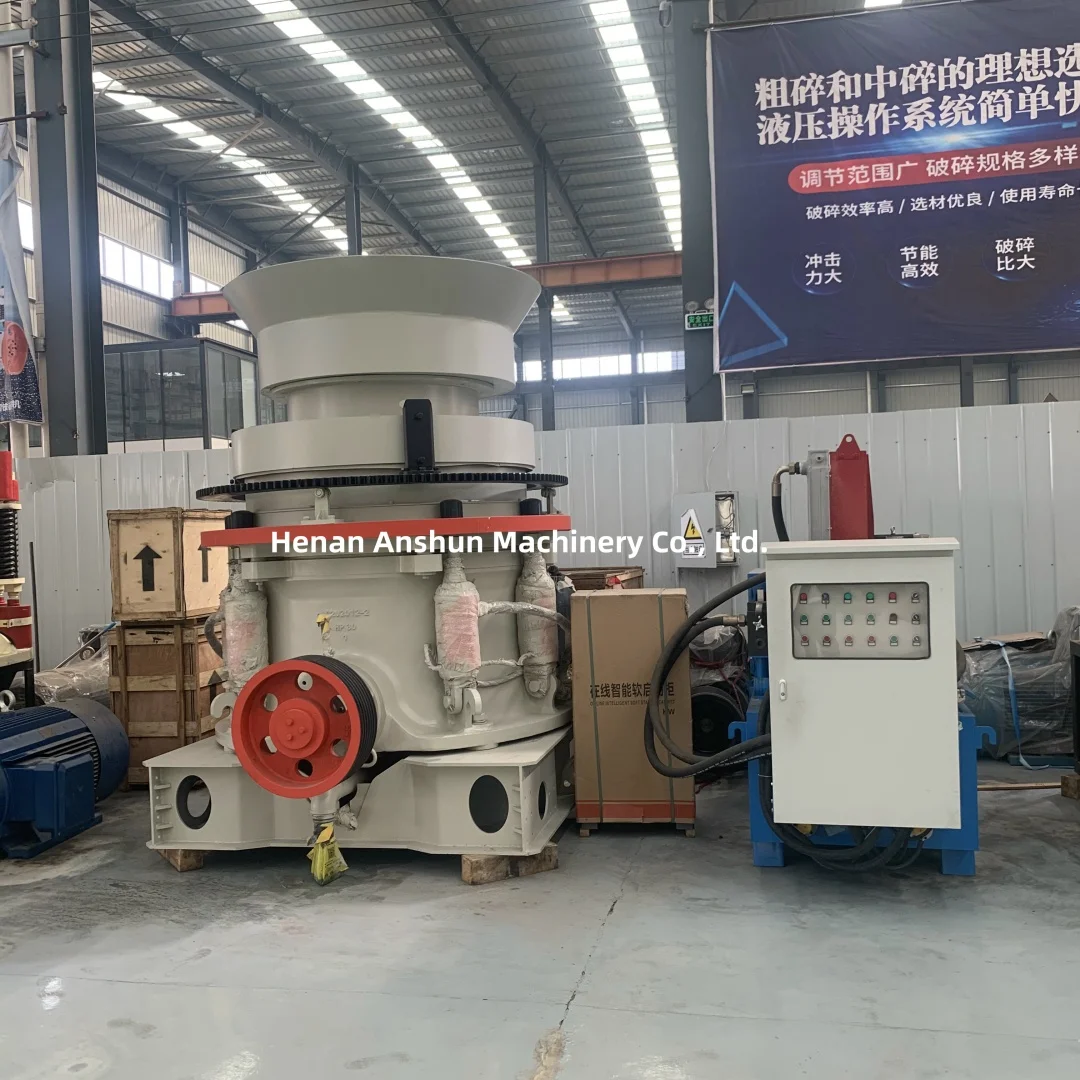

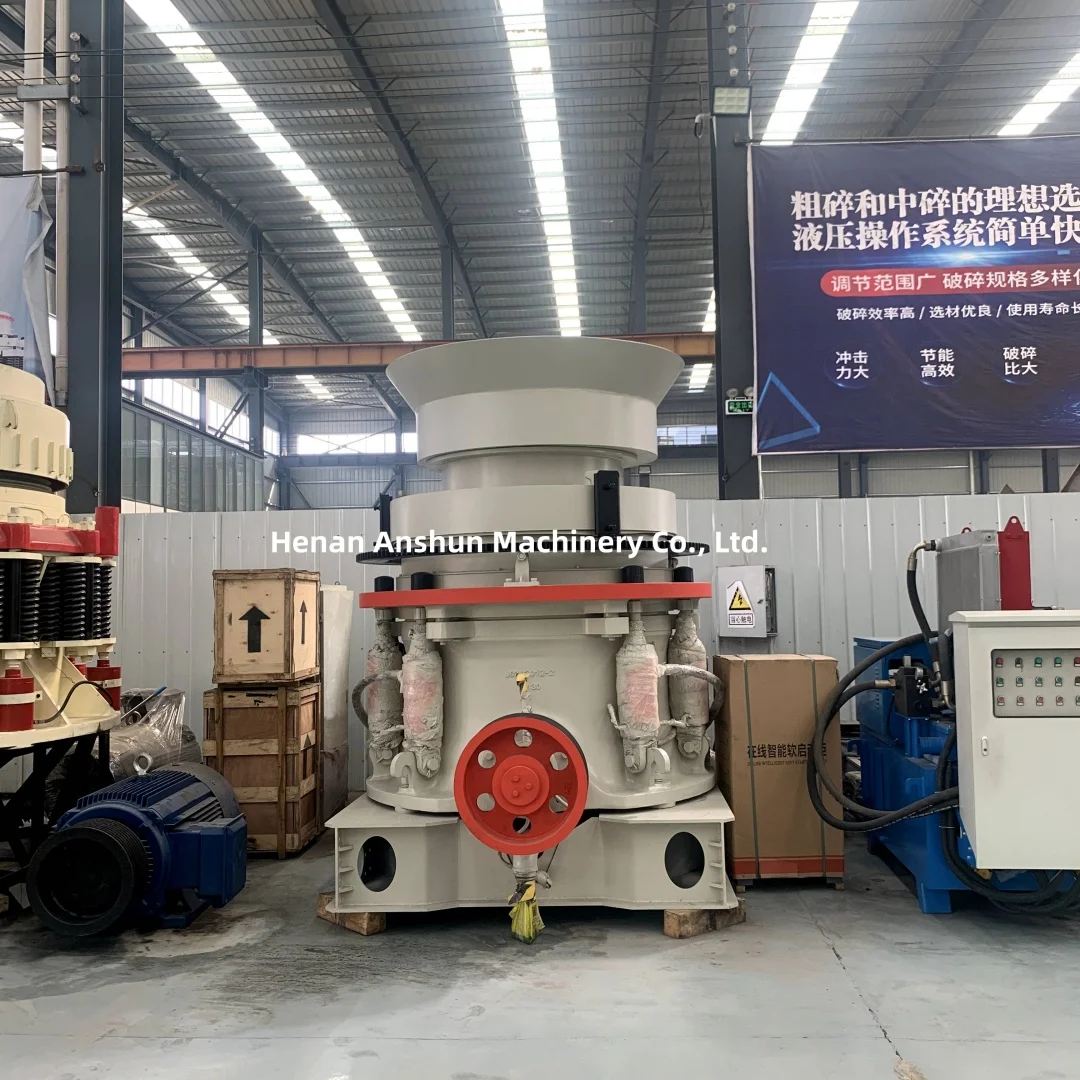

What is a multi-cylinder hydraulic cone crusher?
Multi-cylinder cone crusher is a typical crushing equipment for medium and fine crushing hard materials, which is mainly used in the two-stage crushing and three-stage crushing link in metal mining and construction sand processing. Multi-cylinder hydraulic cone crusher because hydraulic devices realize its safety, adjustment, and locking, so it also has the advantages of convenient adjustment of ore discharge, small overload coefficient through non-crushing objects, easy to take out the non-crushing objects blocked in the crushing chamber.
Advantages of multi-cylinder hydraulic cone crusher
1. Fixed spindle: The equipment has a strong carrying capacity, a more compact structure, a small size, and high efficiency.
2. It was designed by adopting the principle of intergranular lamination. Utilizing the mutual extrusion of materials, the crushing efficiency and the proportion of fine materials are significantly improved, the needle and flake materials are greatly reduced, and the steel consumption of wearing parts is reduced.
3. Advanced bearing design, using tin bronze bushing sliding bearing design. Compared with rolling bearings, the equipment can still maintain ultra-high load capacity in high-dust and high-impact environments and has low production costs.
4. A temperature sensor is installed at the oil return position of the horizontal axis to accurately detect the oil temperature and ensure stable operation of the equipment; the transmission system uses spiral bevel gears to ensure reliable and stable transmission.
5. While the cone wall is thickened, the liner fixing method is improved. This eliminates the need for glue filling, making replacement very convenient and fast and reducing maintenance costs.
6. Integrated hydraulic lubrication and unique thin oil lubrication system design greatly extend the service life of the equipment. High-performance, non-contact labyrinth seals are more conducive to ensuring the cleanliness of lubricating oil.
7. The oil circuit of the safety cylinder adopts large-diameter oil pipes and large-capacity accumulators, which have better buffering performance, faster response, and safer equipment.
8. The standard floating installation base makes the installation simple, labor-saving and time-saving, with reduced foundation requirements and low user investment.
What Is The Working Principle Of The Multi-cylinder Hydraulic Cone Crusher?
Cone crusher consist of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone,mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening.
(1) Transmission device: Countershaft assembly is supported by the bronze countershaft bushings, and can be dismounted for convenience of maintenance. The gear and pinion with high strength and high precision are adopted to ensure the reliable operation of equipment.
(2) Main shaft: Forged from hardened and tempered chrome molybdenum steel, particularly large diameter to suit wear-resisting applications. High-quality copper socket liner can bear the high crushing load and allows the machine to work under rigorous conditions.
(3) Cone and mantle plate high manganese steel casting, hydraulic lock device is convenient and reliable.
(4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove foreign materials if non-crushable objects come into the crushing chamber.
HPT Multi-Cylinder Cone Crusher Technical Parameters
Model | Cavity | Open Side Feeding Size (mm) | Closed Side Feeding Size (mm) | Minimum Discharge Port Size (mm) | Capacity (t/h) | Max Installed Power (kw) |
HPT100 | C1 (Extra coarse) | 175 | 140 | 19 | 450-100 | 90 |
C2 (Coarse) | 125 | 105 | 13 | |||
M (Medium) | 100 | 70 | 10 | |||
F1 (Fine) | 71 | 50 | 9 | |||
F2 (Extra fine) | 33 | 20 | 6 | |||
HPT200 | C2 (Coarse) | 235 | 190 | 19 | 65-250 | 160 |
M (Medium) | 171 | 120 | 16 | |||
F1 (Fine) | 150 | 95 | 13 | |||
F2 (Extra fine) | 116 | 70 | 8 | |||
HPT300 | C1 (Extra coarse) | 265 | 230 | 25 | 85-440 | 220 |
C2 (Coarse) | 240 | 210 | 20 | |||
M (Medium) | 190 | 150 | 15 | |||
F1 (Fine) | 145 | 105 | 11 | |||
F2 (Extra fine) | 120 | 80 | 8 | |||
HPT400 | C1 (Extra coarse) | 360 | 290 | 30 | 135-625 | 315 |
C2 (Coarse) | 310 | 250 | 25 | |||
M (Medium) | 260 | 196 | 20 | |||
F1 (Fine) | 182 | 110 | 13 | |||
F2 (Extra fine) | 135 | 90 | 10 | |||
HPT500 | C1 (Extra coarse) | 370 | 330 | 38 | 200-790 | 400 |
C2 (Coarse) | 320 | 290 | 28 | |||
M (Medium) | 245 | 210 | 22 | |||
F1 (Fine) | 180 | 130 | 13 | |||
F2 (Extra fine) | 150 | 95 | 10 | |||
HPT800 | C1 (Extra coarse) | 450 | 352 | 38 | 265-1200 | 630 |
C2 (Coarse) | 373 | 298 | 32 | |||
M (Medium) | 340 | 275 | 25 | |||
F1 (Fine) | 280 | 230 | 16 | |||
F2 (Extra fins) | 235 | 150 | 10 |
HPT Multi-Cylinder Cone Crusher Production capacity
Outlet model | 6mm | 8mm | 10mm | 16mm | 22mm | 32mm | 38mm | 45mm | 51mm |
HPT100 | 45-55 | 50-60 | 55-70 | 70-90 | 80-100 | 100-150 | |||
HPT200 | 65-85 | 90-125 | 135-180 | 160-210 | 190-235 | 210-250 | |||
HPT300 | 85-120 | 115-140 | 180-220 | 220-260 | 250-320 | 300-380 | 350-440 | ||
HPT400 | 135-180 | 225-276 | 270-350 | 290-375 | 355-490 | 410-565 | 460-625 | ||
HPT500 | 200-250 | 280-350 | 345-430 | 405-535 | 445-605 | 510-700 | 580-790 | ||
HPT800 | 265-340 | 385-510 | 470-605 | 545-800 | 600-945 | 690-1050 | 785-1200 |
★The production capacity table can be used as a tool for the preliminary selection of the HPT cone crusher. The data in the table are based on the loose density of the material of 1.6t/m³ and the measurement results of instant sampling; when the content of fine particles in the feed is high and under closed-circuit operating conditions, the capacity can be improved by about 15%-30% compared with open circuit operation.
HPT Multi-Cylinder Hydraulic Cone Crusher Grain Size Distribution Curve
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will supply installation and training service on-line or on-site.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us , leave your whatsapp and email , our sales manager will contact you within 1 hours.
Похожие товары

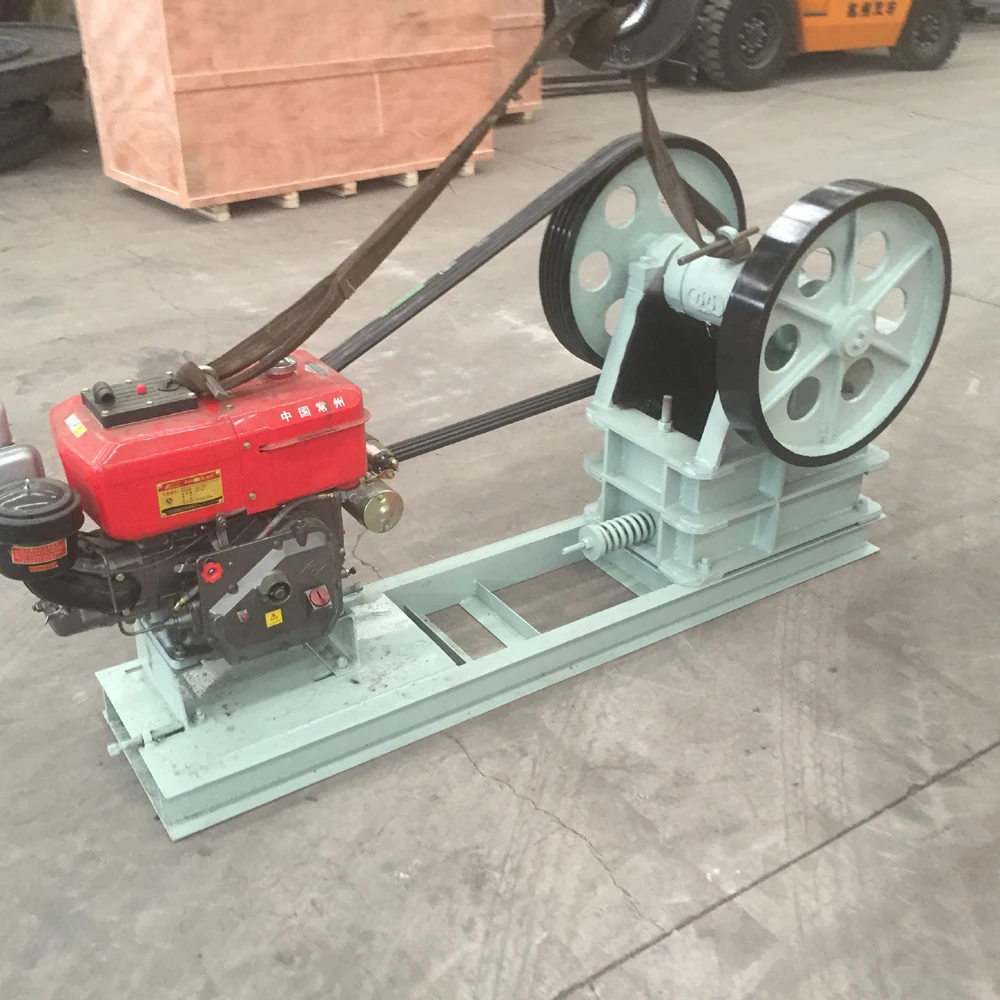

Горячая распродажа Гранитная керамическая плитка миниатюрная дизельная мобильная щековая дробилка pe200x300 pe250x400 с вибрационным экраном в наличии
Высокопроизводительная Вертикальная шлифовальная мельница серии HLM от китайского оборудования HongXing
Машина для тонкого дробления выходной размер 3 мм тонкая дробилка карбоната кальция
675 226,72 ₽
GJ-3 GJ-4 модель вибропульверизатора для лабораторных агрегатов балластных частиц шлифовальных в Dr Congo Tanzania Africa
173 361,00-179 139,70 ₽

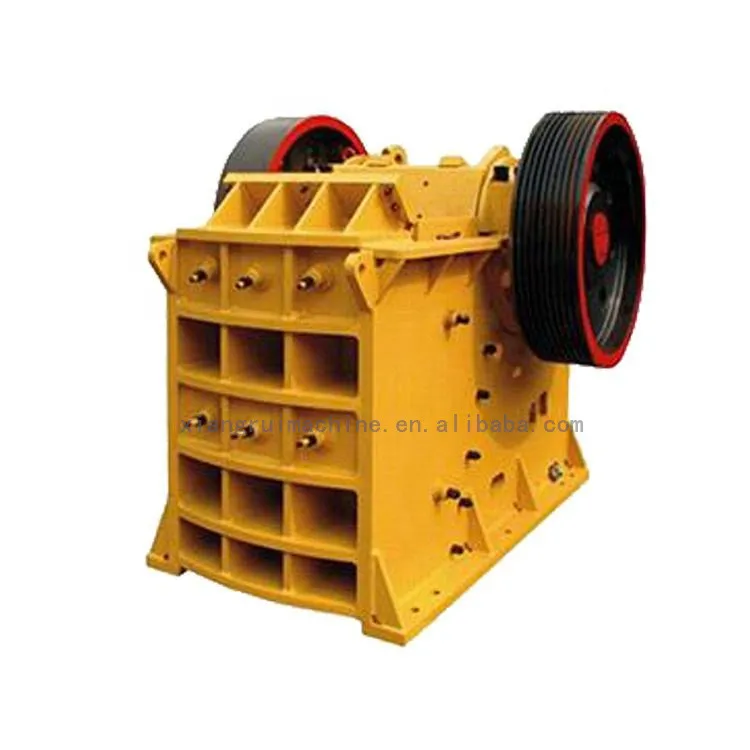

Челюстная дробилка в Танцании небольшая Мобильная бетонная щековая заводская цена
