S5736 S24S4XC CloudEngine (24 * GE SFP портов 4*10GE 1 слот расширения фиксированный сетевой коммутатор кампуса

S5736 S24S4XC CloudEngine (24 * GE SFP портов 4*10GE 1 слот расширения фиксированный сетевой коммутатор кампуса

Категория: >>>
Поставщик: Chongqing Yujia Technology Co. Ltd.Chongqing Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

CloudEngine S5736-S series new standard full gigabit Ethernet switch, providing 24 ports PoE/ non-poe, 48 ports PoE/ non-poe, four upstream 10GE ports, and one expansion card slot.

CloudEngine S5736-S series switches are based on the new generation of high-performance hardware and Hua wei's VRP Versatile Routi ng Platform (software platform). They have enhanced three-layer features, simple operation and maintenance, flexible Ethernet networking. Mature IPv6 features are widely used in various industries such as healthcare, retail, mining, and Internet.

Rich service functions
Powerful power supply capacity
Intelligent operation and maintenance of the whole network

Item	Details
Description	S5736-S24S4XC (24GE SFP ports, 410GE SFP+ ports, 1*expansion slot, without power module)
Part Number	98011038
Model	S5736-S24S4XC
First supported version	V200R021C01

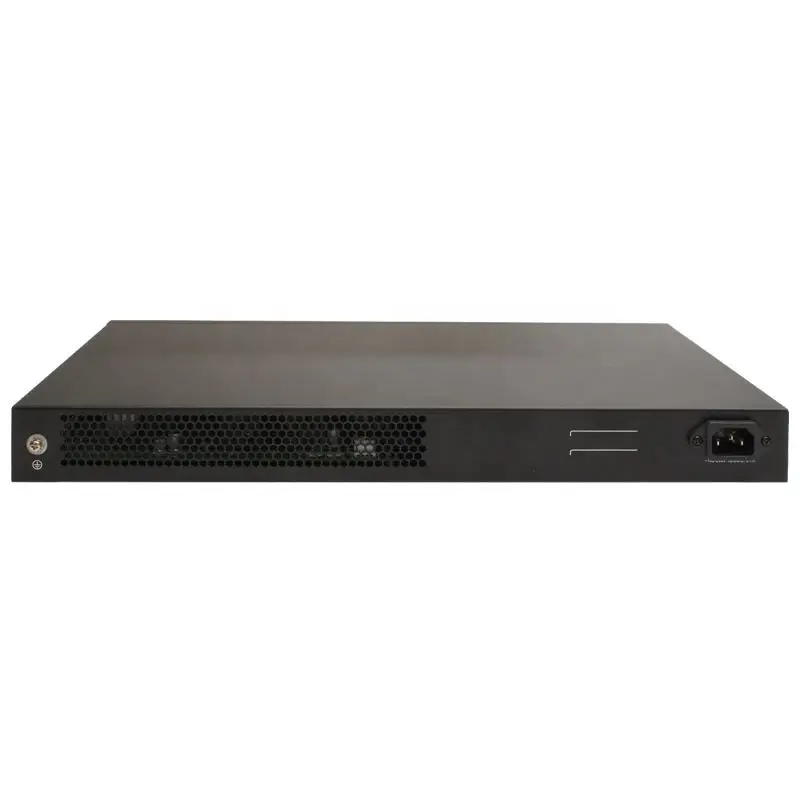

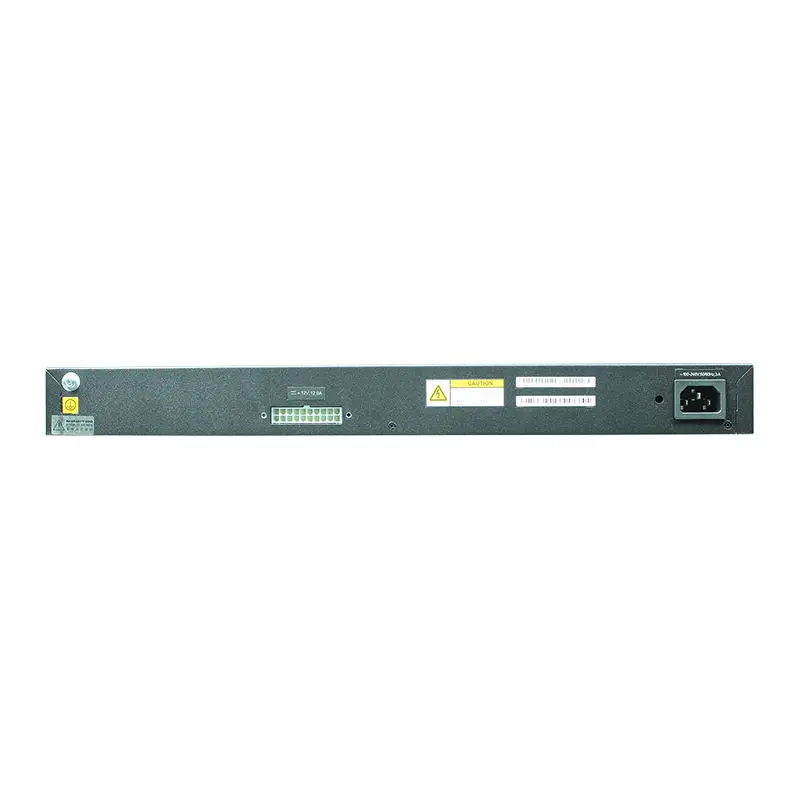

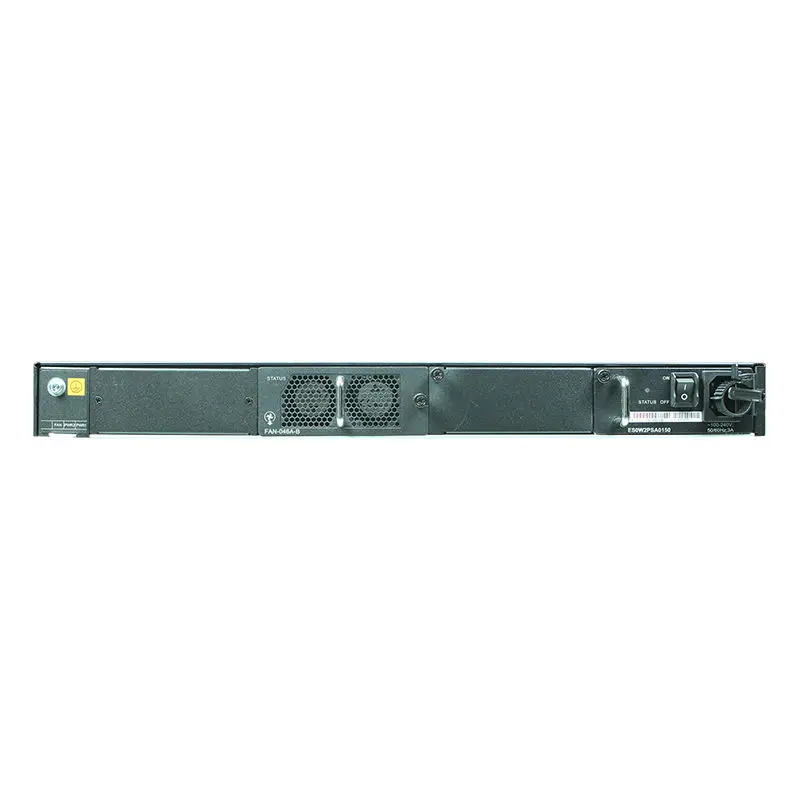

Details Images

Specification

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm(in.)]		Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	150mm × 710mm × 560mm (5.90 in. x 27.95 in. x 22.05 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	5.2 kg (11.46 lb)
Weight with packaging [kg(lb)]	8.2 kg (18.08 lb)
Typical power consumption [W]	63 W
Typical heat dissipation [BTU/hour]	214.96 BTU/hour
Maximum power consumption [W]	74 W
Maximum heat dissipation [BTU/hour]	252.5 BTU/hour
MTBF [year]	65.79 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	49.9 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	37.8 dB(A)
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1
Redundant power supply		Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
		The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
		The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
		The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
		The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
		If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
		Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz
		High-voltage DC input: 240 V DC
		DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
		High-voltage DC input: 190 V DC to 290 V DC
		DC input: –38.4 V DC to –72 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Power supply surge protection [kV]		Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans	Pluggable
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left,front and right, air exhaustion from behind
PoE	Not supported
Certification	EMC certification
		Safety certification
		Manufacturing certification
