Оловянный Хромит колтан ильменит монацит Вольфрамит железная песчаная руда трехдисковый магнитный сепаратор цена
- Категория: >>>
- Поставщик: Jiangxi Province County Mining Machinery FactoryJiangxi Factory
Сохранить в закладки 1601298460426:
Описание и отзывы
Характеристики

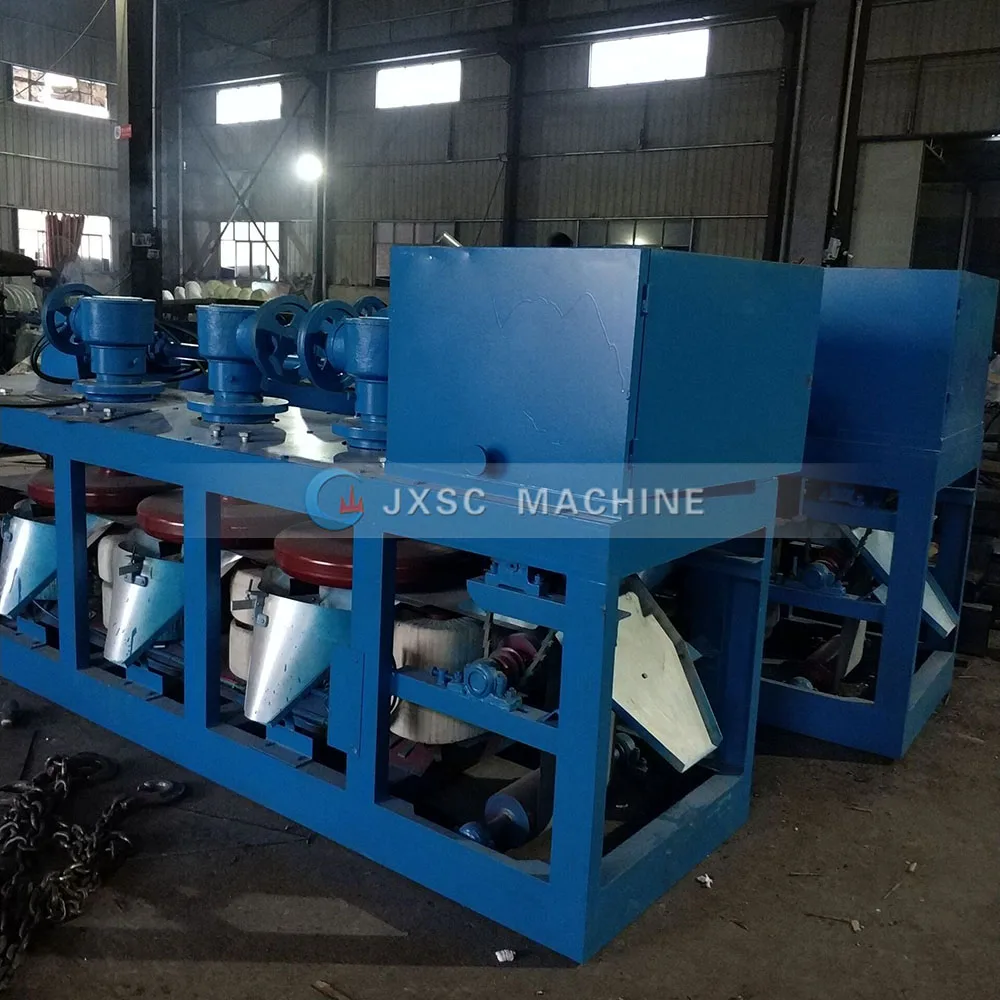

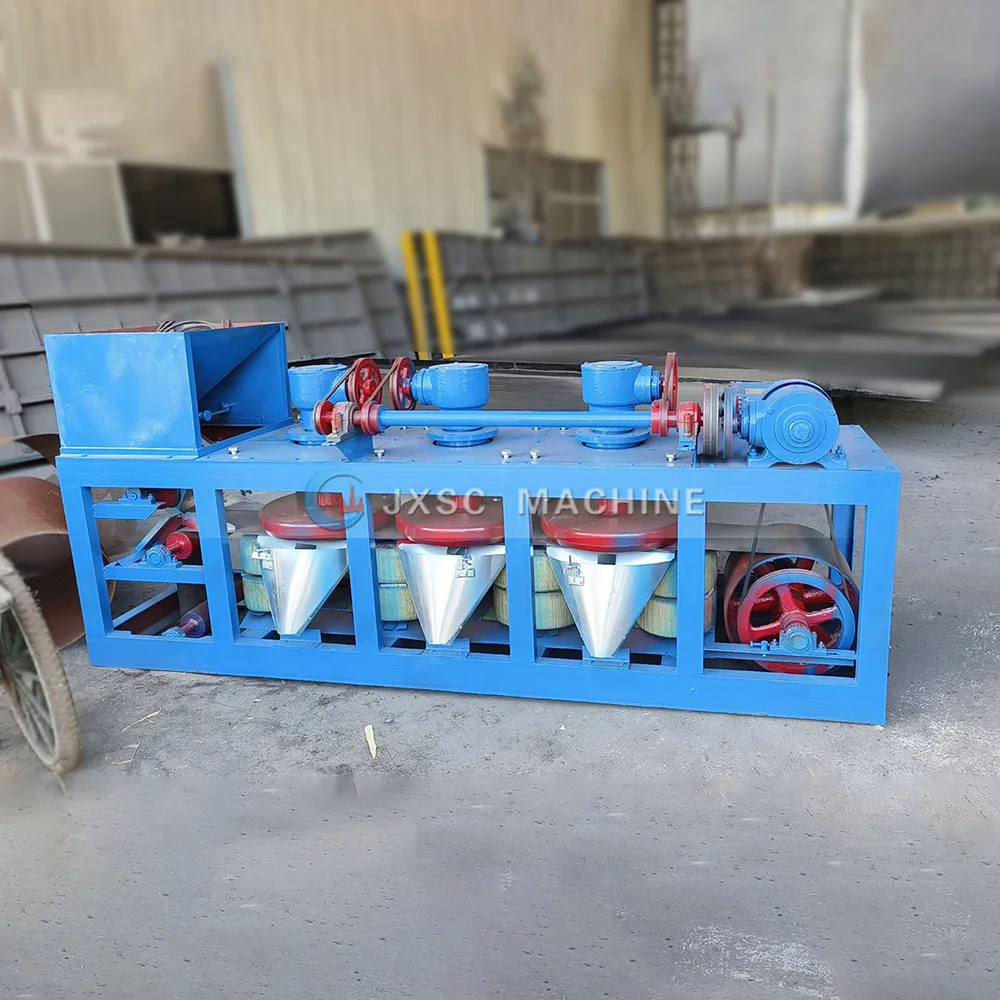

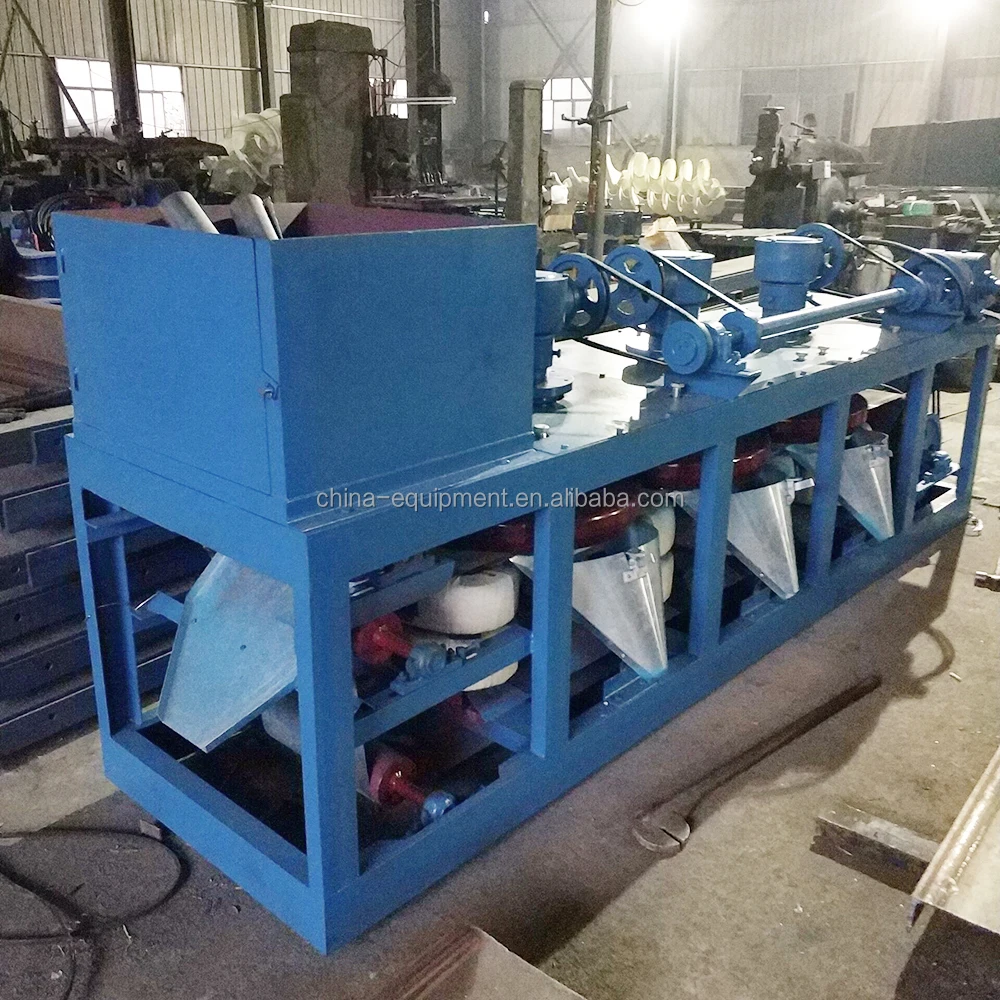

The three-disc magnetic separator is suitable for precisely separating various magnetic mineral mixed ores. It is mainly used to separate fine-grained weakly magnetic materials from non-magnetic materials, such as ilmenite, monazite, tungsten and tin, tantalum-niobium ore, and other dry separation operations. The induction distance between the magnetic disks at all levels and the selected minerals can be adjusted to obtain different magnetic field induction strengths and achieve one-time separation of multiple minerals. It has a variety of applications in the mining and mineral processing industries, significantly improving the purity of the finished product.
It mainly uses high-intensity magnetic fields to separate and purify materials. The materials to be separated are fed into the vibrating feeder, which distributes them evenly on the belt or disc conveyor. Three discs within the separator generate magnetic forces that effectively separate minerals based on their magnetic properties. As the mineral mixture enters the separator, a strong magnetic field pulls out the magnetic particles, while the non-magnetic particles continue along their path, resulting in efficient purification.
Eventually, they are carried by the rotating disk to different points where the magnetic force is weaker, causing them to separate and fall into separate collection areas.
Eventually, they are carried by the rotating disk to different points where the magnetic force is weaker, causing them to separate and fall into separate collection areas.
Model | Unit | 3PC-500 | 3PC-600 |
Magnetic | Hauteur | Distance to beltsurface 2mm | Distance to beltSurface 2mm |
intensity | Disk teeth 1700 | Disk teeth 1800 | |
Number of magnetic disk | Piece | 3 | 3 |
Diameter of magnetic disk | mm | 500 | 600 |
Revolution of magnetic disk | r/min | 25-40 | 22-38 |
Power supply | V | 380 | 380 |
Exciting coil | Unit | 4 | 4 |
Matching motor | kw | 0.75 | 1.5 |
Exciting power | kw | 1.5 | 1.6 |
Duty rating | Continuous | Continuous | |
Feed width | mm | 210 | 300 |
Feed size | mm | ≤2 | ≤2 |
capacity | kg/h | 100-500 | 120-800 |
Overall Size | mm | 2800×800×1220 | 3200×870×1160 |
Weight | kg | 1900 | 2200 |
JXSC's dry magnetic separator has proven success across global markets, with strong presence in Africa (Burundi, Nigeria, Congo, Tanzania, Rwanda), Southeast Asia (Indonesia), and South America (Brazil). The equipment excels in Coltan and Tin ore processing, delivering outstanding upgrading and enrichment results.
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.

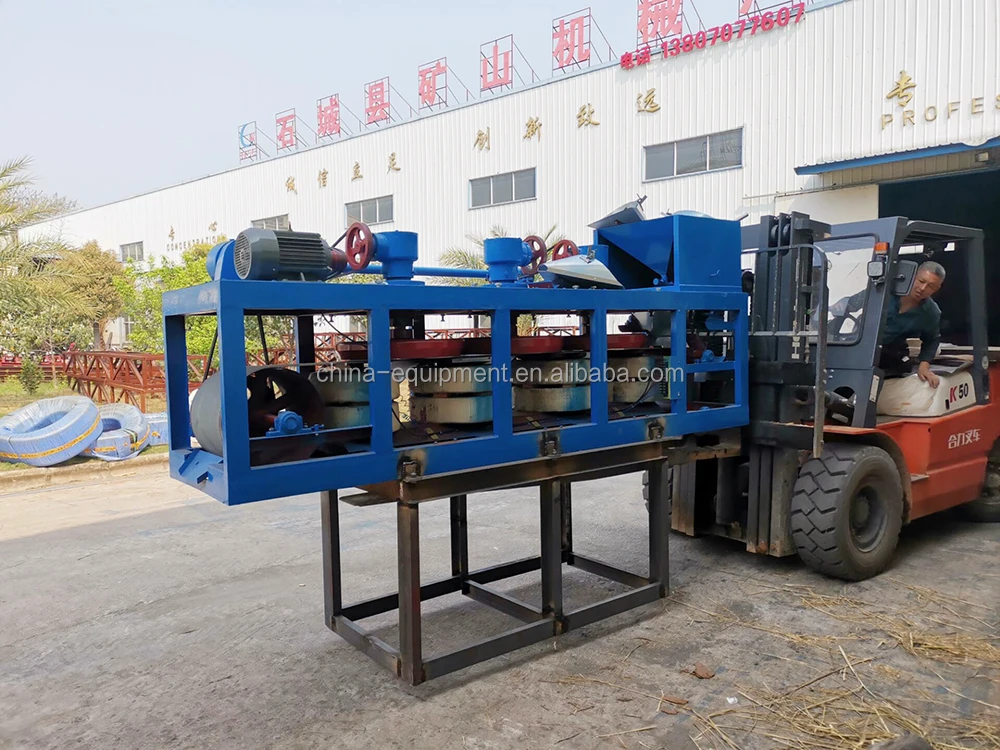

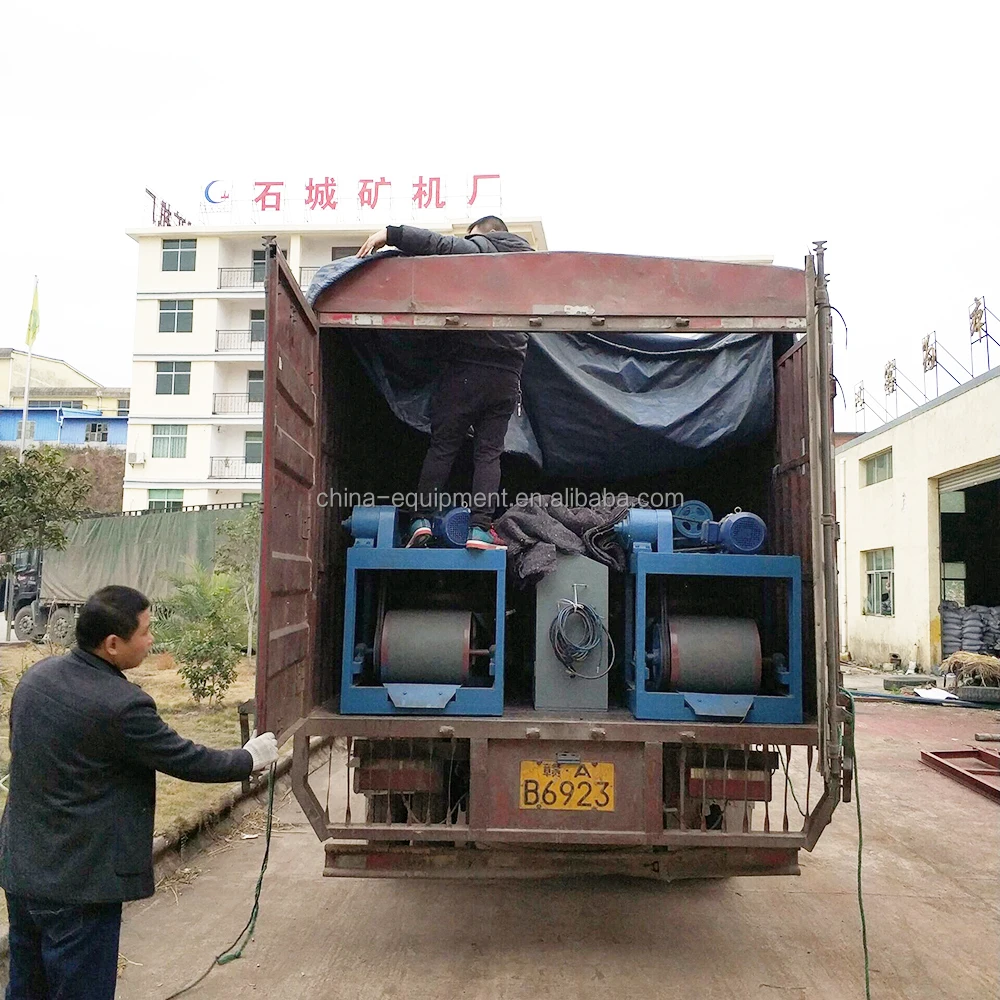

3.The whole big machine is loaded in the container.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 30 years
experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore /Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore /Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and
manufacturer equipment according to your special demand.
manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Our service & FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Похожие товары
Серия GDF магнитный сепаратор сухого каолина для обработки минералов высокопрочный электромагнитный керамической глины
20 000,00 $
Тяжелое оборудование для Переработки Медной Руды флотационный реагент минеральной благотворительной жидкости
12 500,00-12 800,00 $

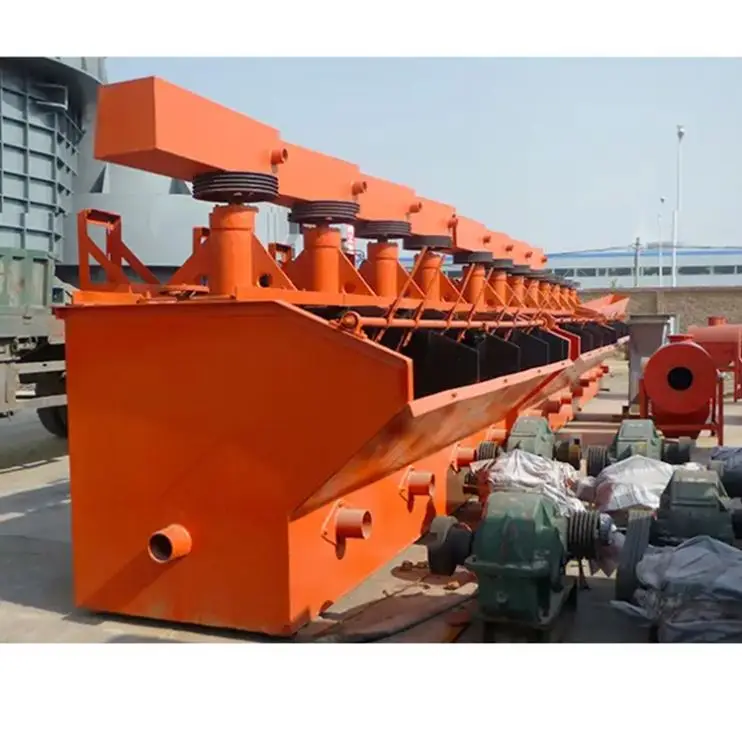

Оборудование для обогащения минералов медная свинцово-цинковая Флотационная установка с высокой скоростью извлечения
72 600,00-72 833,00 $
Влажный высокоинтенсивный магнитный сепаратор капризы Китай минеральный оборудование
6 000,00 $
Keda эффективная небольшая речная песчаная поисковая машина оборудование для добычи золота
3 900,00 $

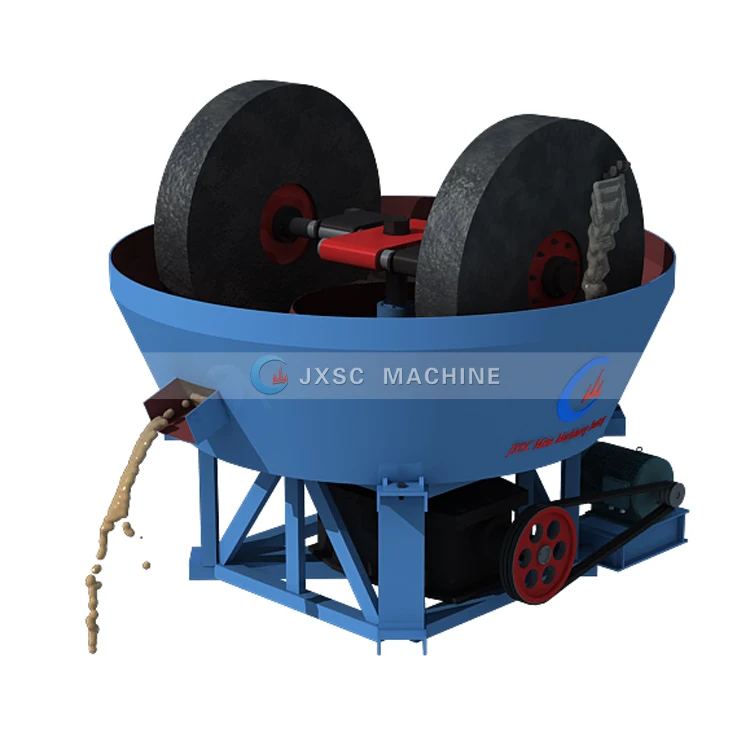

Мокрый лоток мельница завод в Китае 1200 1400 1500 1600 для золота
