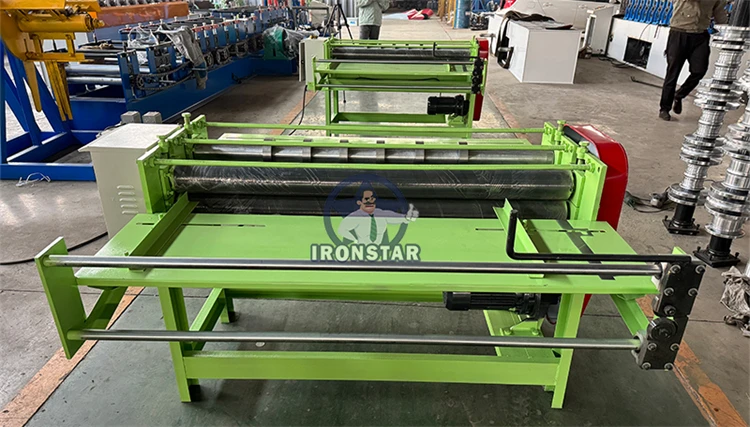

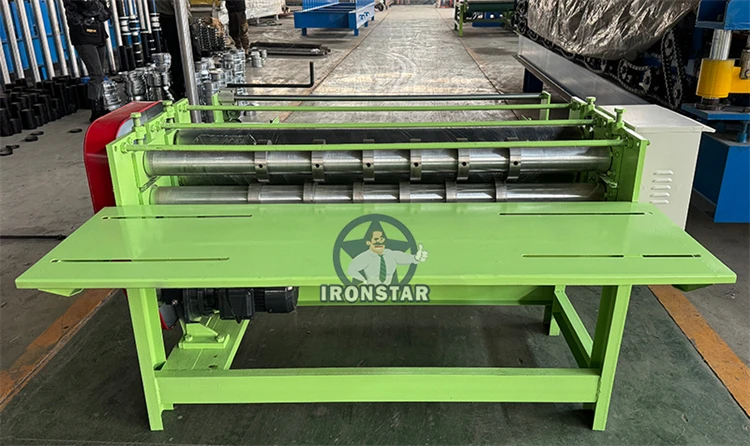

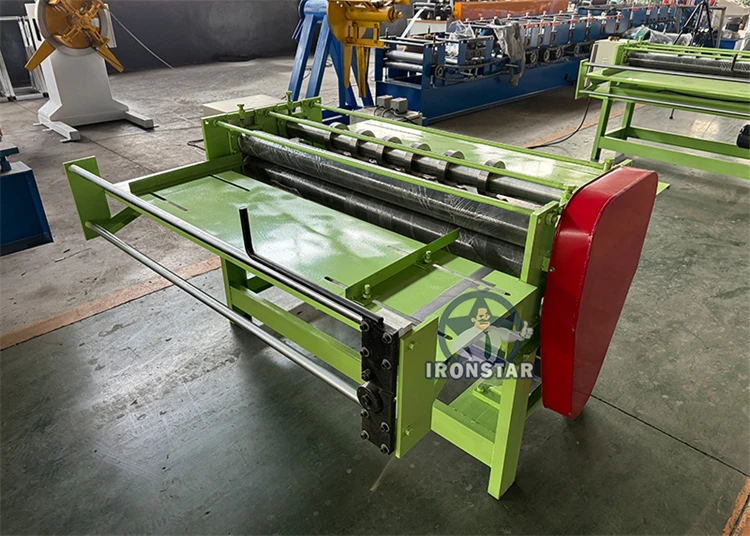

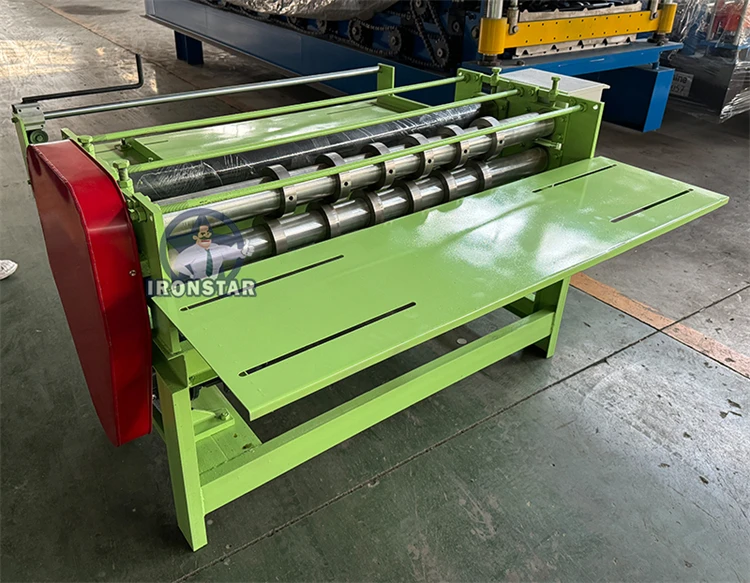

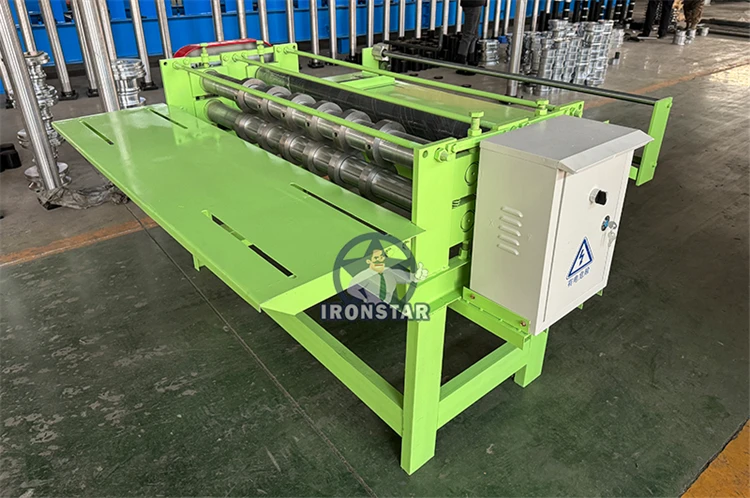

Автоматическая машина для резки и перемотки

Сохранить в закладки 1601299825975:


Цена:2 000,00-2 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики




Machine Spections




uncoil slit recoil line





Working flow





Decoiler-Cutting machine-PLC control box-hydraulic cutter-Run out table
































































































































Part Details Item Name Specification
Material Raw Material Galvanized steel or PPGI
Thickness 0.3-1 mm
Machine Roller Station top 3 down 3 roller stations
Shaft Material 110 mm
Shaft Material 45# steel with 0.05mm chrome
Roller Material 45# steel with 0.05mm chrome
Machine Size About 2.5*1.8*1.3m
Machine Weight About 1.3 ton
Machine Color As customer request
Working Speed 10-20 m/min
Cutter Hardness 50-65 HRC
Cutting Tolerance ± 1mm
Material CR12
Operate Hydraulic cutting
Power Driving Way Chain 1 inch
Main Power 4 KW
Pump Power 3 KW
Voltage

380v 50hz 3P, or Customize as Customer' request

Control System PLC Brand

Delta made in Taiwan

Screen

Touchable Screen

Language

Chinese, English or Add customer' need

Decoiler Operation

Manual

Weight Capacity

3 ton

Price

Free as gift

Receiving Table Operation

Manual

Length

3m

Price

Free as gift





  2120





597





686





3115





4107











Machine Video




If you want to see machine working video, Please contact with miaomiao with any way below





Miao








More for you choose




Customer common choose some machines together:





Automatic cut to length machine


Simple coil slitting machine / Automatic sheet slitting machine / Slitting and recoil whole line


Simple metal bending machine / 4m or 6m metal bending machine


Arch roof sheet machine / Curving roof sheet machine


uncoil slit recoil line











Company Information




     Hebei Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.





uncoil slit recoil line





uncoil slit recoil line





uncoil slit recoil line








We machine sell




uncoil slit recoil line








FAQ




1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).



2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.



3. Q: What is the Warranty?
A: Within 36 months, all technical staff are ready to serve you at any time.



4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.



5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
