USD1591 Free Ship Studio Stream Kit VX60AL=3 pcs SDI 4K 20X Optical Zoom PTZ Camera hd mi lan usb poe+a ip controller+poe switch
a pcs ip controller tops could control 200 pcs cameras at the same time

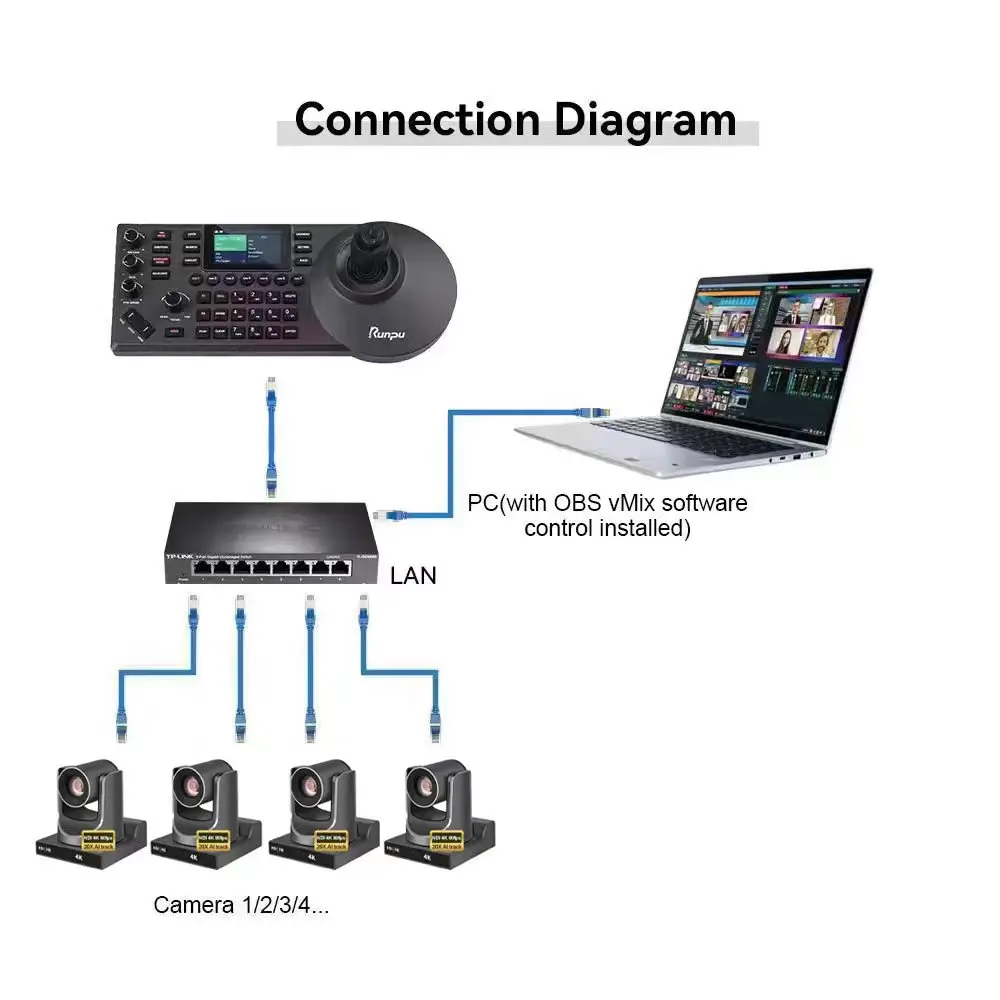

all use internet cables to connect
I help you to sucessfully setup.
Call me whatsapp jessica 0086 15166858175 thanks !
Runpu Enjoy your Live Streaming
Our Mission: Provide your professional Live Streaming Solutions. Help you step by step to successfully setup them
USD1591 Free Ship Studio Stream Kit VX60AL=3 pcs SDI 4K 20X Optical Zoom PTZ Camera hd mi lan usb poe+a ip controller+poe switch
USD1591 Free Ship Studio Stream Kit VX60AL=3 pcs SDI 4K 20X Optical Zoom PTZ Camera hd mi lan usb poe+a ip controller+poe switch

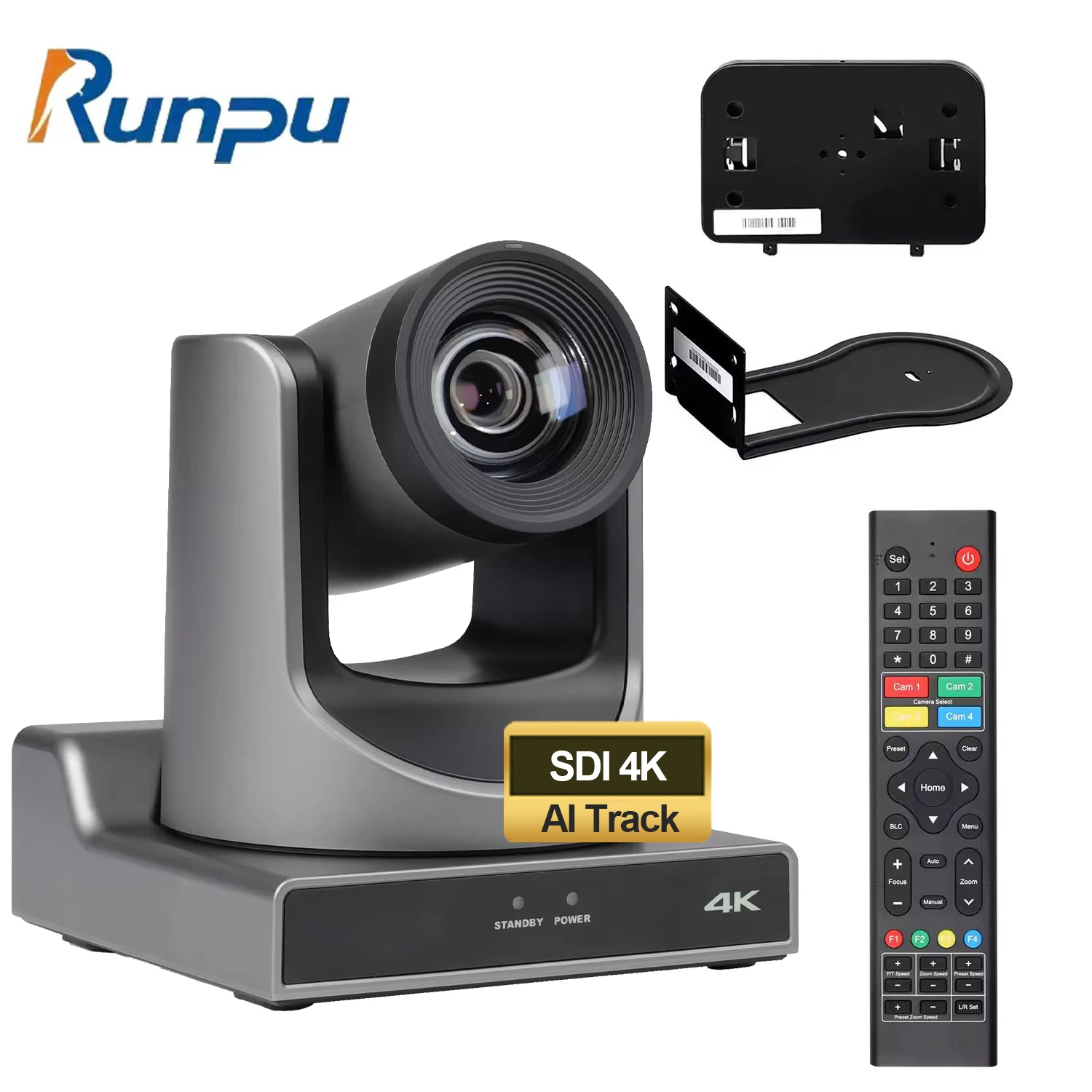

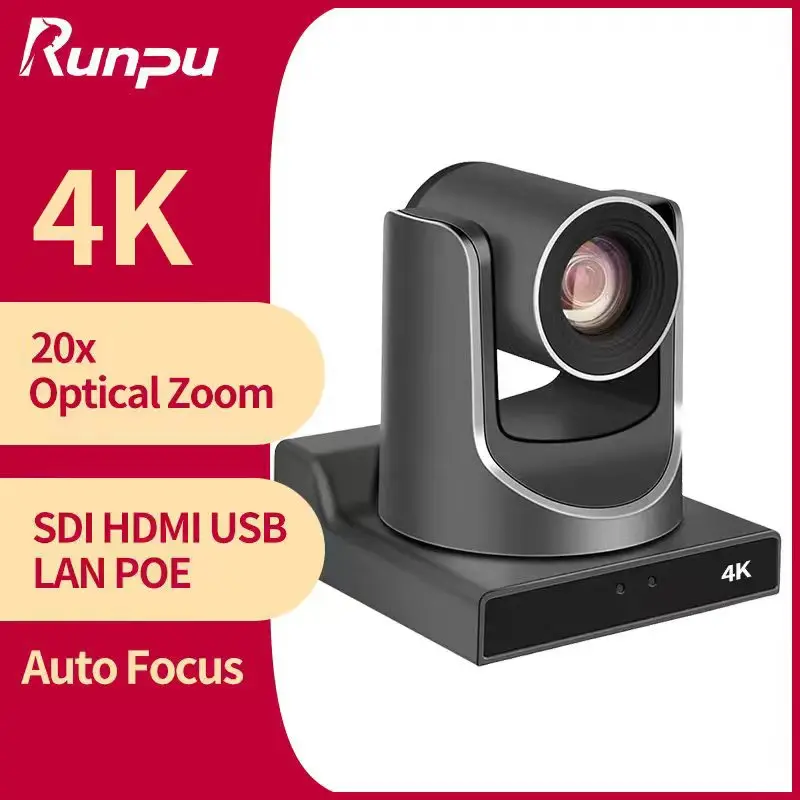

SDI 4K 8MP 20X PTZ Camera - Key Features
20x Optical Zoom
Use high-quality and ultra high resolution 4K UHD lens, with a maximum horizontal field of view angle of 60°,support 20x optical zoom
TOF
Adopting advanced focusing algorithms and TOF modules to assist in focusing, the lens is quickly, accurately, and stably
focused.
focused.
4K UHD
Use 1/1.8 inch, 8.42 million effective pixels high quality UHD CMOS sensor, can reach maximum 4K (3840x2160) ultra high
resolution high-quality images. And downward compatible with 1080P, 720P and other resolutions.
resolution high-quality images. And downward compatible with 1080P, 720P and other resolutions.
Local Storage
Support U disk local storage, local recording directly without NVR.
Low Light
The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of
ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.

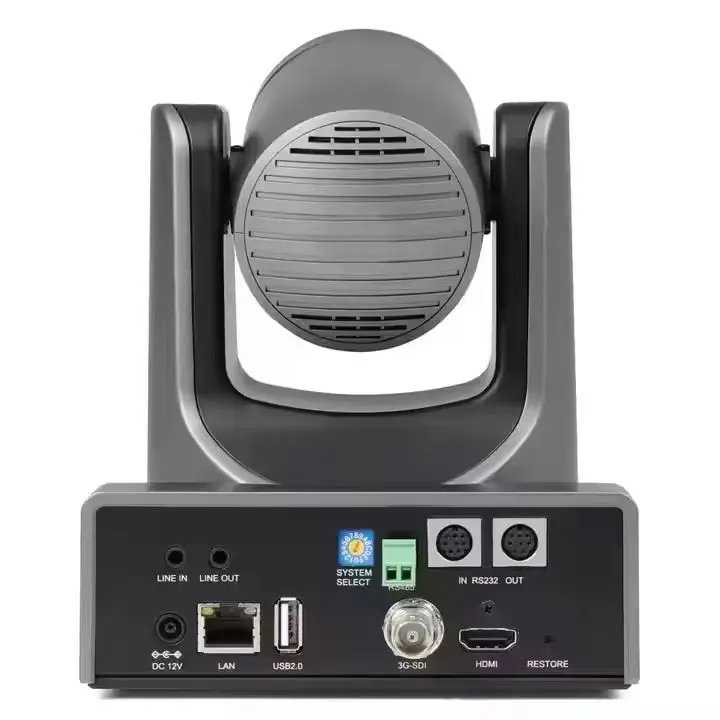

Multiple Interfaces
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30).
HDMI or 3G-SDI, USB3.0, LAN can output 3 HD digital signals at the same time.
HDMI or 3G-SDI, USB3.0, LAN can output 3 HD digital signals at the same time.
Remote Control
Through the RS232 and RS485 serial ports, the camera can be controlled remotely.

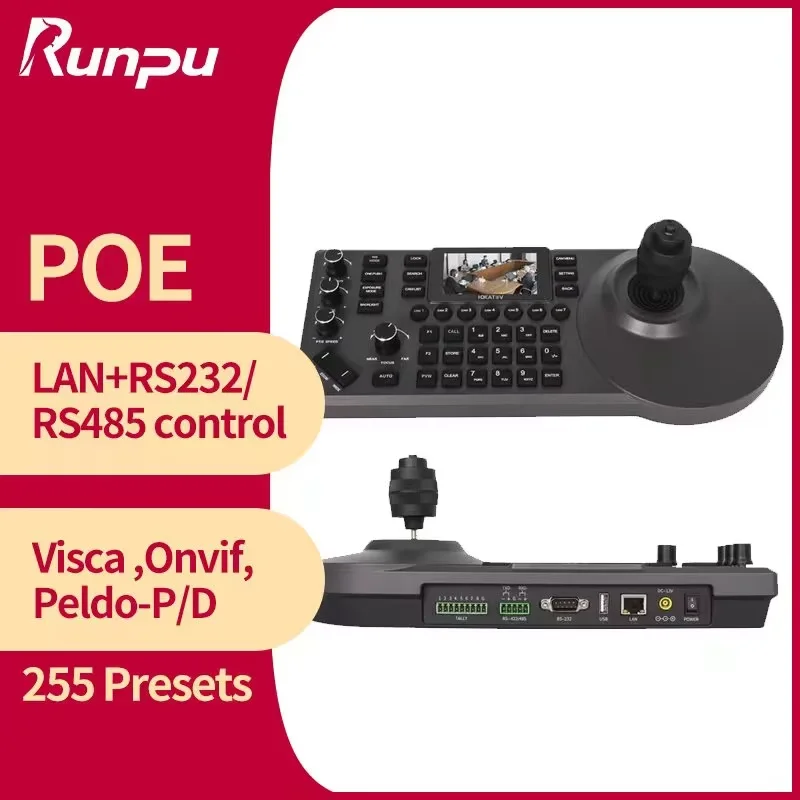

Key Features of IP 4D Joystick Controller
★ with RJ45 3-dimensional, 5-inch high-definition screen can display an image* Support Vmix ONVIF2.4,Support for H.265/ H.264 and hikvision agreement. ,not the back-end PTZ manufacturers restrictions, easy to set
preset points, 2 points scanning, etc. functions;* Plug and play, without any set, the keyboard automatically add and assign
IPaddresses;
★ Supports USB, HDMI output, enabling the main screen console screen arbitrary switchingn
★RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;
★All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
★Up to 15 keyboards can be connected to the cascade port;
★Special standard SONY VISCA protocol 9600bps, 19200bps;
★Keyboard operation password lock function;
★Keyboard stepless speed change;
★7 conference machines with cascade control function.
Key Features of IP 4D Joystick Controller
★ with RJ45 3-dimensional, 5-inch high-definition screen can display an image* Support Vmix ONVIF2.4,Support for H.265/ H.264 and hikvision agreement. ,not the back-end PTZ manufacturers restrictions, easy to set
preset points, 2 points scanning, etc. functions;* Plug and play, without any set, the keyboard automatically add and assign
IPaddresses;
★ Supports USB, HDMI output, enabling the main screen console screen arbitrary switchingn
★RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;
★All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
★Up to 15 keyboards can be connected to the cascade port;
★Special standard SONY VISCA protocol 9600bps, 19200bps;
★Keyboard operation password lock function;
★Keyboard stepless speed change;
★7 conference machines with cascade control function.
SDI 4K 20X Optical Zoom PTZ Camera Live Streaming | ||
Image sensor | 1 / 1.8 inch high quality CMOS sensor | |
Effective pixel | 8.51 million, 16:9 | |
Video output interface | sdi hdmi lan usb poe | |
Lens | 20X Optical Zoom | |
View angle | 3.3 ° (narrow angle)- 60° (wide angle) | |
Aperture coefficient | f1.6 – F3.5 F = 5.5 ~ 110mm | |
Gain control | Auto/manual | |
Focus | Auto/manual | |
Horizontal rotation | - 170 degree to + 170 degree | |
Pitch rotation | - 30 degree to + 90 degree | |
The horizontal control speed | 0.1 ～ 60 degree / s | |
Pitch control speed | 0.1 ~ 30 degree/ S | |
Control protocol: | visca / PELCO-D / pelco-p; baud rate: 115200 / 9600 / 4800 / 2400 | |
Preset position | IR remote control supports 10 presets PELCO Protocol supports 255 presets | |
Minimum illumination | 0.5Lux (f1.8, AGC on) | |
Digital noise reduction | 2D & 3D digital noise reduction | |
Image stream | double stream output | |
Video compression format | h.265, H.264 | |
Audio compression format | AAC, MP3, g.711a | |
Network interface | 100m network port (10 / 100base-tx) 5gwifi (optional) | |
Network protocols | RTSP, RTMP, onvif, GB / t28181 | |
Power interface | hec3800 power socket (DC12V) | |
Power adapter | input ac110v-ac220v, output DC12V / 1.5A | |
Input voltage | DC12V ± 10% | |
Power consumption | 12W (maximum) | |
Work temperature | -10℃～+50℃ / 20%～80% | |
Storage temperature | -10℃～+60℃ / 20%～95% | |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount | |
