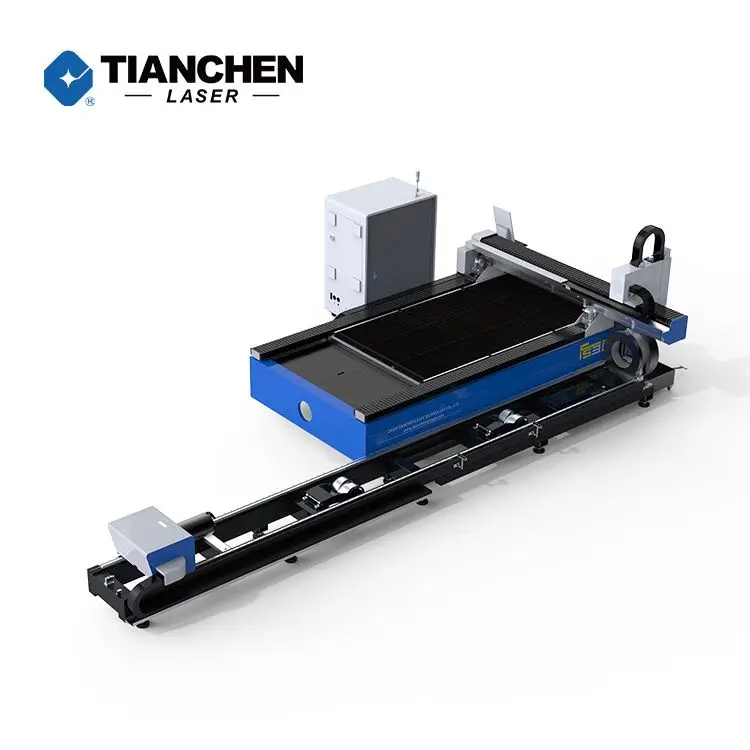

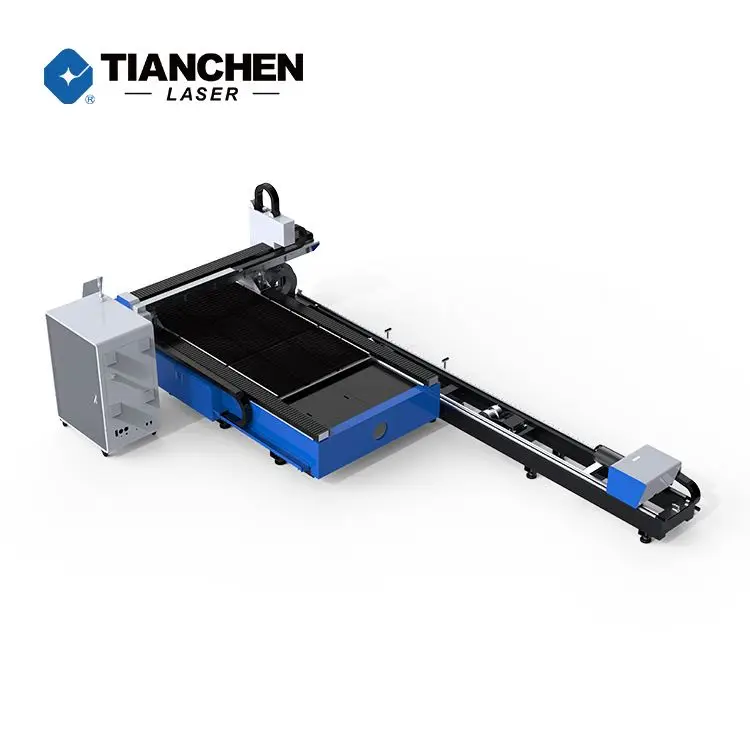

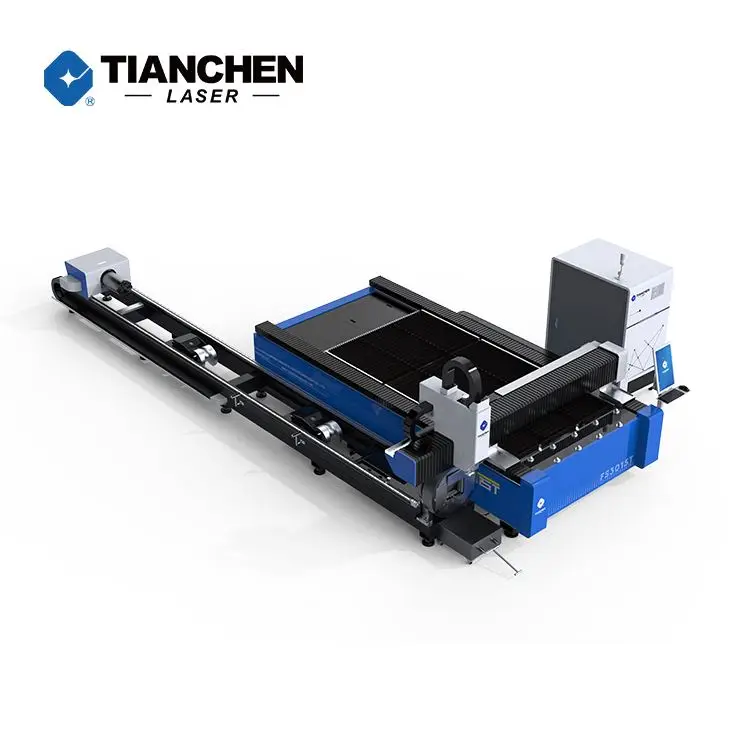

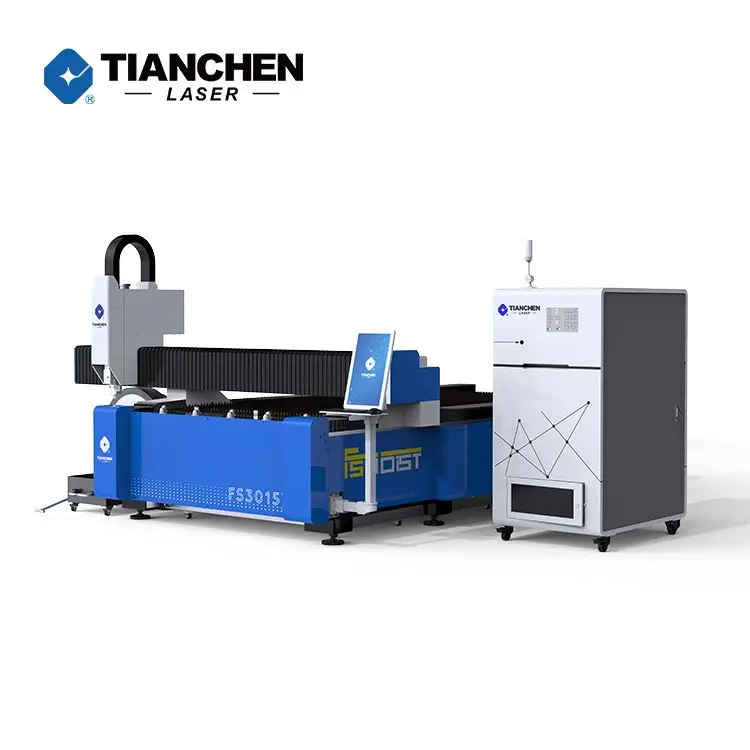

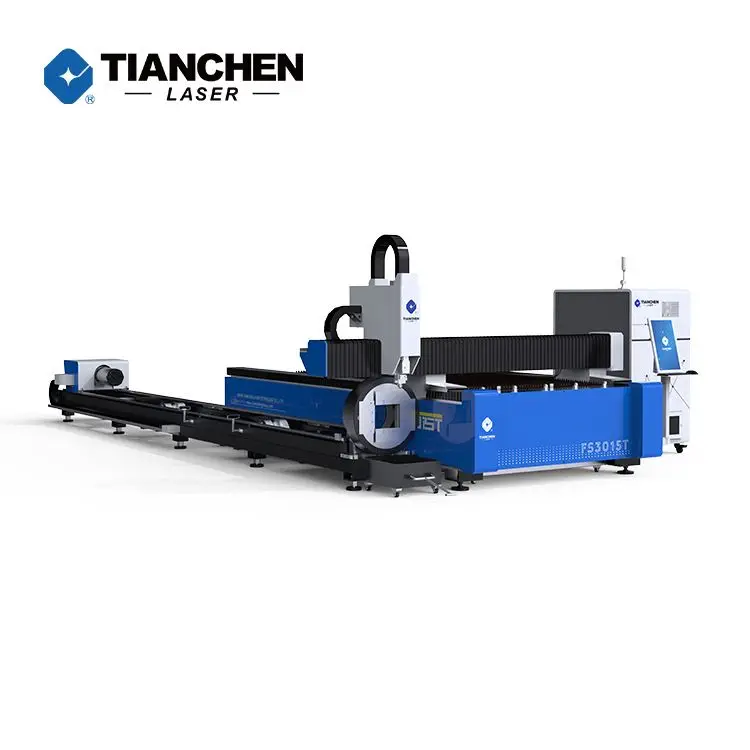

TC-FST sheet and tube fiber laser cutting machine





The plate tube integrated fiber laser cutting machine is a device that combines cutting metal sheets and pipes, which can meet the needs of cutting both sheets and pipes simultaneously, thereby saving the cost and space of purchasing and maintaining multiple devices. This type of equipment usually uses fiber laser technology, which has the characteristics of high efficiency, precision, and adaptability to various metal materials.


The plate tube integrated fiber laser cutting machine is widely used in industries such as automobiles, ships, furniture, fitness equipment, agricultural machinery, clothing display racks, etc., meeting the production needs of manufacturers in various industries who can cut plates and tubes with both hands










ItemsParameters
FS3015TFS4015TFS6015T
Basic
parameter
Working area3048*1524mm4064*1524mm6096*1524mm
Positioning accuracy0.05mm0.05mm0.05mm
Repositioning accuracy0.03mm0.03mm0.03mm
Maximum feed speed of rear chuck130m/min130m/min130m/min
Max. acceleration
(X/Y axis linkage)
1.2G1.2G1.2G
Table load bearing800kg1100kg1600kg
Total weight of machine3.8T4.5T6T

Tube size range

Round tube:Φ15-Φ230mm
Square tube:Φ15-Φ230mm
Circumscribed circle diameter≤320mm
Multifunctionall of the models can also cut angle steel and channel steel
ChuckInternational famous brand
Chuck drive typesPneumatic chuck
Chuck air pressure0.4-0.9Mpa
Chuck maximum load100kg140kg200kg
Maximum blanking length25*φD
25 times the diameter
25*φD
25 times the diameter
25*φD
25 times the diameter
Chuck rotation angleUnlimited ±∞
Maximum speed of chuck75RPM/MIN
Chuck rotation accuracy≤0.1mm
Chuck repeat positioning accuracy≤0.1mm
Easy operation
Independent electric control cabinet
Intelligent partition dust removal
Support power1-6KW
Mechanical systemMachine bedtube and Plate welded bed
Gantry structureHigh-pressure cast aluminium beams
Servo motor and driverInternational famous brand
Guide railInternational famous brand
RackInternational famous brand
ReducerInternational famous brand
GearInternational famous brand
lubrication systemAutomatic lubrication function
Peripheral systemLaser sourceMAX/Raycus/IPG
Laser headBoCi/RayTools
Water coolerHANLI/TongFei/S&A
Intelligent control systemControl systemFSCUT3000S
Control modeBus control
AlarmGas low pressure alarm (Oxygen, Nitrogen/Air)
O2 Cutting gas control valveInternational famous brand
Cleaning functionNozzle automatic cleaning function




-(1)--11-(1)--22














What does customer say about our machine?


(by the way, you can click picture to see video by computer)





NO.1


One of our Russia customer send us picture after our machine arrive at his area. and he also come to our factory for machine inspection before delivery. He is very satisfied with his machine.










NO.2


Brazil customer use our machine to work on lots of material, including stainless steel, galvanized steel, galvalume steel, carbon steel. He likes our after-sales service very much. Please check communication below between our customer and our salesperson.










NO.3


Kosovo customer use our machine to cut carbon steel, he said our machine working is very good!







NO.4


Malaysia customer is testing machine working, our engineer go to customer area for installation, operating etc for his machine.










No.5


India customer use our machine very well, they cut not thicker stainless steel.










No.6


Korea customer bought many sets machine from us. They use our machine cut different metal material to acquire very beautiful industrial steel spare parts. Our cooperation is very happy and smooth!


atyr (2).jpg





atyr (1).jpg





......


There are also other customer case that we want to tell you, welcome to send us inquiry or chat with us online.


(By the way, our company places great emphasis on innovation and providing customers with a better experience using machines, so we have injected new designs and improvements into the appearance and interior of the machines. Buyers are welcome to provide us with suggestions on using or maintaining the machine at any time)


























1. What is fiber laser cutting machine?


Fiber laser cutting machine is for cutting metals, such as cutting carbon steel, mild steel, stainless steel, aluminum, brass and copper.





2. Whats the necessary info. does i need provide to get your quotation?


 You can receive our price within one hour after send us the cutting materials/cutting thickness/working area info.





3. Does the machines have certifications?


All of our machines have CE FDA certifications, you can ask our sales person to send you for confirmation. You dont need to worry about the customs clearance. In addition, we have agents in some countries.





4. Whats your payment terms?


Alibaba trade assurance/TT/West Union/Paypal/LC/Cash etc.





5. Whats the delivery time of machine?


The delivery time of the most common machine models is usually within 15-30 days. You can ask our sales person to confirm.





6. How do you provide after-sales service?


You can install and operate machine according to the installation manual and installation video we prepared for you. If you have any question about machine, we can set up online group where our engineers and sales person will be available to guide you, and our service will stay online 24 hours for you. Our after-sales service team has very rich experience, you dont need to worry about it.
