Equipment Introduction
Natural gypsum powder production line
Equipment details
1.Product quality | ||||
Reach or exceed the china (GB9776-88《building gypsum》) requirements. | ||||
2.Fineness | ||||
100 mesh-120mesh | ||||
3.Bending strength | ||||
Bending strength 1.8 Mpa; Compressive strength: was 3.0 Mpa.(The bending strength have direct relations with raw material) | ||||
4.Main relative composition | ||||
1)Soluble anhydrous gypsum content:≥ 80% adjustable 2)The content of dihydrate gypsum: ﹤ 5% adjustable 3)Initial setting time: 3 ~ 8 min adjustable; Final setting time: 6 ~ 15 min adjustable. |
Coarse crushing system
Mainly composed of storage hopper, vibrating feeder, single section crusher, elevator, and coarse bin equipment.
The crushing system can crush large ore from mine mining to an average granularity of 25 mm by one time, Simplifying the technological process, saving construction investment.Process simplified and Low operating costs.
The crushing system can crush large ore from mine mining to an average granularity of 25 mm by one time, Simplifying the technological process, saving construction investment.Process simplified and Low operating costs.
Grinding system
Mainly composed of de-ironing separator, electromagnetic vibration feeding machine, mill and powder collector device.
Automatic production.Simple structure and easy maintenance.
Can meet the fineness of grinding requirements from different users.
Automatic production.Simple structure and easy maintenance.
Can meet the fineness of grinding requirements from different users.
FD - chamber boiling furnace technology(hot air )
The FD - chamber boiling furnace technology has been patented by the nation.
1.Reduce investment
2.Power saving
3.Maintenance cost saving
4.Comprehensive utilization rate
5.Quality adjustable
6.The installation period is short and the area is small
7.Environmentally friendly
1.Reduce investment
2.Power saving
3.Maintenance cost saving
4.Comprehensive utilization rate
5.Quality adjustable
6.The installation period is short and the area is small
7.Environmentally friendly
Finished products packaging and storing system
Having many characteristics, such as waterproof, moisture proof, easy to use, etc.;Size can be produced according to customers’ requirements.
Its upper has dust removal equipment, preventing dust leakage; arch breaker is equipped underneath to prevent powder agglomeration, making the powder discharge smoothly, and is equipped with material level sensor equipment, may control warehouse material usage at any time .
Its upper has dust removal equipment, preventing dust leakage; arch breaker is equipped underneath to prevent powder agglomeration, making the powder discharge smoothly, and is equipped with material level sensor equipment, may control warehouse material usage at any time .

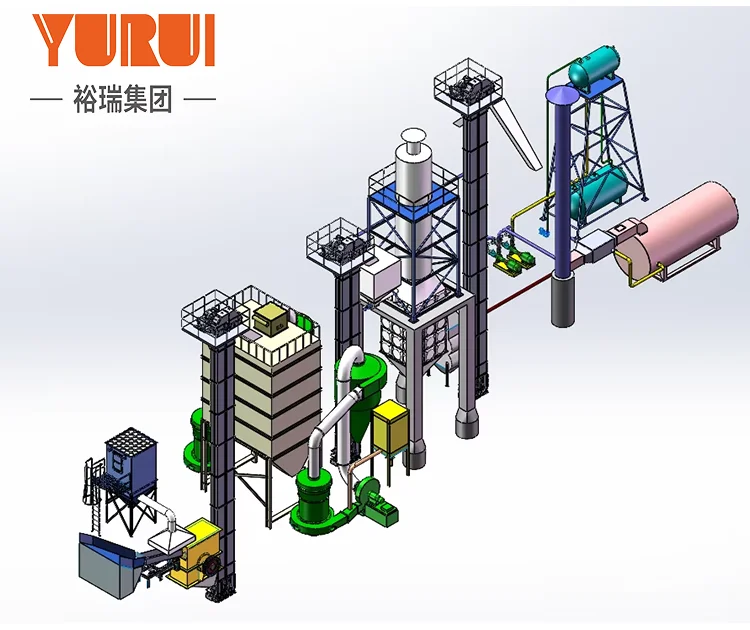

Process Flow
Raw Material Feeding
Crusher
Belt conveyor and Elevator
Bag Dust Collector
Raymond mill
Hot Air boiling Furnace
Cooler
Burning Combustor
Finished powder Silo
Gas tank
Electrical Cabinet
Production Line
Unique Advantage
Easy to form a complete equipment. Except the special parts for the production line, the other parts can use the Chinese standard equipment. Control the quality in strict accordance with the ISO9001. The key electronic components use the high quality products from the internationally known company.
Less investment and mature production technology. The production cycle is short and the customers will benefits very quickly. The quality of the products is easy to guarantee.
Less investment and mature production technology. The production cycle is short and the customers will benefits very quickly. The quality of the products is easy to guarantee.
1 | Continuous production: using hammer dryer and soft start. | ||||
2 | Quality stability: modification mill can increase the specific surface are of materials. | ||||
3 | Energy conservation and stability: great brand frequency transformer | ||||
4 | High performance of equipment: using bag dust collector ,water bath desulfurization and denitration treatment, requency transformer,Siemens electrical, PLC, guomao reducer, national standard cable, electrical control: ABB. | ||||
5 | Easy control: Adpot computer display, PLC control. | ||||
6 | Mature experience: The core features of our company are mature technologies that can provide a solid foundation for your company. | ||||
Why choose us
What we provide is not ONLY the machine BUT the whole system.
Yurui (Shandong) Machinery Co., Ltd, is an enterprise integrating gypsum projects R&D, design, Manufacturing, exportation, installation, and commissioning.
We have been deeply engaged in the field since 1998, setting up 100+gypsum projects domestic and abroad. Our engineers group who only serve for YURUI left a full footprint over Africa, Asia, and south America, total of 20+countries. We hold different projects in each area, offering case visiting on-site. Besides we developed online visiting which breaks the limit of the virus.
We are not a machinery provider, but an overall solution provider.
We focus on the demands of users, never stop updating, improving, and surpassing.
We pursue extreme cost performance, not only price.
We have been deeply engaged in the field since 1998, setting up 100+gypsum projects domestic and abroad. Our engineers group who only serve for YURUI left a full footprint over Africa, Asia, and south America, total of 20+countries. We hold different projects in each area, offering case visiting on-site. Besides we developed online visiting which breaks the limit of the virus.
We are not a machinery provider, but an overall solution provider.
We focus on the demands of users, never stop updating, improving, and surpassing.
We pursue extreme cost performance, not only price.
Our Factory
1) Experienced installation group gets projects into production quickly.
How do we ensure the fact installation? Besides the “people”, we provide the installation documents which accompany our machinery.In addition, we extra provide all the relevant documents to enhance your production.
2) the Whole group provide a powerful One-stop sourcing service
We assist our customers in the procurement of all relevant spare parts, saving them time to the greatest extent and preventing downtime due to spare parts. At the same time, we ensure the maximum adaptability of the parts purchased later to the original equipment.
How do we ensure the fact installation? Besides the “people”, we provide the installation documents which accompany our machinery.In addition, we extra provide all the relevant documents to enhance your production.
2) the Whole group provide a powerful One-stop sourcing service
We assist our customers in the procurement of all relevant spare parts, saving them time to the greatest extent and preventing downtime due to spare parts. At the same time, we ensure the maximum adaptability of the parts purchased later to the original equipment.

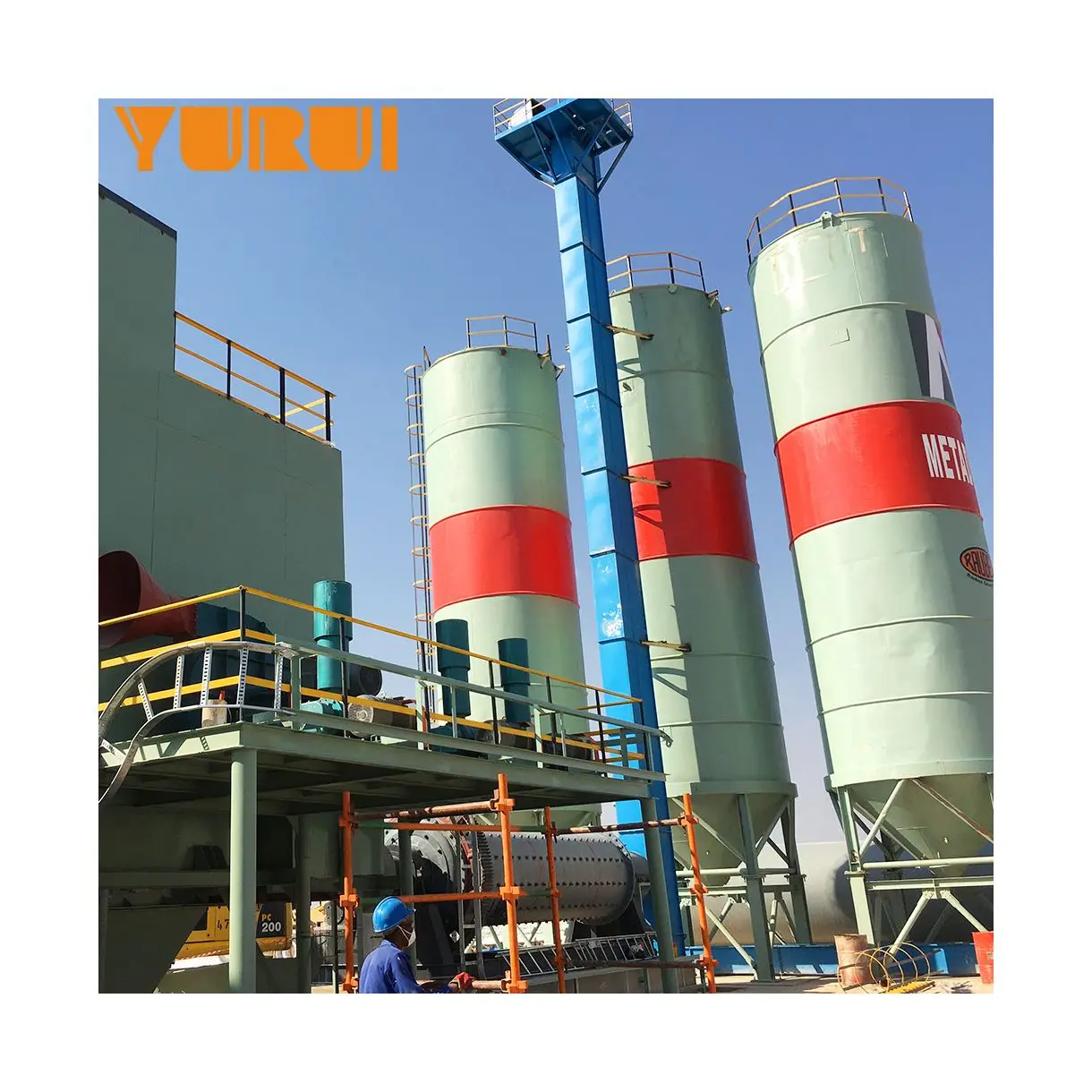

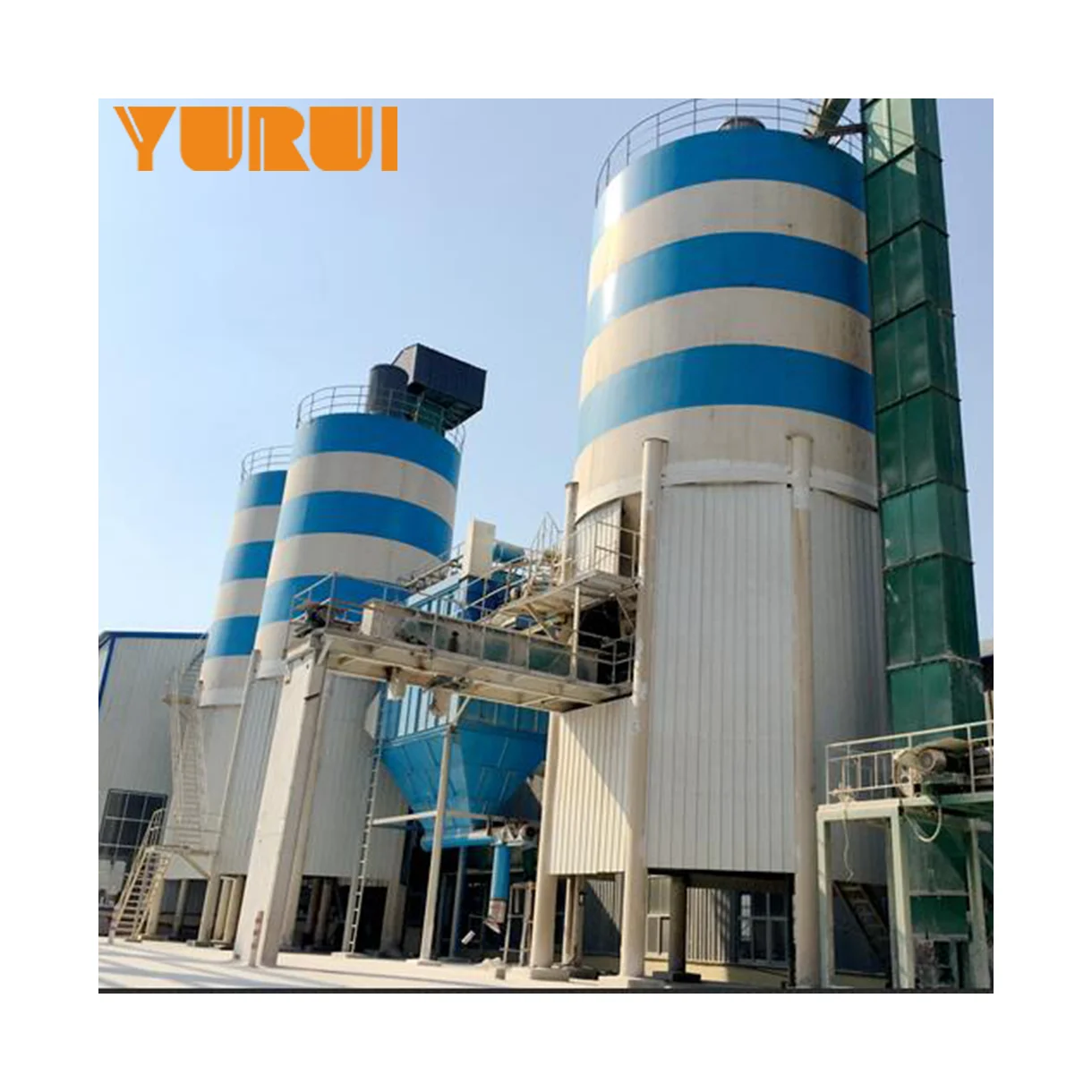

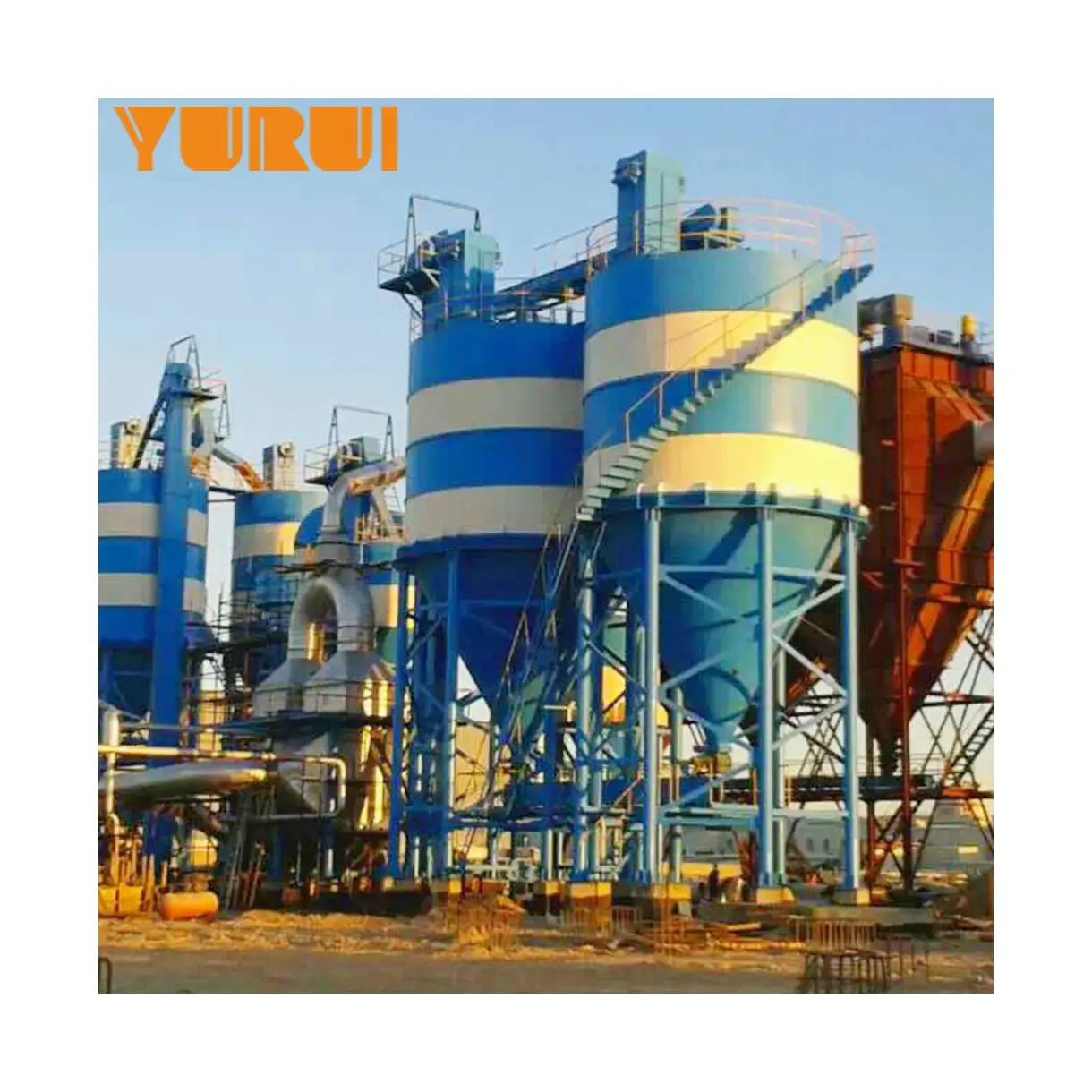

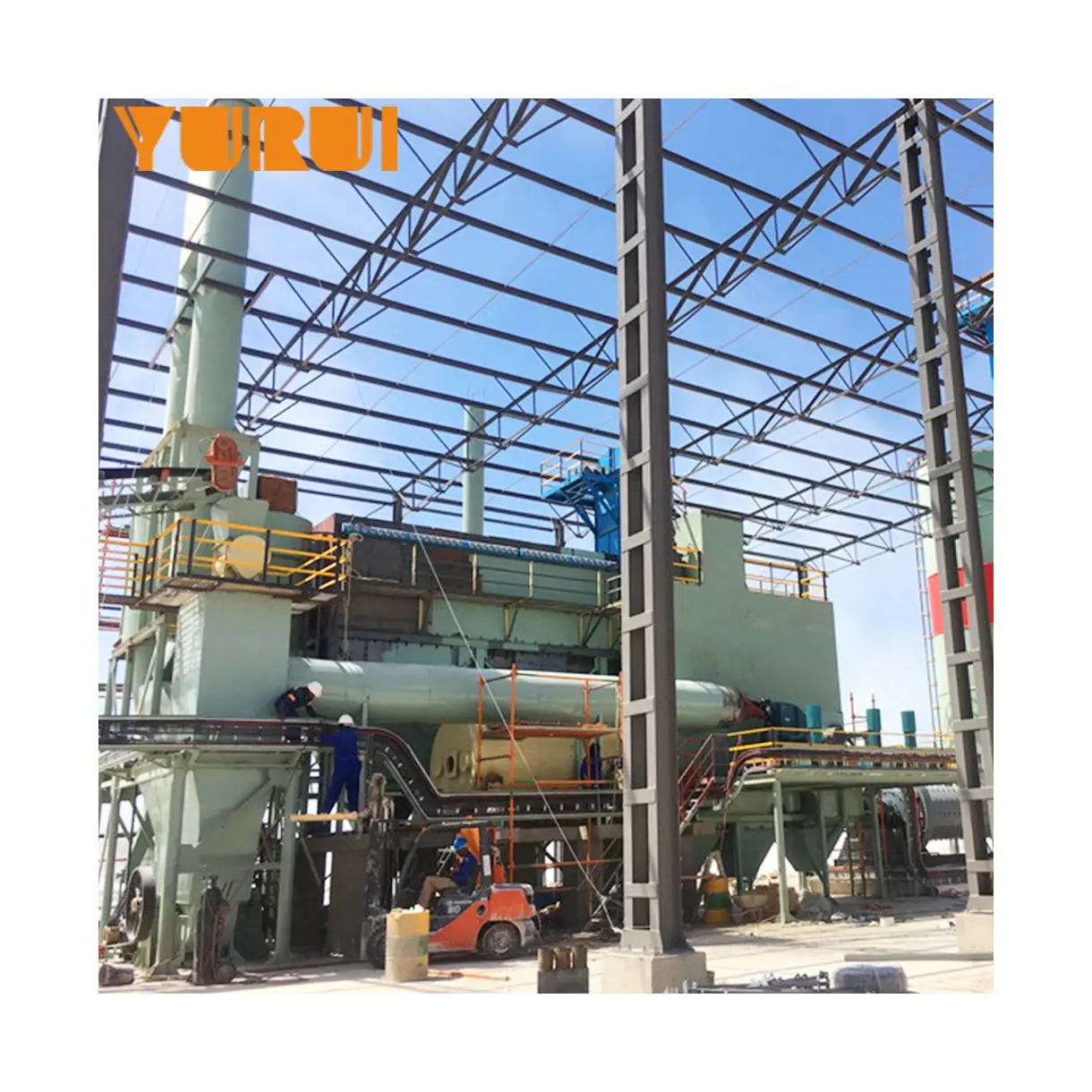

Project Display
12 Years experience in oversea market projects service
No projects of failure.
1) Experience in gypsum technology research since 1998
2) Experience of 100+ projects manufacture &install abroad and domestic
3）Products available in 20+countries
2) Experience of 100+ projects manufacture &install abroad and domestic
3）Products available in 20+countries
Packing
Services
1) Pre-sales: Full cooperation with pre-preparation work
2) In-sales: On-time reporting of production progress
3) After-Sales: Lifetime & 24h technical support
2) In-sales: On-time reporting of production progress
3) After-Sales: Lifetime & 24h technical support
FAQ
Q: How long is the warranty of your equipment?
Warmly welcome you contact me for your questions.
A: 1 year
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning?
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
Q:How long time for the installation and commissioning?
A: depend on configuration normally only need 15-25 days. Including workers training.
Q: Do you supply spare parts?
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q: Will you provide training?
A: The training is free of charge , and our engineer will be on duty to train your worker.
Q: How will you provide installation&commissioning?
A: Will provide 2~8 persons(adjustable according to the degree of automatic )for installation. Engineers team will go with your project.
Q:How long time for the installation and commissioning?
A: depend on configuration normally only need 15-25 days. Including workers training.
Warmly welcome you contact me for your questions.
