Высоковязкий одноступенчатый прогрессивный полостной насос серии G
54 300,29-56 562,80 ₽
Винтовой насос Aquasust винтовой высокого давления с прогрессивной резьбой
- Категория: >>>
- Поставщик: Hangzhou Aquasust Water Technology Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601335212217:
Описание и отзывы
Характеристики
Products Description
Recommend Medium
1.All Kinds of Sludge like :Activated sludge, thick sludge, regulated sludge, dehydrated sludge, matured sludge, flotation sludge, river sludge, sewer sludge, secondary sludge...
2.Other Industrial Waste like: Auxiliary flocculant, intermediate agent, ferric chloride, lime milk, metal hydroxide, coal slurry..
3.Argricultural Waste like:Biomass material,liquid fertilizer，faeces...
Aquasust Single Screw Pemp
Aquasust single screw pump is an internally meshed sealed screw pump, belonging to the rotary displacement pump. When the rotor of the single helix rotates around the axis of the stator hole of the double helix, the sealed chamber formed between the rotor and stator continuously, uniformly, and with a constant volume transports the medium from the suction chamber to the discharge chamber. Single screw pumps have low disturbance, stable pump pressure, and good suction performance when conveying media. They can transport non Newtonian liquids with viscosity, as well as concentrates containing mechanical impurities and solid particles.
Main Parameter of Sanitary Single Screw Pumps
Model | Pressure(mpa) | Inlet(mm) | Outlet(mm) | Rotate Speed(r/min) | Capacity(m³/h) |
RG20B01C | ≤0.6 | G1'' | G3/4'' | 229-1450 | 0.12-1.7 |
RG25B01L | ≤0.6 | 50 | 40 | 207-1450 | 0.2-3 |
RG30B01C | ≤0.6 | 50 | 40 | 134-690 | 0.3-2.4 |
RG32B01C | ≤0.6 | 50 | 40 | 271-690 | 1-3.2 |
RG35B01C | ≤0.6 | 65 | 50 | 136-690 | 0.7-5 |
RG38B01C | ≤0.6 | 65 | 50 | 210-710 | 1.8-6.7 |
RG40B01C | ≤0.6 | 80 | 65 | 116-686 | 1-8.5 |
RG45B01C | ≤0.6 | 80 | 65 | 177-690 | 2.5-13.5 |
RG50B01C | ≤0.6 | 80 | 80 | 106-530 | 2-14 |
RG65B01C | ≤0.6 | 100 | 80 | 119-530 | 3-23.5 |
RG70B01C | ≤0.6 | 125 | 100 | 130-434 | 5.2-23 |
Product Details
Product Adventage
1: Same model, greater pressure
Round G series 1st stage pump pressure 0.6mpa 2nd stage 1.2mpa 3rd stage 1.6mpa 4th stage 2.4mpa
Elliptical series 1st stage pump pressure 0.8mpa 2nd stage 1.6mpa 3rd stage 2.4mpa 4th stage 3.0mpa
2: Low speed (the lower the speed of the screw pump, the lower the wear and durability)
Round G series 1st stage pump pressure 0.6mpa 2nd stage 1.2mpa 3rd stage 1.6mpa 4th stage 2.4mpa
Elliptical series 1st stage pump pressure 0.8mpa 2nd stage 1.6mpa 3rd stage 2.4mpa 4th stage 3.0mpa
2: Low speed (the lower the speed of the screw pump, the lower the wear and durability)
The speed of Aquasus screw pumps is generally between 250-380r/min, while the speed of dry mud pumps is only 65-120r/min.
3: High-quality steel
3: High-quality steel
Ordinary shaft steel is made of 40cr steel for heat treatment hardening. For special cases, we will use tool steel to achieve a hardness of 65 degrees or above.
4: Rubber wear resistance and formula
4: Rubber wear resistance and formula
We use more than 30% imported nitrile rubber raw materials and add other ultra wear-resistant materials. After testing with 100000 rotations and torques, we have obtained the most wear-resistant formula hardness, which prolongs the rubber's lifespan.
6: No leakage mechanical seal
The spring of the mechanical seal can be automatically cleaned while conveying materials, and a double end container mechanical seal can also be selected, which is more wear-resistant than ordinary silicon carbide mechanical seals. The entire mechanical seal frame is made of stainless steel material, and the O-ring is made of fluororubber.
7: Bearing housing structure
6: No leakage mechanical seal
The spring of the mechanical seal can be automatically cleaned while conveying materials, and a double end container mechanical seal can also be selected, which is more wear-resistant than ordinary silicon carbide mechanical seals. The entire mechanical seal frame is made of stainless steel material, and the O-ring is made of fluororubber.
7: Bearing housing structure
using customized low-speed ultra-high torque double row ball bearing with force and a balance bearing to achieve a maximum service life of 200000 hours without replacement.
Standard Packing
Recommend Products
Exhibition
Certifications
Service
About us
AquaSust is a reliable, one-stop products,service for wastewater projects companies
We have over 16 years of experience in plastic manufacturing and good resources for manufacturers. We consist of research, productdevelopment, production, and sales of plastic products for the water treatment industry. The main products are MBBR Bio Filter Media, Tube Sludge Clarifier, Bio Block Filter Media, MBR Membrane Bio-Reactor, Disc Bubble Diffuser, Bubble Tube Diffuser, Spiral Mixing Aerator, Random Tower Packing, Sludge Dewatering Machine, Water Treatment Plant and so on. We are committed to product innovation, the continued introduction and being a global supplier of advanced technology. Our highly trained, experienced customer service and sales professionals are in place to guarantee satisfaction, saving you time and money.
FAQ
Q: Hydrophilic and moisturizing membrane
A: Reinforced composite PVDF membrane uses hydrophilic modified PVDF raw materials, the membrane has good hydrophilicity, and no hydrophilic treatment is needed in the site. However, if the diaphragm is not put into use immediately after it is installed, or it needs to be parked for a certain period of time during use, please ensure that the diaphragm is immersed in water or it is always in a wet condition.
Q: Maintenance of membrane flux and membrane cleaning
A:Diaphragm aeration system construction using perforated aeration, aeration of bubbles and water flow, so that the film full of jitter, to achieve self-cleaning of the membrane. Using the intermittent operation mode, the self-priming pump can suck for 10 to 12 minutes and stop for 2 to 3 minutes, which can effectively prevent the clogging of the membrane holes and ensure long-term and stable operation of the membrane separation. When used for the first time, the microbiological culture of the biochemical pool achieves good activity, and the membrane is only put into operation when the viscosity is small.
A:Diaphragm aeration system construction using perforated aeration, aeration of bubbles and water flow, so that the film full of jitter, to achieve self-cleaning of the membrane. Using the intermittent operation mode, the self-priming pump can suck for 10 to 12 minutes and stop for 2 to 3 minutes, which can effectively prevent the clogging of the membrane holes and ensure long-term and stable operation of the membrane separation. When used for the first time, the microbiological culture of the biochemical pool achieves good activity, and the membrane is only put into operation when the viscosity is small.
Похожие товары
30-70 л/мин 22 кВт насос высокого давления обратного осмоса для очистки морской воды
72 739,77-75 341,65 ₽

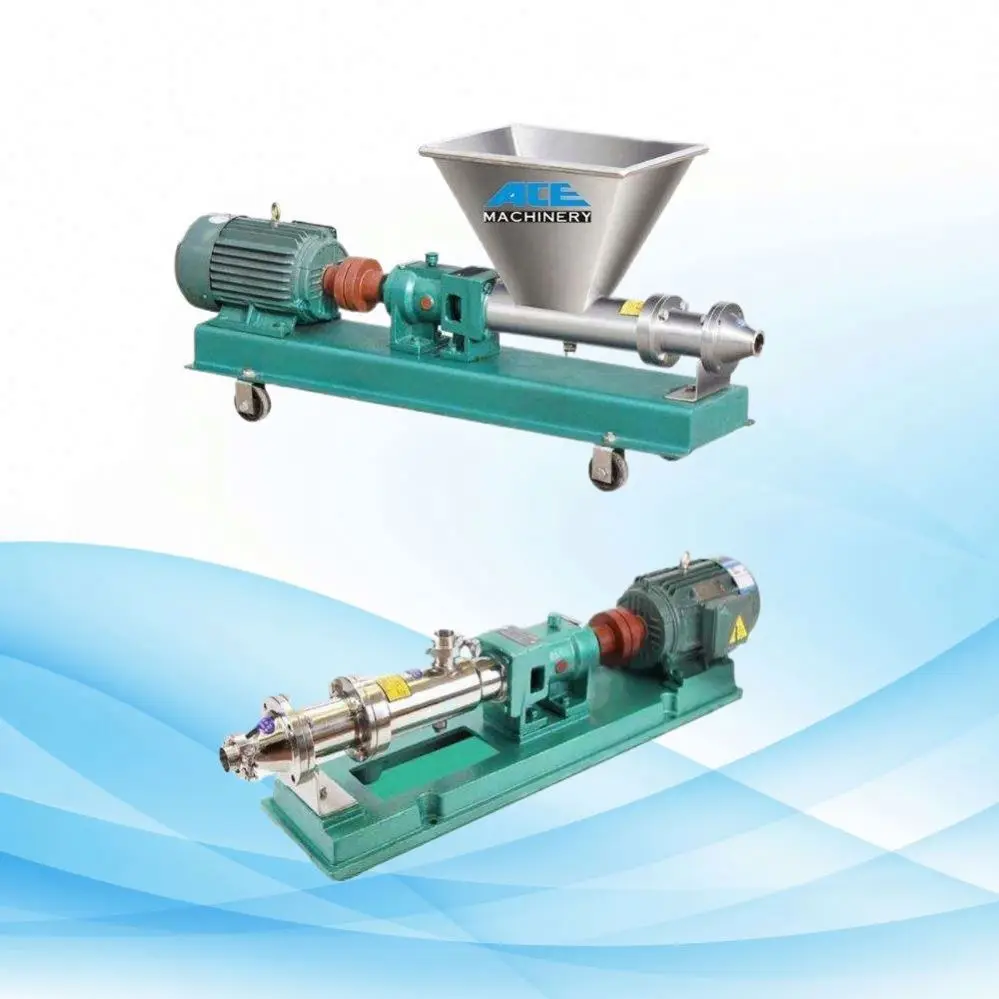

Эксцентричный Одношнековый насос с прогрессивной полостью Ace
113 012,48-113 125,60 ₽
Shandong Zhongrong Fuxing моно шламовый эксцентриковый винтовой насос с одним винтом для масляного насоса
80 658,56 ₽

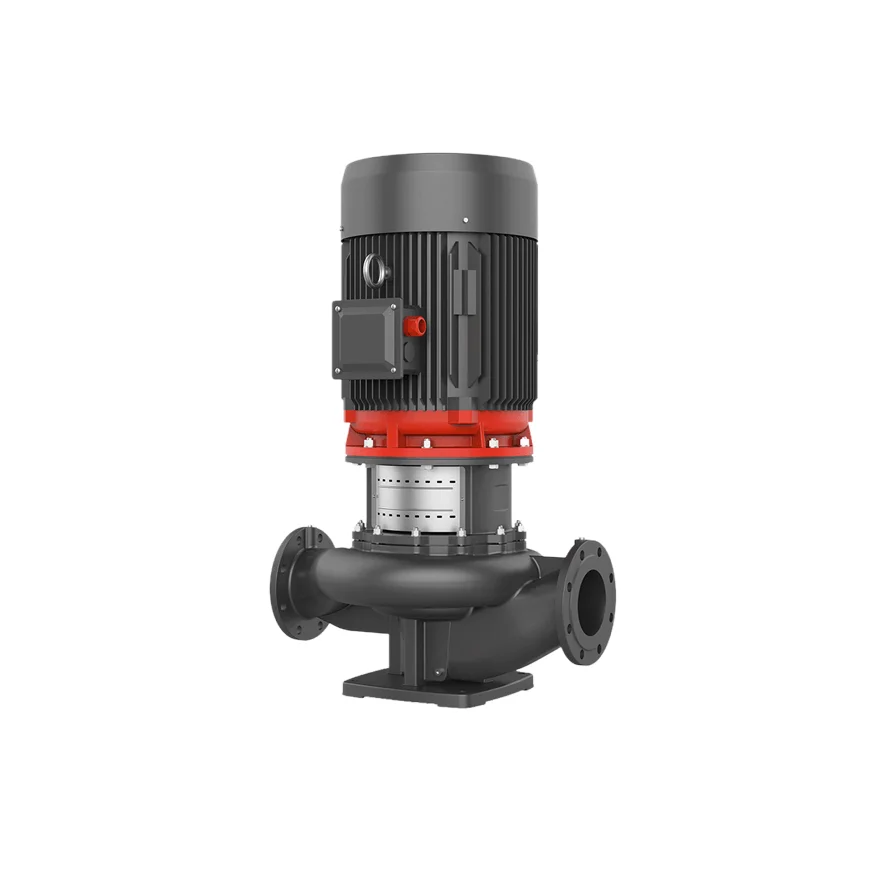

LPP вертикальный встроенный насос высокого давления бустерный нагнетательный Трубопроводный
