Китайский дешевый горный Вибрационный Фидер GZD спецификация 120 т/ч карьерный скальный для продажи
330 568,94-457 710,84 ₽
Китайский дешевый горный Вибрационный питатель производительная мощность 250 400 т/ч
- Категория: >>>
- Поставщик: Henan Xinsu Technology Co. Ltd.Henan Ltd.
Сохранить в закладки 1601335804498:
Описание и отзывы
Характеристики

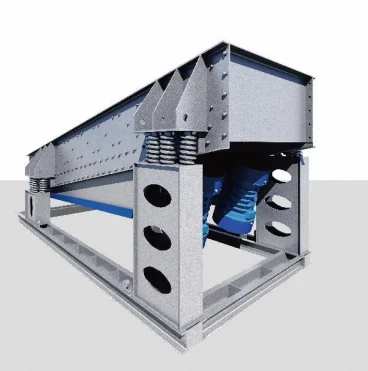

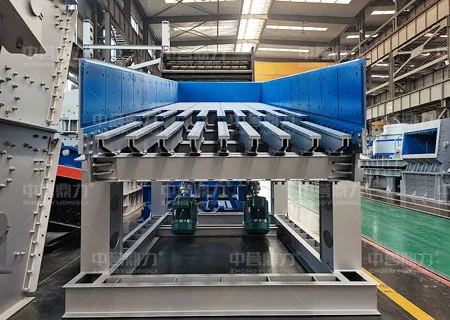

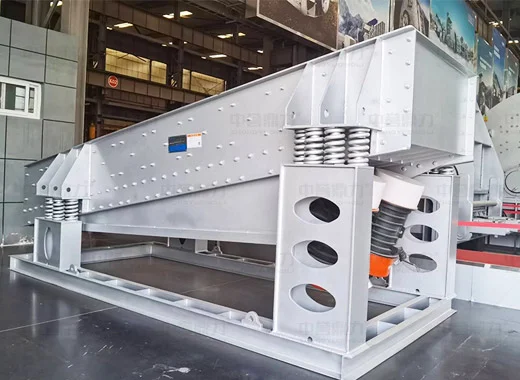

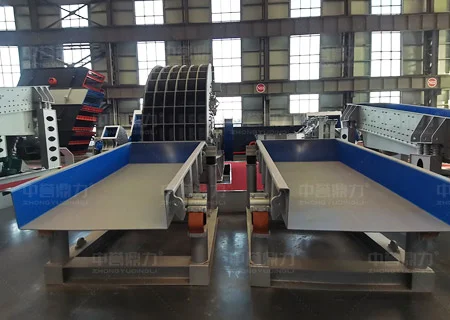

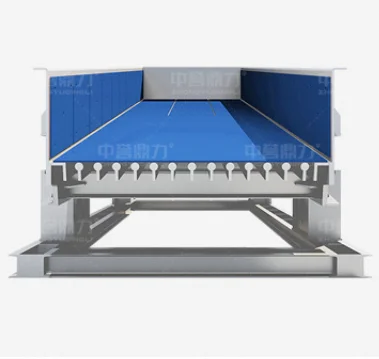

Vibrating Feeder
Equipment type
feeder, dual-use type for soil leakage and feeding
Processing materials
raw materials and soil leakage before coarse crushing crusher
Passing capacity
150-3,000 t/h
feeder, dual-use type for soil leakage and feeding
Processing materials
raw materials and soil leakage before coarse crushing crusher
Passing capacity
150-3,000 t/h
Performance features
Small volume, light weight, low power, simple and compact structure, easy installation and low operating cost.
Adopting suitable 11 degree inclination angle design, large conveying capacity and little occurance of material blocking.
Connected by bolts, the cover plate for oil leakage can be removed and replaced at any time and adjusted according to the needs of soil leakage.
By adjusting the relative angle of the eccentric block to change the size of the excitation force, it is convenient to control the amount of feed material.
The under-bin feeder saves loading height and feeding energy consumption.
Small volume, light weight, low power, simple and compact structure, easy installation and low operating cost.
Adopting suitable 11 degree inclination angle design, large conveying capacity and little occurance of material blocking.
Connected by bolts, the cover plate for oil leakage can be removed and replaced at any time and adjusted according to the needs of soil leakage.
By adjusting the relative angle of the eccentric block to change the size of the excitation force, it is convenient to control the amount of feed material.
The under-bin feeder saves loading height and feeding energy consumption.
Model number | Tank size | Feed size | Motor type | Motor power | Processing capacity |
（mm） | Size (mm) | (kw-6 level) | （t/h） | ||
DLZGC0938 | 900*3800 | ≤500 | YZU-50-6 | 3.7*2 | 150-200 |
DLZGC1238 | 1200*3800 | ≤750 | YZU-65-6 | 4.2*2 | 250-400 |
DLZGC1250P | 1200*5000 | ≤750 | YE2-180L-6 | 15*2 | 250-500 |
DLZGC1550 | 1500*5000 | ≤1000 | YE3-180L-6 | 15*2 | 400-1000 |
DLZGC2050 | 2000*5000 | ≤1200 | YE3-200L2-6 | 22*2 | 800-1600 |
DLZG2260 | 2200*6000 | ≤1200 | YE3-250M-6 | 37*2 | 1800-2200 |
DLZGC2560 | 2500*6000 | ≤1600 | YE3-250S-6 | 45*2 | 2000-3000 |
The feeder has outstanding performance characteristics
Simple structure
It is composed of a frame, a box, a base, and an exciter, among which the exciter is a component of the whole equipment
The feed amount is adjustable
By adjusting the relative Angle of the eccentric block, the excitation force can be changed, so as to control the feeding amount of the equipment
The exciter type is optional
The excitation source is available in two types: vibration motor and ordinary motor with two shaft exciter
Feed screening in one
At the same time of feeding, the material is coarse screened to improve the quality of finished material
It is composed of a frame, a box, a base, and an exciter, among which the exciter is a component of the whole equipment
The feed amount is adjustable
By adjusting the relative Angle of the eccentric block, the excitation force can be changed, so as to control the feeding amount of the equipment
The exciter type is optional
The excitation source is available in two types: vibration motor and ordinary motor with two shaft exciter
Feed screening in one
At the same time of feeding, the material is coarse screened to improve the quality of finished material
Henan Zhongyu Dingli Intelligent Equipment Co., LTD.
(formerly Xinxiang Dingli Mining Equipment Co., LTD.), registered trademark "Zhongyu Dingli", invested 190 million yuan to create 32,000 square meters of large-scale integrated intelligent production workshop, costing tens of millions of yuan to introduce CNC automation large-scale processing equipment, to achieve a high degree of integration of automation and precision.
Zhongyu Ding Li's business involves mining equipment research and development and manufacturing, green building materials industry chain production, sand aggregate production line project EPCO general contracting and full life cycle services, building materials industry system management software, industry tax control software research and development and promotion, etc., with the strength to provide the whole chain of comprehensive services for the building materials industry, to achieve a single mining equipment "manufacturing" company, To the "mine + industrial Internet" of the transformation of science and technology enterprises, with a provincial engineering technology research and development center, a municipal engineering technology research and development center, a data center, a physical and chemical experiment center, a sand aggregate production test base, a four-in-one large-scale building materials production test base.
Production line of 2500 tons of aggregate
Production line of 4500-5000 tons of stone material
Production line of 600-700 tons of stone material
