Industrial Filtration Purification Treatment Clamp Quick Opening Filter Bag Stainless Steel Multi Housing
- Категория: >>>
- Поставщик: Shandong Yate Filter Material Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601349842349:
Описание и отзывы
Характеристики
The YATE brand has two factories, one is the filter housing manufacturing factory, and the other is the filter element and filter bag manufacturing factory, 12 years of experience in filtration industry, which can meet your filtering requirements and provide you with a complete filtering solution. We use advanced production technology and sophisticated equipment, and strictly control every process. From material selection to production and packaging, every link strives for perfection to ensure that every detail of the filter housing and filter bag and filter element meets high quality requirements. The detailed information is as follows:
Application Field
Food and beverage: wine, beer, vodka, juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtrationAutomotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Products Description
Advantages of quick-opening stainless steel bag filter

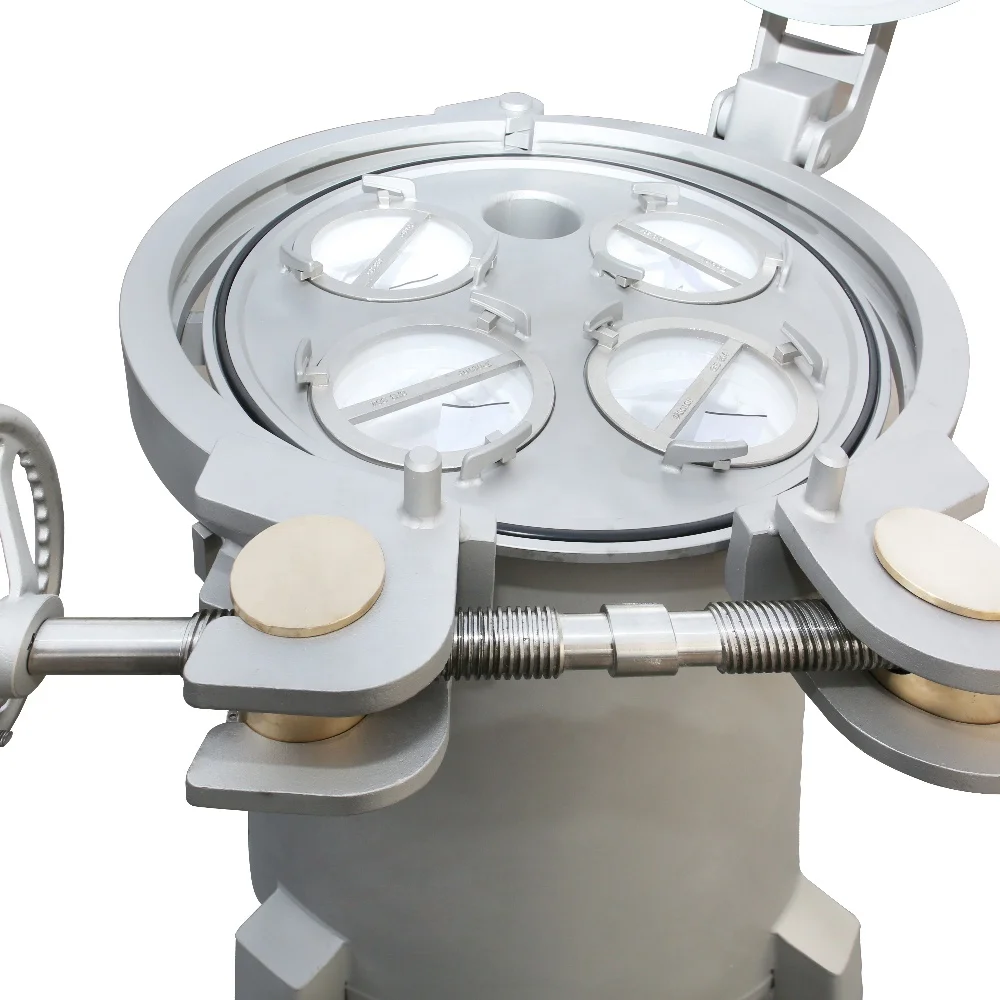

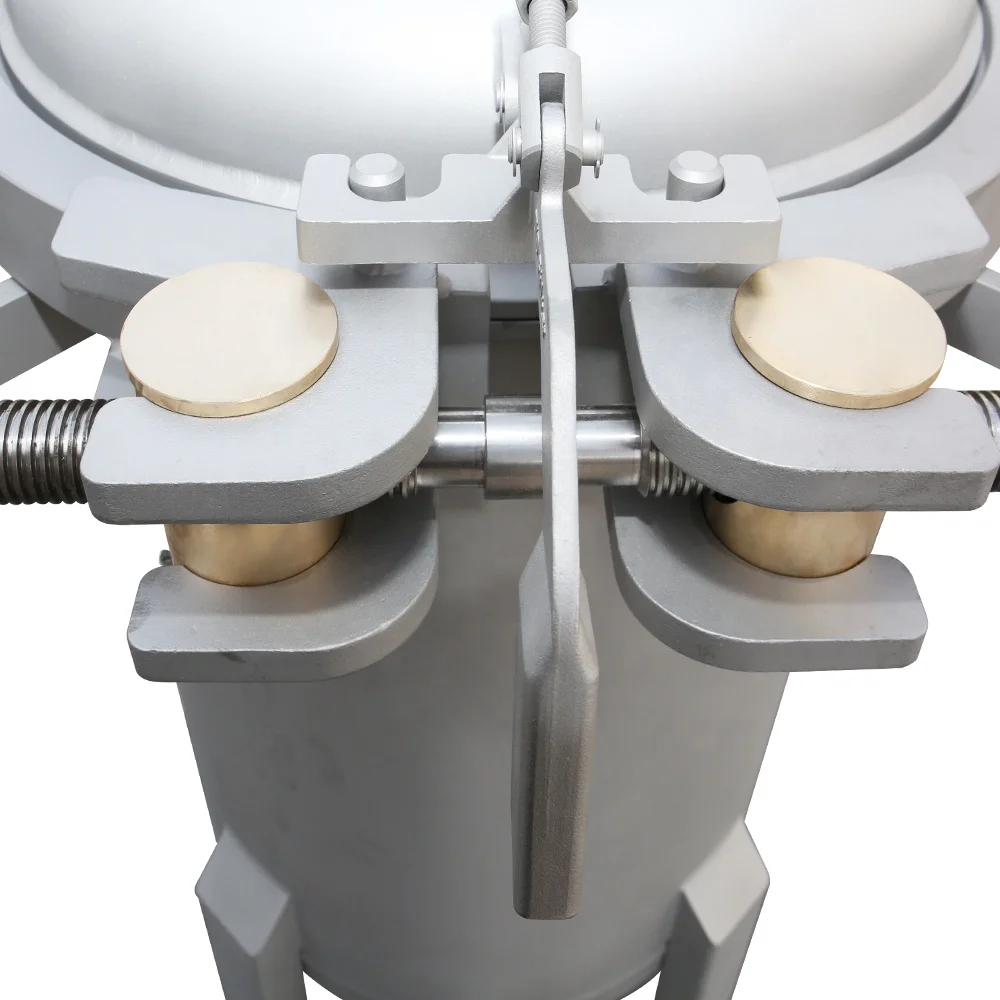

1. Handwheel fast opening design, open cover only 15 seconds, suitable for frequent change of filter bag conditions.
2.The bag filter opens up and down to save space and is suitable for working conditions with limited position.
3. The design of the bag filter housing side into the bottom to ensure that the liquid can be completely discharged, can reduce the tangent of the height, and the pipeline installation is more convenient;
4. The design and compact size of the bag filter housing minimize the loss of liquid.
5. Industrial bag filter can be customized 1-24 bags according to user needs, material according to user material characteristics, can be designed for carbon steel, stainless steel (304, 316L) and so on.
3. The design of the bag filter housing side into the bottom to ensure that the liquid can be completely discharged, can reduce the tangent of the height, and the pipeline installation is more convenient;
4. The design and compact size of the bag filter housing minimize the loss of liquid.
5. Industrial bag filter can be customized 1-24 bags according to user needs, material according to user material characteristics, can be designed for carbon steel, stainless steel (304, 316L) and so on.
Model | Filter Bag# | Filter Bag Qty | Filtration Area(m2) | Connection | Max.Flow (m3/h) | Working Pressure(MPa) |
YT-2P2S | 2# | 2 | 1 | DN50-DN100 | 70 | 0.6 |
YT-3P2S | 2# | 3 | 1.5 | DN80-DN100 | 100 | 0.6 |
YT-4P2S | 2# | 4 | 2 | DN80-DN100 | 140 | 0.6 |
YT-6P2S | 2# | 6 | 3 | DN80-DN100 | 240 | 0.6 |
YT-8P2S | 2# | 8 | 4 | DN100-DN200 | 280 | 0.6 |
YT-10P2S | 2# | 10 | 5 | DN150-DN200 | 350 | 0.6 |
YT-12P2S | 2# | 12 | 6 | DN150-DN250 | 420 | 0.6 |
YT-14P2S | 2# | 14 | 7 | DN200-DN250 | 490 | 0.6 |
YT-16P2S | 2# | 16 | 8 | DN200-DN300 | 560 | 0.6 |
YT-18P2S | 2# | 18 | 9 | DN250-DN350 | 630 | 0.6 |
YT-20P2S | 2# | 20 | 10 | DN250-DN400 | 700 | 0.6 |
Advantages

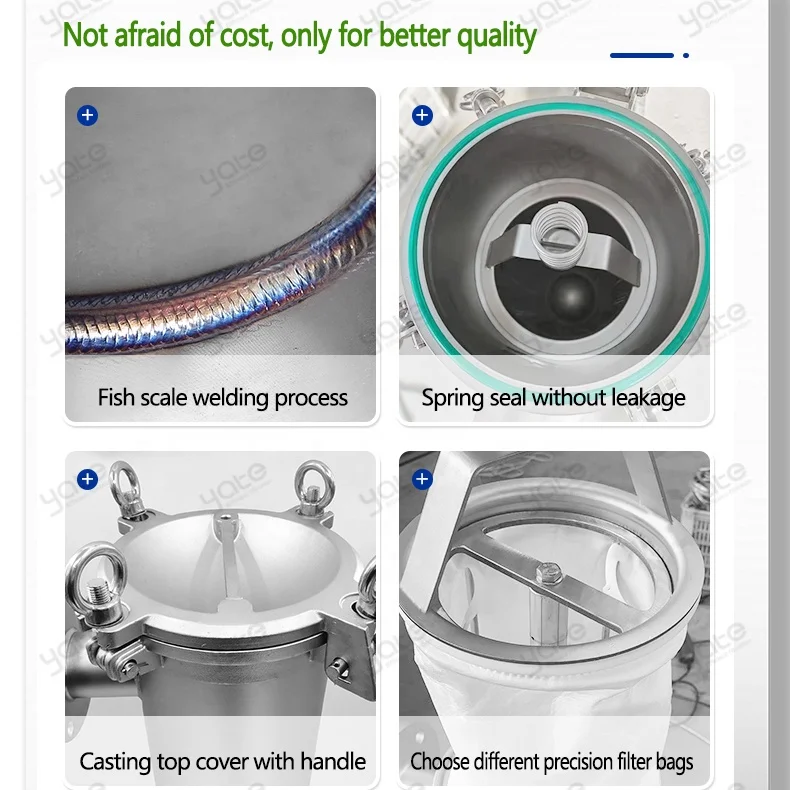

1. Choose high-quality materials
2. Superb welding technology, strong sealing
3. Efficient filtration effect
4. Provide complete filtration solutions
5. Global real case feedback
6. Factory processing equipment and inspection equipment are complete.
