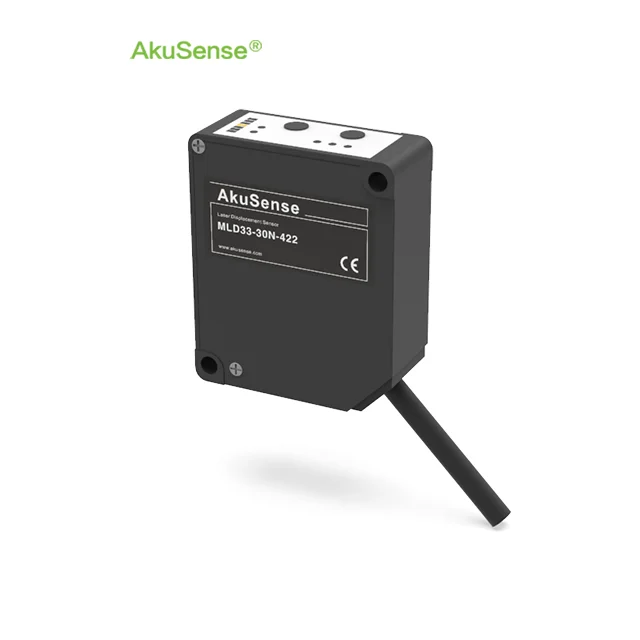

MLD33 маленький световой точечный стабильный лазерный датчик триангуляции с Rs485 для точного измерения

Product Description:

Sensing type		Diffuse reflection
Reference Distance		50mm
Sensing Distance		40-60mm
Full Range		20mm
Light source	Medium.wavelength	Red laser diode Wave length: 665nm
	Maximum output power	1mW
Laser class	IEC/JIS	Class2
	FDA	class2
Beam Size		0.15*0.15mm
Linear resolution		0.1%F.S.
Repeat accuracy		5-8 μm
Sampling period		500μs/1000μs/2000μs/4000μs/AUTO
Temperature Drift		0.08%/℃ F.S
Output	Analog current	4-20mA output,load resistance ≤300Ω
	Analog Voltage	0-10v output,output resistance 100Ω
Operating Voltage		12-24V
Current Consumption		85mA
Connector		M12 5pin connectors
Ambient illumination	Protective circuit	Reverse polarity Over-current
	Degree of protection	IP67
	Ambient temperature	—10℃- 45℃,No freezing
	Ambient brightness	35%-85%RH,No cogulating	Sunlight≤20000Lux, Incandescent≤3000 Lux
	Vibration	10-55HZ Double amplitude 1.5mm,XYZ three directions,2 hour each
	Shock resistance	500m/s²(Approx.50G),XYZ three directions 3 times each
Material		PBT + PMMA
Two switching output types (2CH)		MLD33-50NP
2CH+ Analog Current 4-20mA		MLD33-50NA/PA
2CH+ Analog Voltage 0-10 NV/PV		MLD33-50NV/PV
1CH+RS 422 Communication Interface		MLD33-50 N/P-422
