Китай буровая установка гидравлическая алмазная с низкой ценой

Китай буровая установка гидравлическая алмазная с низкой ценой

Категория: >>>
Поставщик: Henan Yugong Machinery Equipment Co. Ltd.Henan Ltd.

Цена:783 218,80-1 566 437,60 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Paramenters

Model	YGF-180	YGF-200	YGF-260	YGF-300
Weight (Ton)	4.5	5	6.5	7.2
Drilling Diameter (mm)	140~254	140~254	140~305	140~325
Drilling Depth (m)	180	200	260	300
Walking Speed (Km/h)	2.5	2.5	2.5	2.5
Climbing Angles (°)	30	30	30	30
Equipped capacitor (Kw)	55	65	70	85
Using Air Pressure (Mpa)	1.7~2.5	1.7~3.0	1.7~3.0	1.7~3.0
Air Consumption (m³/Min)	17~31	17~31	17~31	17~36
Drilling Pipe Length (M)	1.5/2/3	1.5/2/3	1.5/2/3	1.5/2/3
Rig Lifting Force (T)	12	13	20	24
Swing torque (N.m)	3200-4600	3400-4700	4000-5300	5700-7500
Swing speed (rpm)	45-70	45-70	45-70	45-70
Dimension (mm)	39501630 2250	39501750 2250	40001850 2300	41002000 2500

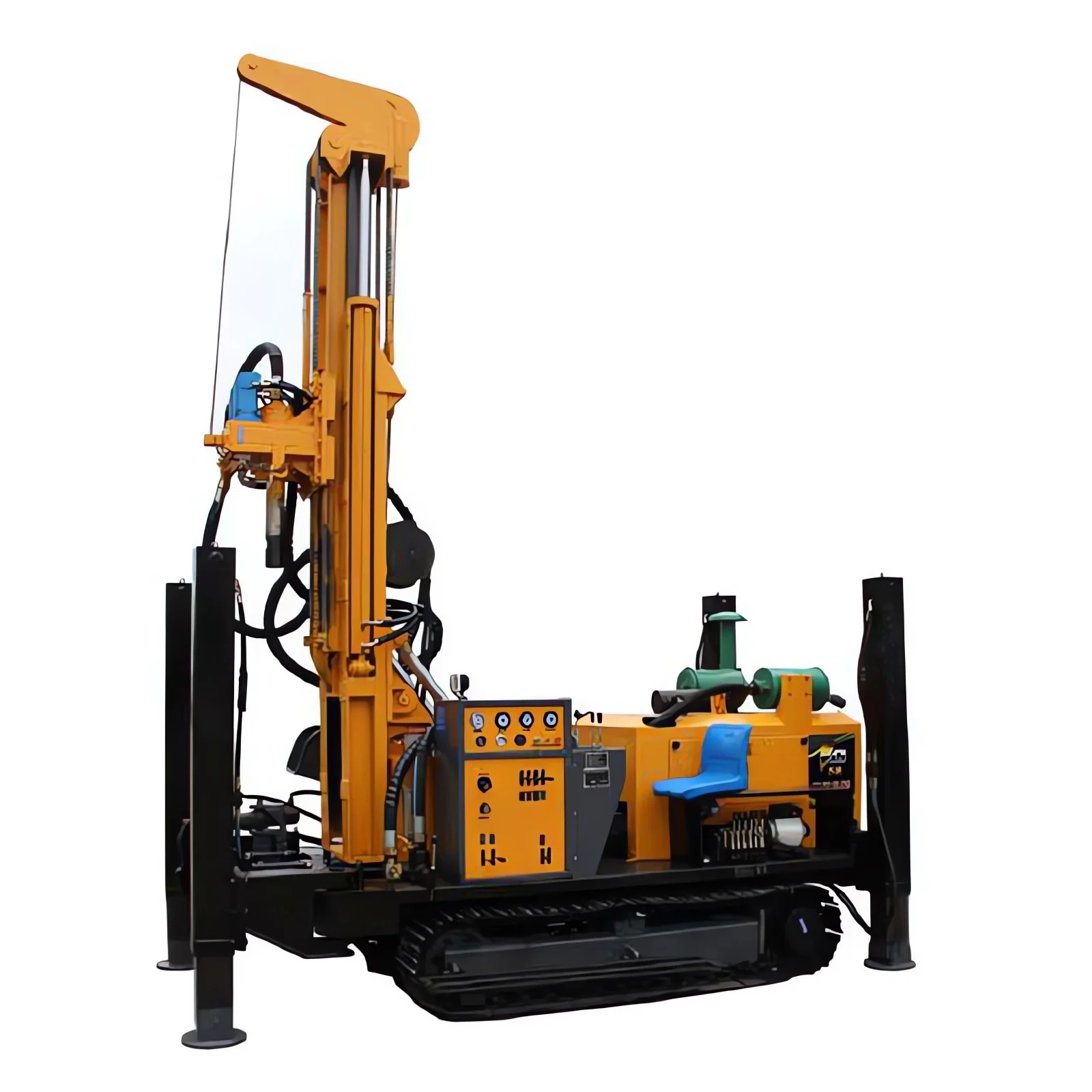

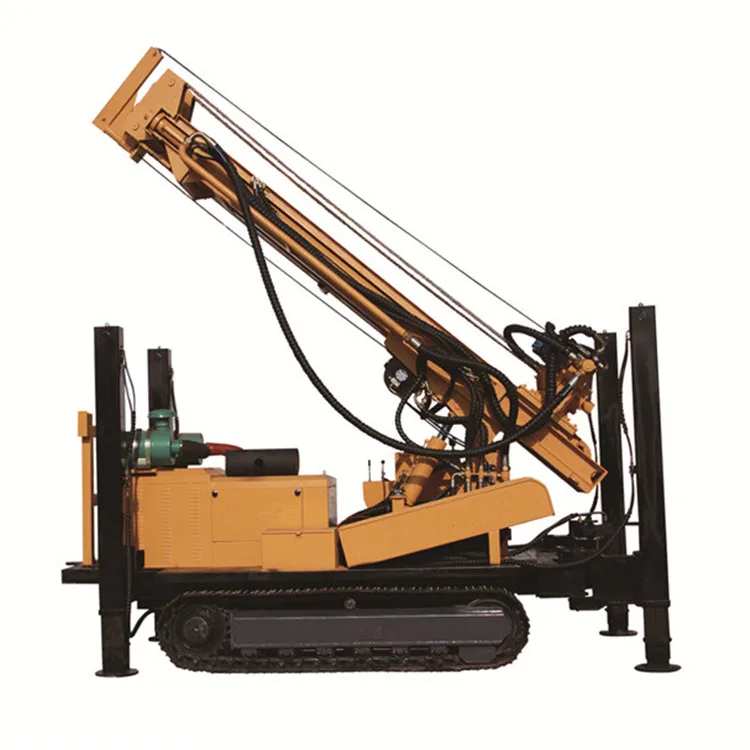

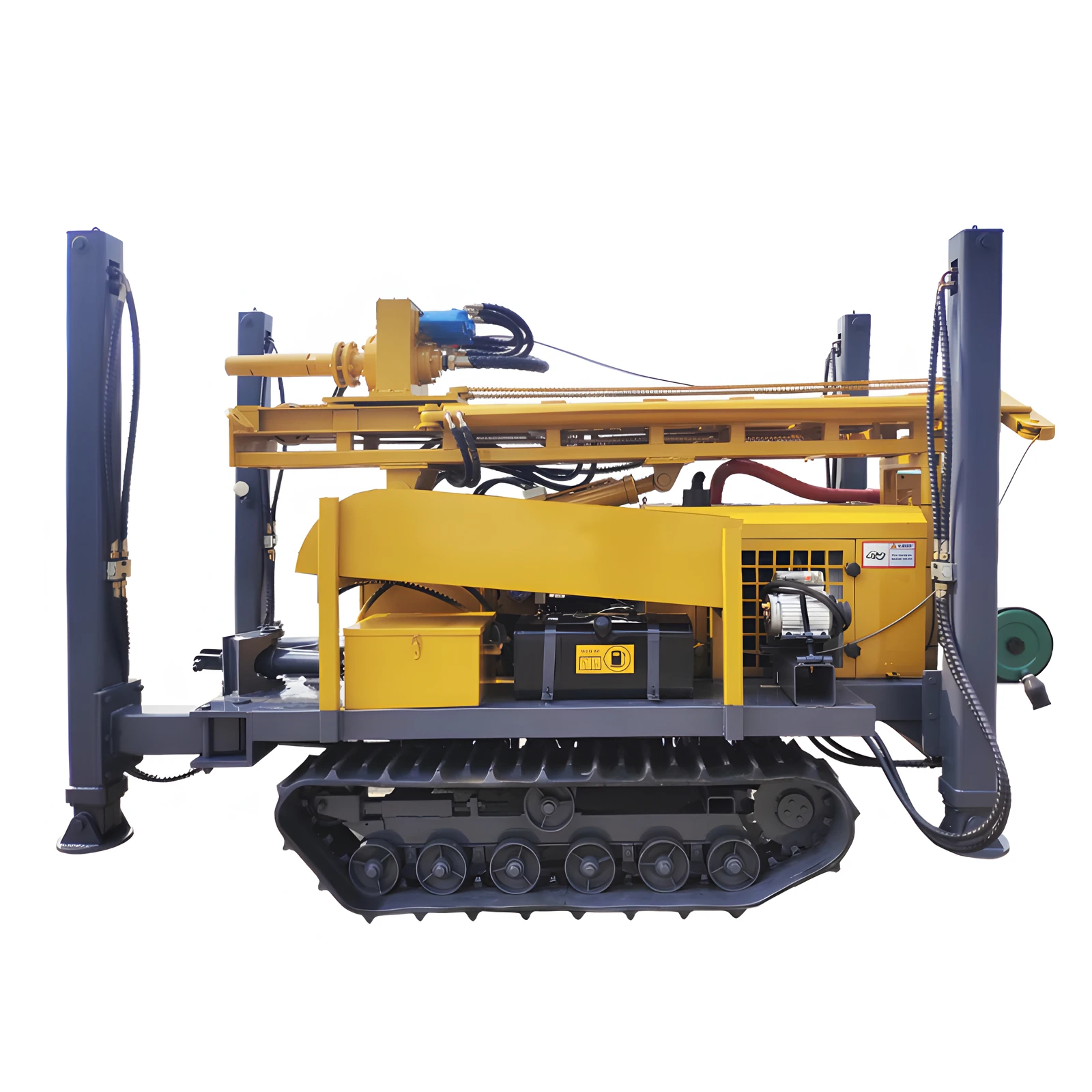

Crawler Water Well Air Rig

-Advanced hydro technology;

-High torque hydraulic motor rotation;

-Large cylinder hydraulic cylinder advancement

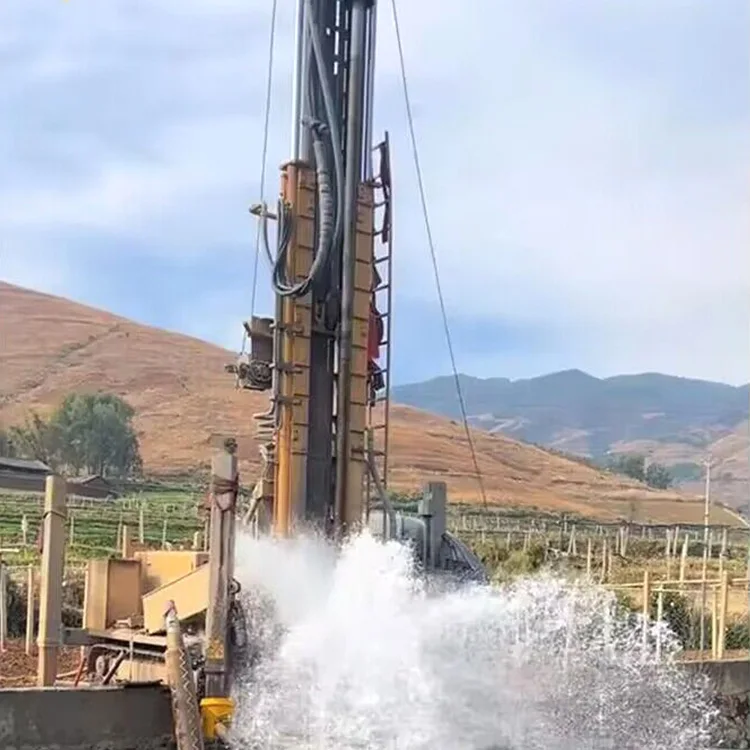

Application:

This water well drilling machine are mainly used for:Well drilling in resource exploration hydrology wells,
Civil usage water well, agriculture irrigation project,
Coal-mine gas exploitation,
Coal bed methane,
Shallow layer of shale gas.

High quality raw materials Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.
Fashion and compact design Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution reasonable, simple maintenance cost small.
Used with air compressor, depth up to 800 meters.
Power head device; gearbox casting, double motor power supply, torque, durability, low maintenance costs.
