Низкая стоимость бетонный завод централизованная система управления Готовый Бетонный Завод
3 253 370,40 ₽
Филиппины популярная Мобильная бетономешалка 50 м3/ч
- Категория: >>>
- Поставщик: Henan Shengmao Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1601353618611:
Описание и отзывы
Характеристики
Product Description
Mobile concrete batching plant
Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete.
As a manufacturer of concrete batching plant with over 20-year experience, we have YHZM series, NYHZS series and YHZS series of mobile concrete batching plant. The capacity is from 20m3/h to 100m3/h. Welcome to contact us for details and quotations.
YHZM series of mobile concrete batching plant
YHZM series of mobile concrete batching plant
Features:
1. No need to make concrete foundation, we can save much time, cost and labour;
2. east to install. We can usually finish the installation within 3 days in China.
3. the mixer is drum mixer;
4. the cement silo is mobile;
5. the discharging height is 1.5m. In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.
Specifications of YHZM series mobile concrete batching plant | ||||||||
Model | YHZM20 | YHZM30 | YHZM60 | YHZM100 | ||||
Production capacity (m3/h) | 20 | 30 | 60 | 100 | ||||
Concrete mixer (drum mixer) | JZM500 | JZM750 | JZM1500 | JZM2000 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 1.5 | 1.5 | 1.5 | 1.5 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 42 | 46 | 67 | 77.5 | ||||
Total weight) | 12 | 13 | 14.5 | 26 | ||||

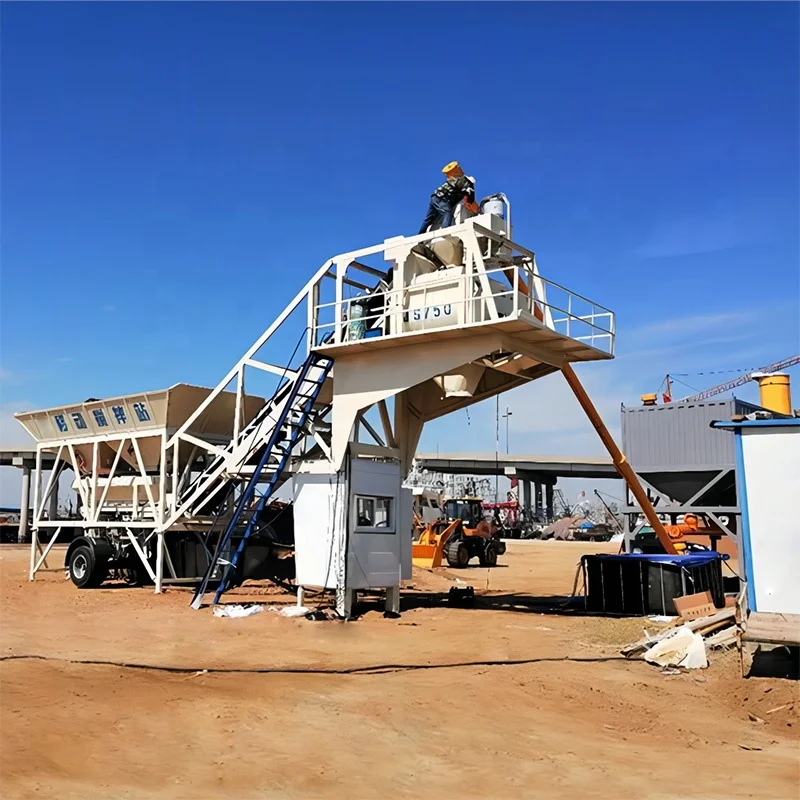

NYHZS mobile concrete batching plant
NYHZS series of mobile concrete batching plant
Features:
1. No need to make concrete foundation, we can save much time, cost and labour;
2. east to install. We can usually finish the installation within 3 days in China.
3. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
4. the cement silo is mobile;
2. east to install. We can usually finish the installation within 3 days in China.
3. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
4. the cement silo is mobile;
5. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.
Specifications of NYHZS series mobile concrete batching plant | ||||||||
Model | NYHZS25 | NYHZS35 | NYHZS50 | NYHZS75 | ||||
Production capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete mixer (twin-shaft mixer) | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 1 | 1 | 1 | 1 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 61 | 76 | 85 | 95 | ||||
Total weight) | 13 | 15 | 19 | 22 | ||||

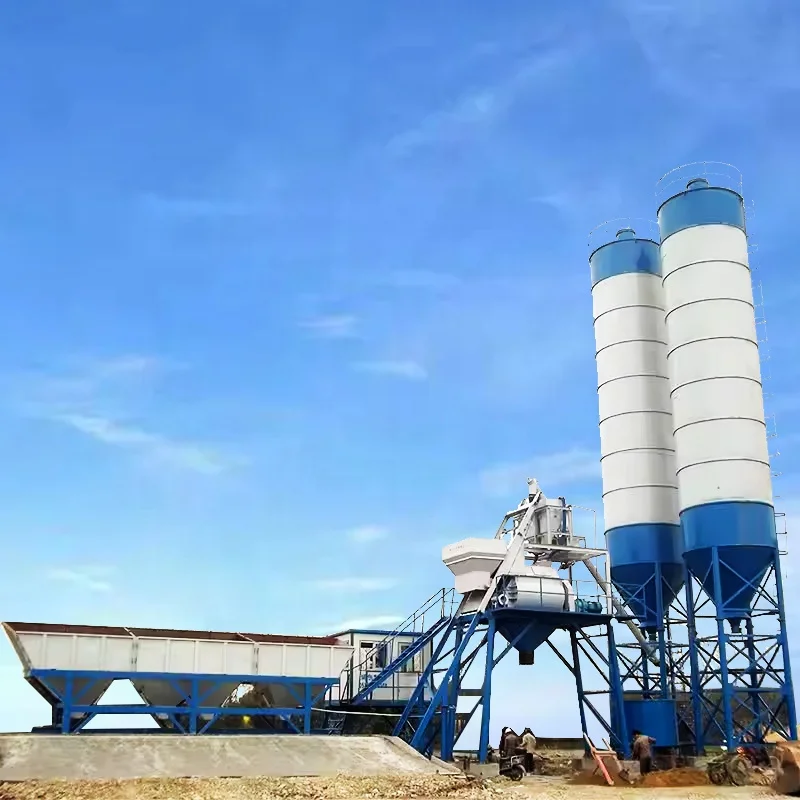

YHZS mobile concrete batching plant
YHZS series of mobile concrete batching plant
Features:
1. we need to make simple concrete foundation;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;
Specifications of YHZS series mobile concrete batching plant | ||||||||
Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | ||||
Production capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete mixer (twin-shaft mixer) | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 60 | 72 | 92 | 102 | ||||
Total weight) | 14 | 22 | 26 | 29 | ||||
Detailed Picture and Specification

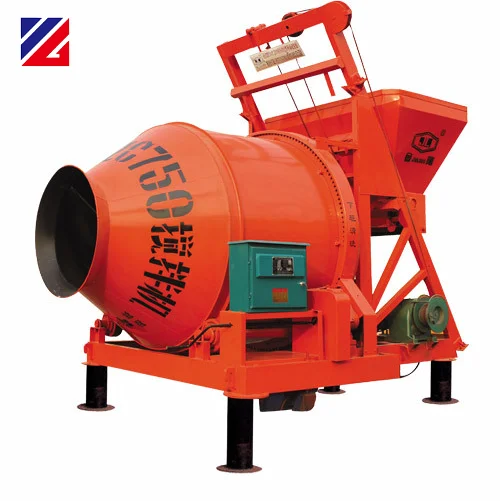

drum mixer

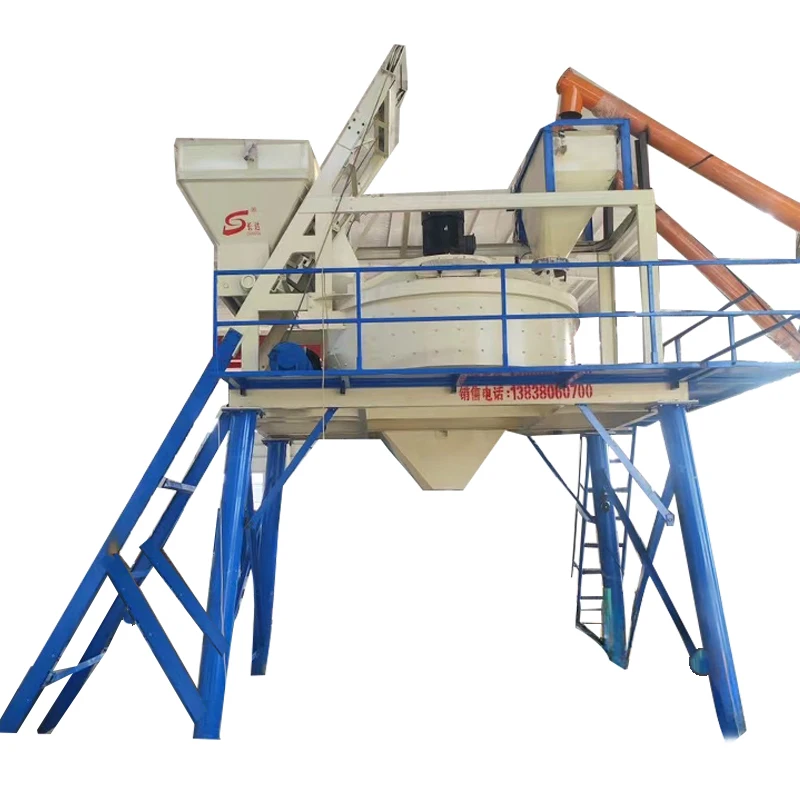

twin-shaft mixer
vertical cement silo
horizontal cement silo

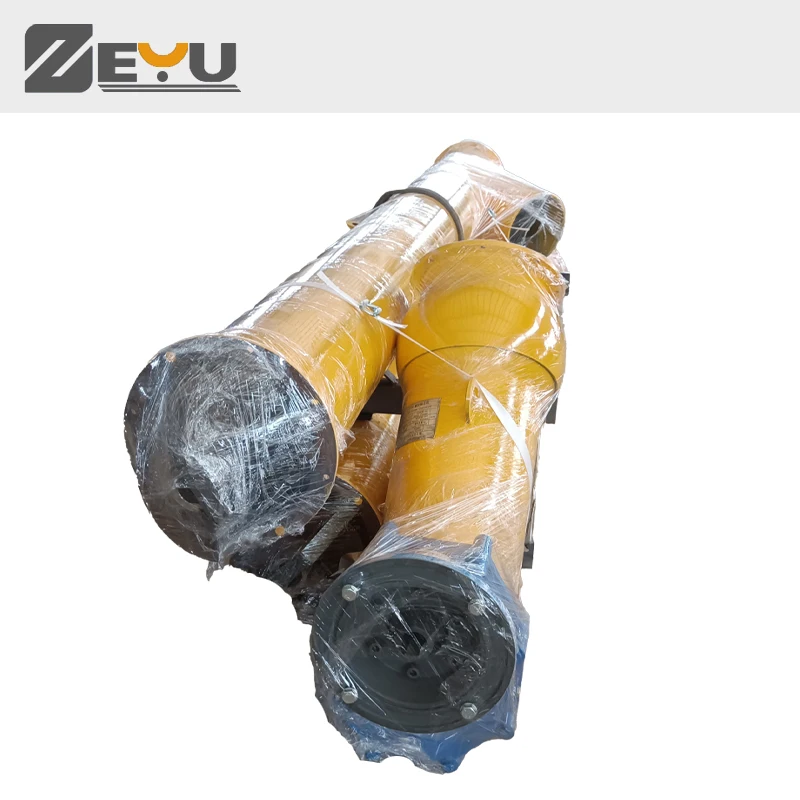

Screw conveyor
1. the screw conveyor length is usually 8m;
2. the screw conveyor with the diameter of 219mm and 273mm are commonly used.
water, cement and additive scales
1. Cement weighing accuracy: +/-1%;
2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;
5. Air cylinder brand: AIRTAC
Fully automatic computer control system
1. Control system language can be: Chinese, English, Spanish, French and Russian;
2. Schneider electrical elements are used to ensure the stability of the control system;
3. Air conditioner is equipped;
4. CCTV is equipped;
5. Printer is equipped;
6. UPS is equipped.
Certifications
After Sales Service
After sales services
1. providing foundation drawing, circuit diagra and operation manual;
2. providing commercial invoice, packing list, bill of lading etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
