ENC3740 8/16/24 * HD MI 1080P H265 H264 видео MPEG1 Layer 2 AAC AC3 аудио для UDP RTP MPTS SPTS IP out используется аналоговой системы CATV

ENC3740 This unit is designed especially for high channel density Distribution Video Engineering project which support rapid deployment, OSD/Logo/QR code Insertion and compatibility Up to 24 HD-MI inputs Simultaneously. It’s ideal encoder for anyone looking for an easy and affordable way to support a large number of HD channels in low cost deployment such as a Medium/Small-Scale digital Cable TV system, Hotel, Campus, Private TV station, LAN IPTV Network.

This solution is ideal for anyone looking for an easy and affordable way to support a large number of displays, such as a sports bar, house of worship, or digital signage. Multiple HD bridge units can be combined to create a headend that will support over 100 channels on your video network at each display. ENC3740 HD Encoder which is a professional HD Audio & Video encoding and multiplexing device encoder streams high-quality video and audio, and it uses the H.265 video compression standard and MPEG 1 Layer 2 audio LC-AAC, HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment. Depending on the number of programs you have, you can very flexibly choose a different number of coding channels.

Sales Manager: Jeff

Skype: dibdvb12

Email: support at dibvision.com

Phone/whatsapp/Wechat: +86 158 5717 5172

• High density,modular 1-RU system capable of hosting up to 3 HD-MI Encoding input modules,each with 8 HD-MI channels (share the same one NMS port and DATA port )


• H.265, MPEG-4 AVC HP@L4 video compression


• Feature to adjust the audio volume prior to encoding


• Simultaneous outputs via 8* SPTS/1* MPTS over GbE IP Port(each module)


• MPEG TS/UDP and RTP/RTSP over IP output


• Support resolution downscale conversion


• Simultaneous outputs IP


• PCR de-jittering and re-stamping


• Supports SD/HD formats and frames including 1080p, 720p, 576p, 480p@25/30fps


• Selectable the Value of PCR PID same as Video PID


• Support VBR and CBR bitrate mode


• PID Remapping & Filtering & CA Filter


• Support LOGO,QR code,OSD insertion for every, All
  or Each module of local channel


• One rack unit high density, low-power consumption, stackable


• Easy-to-use web GUI


• Lowest cost per HD channel, breakthrough price

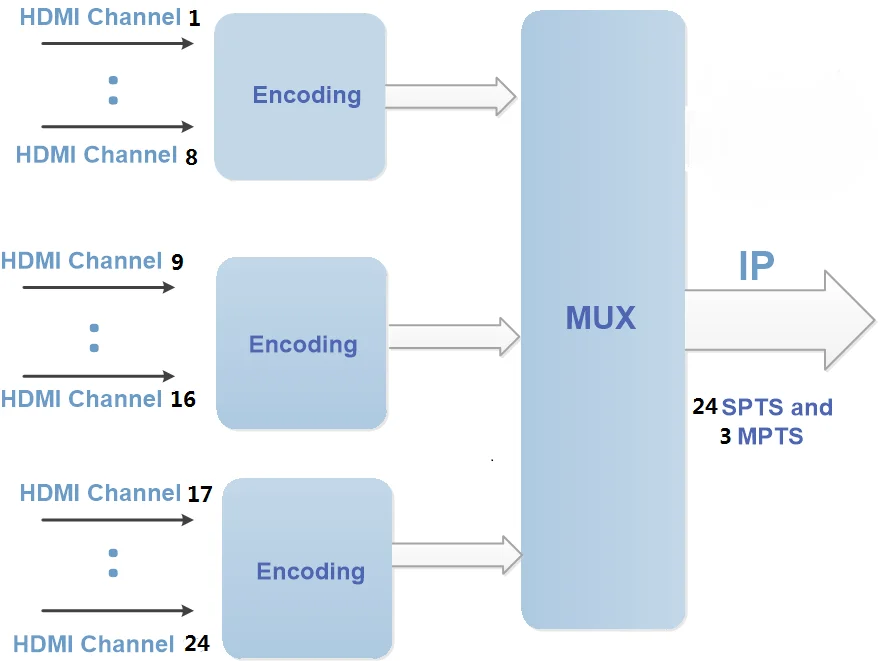

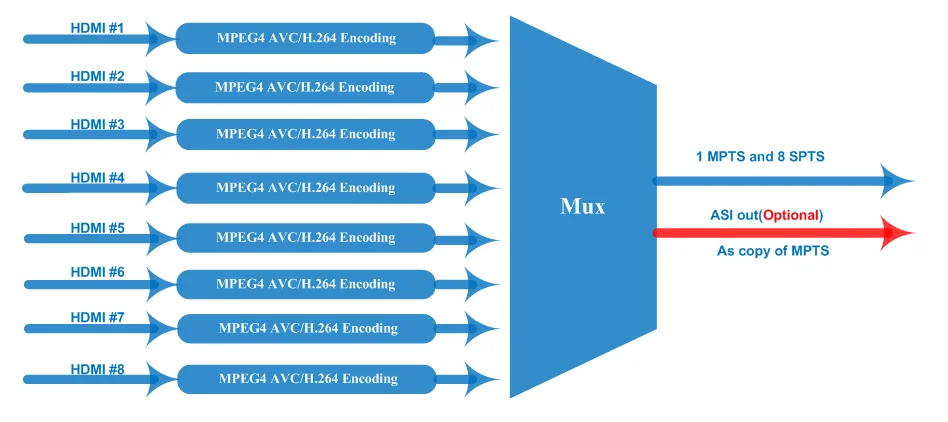

Principle Chart

Input Interfaces

Number of Channels: 8 ports, 16 ports, 24 ports, 3 modules

HD-MI 1.4a HDCP

Embeded in HD-MI (1 pairs per video)

Stream Output

RJ45 Port:  100/1000M GbE Port, 10/100M FE Port, RJ45

Simultaneous output with 8*SPTS and 1*MPTS (each  module) throuth  Data Port

MPEG TS over UDP, unicast, and multicast streaming

MPEG TS over RTP/RTSP

Configurable packet size: (2-7)x188Bytes

Filter Null Packet

Total Bitrate :   1-200Mbps (Should be More than Encoding bitrate)

Video Processing

Input Resolution :  1920×1080@60P, 1920×1080@60i,1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P, 720×576@50i,720×480@60i

Output Resolution 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P

Encoding:  HEVC/H.265, MPEG-4 AVC/H.264

Profiles and Levels:  H.264 Main,High Up to L4.2

Bit-rate:  1Mbps~13Mbps

Encoding Schemesl :  CBR, VBR

GOP Structure:  IPPPP (P Frame adjustment, without B Frame )

Select to configure Logo, Caption and QRCocder in any Position of Video Picture

Audio Processing

Encoding:  MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 pass through

Sampling rate:  48KHz

Resolution:  24-bit

Bit-rate: 48/56/64/80/96/112/128/160/192/224/256/320/384kbps, (HE-AAC only up  to 128kpps)

Audio Gain:  0-255

Multiplexing

PID Processing:  Max.180 input per channel

PID remapping

PID Filtering

CA Filter

PSI/SI:   Editing Service Name, Program Number, Service Type,Service Provider, PMT/PCR/Video/Audio PID

PMT descriptor Tag, PMT Descriptor Data

PCR Re-Jitter, Accurate PCR adjusting

Configurable PCR Interval

System function

Web Network management

Chinese and English language

Ethernet software upgrade

Save/Restore/Facture Set/Backup/Load Setting

Log information printing in time

Environment

Dimension(W×L×H) : 482mm×328mm×44mm

Approx weight : 7.8kg

Temperature:  0~45℃(Operation); -20~80℃ (Storage)

Voltage range: 100 to 120/200 to 240V AC ±10%; 50/60Hz

Power consumption:   65W
