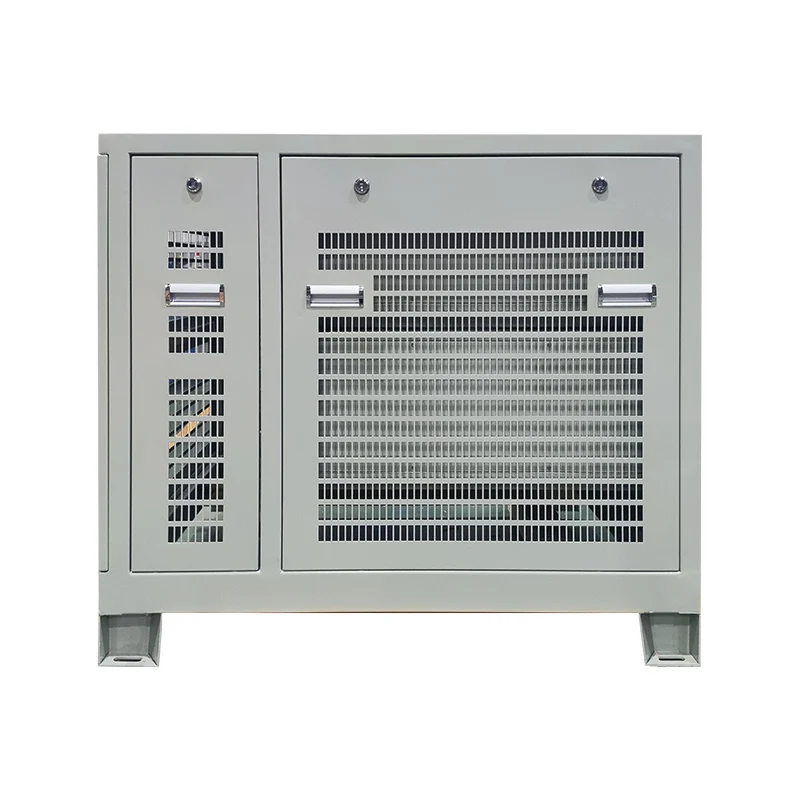

Выпрямитель с гальваническим покрытием 350 В 200 А
- Категория: >>>
- Поставщик: zhengzhou liyuanhaina rectifier co. ltdzhengzhou ltd
Сохранить в закладки 1601353933651:
Описание и отзывы
Характеристики
Specification
Power types | High-frequency Power Supply | |||||
Model | TDFB -200A/350V | |||||
Cooling mode | Air-cooled | |||||
Input Voltage | Three-phase,AC415V±10% ,50Hz | |||||
Input Power | 81.9KVA | |||||
Input Current | 113.9A | |||||
Output Voltage | DC 0-350V | |||||
Output Current | DC 0-200A | |||||
Efficiency | ≥91% | |||||
Rated input power factor | COSΦ≥0.95 | |||||
Operating temperature | -20℃～40℃ | |||||
Control Mode | PLC, ADDA, Ethernet, RS485 and RS232 available | |||||
Stabilized Current Precision | ≤1%（Rated Current) | |||||
Dimension (L * W * H) | H1012mm×W800mm×D1128mm | |||||
Protection | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function. | |||||
*OK to Customized according to requirements* | ||||||
Application Industry
Liyuan electroplating rectifiers are widely used in chrome, zinc, nickel, copper, gold, silver, metal and PCB plating. With high control precision, efficiency and power factor, low ripple factor. Digital network control is adopted to ensure high output precision.
Company Profile
LIYUAN Rectifier Group, taking the lead in IGBT and SCR rectifier in China, since the foundation in 1997, over the past 25 years.
LIYUAN has advanced production line, containing SMT, wave oldering machine, coated connection table and Metal digital machine etc. LIYUAN rectifier mostly used in electrolysis and electroplating for Surface treating, Copper foil, Aluminum anodizing, Water electrolysis, Rare earths, Special gas, PCB board and Metal smelt.
Since the first synchronous rectified technology occurs in China, LIYUAN has promoted largely on this real energy-saving design, increasing efficiency higher above 94%, making great contribution to energy-saving and environmental protection.
Production Process
Certifications

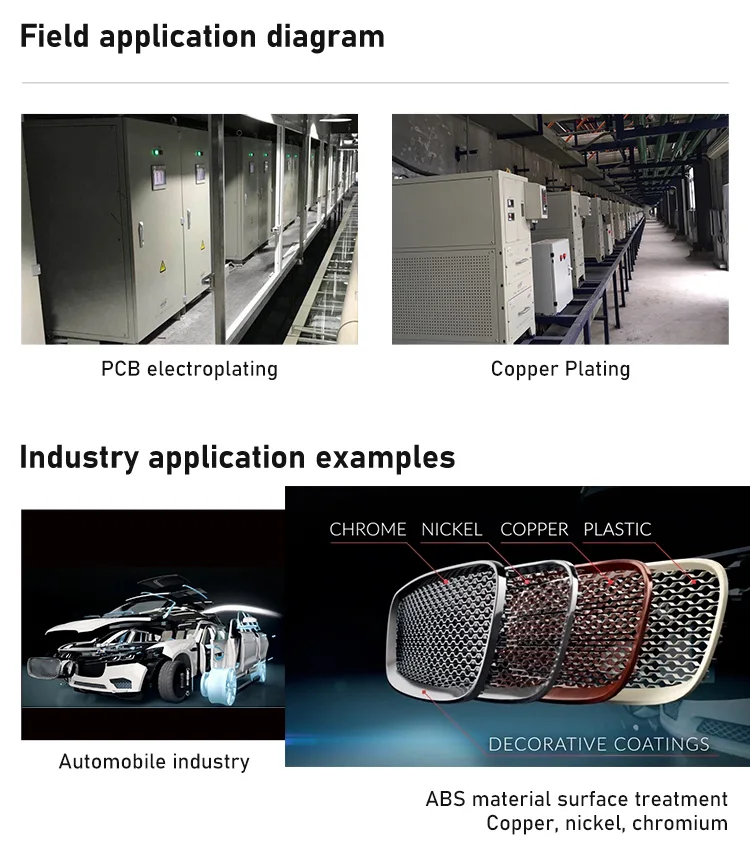

Customer Site
Liyuan rectifiers mainly used in fields including electroplating, electrolysis, anodizing, electrophoresis, smelting etc. The hot sale products are IGBT-based rectifiers and SCR rectifiers, widely applied in industry such as chrome ,zinc, nickel plating, PCB through hole and naked layer plating, water electrolysis, special gas electrolysis( hydrogen, fluorine, ammonia ), non-ferrous metal electrolysis, rare earth smelting, cathodic protection, anodizing aluminum etc.
Shipping & Packaging
FAQ
1. Are you manufacturer or trade company?
We are the professional rectifier manufacturer established in 1997 in China.
2. What parameters should be provided in the inquiry?
Input voltage, output voltage and current, cooling type, application industry.
3.How about the inspection ?
Each process has corresponding detection, all the finished products will be inspected by QC department again before shipping.
4.What is your MOQ?
We accept one unit for the trial order.
5.Do you ship by Sea, Ground or Air ?
We do it all. It just depends on your delivery time and which shipping option you would like to choose for yourself.
6.What’ s the payment terms ?
You can make it by T/T, Western Union, MoneyGram payments and Credit Card.
We are the professional rectifier manufacturer established in 1997 in China.
2. What parameters should be provided in the inquiry?
Input voltage, output voltage and current, cooling type, application industry.
3.How about the inspection ?
Each process has corresponding detection, all the finished products will be inspected by QC department again before shipping.
4.What is your MOQ?
We accept one unit for the trial order.
5.Do you ship by Sea, Ground or Air ?
We do it all. It just depends on your delivery time and which shipping option you would like to choose for yourself.
6.What’ s the payment terms ?
You can make it by T/T, Western Union, MoneyGram payments and Credit Card.
Want to learn more ? Do not hesitate to contact us Now！
Похожие товары

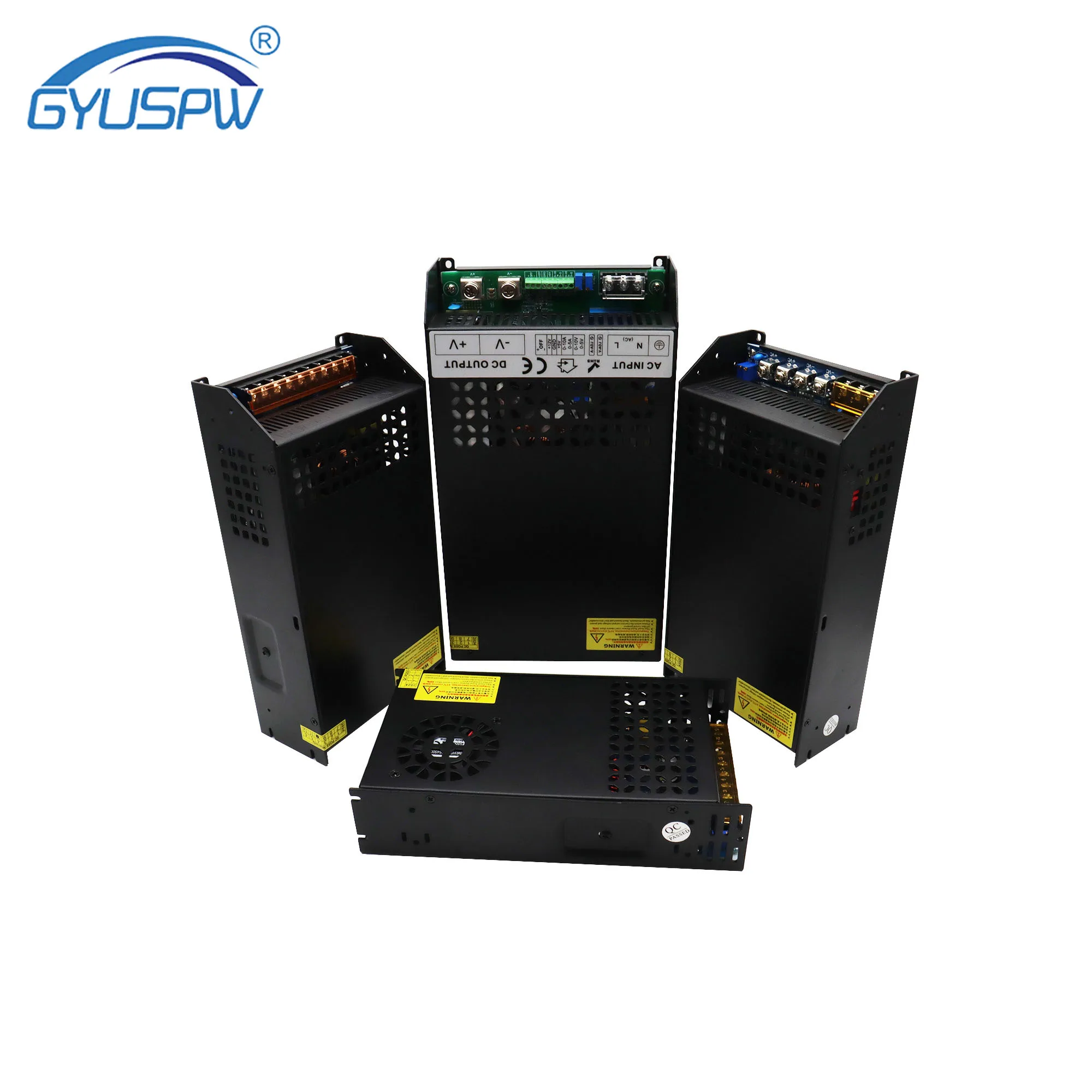

Высококачественный источник питания для светодиодного освещения 350 Вт 48 В 7 3 А S-350-48 переменного тока в постоянного один выход импульсный
