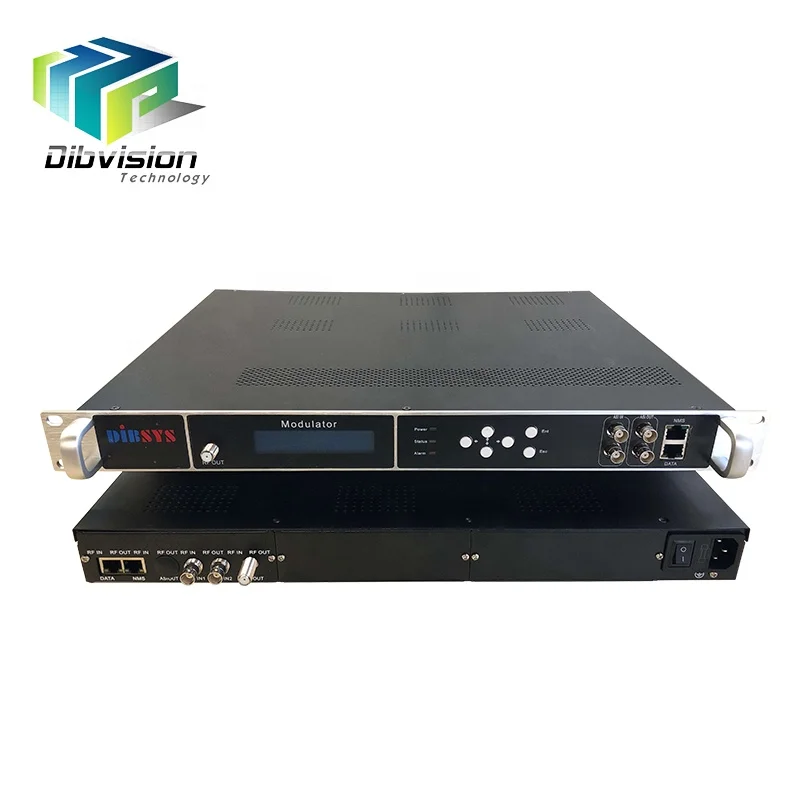

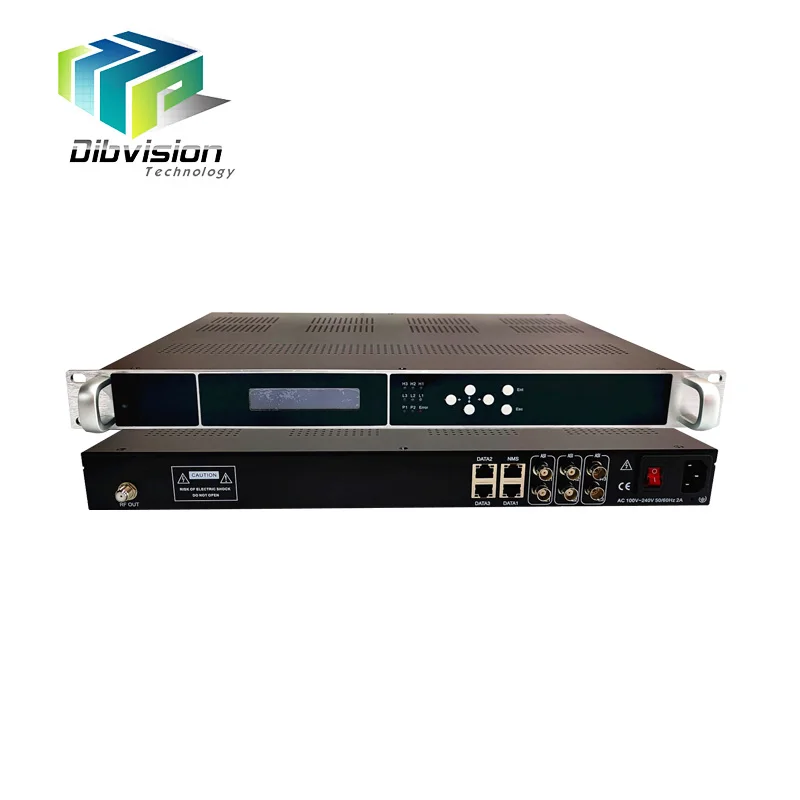

IQ4 M3U8 HLS SRT Интернет IP поток до 8 * MPTS UDP RTP IP 8/16 DVB T RF модулятор используемый для системы CATV

iQ4 IPTV Network Modulator, with ASI input, optional modulation (DVB-C, DVB-T, ATSC, ISDB-T, DTMB) to convert Video/Audio signals into RF over exist Coax Cable distribution. And IP output supports UDP/RTP protocol (MPTS/STPS), and supports IP outputs over RTMP/HTTP/RTSP/HLS/SRT protocol.

The platform can change the modulation signal by software upgrade, this flexible operation can help to reduce the cost in the operation of the project. It provides a best-of-class modulator platform for Digital TV Owners and IPTV operators.

This is an ideal solution used largely to Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or IP Source signals convert to Cable TV broadcast environments.

•



  • High density, high quality, high performance, high flexibility


  • Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 8/16/24*Carrier RF Out

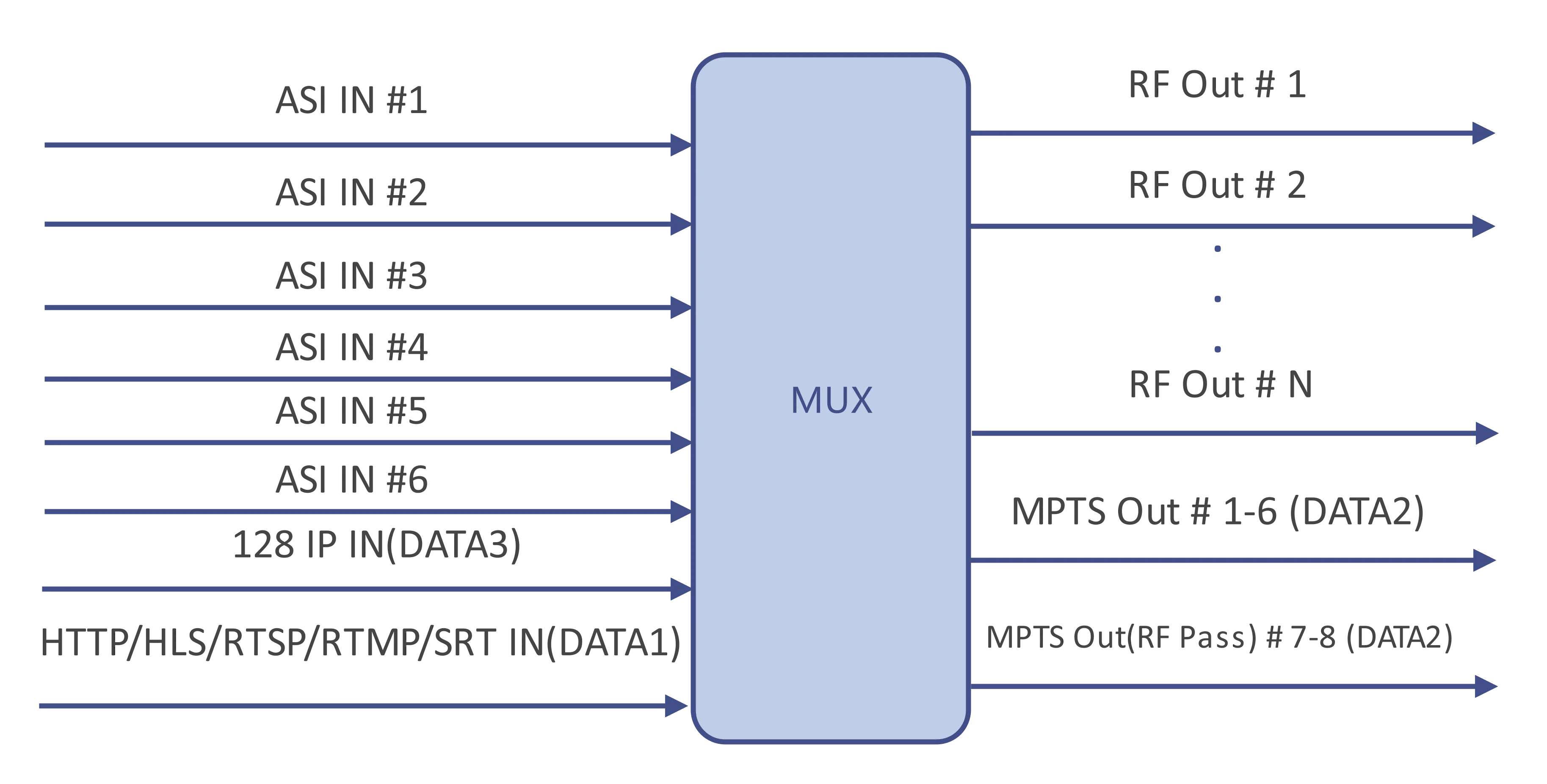

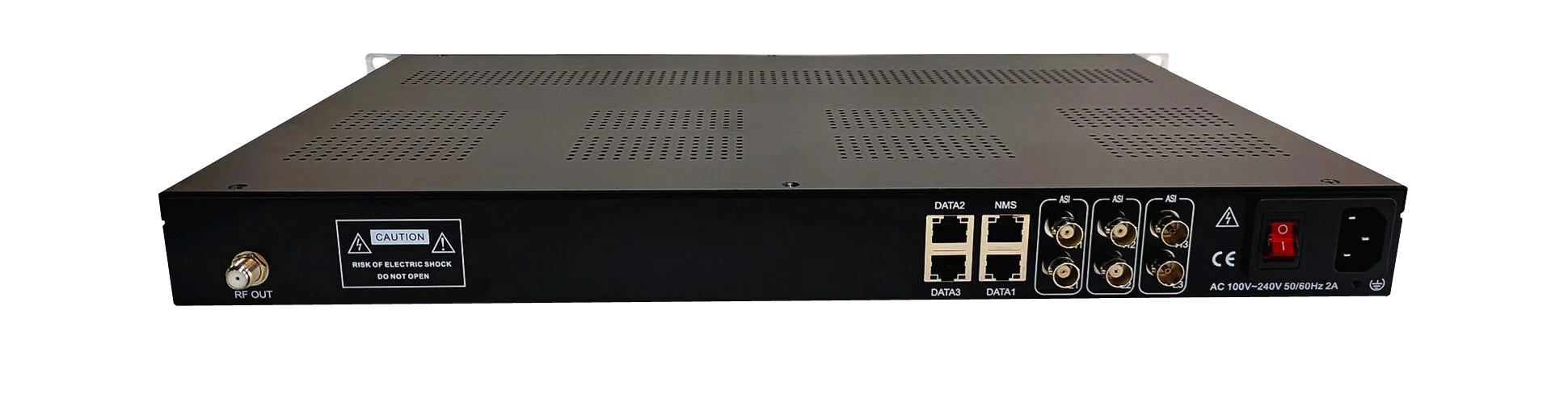

  • DATA1: URL input, RTMP/HTTP/RTSP/HLS/SRT protocol


  • DATA2: 8*MPTS (6*MPTS and 2*RF pass through) out


  • DATA3: supports 128*IP (UDP/RTP) inputs


  • 6 separate ASI input


  • 8/16/24 Channel Non-adjacent Carrier RF output


  • Supports non-adjacent frequencies in the whole frequency range, and solves a small number of isolated frequency points


  • Agile full-band: 96 ~ 864Mhz


  • Selectable the Value of PCR PID same as Video PID


  • LCN (Logical Channel Number) support


  • PSI/SI editing & inserting


  • PID Remapping & Filtering


  • Support TTL editing


  • PCR correct and PCR interval adjusting


  • Superior Shoulders and Excellent modulation quality MER


  • Easy-to-Use System Management via Web





   The number and bandwidth of IPTV stream input





















































  IP Protocol	Video&Audio	Video Bitrate	Audio Bitrate	TS Bitrate	Output Numbers	Total bitrate
  RTMP/RTSP/HTTP	H.264+AAC-LC	4Mbps	128Kbps	4.5Mbps	64 Channels	280Mbps
  HLS	H.264+AAC-LC	3Mbps	128Kbps	3.5Mbps	64 Channels	210Mbps
  SRT	H.264+AAC-LC	2Mbps	128Kbps	2.5Mbps	56 Channels	140Mbps









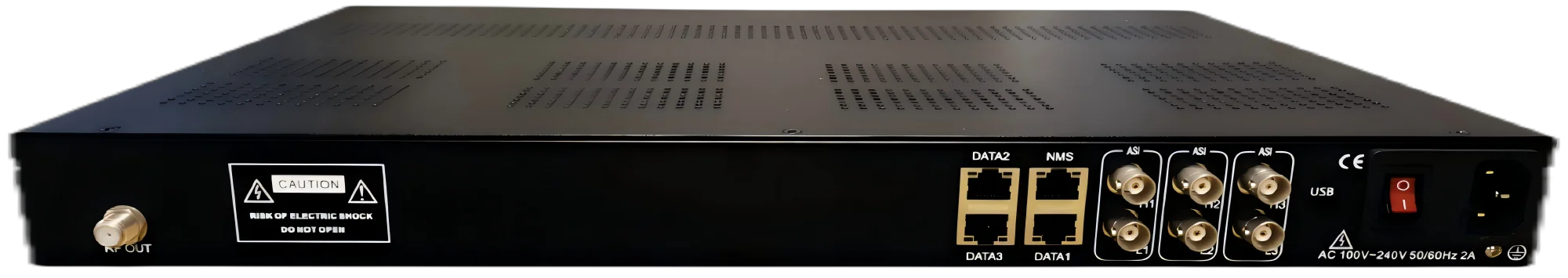

IP Interfaces

Types:  3* Gigabit Ethernet

Connector :  providing 1000Base-T (twisted pair, RJ-45)

IP Encapsulation :  URL, RTMP/HTTP/RTSP/HLS/SRT over DATA1

I/O Speed (1Gbe ports) : 840 Mbps per port

IP Input

Addressing & Protocols:  Unicast,Multicast(IGMP V2/V3)

MPEG Format : 188/204 Bytes per TS packet

Maxinumber of services:  128*IP over DATA 3

Transport stream:   reception of MPTS and SPTS

IP Output

Maxinumber of services:  8*MPTS (6*MPTS and 2*RF pass through) over DATA2

TS out:  GbE

Packet Length: 1-7

MPEG Format : 188 Bytes per TS packet

Null Packet Processing :   Filtering & Insertion

DVB-ASI  inputs

Connecto: BNC female, 75Ω

Signal Level: 200-800mVp-p

Packet Length:  188 bytes

Maximum bit-rate per port :   ≤100Mbps

Number of Input Ports:   6 separate ASI ports

Stream Output

RJ45 Port:  100/1000M GbE Port

MPEG TS over UDP, unicast, and multicast streaming

MPEG TS over RTP/RTSP

Configurable packet size: (2-7)x188Bytes

Filter Null Packet

Modulation Part

Connector :  1 Port,  F-Type, 75

Output Return Loss :   14 dB

MER:  ≥40dB

Default RF out level  (8/16/32 Carrier ) : -35 ~ -5dbm

High RF out level  (16/32 Carrier ) :  -35 ~ 5dbm

RF frequency:   96~ 864Mhz, 1KHz step

separate control Frequency difference range:  (0 ~768M)

Numbers of RF Channel  :   8/16*Carrier RF Out, 16/32 Carrier DVB-C

Modulation Mode :  DVB-C, DVB-T, ATSC, ISDB-T, DTMB

DVB-T Standard EN300744

FFT mode:  2K, 8K

Bandwidth : 6M, 7M, 8M

Constellation  :  QPSK, 16QAM, 64QAM

Guard Interval:  1/4, 1/8, 1/16, 1/32

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-C Standard    J83.A (DVB-C, J83.B, J83.C)

ISDB-T Standard  ARIB STD-B31

Constellation:  DQPSK, QPSK, 16QAM, 64QAM

Guard Interval:  1/32, 1/16, 1/8, 1/4

Transmission Mode:  2K, 4K,  8K (4 RF mode only support 2K)

Code rate:  1/2, 3/4, 5/6, 7/8

BandWidth :  6Mhz

ATSC Standard ATSC A/53

Constellation : 8 VSB

DTMB Standard :  GB20600-2006

Constellation:  4QAM, 16QAM, 32QAM, 64QAM

Code rate :   0.4, 0.6, 0.8

Guard Interval :   420, 595, 945

DTMB Standard            GB20600-2006

Constellation :4QAM, 16QAM, 32QAM, 64QAM

Code rate : 0.4, 0.6, 0.8

Guard Interval : 420, 595, 945

Multiplexing

Maximum PID Remapping 180 input per channel

PID remapping by automatically or manually

PSI/SI :  SDT/PMT/TOT/PAT/BAT/CAT/TDT/NIT

Accurate PCR adjusting

Max Numbers  :   4 mux  for  RF and  1 Mux for  4*MPTS (4*MPTS channels can Separate MUX) IP out in Modulation

4 Mpts  IP out  In Tuners gateway

System

Local interface:  LCD + control buttons

Remote management Web/NMS

NMS interface:  RJ45, 100M

Language:  English

Environment

Voltage range: 100 to 240V AC ; 50/60Hz

Power consumption:  60W

Operation Temperature:  0 ~ 45℃

Storage  Temperature:   -20 ~ 80℃

Dimensions:  482mm (L) * 380mm (W) * 44mm (H)

Weight :  4.5 kg
