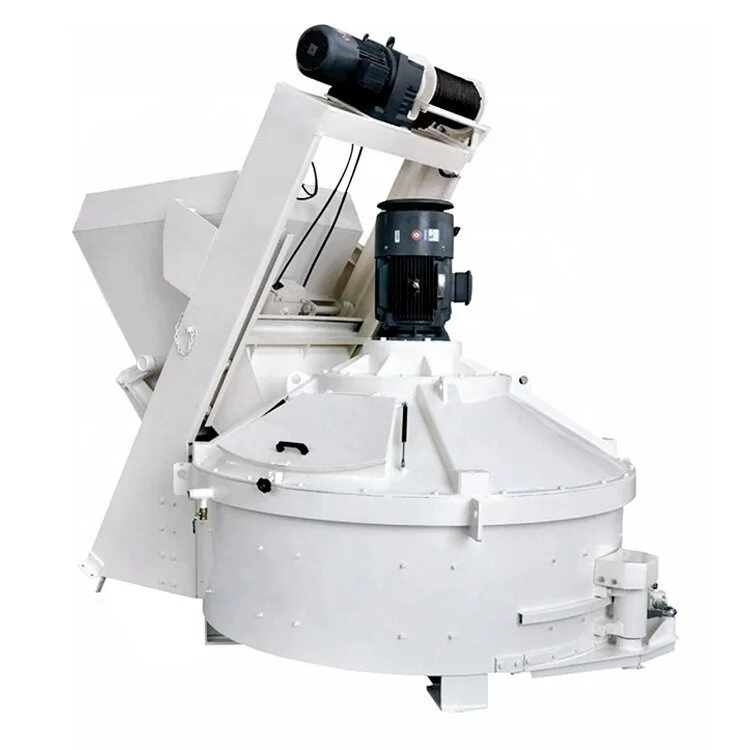

Планетарная бетономешалка дизельная Бетономешалка
6 500,00-7 500,00 $
Купить бетономешалки для использования портативный мини мобильный горизонтальный вертикальный вал планетарный Бетономешалка продажи
- Категория: >>>
- Поставщик: Henan Zhucheng Machinery Manufacturing Co. Ltd.Henan Ltd.
Сохранить в закладки 1601355928988:
Описание и отзывы
Характеристики
Planetary concrete mixer is a new type of mixing and stirring equipment, which is suitable for all kinds of high viscosity and high solid materials. The planetary mixer has a unique and novel stirring form. There are two or three multi-layer paddle mixers and 1~2 automatic scrapers in the kettle. While revolving around the axis of the kettle, the agitator rotates at high speed around its own axis at different speeds, making the materials move in the kettle in a complicated way, and its efficiency is usually several times that of ordinary mixers.
Detail Images
More details, please contact us by clicking here. Thank you!
Customer Site
More details, please contact us by clicking here. Thank you!
Product Paramenters
Model | CLMP500 | CLMP750 | CLMP1000 | CLMP1500 | CLMP2000 |
Capacity | 25m3/h | 55m3/h | 50m3/h | 75m3/h | 100m3/h |
Charging Volume | 750L | 1125L | 1000L | 2250L | 3000L |
Discharging Volume | 500L | 750L | 1500L | 1500L | 2000L |
Mixing Motor Power | 18.5kw | 30kw | 37kw | 55kw | 75kw |
Hoist Power | 4kw | 7.5kw | 11kw | 15kw | 22kw |
Water Pump Power | 3kw | 3kw | 3kw | 3kw | 3kw |
Water Supply Accuracy | ≦2% | ≦2% | ≦2% | ≦2% | ≦2% |
Drum Rotating Speed | 16r/min | 16r/min | 16r/min | 16r/min | 16r/min |
Max. Aggregate Size | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
Weight | 2400kg | 39000kg | 6200kg | 7700kg | 9900kg |
Overall Dimension | 2230*2080* 1880mm | 2580*2340*2195mm | 2890*2602* 2220mm | 3230*2902* 2470mm | 33625*3230*2630mm |
More details, please contact us by clicking here. Thank you!
Company Profile
Henan Zhucheng Machinery Manufacturing CO., LTD is one of the scientific and technological enterprises integrated with research and development, manufacture, sales and service.We are the famous manufacturers of large and middle series of concrete batching plant, concrete mixer and stabilized soil mixing plant in China.
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Raw Material
Machine Finishing
Finished Products For Delivery
Foreign Trade Department
Technology R&D Department
Production Workers
Customer Visits
More details, please contact us by clicking here. Thank you!
Product packaging
FAQ
Q1: How to choose the suitable concrete mixer model?
A: Our professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, and project budget, etc.
Q2: Do you provide overseas service to install and debug?
A: Sure friend. We have overseas after-sale service team to meet customer requires.As a reputable supplier, we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging?
A: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete mixer?
A4: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there are any question, feel free to contact.
A: Our professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, and project budget, etc.
Q2: Do you provide overseas service to install and debug?
A: Sure friend. We have overseas after-sale service team to meet customer requires.As a reputable supplier, we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging?
A: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete mixer?
A4: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there are any question, feel free to contact.
Q5: How long is your production cycle?
A: Normally, it takes 7-15 days. The products are in stock and can be delivered at any time. If you need further information, please send me the product link, and I will reply as soon as possible.
Q6: How do you control the quality?
A: 1. Before production, strictly control the quality of raw materials, select high-quality suppliers and conduct quality inspection.
2. In production, mature drawings, complete production technology, steel processing, parts assembly and powder spraying.
3. Assemble and debug, check and adjust each component to ensure its normal operation and safe use.
4. Quality inspection, using all kinds of test equipment and tools to detect the dimensional accuracy, appearance quality, performance, etc.
Q7: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
A: Normally, it takes 7-15 days. The products are in stock and can be delivered at any time. If you need further information, please send me the product link, and I will reply as soon as possible.
Q6: How do you control the quality?
A: 1. Before production, strictly control the quality of raw materials, select high-quality suppliers and conduct quality inspection.
2. In production, mature drawings, complete production technology, steel processing, parts assembly and powder spraying.
3. Assemble and debug, check and adjust each component to ensure its normal operation and safe use.
4. Quality inspection, using all kinds of test equipment and tools to detect the dimensional accuracy, appearance quality, performance, etc.
Q7: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
