Горная Золотая пылевая центрифуга сепаратор для разделения руды 30 т/ч моечная установка
- Категория: >>>
- Поставщик: Jiangxi Victor International Mining Equipment Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601363126989:
Описание и отзывы
Характеристики
Product Overview
Centifugal Concentrator
Gold centrifugal concentrator also called knelson concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Working Principle
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Structure
PRODUCT SPECIFICATIONS
Technical Parameters | ||||||||||
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 | |||||
Capacity(t/h) | 0-0.6 | 2-3 | 8-12 | 40-45 | 80-120 | |||||
Fluidization Water Required(m³/h) | 2-3 | 3-5 | 7-10 | 30-36 | 60-80 | |||||
Slurry Water Required(m³/h) | 1.5-4 | 5-7 | 8-12 | 40-45 | 70-100 | |||||
Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | |||||
Feeding Size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-5 | |||||
Concentrate cleaning Up Cycle | Vein Gold:1-3 Hours;Placer Gold:2-6 Hours | |||||||||
Concentrate Weight(Kg) | 2 | 3-5 | 10-20 | 40-50 | 70-85 | |||||
Power(Kw) | 0.75 | 1.5 | 4 | 11 | 18.5 | |||||
Weight(Kg) | 205 | 380 | 1100 | 2300 | 3200 | |||||
Dimensions(mm) | 914*700*900 | 1160*885*1165 | 1820*1450*1700 | 2476*2032*2018 | 2849*2085*2426 | |||||

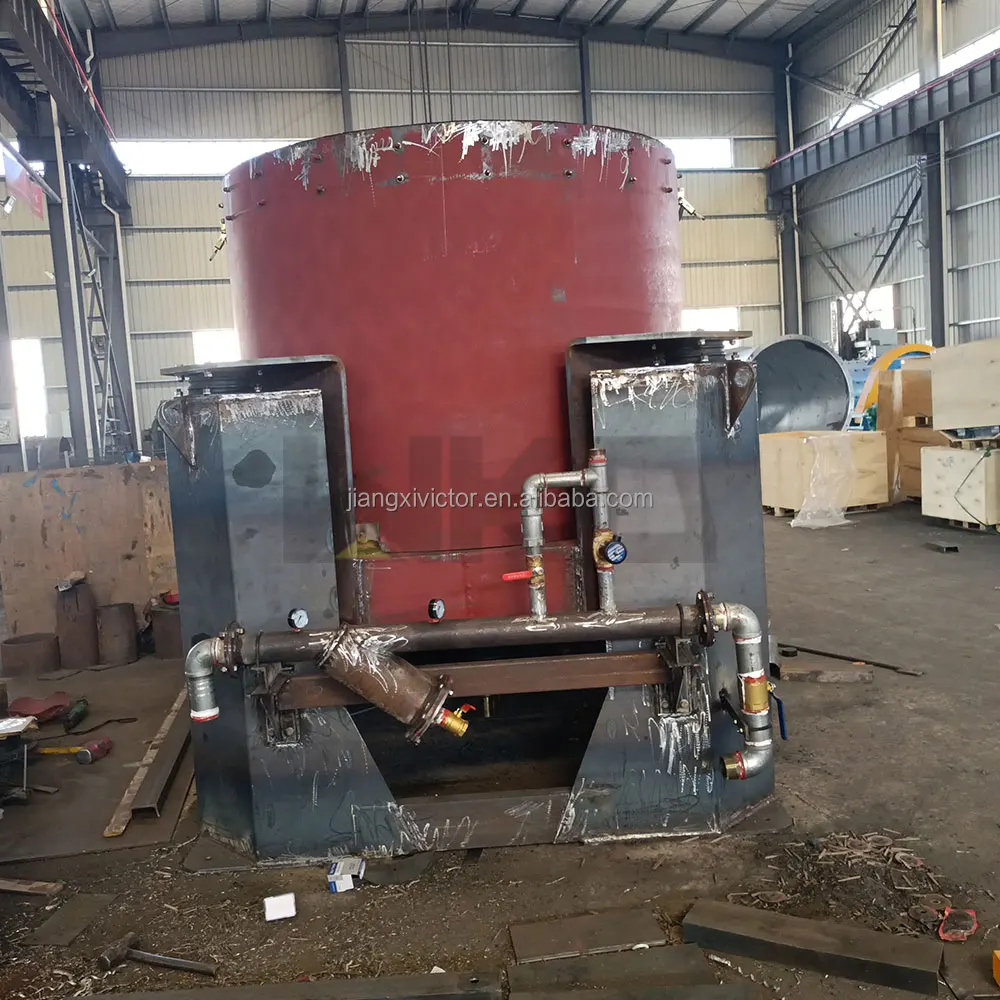

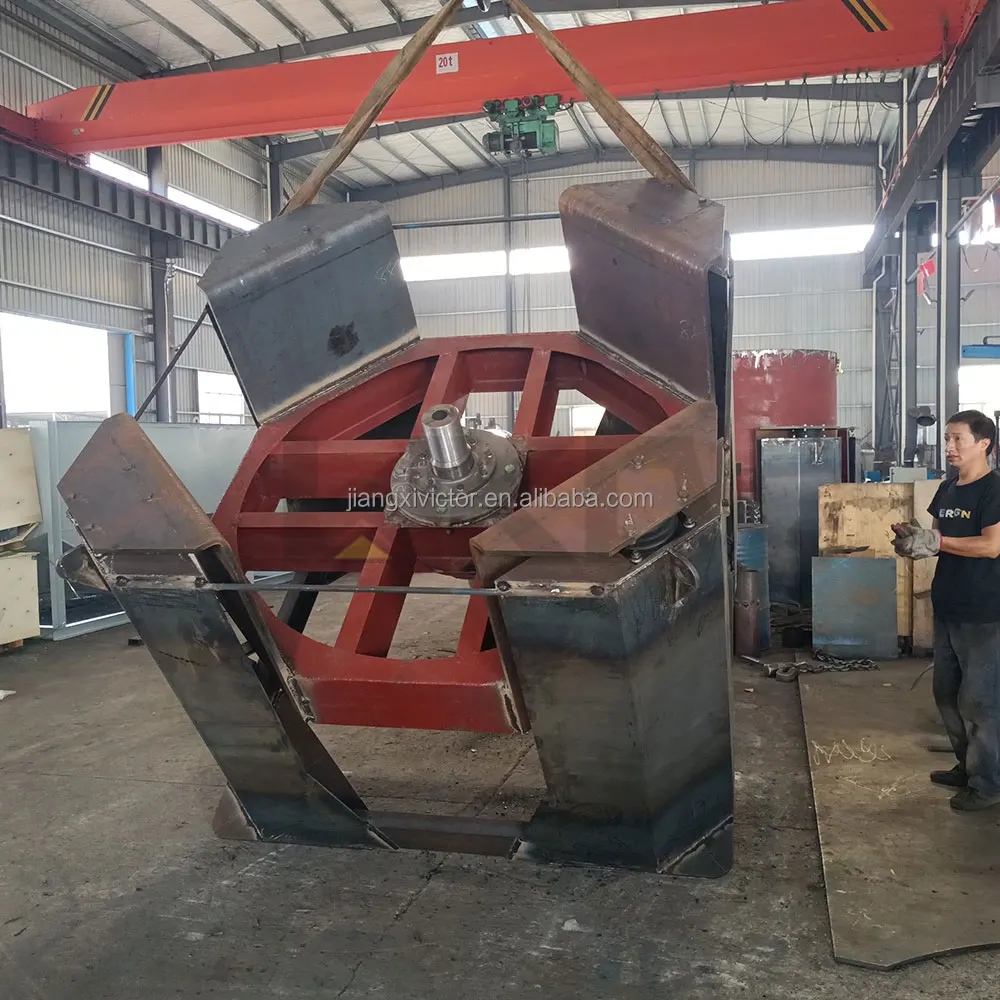

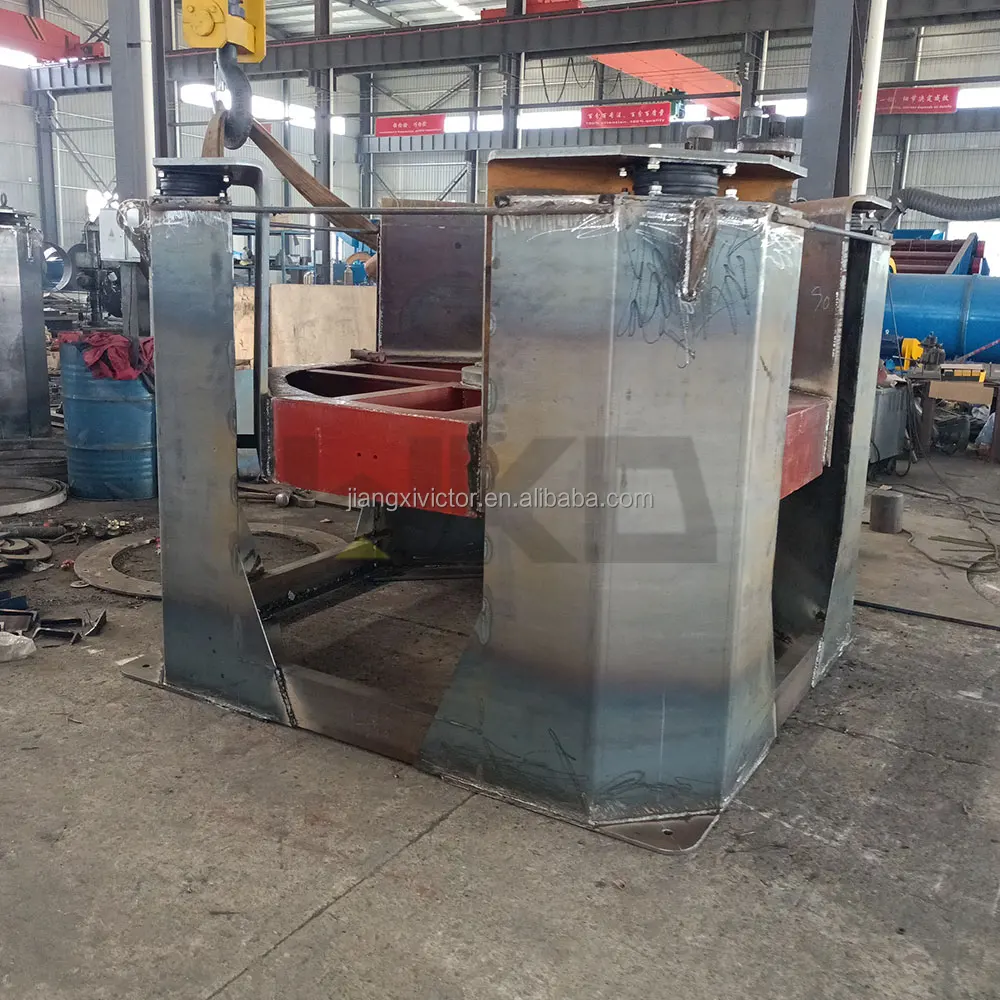

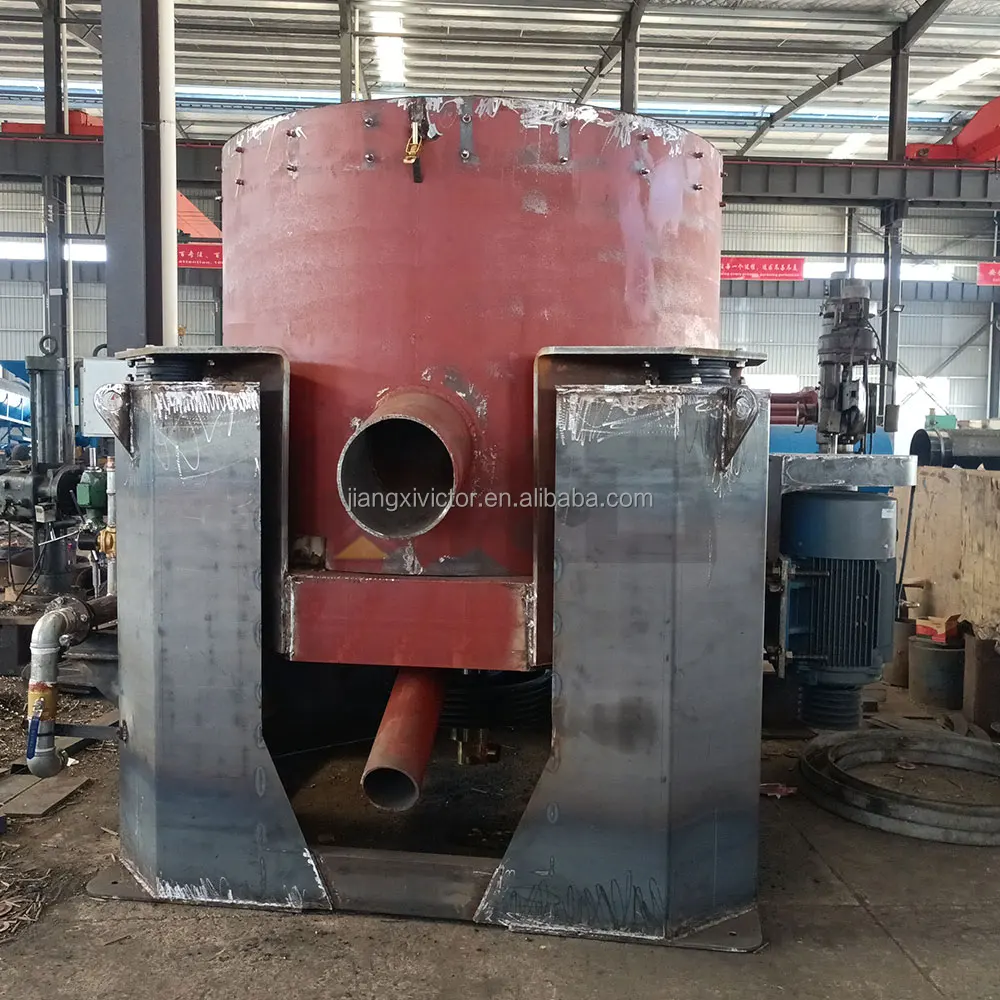

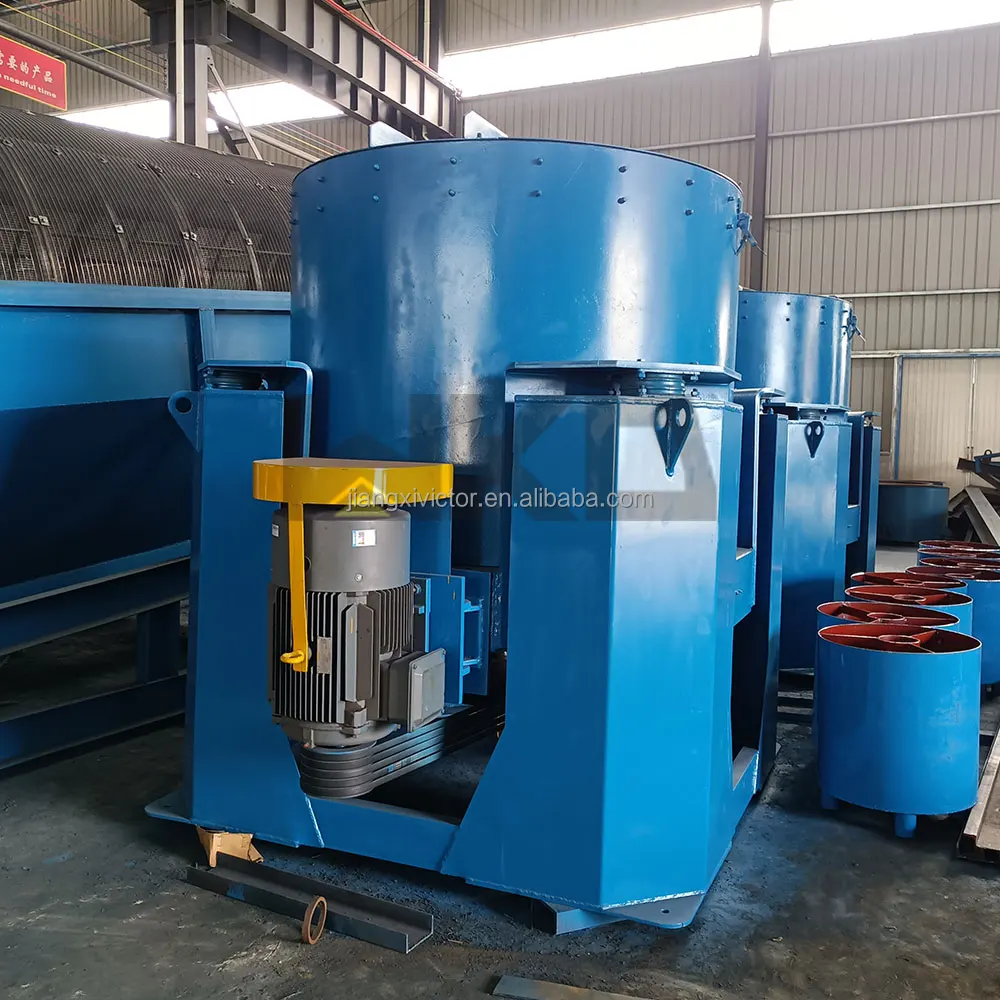

Details Images
Packing and Delivery
Successful Project
SIMILAR PRODUCTS
Company Information
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 50 countries and regions.
-- We have 20+ manufacturing experience and can provide custom design.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
