Сварочный стол с сертификатом CE

Сварочный стол с сертификатом CE

Категория: >>>
Поставщик: Botou Hengfeng Measuring Tools Co. Ltd.Botou Ltd.

Цена:300,00-500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

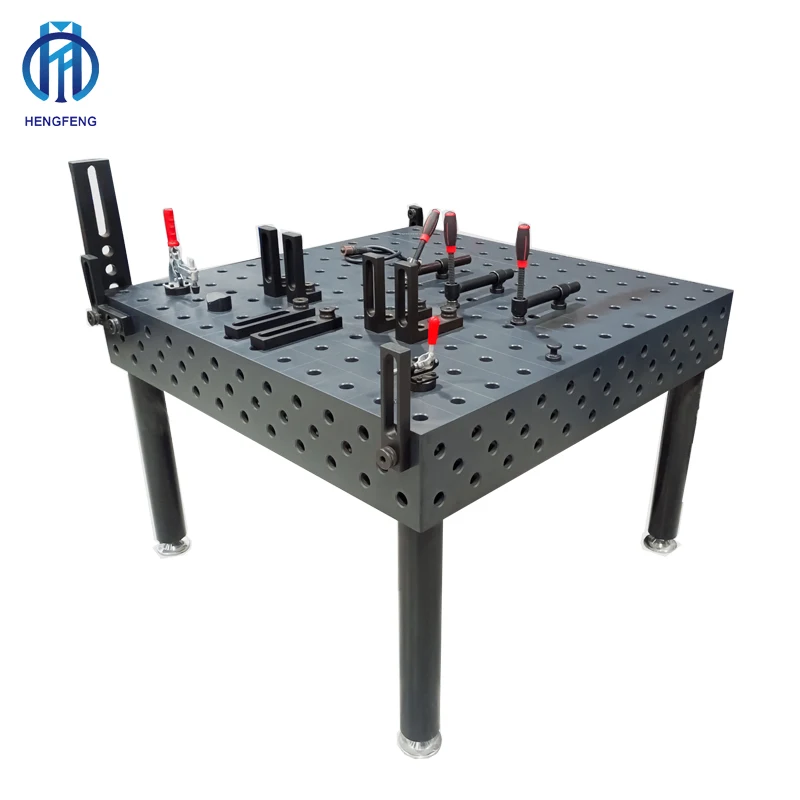

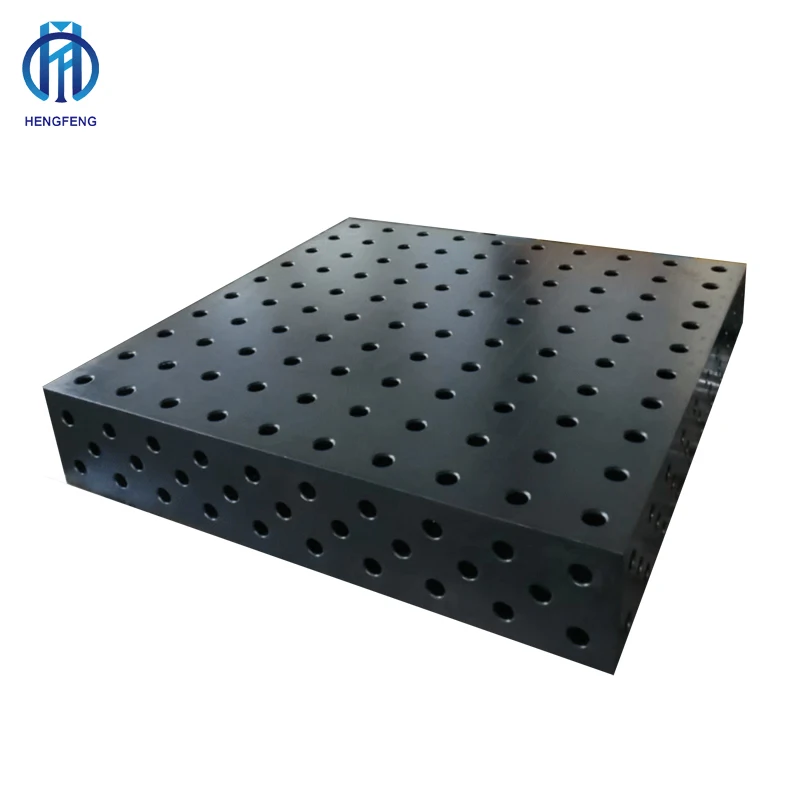

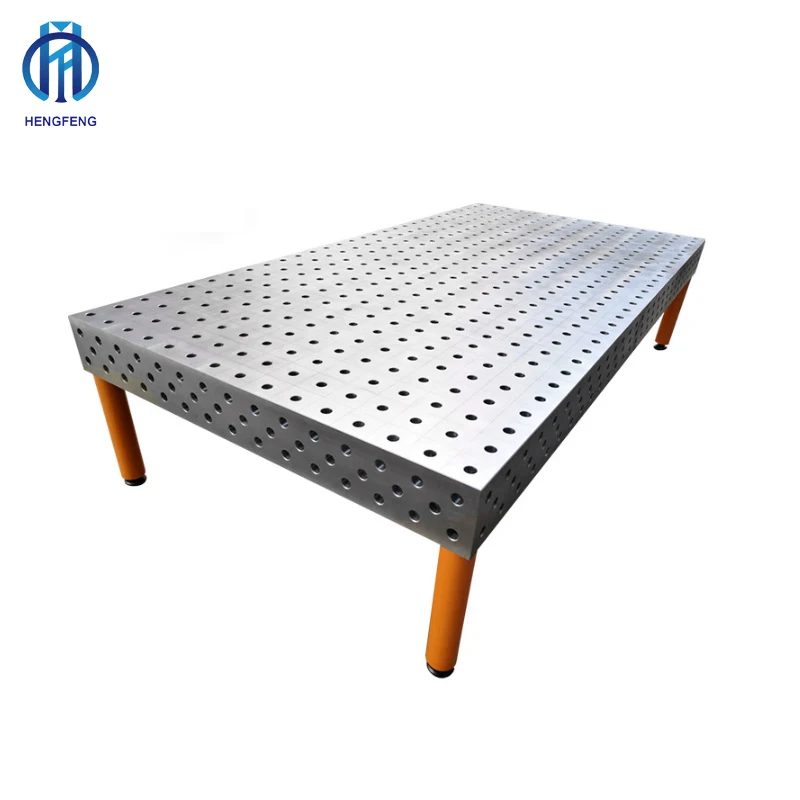

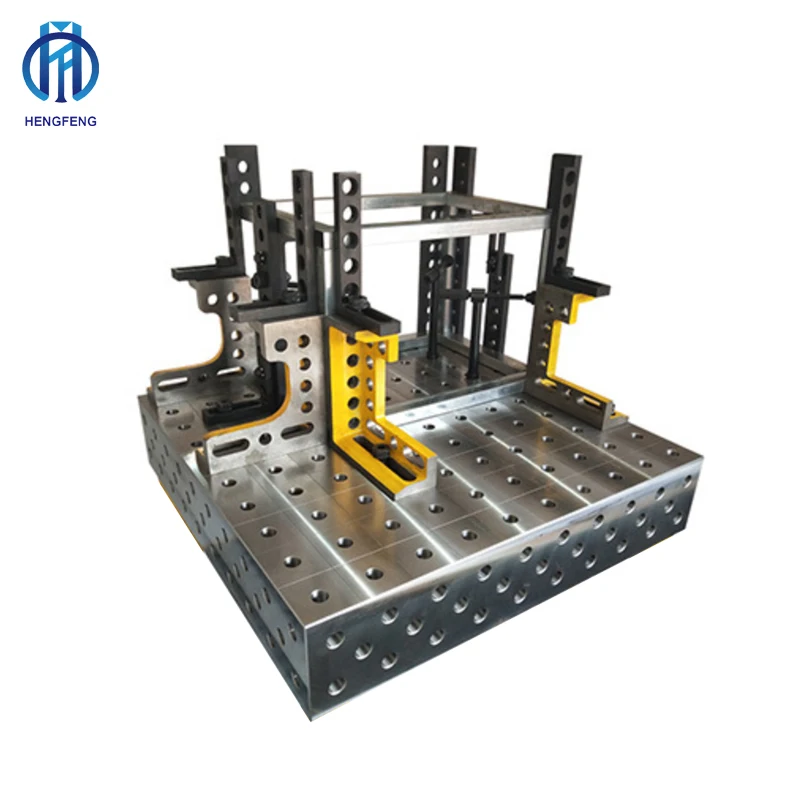

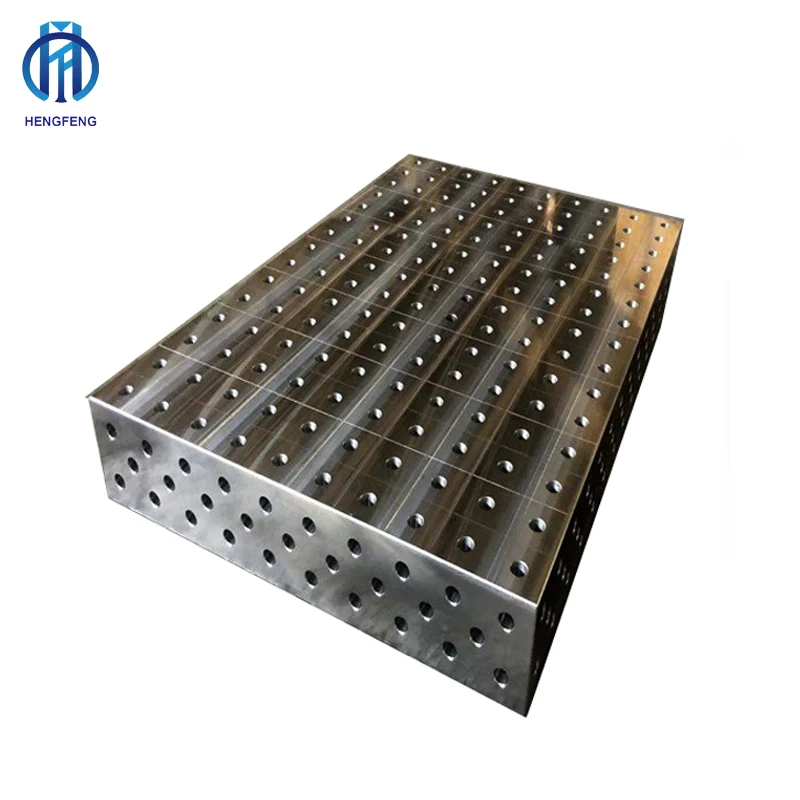

3D Welding Table:

3D Welding Table —— D28 series
Material: cast iron (HT200, HT250, HT300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 28mm
Hole pattern: 100mm*100mm grid
Hole pitch: 100mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools

3D welding table —— D16 series
Material: cast iron (HT200, HT250, HT300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 16mm
Hole pattern: 50mm*50mm grid
Hole pitch: 50mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools

Tolerances:
Flatness: ±0.1mm (1m²)
Hole Distance: ±0.05mm
Hole Diameter: +0.05mm

D16 Benefits:
Lighter - tables/clamps/fixtures are about half the weight of our D28 Series.
Hole distance - the standard hole grid is half the distance of our D28 Series.
Price - D16 table tops are more cost effective (fixtures are slightly more expensive, due to being less common/more intricate over the D28).

D28 Benefits:
Durability - will even more so, stand through the test of time.
Clamping power - increased clamping power by 50%.
Heat Dispersion - due to the thicker plate material the D28 table acts as a heat sink.
Load capacity - 1 ton / 1㎡ (double of D16).
Fixture Tooling - larger range, more robust and more cost effective in price.
Note: 50mm grid pattern is semi-achievable with our diagonal hole grid option.

3D Welding Table —— D28 Series

No.	Size: L×W×H (mm)	D28 Part No.
1	1000x1000x200	HF28D-1010
2	1200x1200x200	HF28D-1212
3	1500x1000x200	HF28D-1510
4	1500x1500x200	HF28D-1515
5	2000x1000x200	HF28D-2010
6	2000x1500x200	HF28D-2015
7	2400x1200x200	HF28D-2412
8	3000x1500x200	HF28D-3015
9	3000x2000x200	HF28D-3020
10	4000x2000x200	HF28D-4020

3D Welding Table —— D16 Series

No.	Size: L×W×H(mm)	D16 Part No.
1	1000x500x100	HF16D-1005
2	1000x1000x100	HF16D-1010
3	1200x800x100	HF16D-1208
4	1200x1200x100	HF16D-1212
5	1500x1000x100	HF16D-1510
6	1500x1500x100	HF16D-1515
7	2000x1000x100	HF16D-2010
8	2400x1200x100	HF16D-2412
9	1000x500x200	HF16D-1005-2
10	1000x1000x200	HF16D-1010-2
11	1200x800x200	HF16D-1208-2
12	1200x1200x200	HF16D-1212-2
13	1500x1000x200	HF16D-1510-2
14	1500x1500x200	HF16D-1515-2
15	2000x1000x200	HF16D-2010-2
16	2400x1200x200	HF16D-2412-2

Details for 16mm Seris

Details for 28mm Seris

1. Precision You Can Count On
Our tables are engineered for accuracy, helping you streamline your welding projects and reduce the time spent on manual clamping or creating custom jigs.
2. Customisation for Your Brand
We offer customisation options that allow you to personalise your 3D Welding Table to match your professional image.
3. Built to Last
Our 3D Welding Tables are built tough and designed to handle daily heavy use while maintaining precision and reliability. They are also designed to act as a heat sink, helping to cool your workpieces faster and improve your overall efficiency.
4.Unmatched Customer Service
You’re not just another customer – you’re a valued partner. We’re not just here to sell you a table; we’re here to help you find the right solution for your specific needs.
