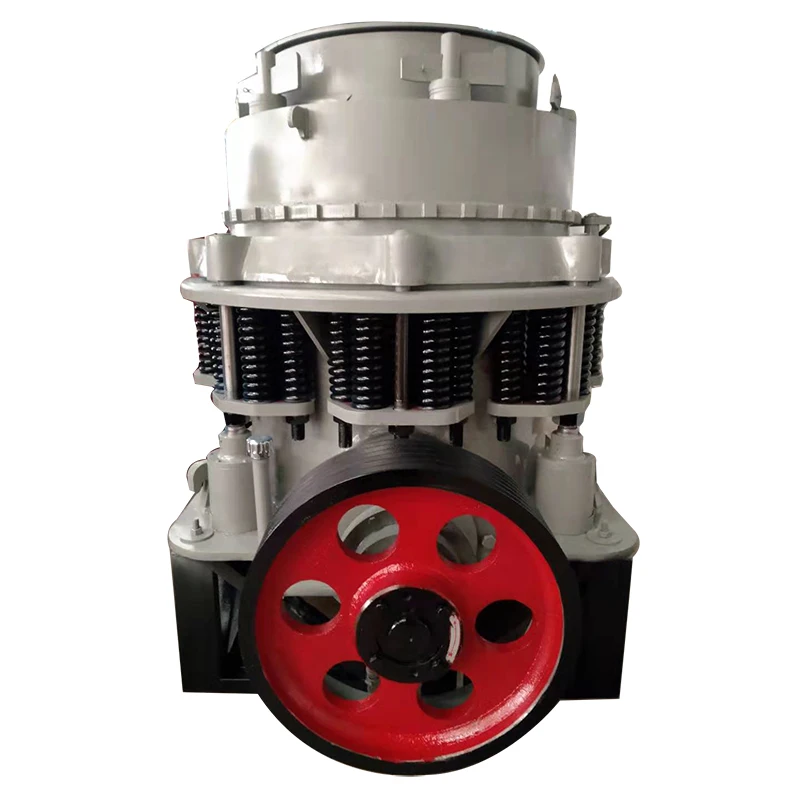

Уникальная гранитная дробилка хорошего качества конусная машина для добычи золота на продажу
50 000,00 $
SBM Заводская conveyor TH1000 для ковшового элеватора
- Категория: >>>
- Поставщик: Shandong Strong Build Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601366988833:
Описание и отзывы
Характеристики
Product Overview

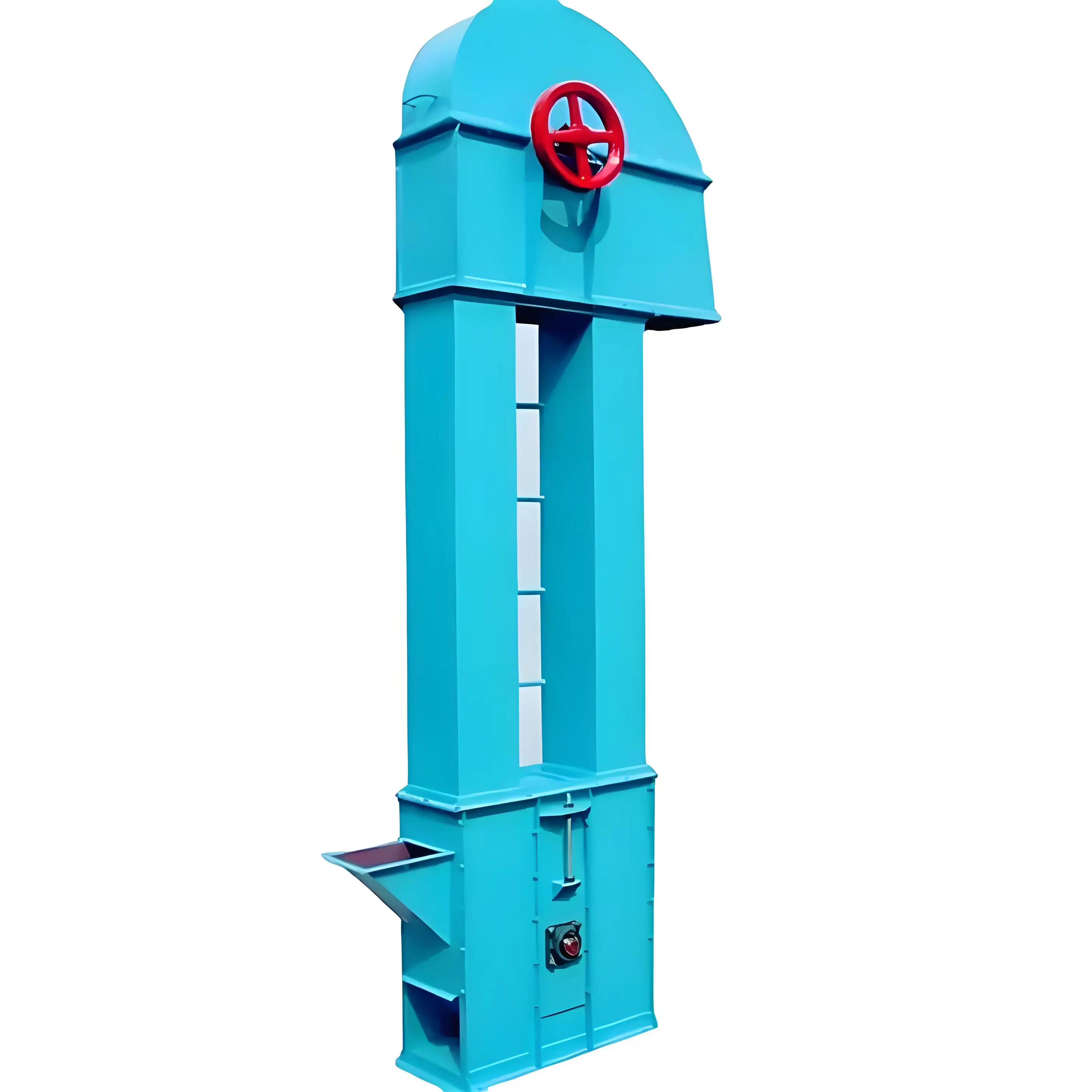

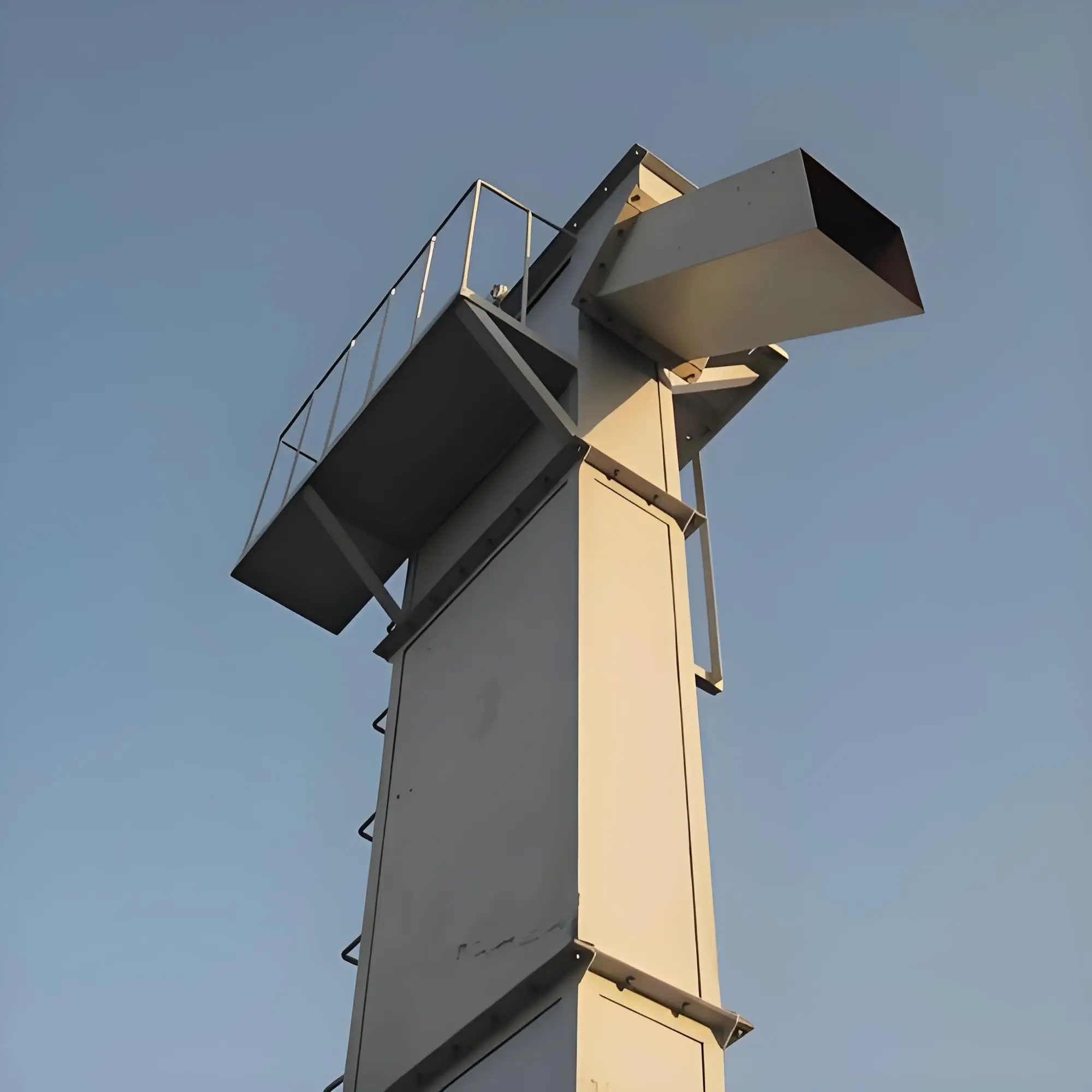

BUCKET ELEVATOR
Brief Introduction
The bucket elevator is a kind of vertical conveying equipment, widely used in conveying powder, granule and small lump of no rub or small rub (material temperature under 250℃), such as coal, cement, gravel, sand, fertilizer, food, etc.
Bucket elevator consists of frame, drag part (conveyor chain), hopper, drive wheel (head wheel), feeding inlet (input inlet)and discharging outlet (output outlet). The materials get into the bottom of the elevator through chute, then scooped up by hoppers and elevated to the top along with the conveying chain. After get round the top wheel, the materials turn down into the discharging outlet, thereby conveyed to the required position. The whole process is accomplished inside the frame, preventing the dust floating. The drag part uses high strength high quality alloy steel chain. Sprocket wheel with the sprocket rim composite structure has long lifetime and easy to replacement. The lower part using the gravity automatic devices can keep constant tension force, avoid skid or take off the chain and get certain yield ability, effectively protect lower shaft parts and other parts when hoppers get stuck accidentally.
Bucket elevator consists of frame, drag part (conveyor chain), hopper, drive wheel (head wheel), feeding inlet (input inlet)and discharging outlet (output outlet). The materials get into the bottom of the elevator through chute, then scooped up by hoppers and elevated to the top along with the conveying chain. After get round the top wheel, the materials turn down into the discharging outlet, thereby conveyed to the required position. The whole process is accomplished inside the frame, preventing the dust floating. The drag part uses high strength high quality alloy steel chain. Sprocket wheel with the sprocket rim composite structure has long lifetime and easy to replacement. The lower part using the gravity automatic devices can keep constant tension force, avoid skid or take off the chain and get certain yield ability, effectively protect lower shaft parts and other parts when hoppers get stuck accidentally.
Features
1. Clean the lifting bucket and the unloading bucket
After using the bucket elevator every day, you must clean the lifting bucket and the unloading bucket. During use, a lot of debris will accumulate in the lifting bucket and the unloading bucket. If it is not cleaned in time, it will affect the normal operation of the bucket elevator and greatly shorten its service life
2. Check the transmission mechanism
The transmission mechanism of the bucket elevator is an important part to ensure the normal rotation of the equipment. Check whether the transmission mechanism is loose, worn, and damaged. Lubricating the transmission mechanism is very important. Regularly add lubricating oil to the transmission mechanism to extend its service life
3. Check electrical equipment
The electrical equipment of the bucket elevator includes motors, switch cables, etc. Regularly check whether the electrical equipment is loose, power-off, leakage, etc. In addition, properly store the cables to avoid wear between the cables and the metal parts of the bucket elevator.
After using the bucket elevator every day, you must clean the lifting bucket and the unloading bucket. During use, a lot of debris will accumulate in the lifting bucket and the unloading bucket. If it is not cleaned in time, it will affect the normal operation of the bucket elevator and greatly shorten its service life
2. Check the transmission mechanism
The transmission mechanism of the bucket elevator is an important part to ensure the normal rotation of the equipment. Check whether the transmission mechanism is loose, worn, and damaged. Lubricating the transmission mechanism is very important. Regularly add lubricating oil to the transmission mechanism to extend its service life
3. Check electrical equipment
The electrical equipment of the bucket elevator includes motors, switch cables, etc. Regularly check whether the electrical equipment is loose, power-off, leakage, etc. In addition, properly store the cables to avoid wear between the cables and the metal parts of the bucket elevator.

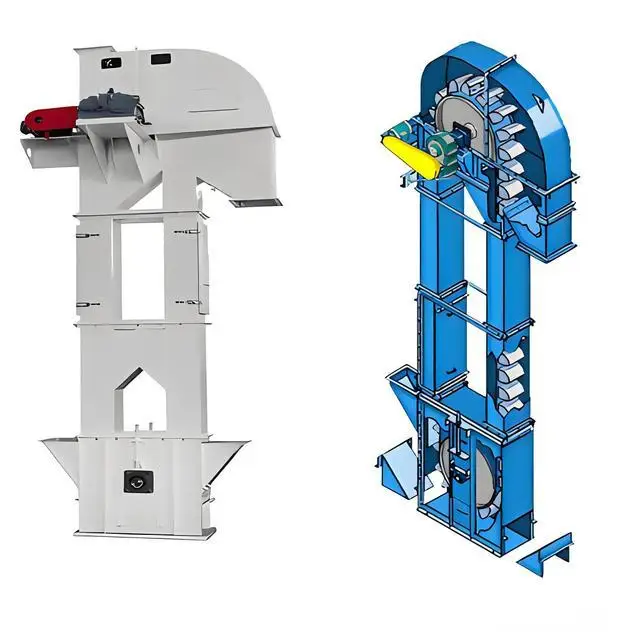

Internal structure
TECHNICAL PARAMETERS
Products
Certifications
Why Choose Us
Company Profile

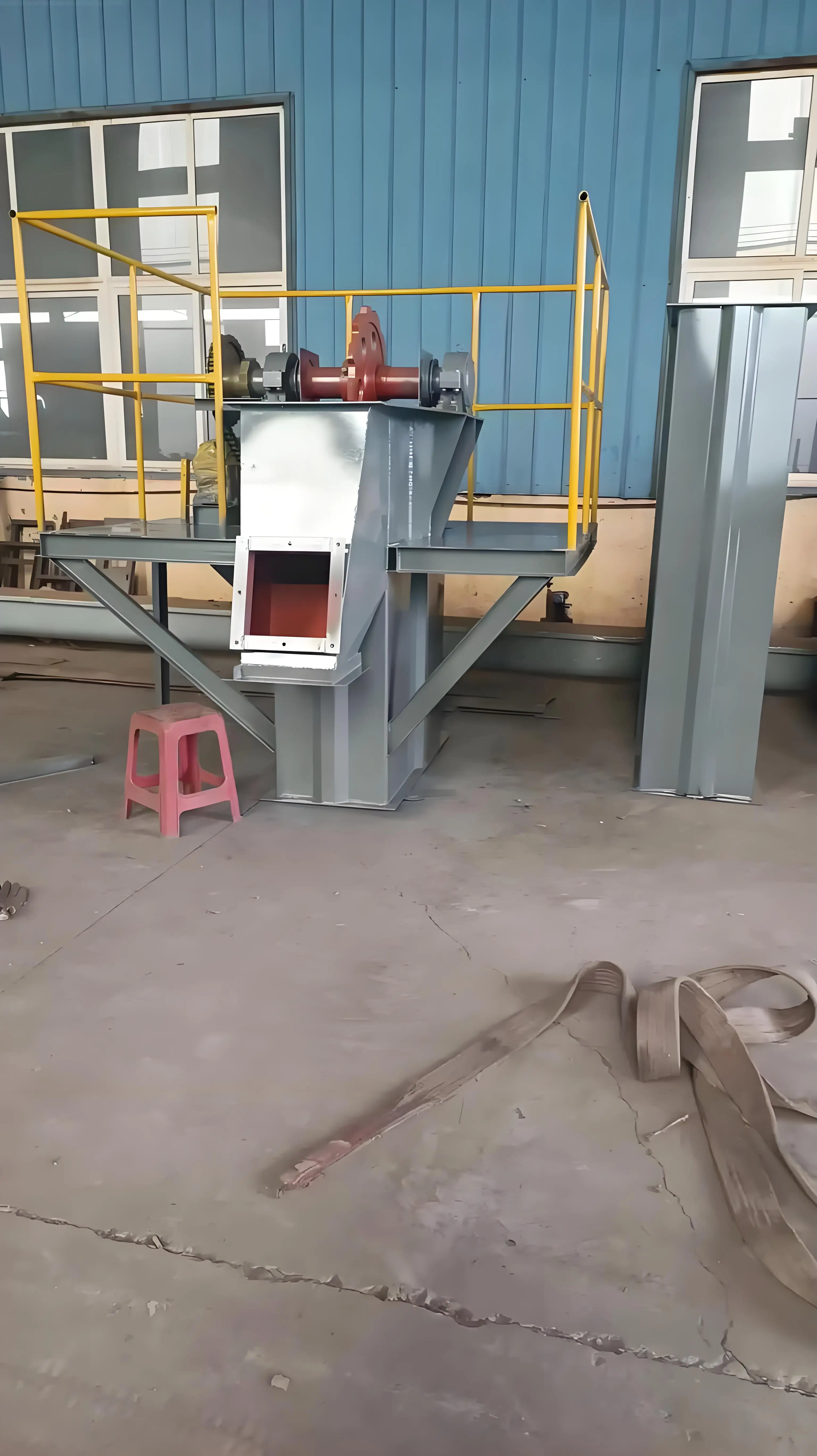

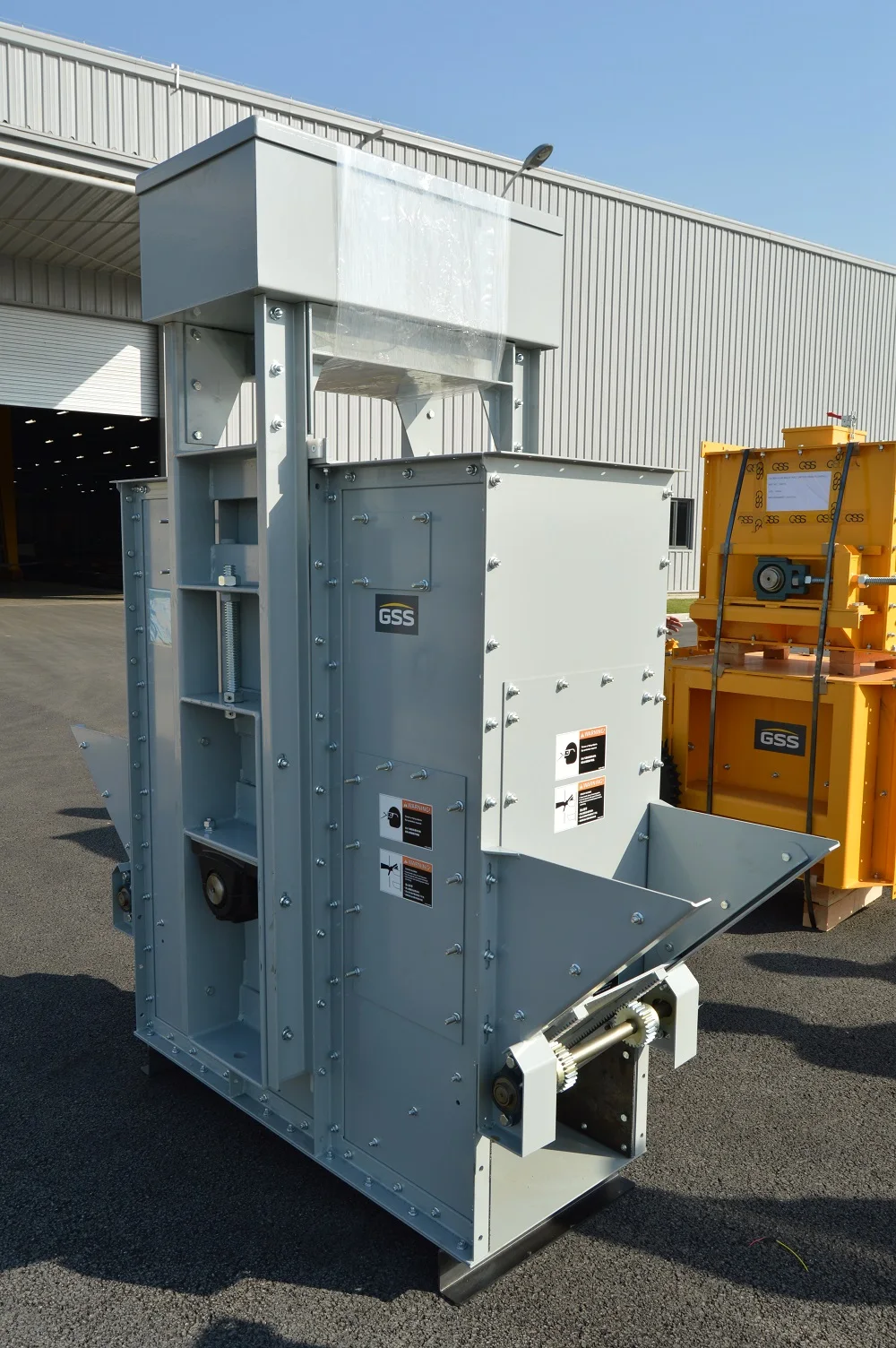

Machine in stock
Похожие товары
Высококачественная Мобильная ударная Дробилка для мягких пород Экологически чистая раздавливание
225 000,00-229 200,00 $

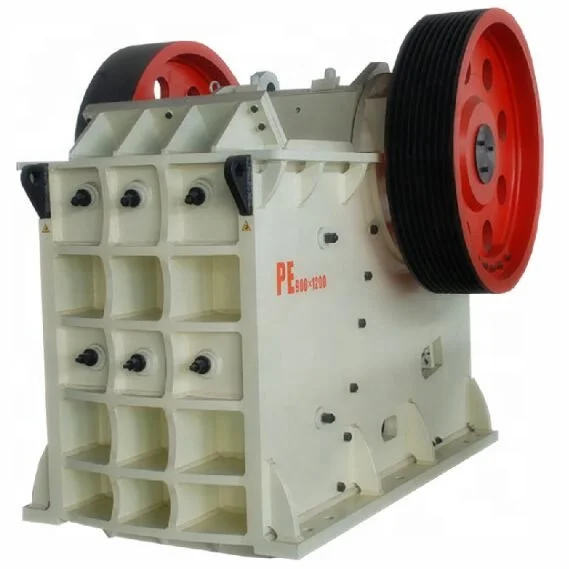

Высокоэффективная 50 тонн Pe 500*750 гравия твердая каменная щековая дробилка для продажи
