EPC Gen2 ISO 18000 6C 4 портовый UHF RFID фиксированный считыватель для складской логистики

Сохранить в закладки 1601377063479:


Цена:229,00-259,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 Uhf reader long range 4 ports high power 33dbm iso18000-6C rfid reader with GPIO POE WIFI-1_01.jpg



Product Description


The product adopts industrial grade design. With network port (optional POE function), RS232, RS485 multiple antenna interfaces, 4 into 4 out GPIO port (of which 3 outputs are relays), strong driving ability, you can directly drive indicators, alarms and other peripherals, as well as WiFi, 4G and other communication methods. Compact structure, easy to install, stable performance, suitable for a variety of industrial applications.


Translated with DeepL.com (free version)








Specifications:












































































































Main Function



Protocol


EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C



Antenna connectors



4 * 50Ω Reverse Polarity TNC Connectors


RSSI Testing


Support



RFID



Frequency


EU 840~868MHz/ US 902~928MHz or customized
Fixed or FHSS


RF Power


33dBm±1dB(Max)


Step Power


1dBm


Antenna Port


4 N ports



CPU




  ARM7




RFID Processor




 Impinj E710




Tag Reading



Effective Distance


8dBi antenna, 30dBm.
Read:30m
Write:8m


Reading Speed


900tags/s



Communication Parameter



Interface



RJ45(10M/100M),RS232(9600-230400bps),USB(9600-921600bps),RS485(19200-230400bps)




4 GPI and 4 GPO


Optional


WIFI (2.4G), 4G, POE (802.3af/802.3at)


protocols



Modbus,HID,HTTP,HTTPS,MQTT,TCP




indicator light



Power indicator, status indicator





Power Parameter



Operating Voltage


+12.0V(+9~+24V)


Power wastage


Standby 1.6W Operating 10.8W



Temperature Parameter



Operating Temperature


-25~+65°C


Storage Temperature


-40~+85°C


Operating Humidity


<95%RH (+25°C) Non-condensing

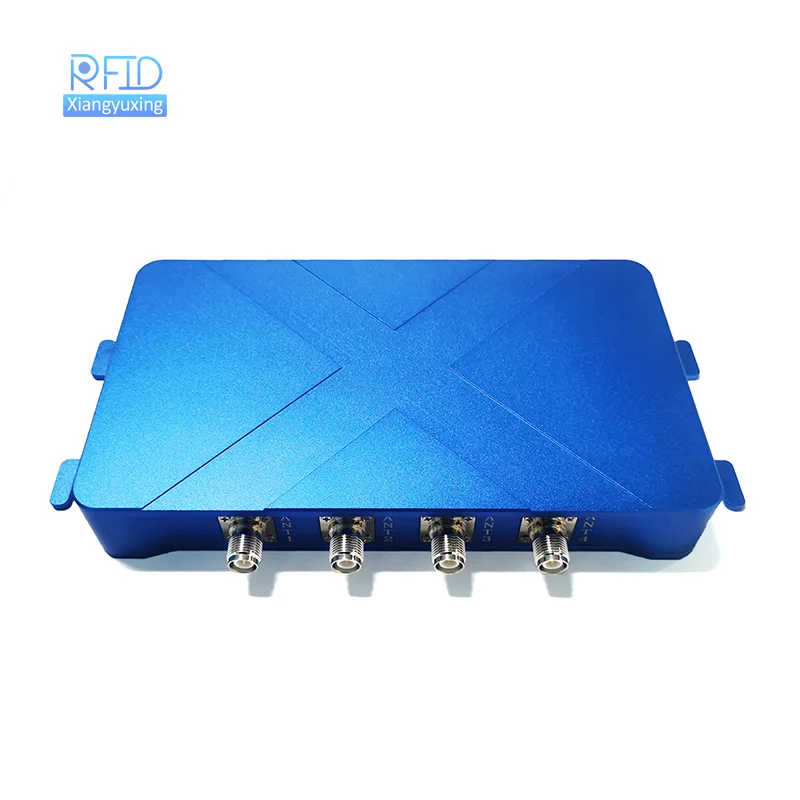

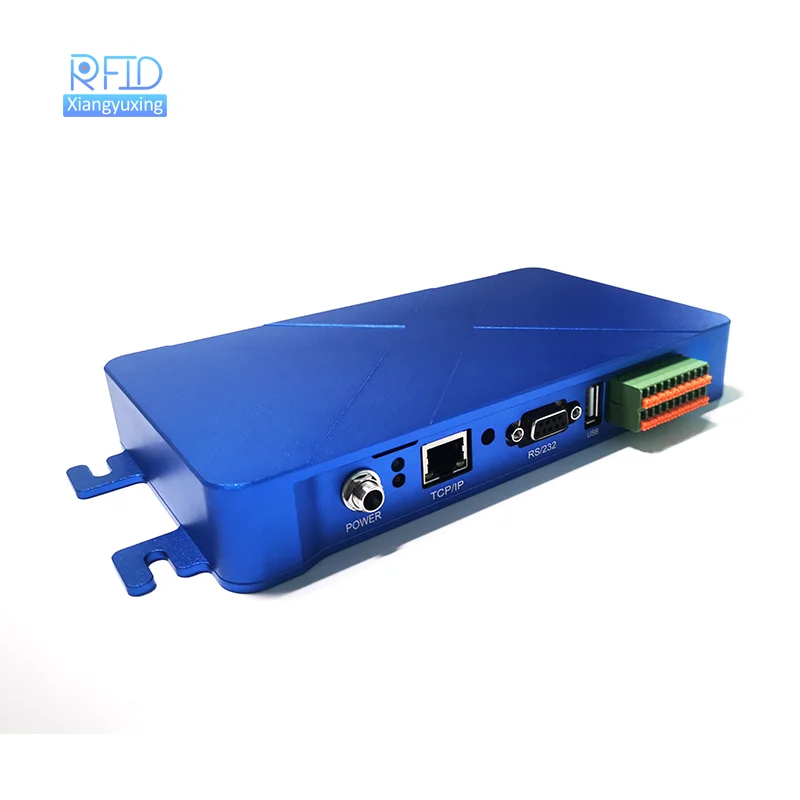

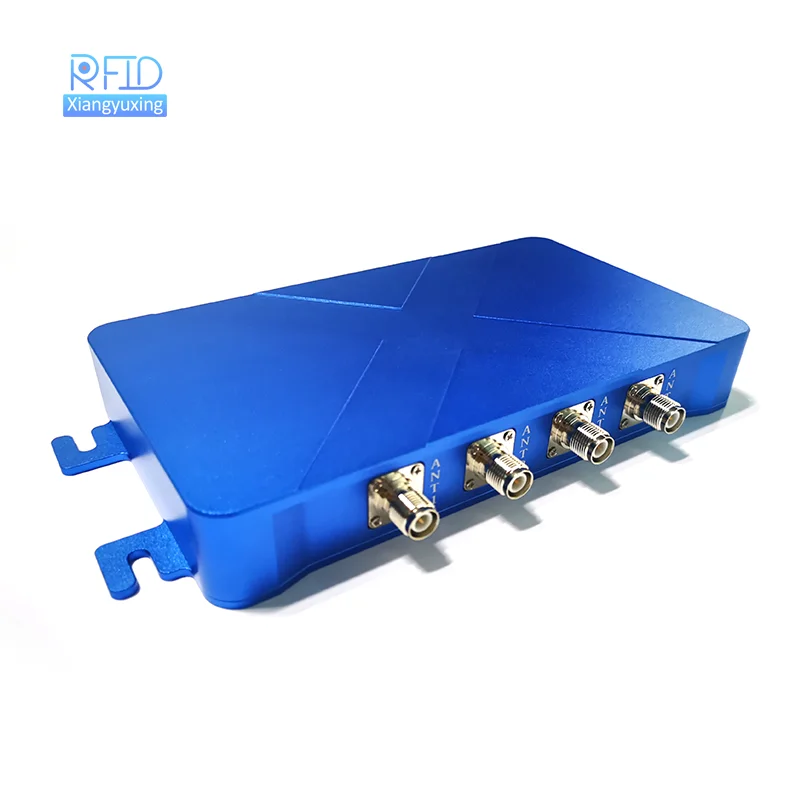

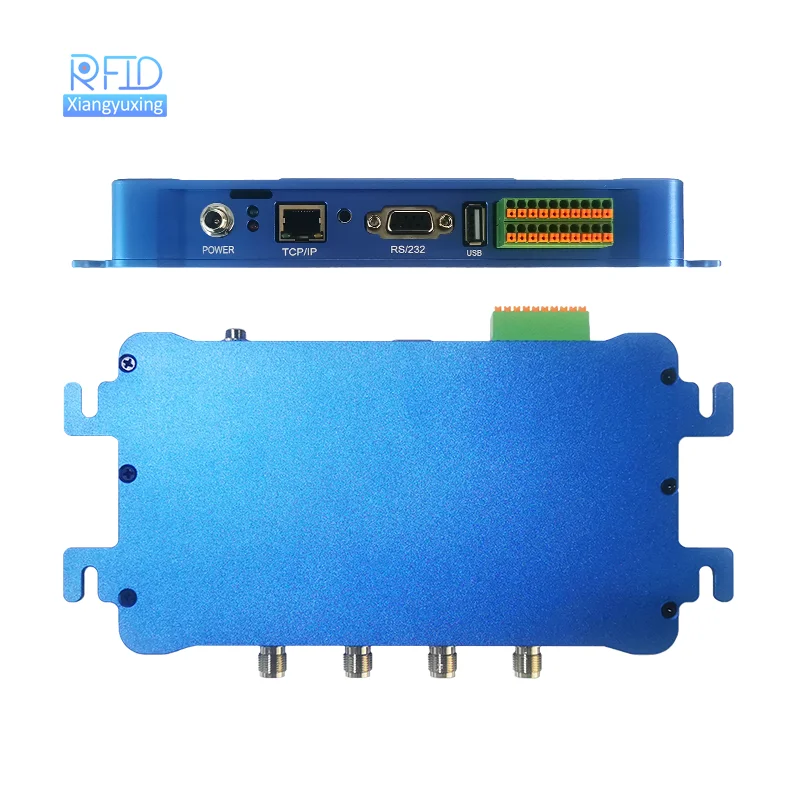

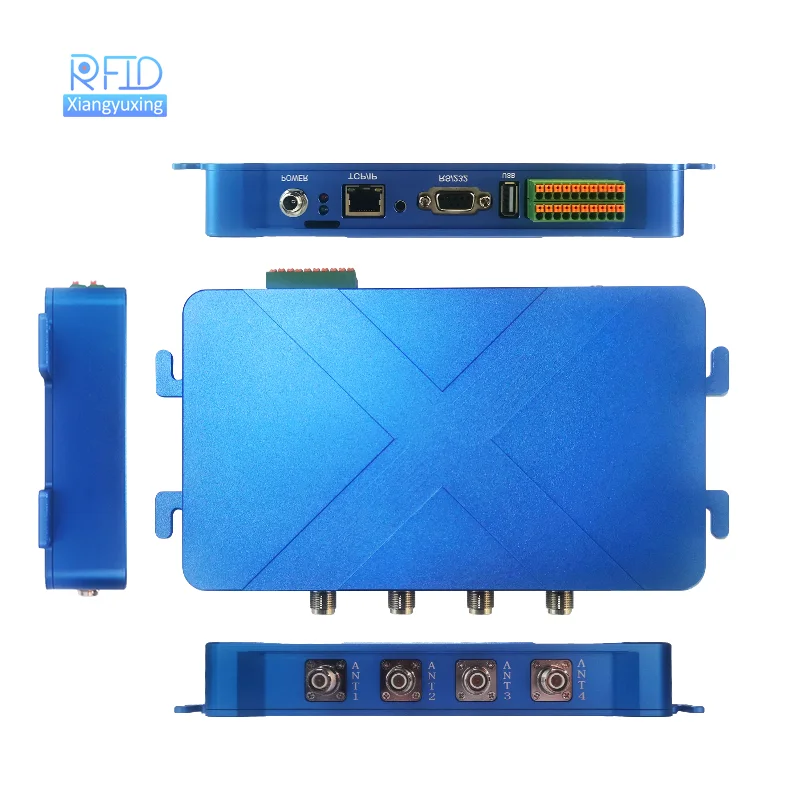

Product Images


-1_02.jpg-1_03.jpg1 (3)1.jpg
