Оборудование для производства нетканого полипропиленового фильтра шириной 600 мм
93 000,00 $
Yitai Ушная веревка с петлей для вязальной
- Категория: Nonwoven Machines >>>
- Поставщик: Xiamen Yitai Industrial Co. Ltd.
Сохранить в закладки 1700000367525:
Описание и отзывы
Характеристики
Product Description
Yitai Ear String Rope Loop Head Round Knitting Machine
Specification | ||
Head | 10 heads | |
Needles | 6 needles | |
Diameter | 4mm | |
Speed | 1200RPM | |
Productivity | 1.5m/head/min | |
Hourly Output | 900 meters | |
Yarn Material | Covered spandex yarn, 70D | |
Lead Time | 25 days | |
Machine Size | 2000*900*1600mm | |
Packing Size | 2050*950*1750mm | |
Net Weight | 150KGS | |
Gross Weight | 180KGS | |

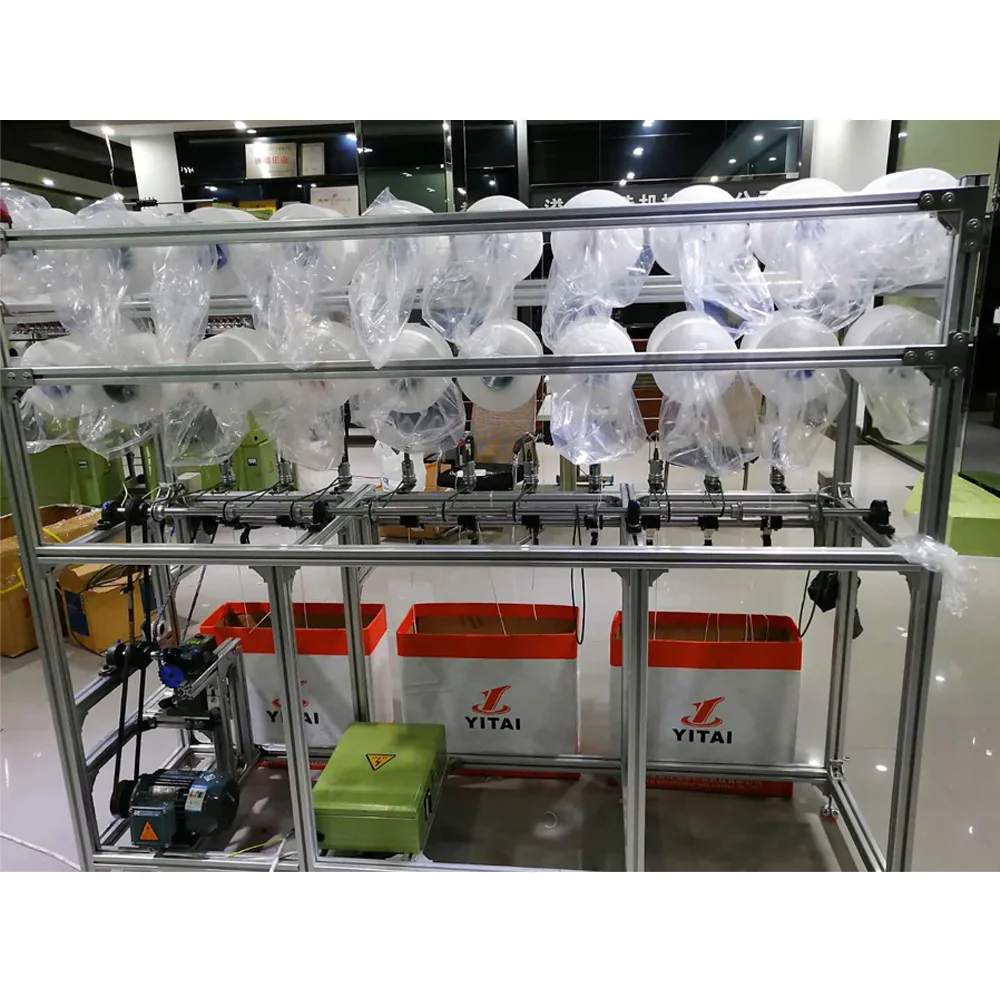

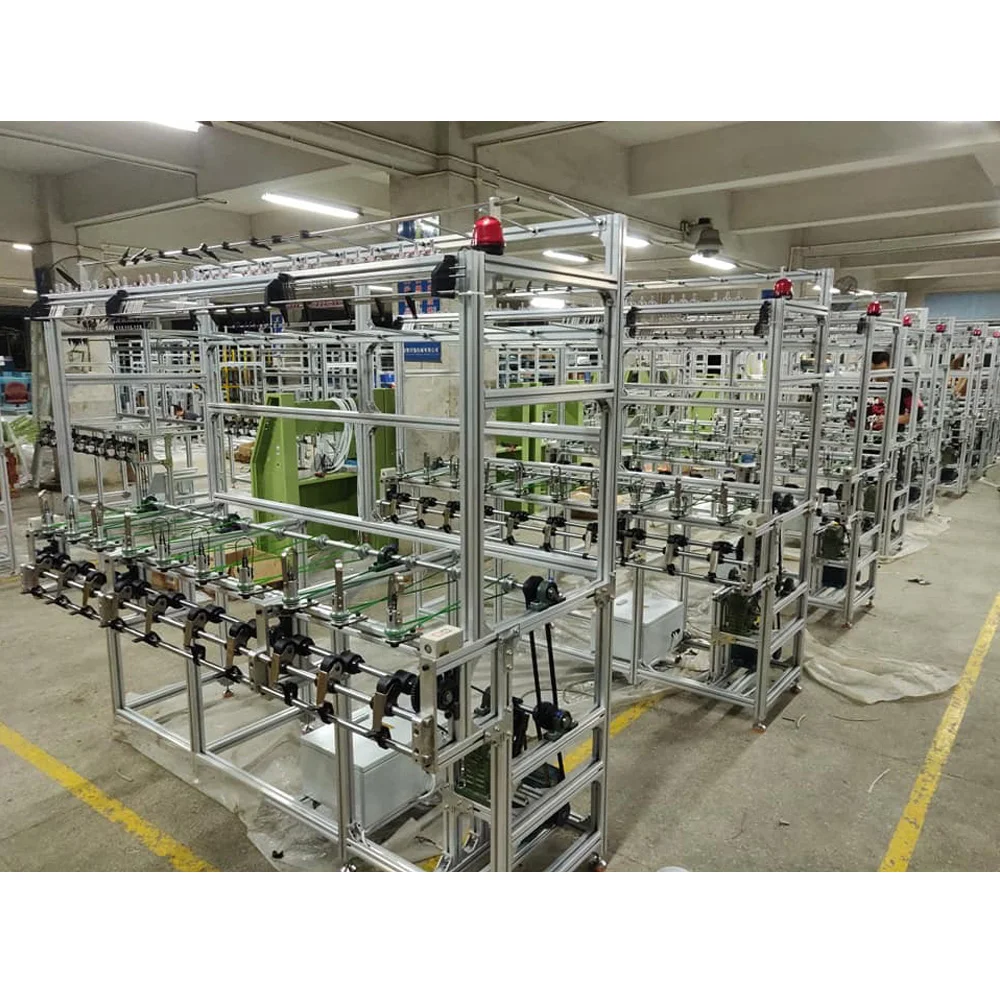

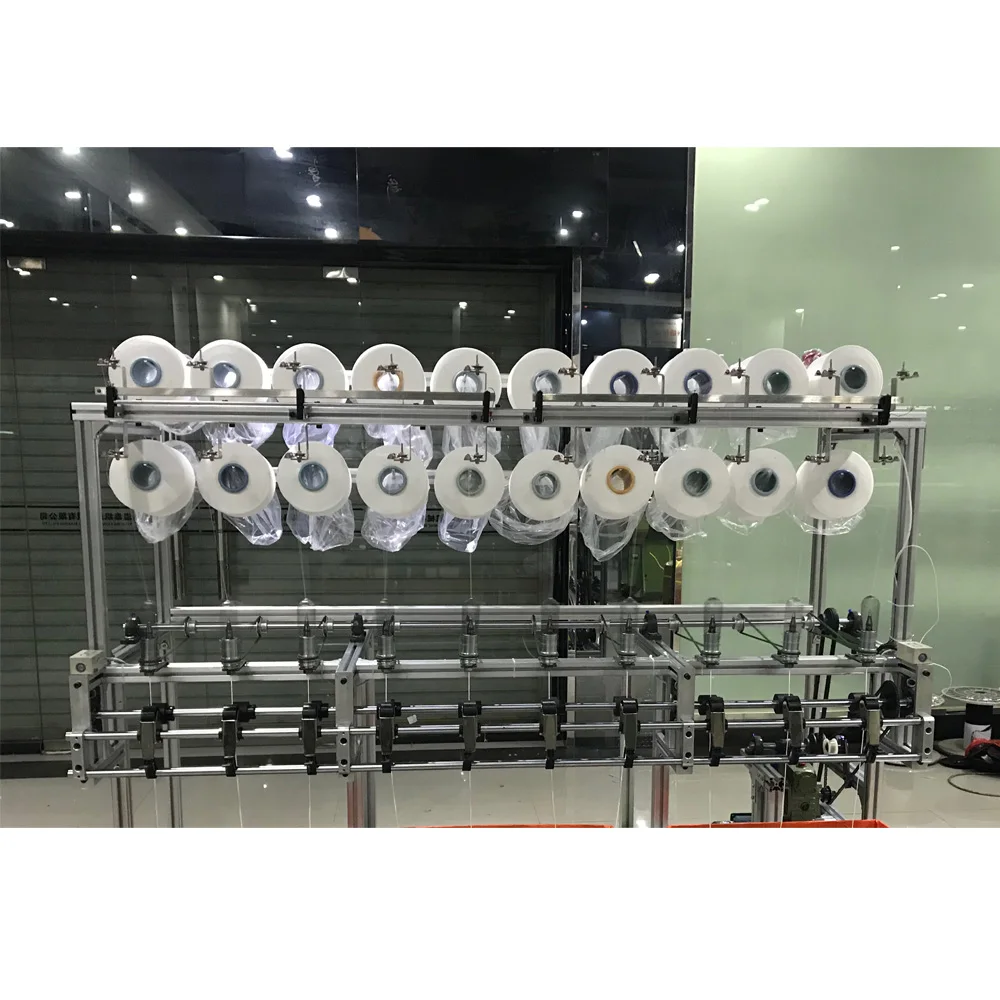

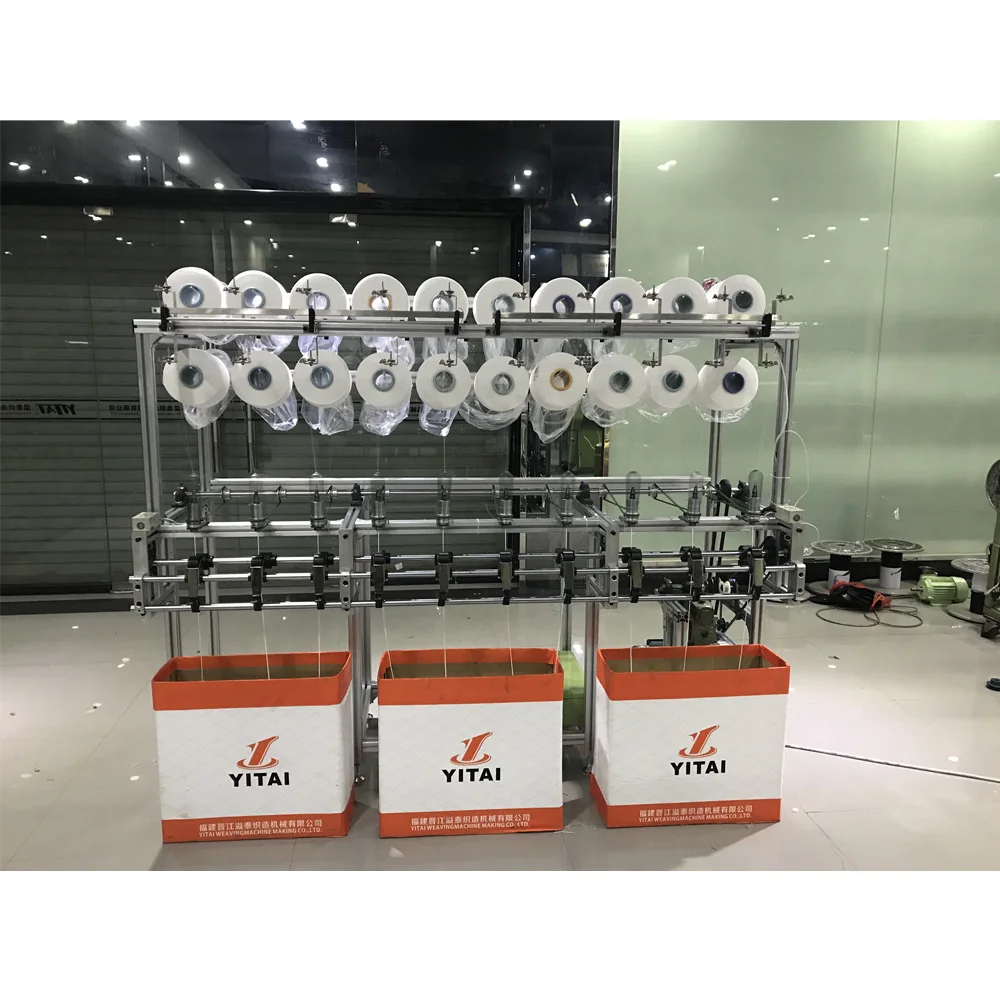

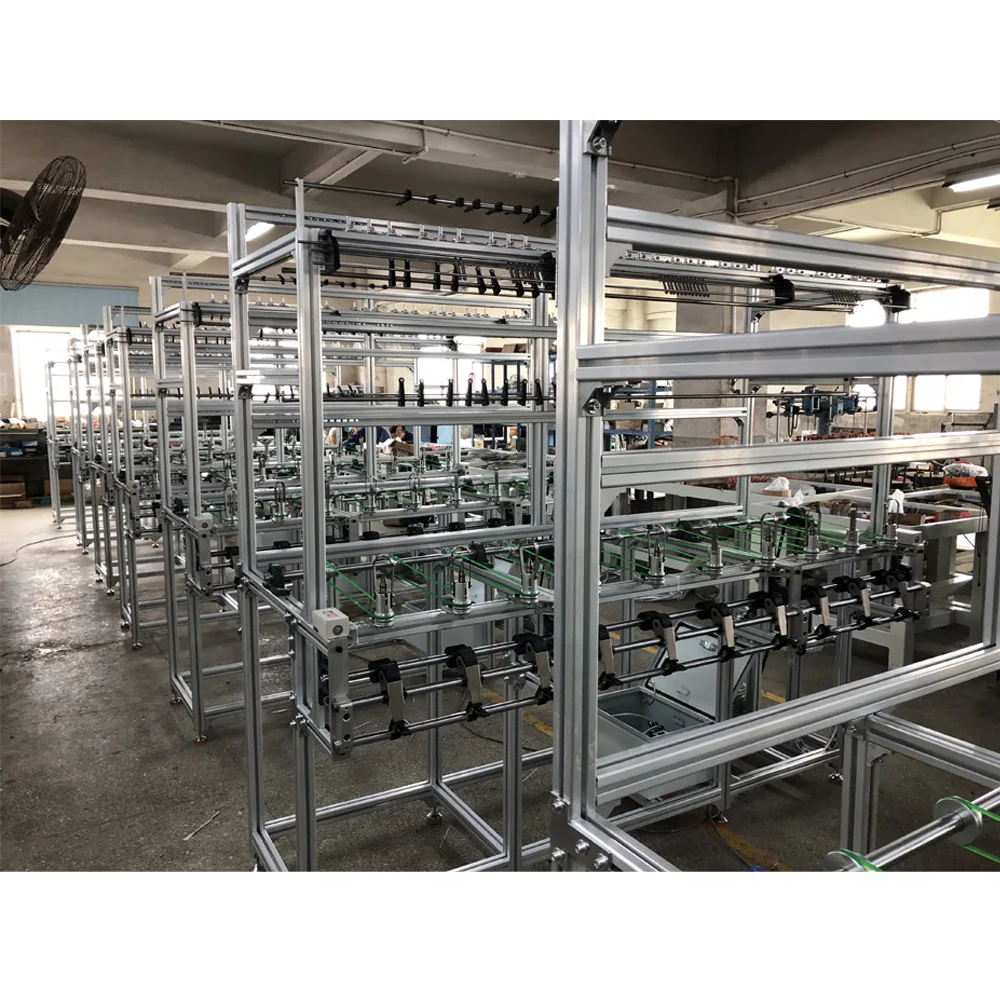

Detail Images
Description of application effect
使用效果描述
使用效果描述
Product Sample
Application:
Suitable for the production of disposable face mask & surgical mask
Suitable for the production of disposable face mask & surgical mask
Technical Data:
1. Auto-align three rolls of material to be feed in, the Outer, Filter and Inner layers. Symmetrically both sides pressing with ultrasonic continuously. With continuous roller press then cut.
2. Production adopted the “1 + 4” theory, a main set of mask making system, and 4 seperate welding machine. To ensure the high production, one minute 120pcs.
3. Earloops finished by ultrasonic cutting and welding automatically on the auto welding machine.
4. Nose-bridge can be made with auto feeding, cutting and ultrasonic welding.
1. Auto-align three rolls of material to be feed in, the Outer, Filter and Inner layers. Symmetrically both sides pressing with ultrasonic continuously. With continuous roller press then cut.
2. Production adopted the “1 + 4” theory, a main set of mask making system, and 4 seperate welding machine. To ensure the high production, one minute 120pcs.
3. Earloops finished by ultrasonic cutting and welding automatically on the auto welding machine.
4. Nose-bridge can be made with auto feeding, cutting and ultrasonic welding.
Semi auto mask production line
Mask Machine×1 set
Ear Loop Welding Machine×4 or 5 sets
Parameter & Configuration for mask machine
Main Parameter | Configuration | ||||
Model | YT 0969 disposable face mask making machine | Control system | Yitai | ||
Mask | Disposable Face Mask (YY/T0969-2013) | Ultrasonic generator | YITAI, 220V | ||
Mask Specification | 175mm * 95mm | Sensor | Panasonic | ||
Material | PP non-woven composite fiber | Main body | Assembly with welding & pre-made material | ||
Layer Quantity | 3 layers | Bearing | NSK | ||
Proessing Mode | Ultrasonic welding | Switches | Schneider | ||
Operation screen | PLC control system, easy for operation | ||||
Air compressure | 0.6 MPa | ||||
Power | 3.5 KW | ||||
Voltage | 220V | ||||
Floor plant | 5230mm * 600mm * 1600mm (L*W*H) | ||||
Parameter & Configuration for ear loop semi welding machine
Main Parameter | Remarks | ||||
Model | YT 0967 semi welding machine | One body machine suggest equips with 4 to 5 sets semi welding machine | |||
Mask | Disposable Face Mask (YY/T0969-2013) N95 face mask (GB2626－2006) | ||||
Mask Specification | 175mm * 95mm | ||||
Speed | 25-30 pcs/minute | ||||
Material | PP non-woven composite fiber | ||||
Layer Quantity | 3 layers | ||||
Proessing Mode | Ultrasonic welding | ||||
Air compressure | 0.6 MPa | ||||
Power | 0.93 KW | ||||
Voltage | 220V | ||||
Floor plant | 1000 mm * 650mm * 1400 mm (L*W*H), 350kg | ||||
Items | Specifications (gsm) | Width(mm) | Single piece cutting length(mm) | Weight per piece(g) | Remarks |
SS non-woven dark color(outer layer) | 25 | 200 | 175 | 0.875 | Green/blue/black color |
White melt-blown non- woven(filter layer) | 25 | 180 | 175 | 0.7875 | Filtering index 90%，95%，99.99% |
SS non-woven light color(inner layer) | 25 | 210 | 175 | 0.91875 | Minimum 20 GSM |
Nose bridge bar | 100 | Aluminum strips suggested | |||
Face mask belt | 300 | Single side150MM*2 sides=300MM |
Items | Materialsspecifications g/㎡ | Width(mm) | Length(mm) | Single piece weight(g) | Month consumption kg | Price(not fixed) | Mask can produce | ||||||
SS non-woven dark color(outer layer) | 25 | 200 | 175 | 0.875 | 1000 | 2220USD/ton | 1.14 million pcs mask | ||||||
White melt-blown non- woven(filter layer) | 25 | 180 | 175 | 0.7875 | 1000 | 60000USD/ton | 1.2 million pcs mask | ||||||
SS non-woven light color(inner layer) | 25 | 210 | 175 | 0.91875 | 1000 | 2300USD/ton | 1.14 million pcs mask | ||||||
Nose bridge bar | 100 | 0.167 | 340 | 4.12USD/kg | 1 million pcs mask | ||||||||
Face mask belt | 300 | 0.286 | 430 | 11.76/kg | 1 million pcs mask | ||||||||
Remark | Raw materials price flexible please update it as per market. | ||||||||||||
Face masks package machine （ for reference）
Type | Face mask packing machine |
Film width | Max350mm |
Bag length | 90-220or120-280mmor 150-330mm |
Bag width | 30-110mm（customize） |
Film roll diameter | Max.320mm |
Packaging rate | 30-230bag/min（customize） |
Power | 220V 50/60Hz 2.4KW |
Machine size | 3770*720*1450mm |
Weight | About500kg |
Main Machine Length | 980mm |
Machine conveyor Length | 2290mm |
Finished product conveyor Length | 600mm |
Important notes:
Overseas face Mask manufacturing Qualifications and certifications required shall be checked as per local governments requests.
Product Show
Certifications
Packing&Shipping
Standard export packing, PP warping and polywood case.
Within 30 working days after confirming order and advance payment,detail delivery date should be decided according to production season and order quantity.
Within 30 working days after confirming order and advance payment,detail delivery date should be decided according to production season and order quantity.
Company Introduction
Exhibition
FAQ
Q :How long is the machine warranty?
A :It's 12 months from B/L date. Each machine will be testing for at least 48 hours and get a warranty hangtag before packing and delivery.
Q: What technical support can I get?
A: Each machine has instruction book. We also offer video support. Learning in our factory is for free. We can also send technician to your factory with cost if needed.
Q:What is your term of delivery?
A:We accept EXW, FOB XIAMEN and CIF. You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Normally it takes about 35 days after getting deposit.
A :It's 12 months from B/L date. Each machine will be testing for at least 48 hours and get a warranty hangtag before packing and delivery.
Q: What technical support can I get?
A: Each machine has instruction book. We also offer video support. Learning in our factory is for free. We can also send technician to your factory with cost if needed.
Q:What is your term of delivery?
A:We accept EXW, FOB XIAMEN and CIF. You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Normally it takes about 35 days after getting deposit.
