Products Description

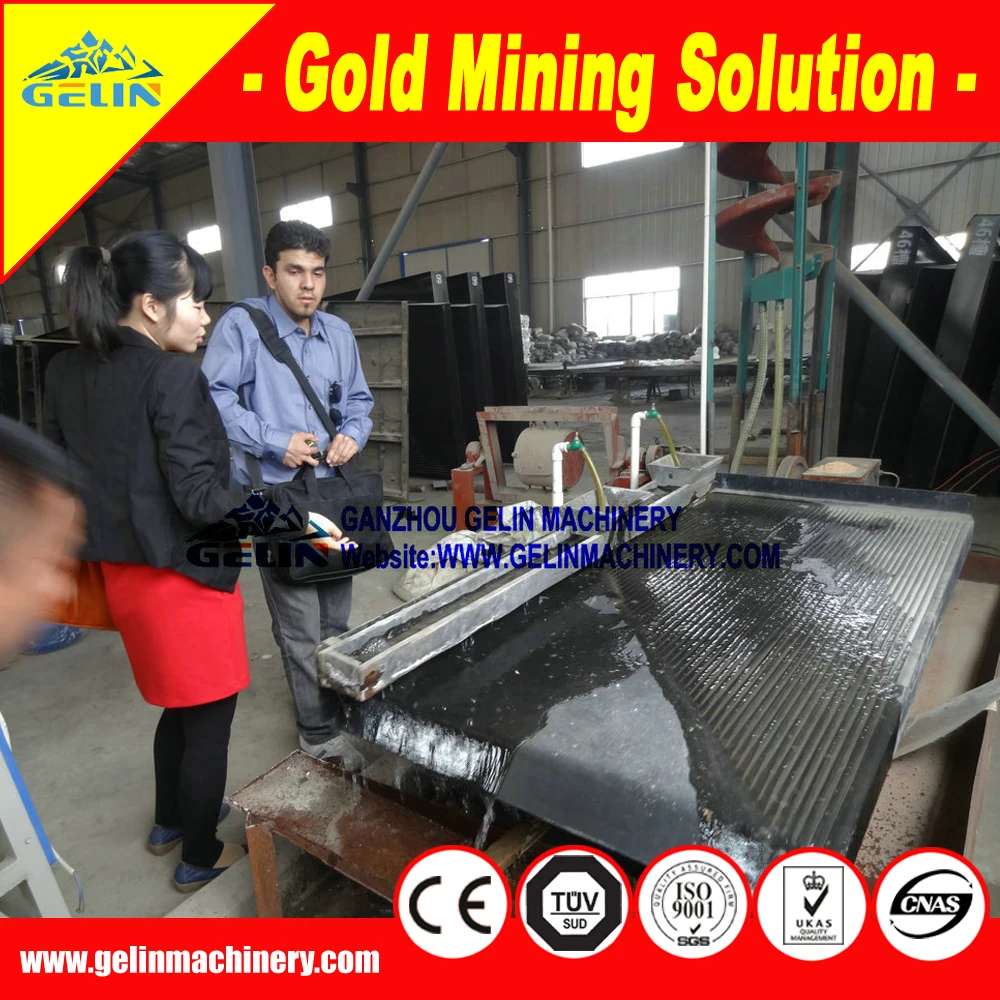

Cassiterite and gold mining processing machine

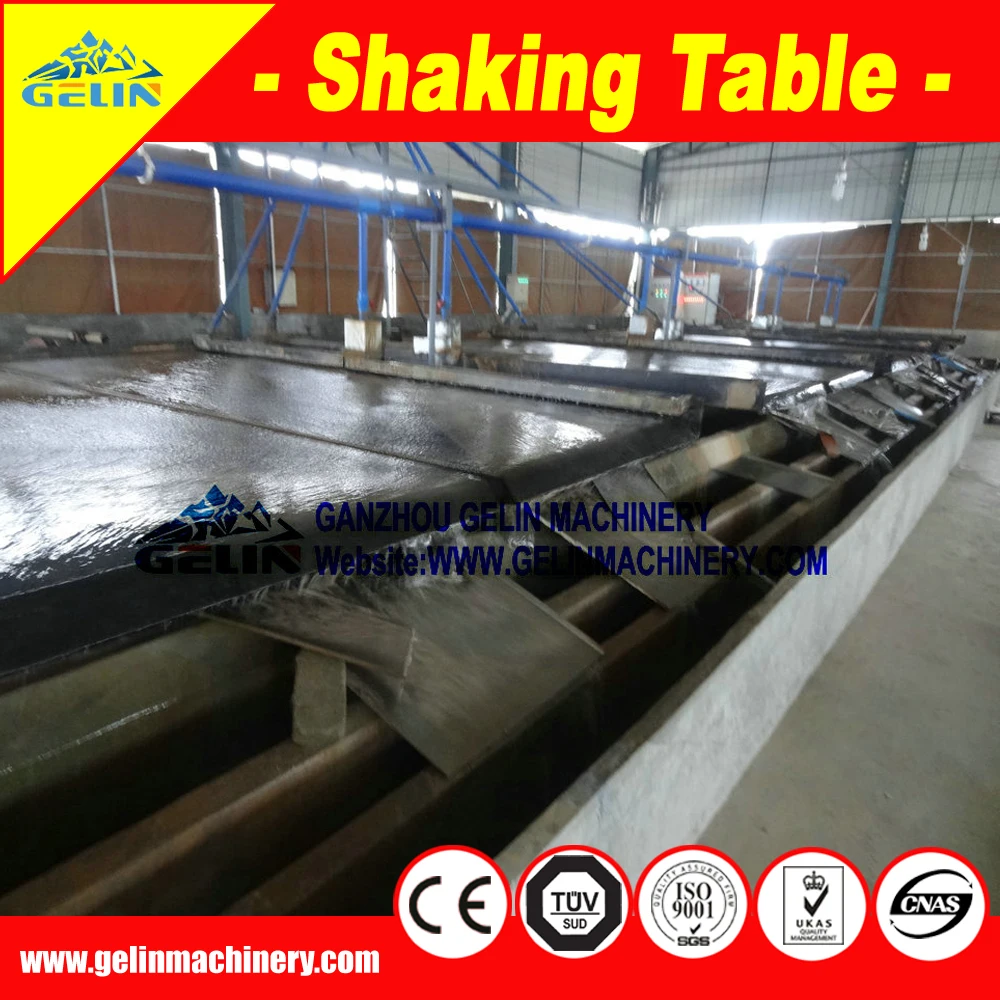

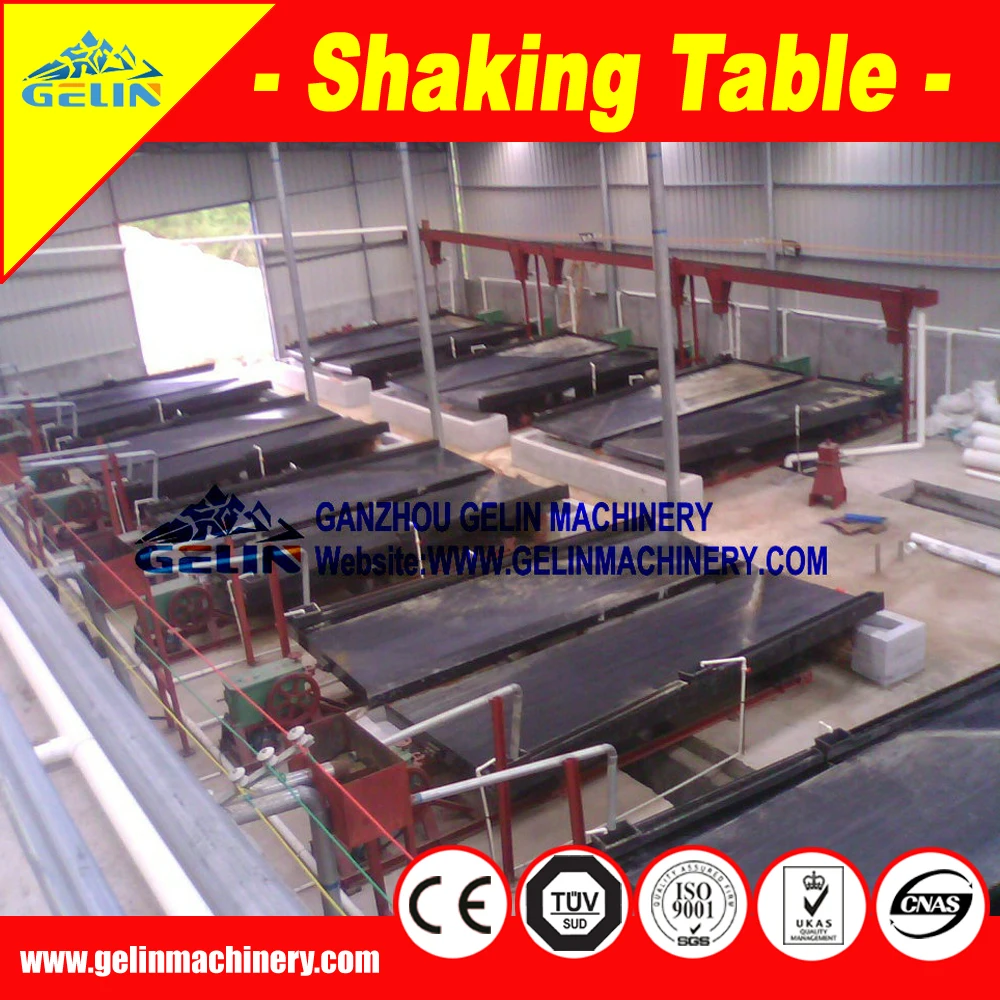

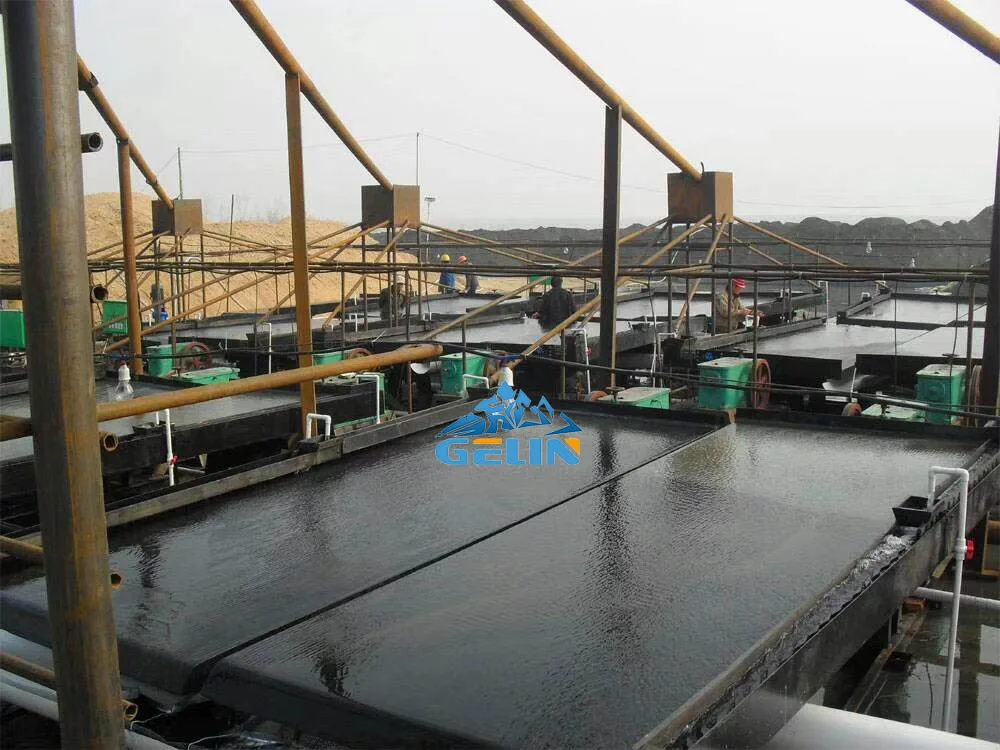

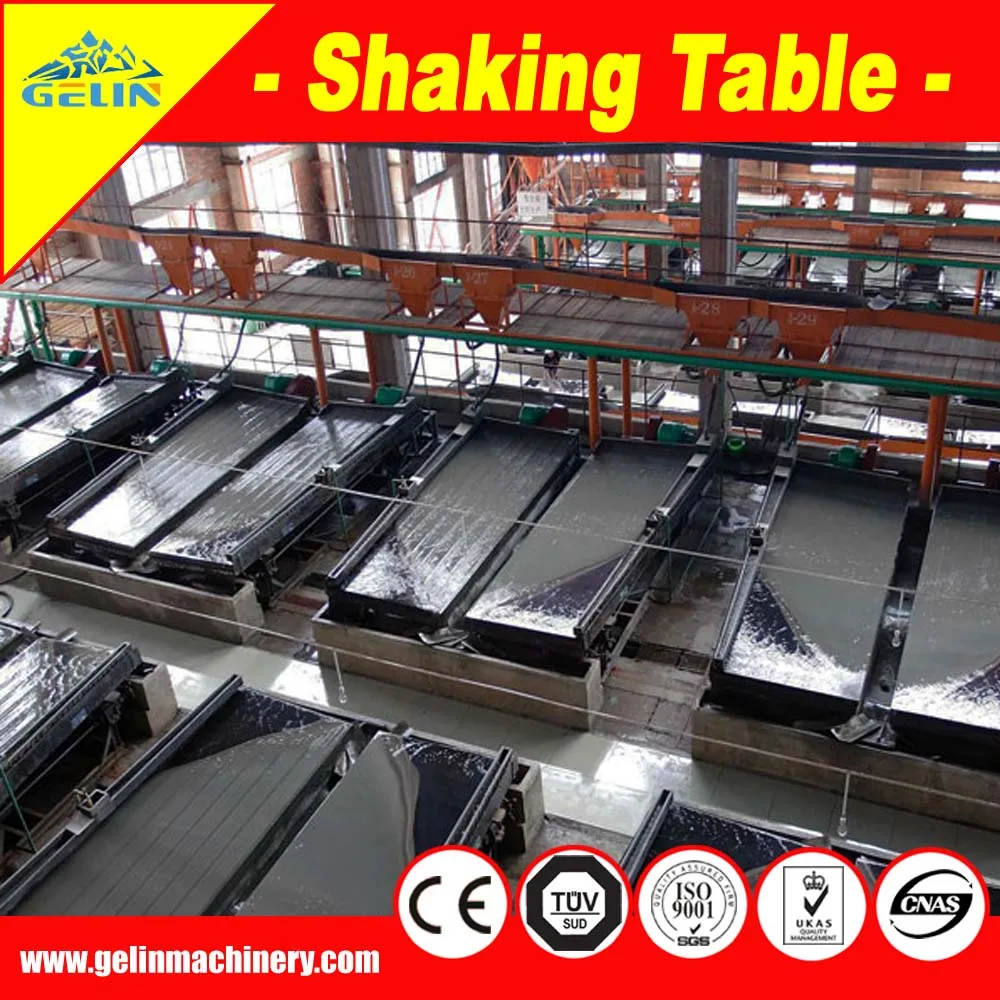

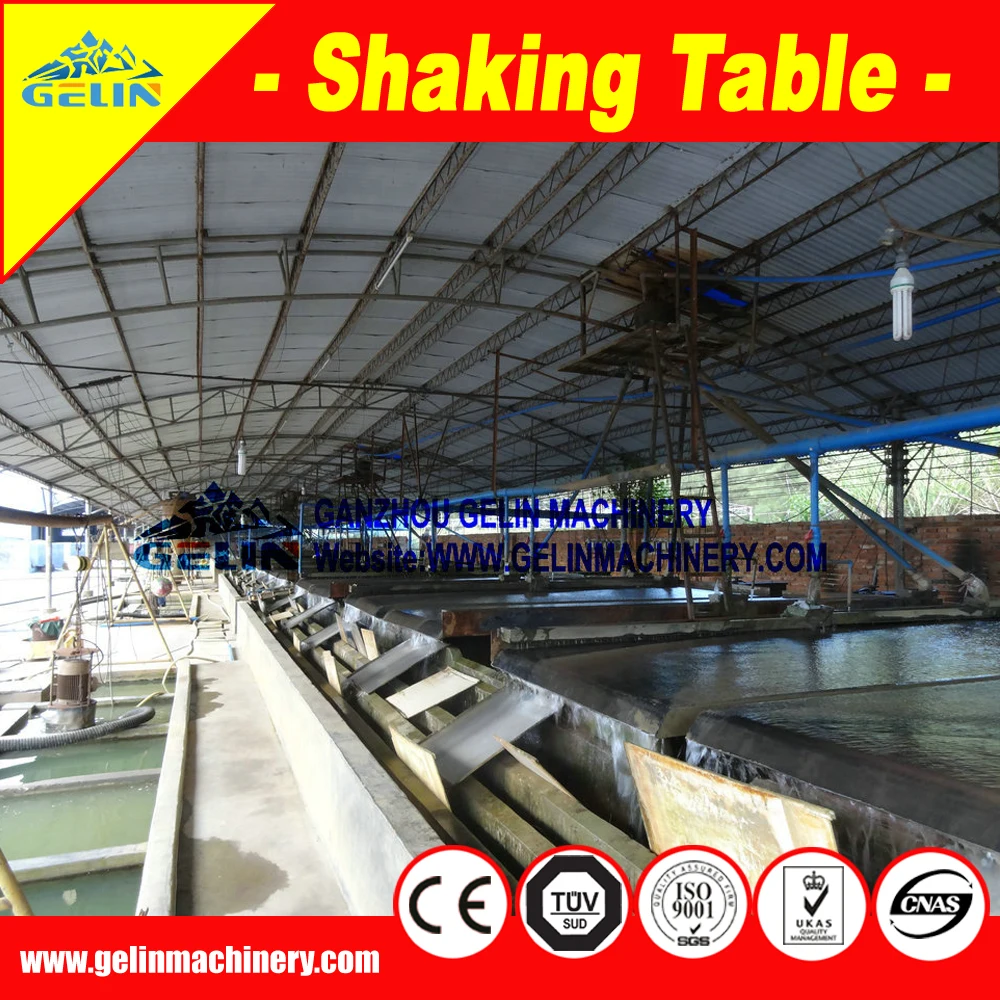

The Shaking table is one of most commonly used mineral beneficiation equipment, although the processing ability based on unit area of shaking table is low, its effective particle size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy. Shaking table could continuously sort concentrate ore, second-grade ore and tailings. It is applied in roughing, cleaning and scavenging for dressing coarse sand(2-0.5mm), fine sand(0.5-0.074mm), pulp(0.074mm).
Product Application

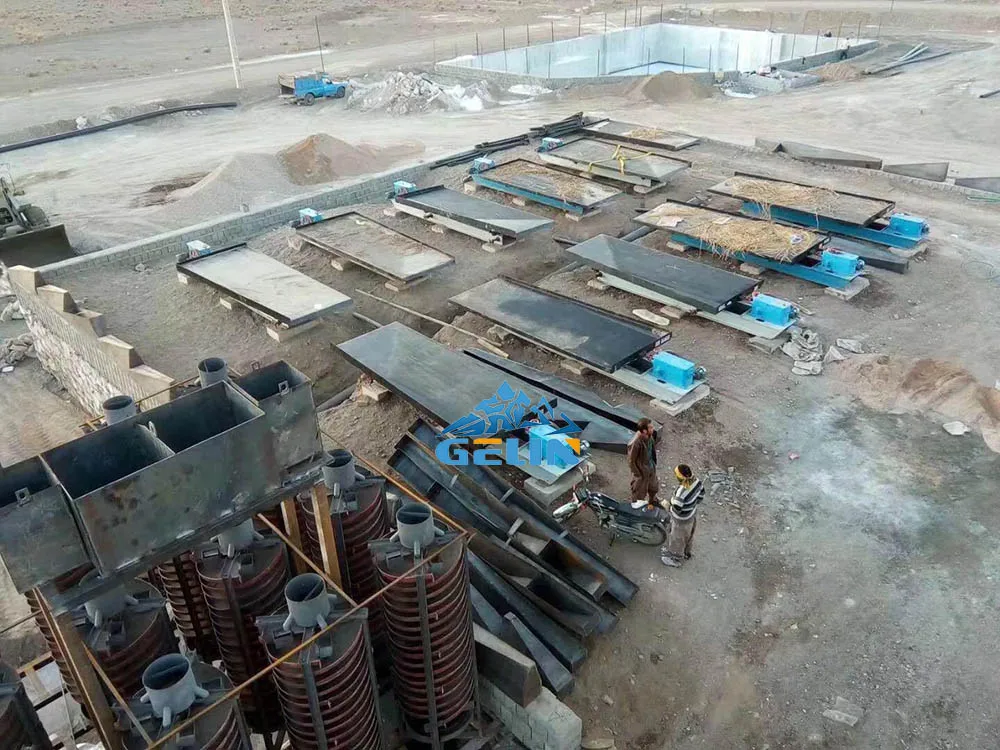

- gold mining plant for alluvial gold, placer, gold sand
- gold processing plant for river dirt gold with clay
- working together with small sluice box or small shaking table for gold recovering.
Product Parameter
1. Feeding Mouth | 9.Horizonal Support |
2.Stroke Adjusting Device | 10.Adjusting Wheel |
3. Feeding Chute | 11.Deck Support |
4.Water Feeding | 12.Knife-Type Support |
5.Water Feeding Chute | 13.Stand |
6.Deck Surface | 14.Shaking Table Head |
7.Concentrates Discharge Area | 15.Motor Support |
8.Tailings Discharge Area | 16.Swing Adjusting Device |
>>> Head motion
Shaking tables are furnished with a totally enclosed slf-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance cost to a minimum.
>>> Deck
The decks are constructed of steel freamework and covered 16mm fibreglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens
the working-lige of machine and thus allows machine perform perfectly on different mineral and different weather condition.
the working-lige of machine and thus allows machine perform perfectly on different mineral and different weather condition.
>>> Feed and water box
A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Model | 6s -7.6 | 6s- 7.6 | 6s- 7.6 | 6s- 4.08 | 6s- 1.95 | 6s- 0.5 | |||||||
Deck Type | Coarse Ore Deck | Fine Sand Deck | Slurry/Slime Deck | Three Deck Types Available | |||||||||
Beneficiation Area ㎡ | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |||||||
Deck Size(mm) | Length (mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | ||||||
transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | |||||||
Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 | |||||||
Maximum Feeding Size (mm) | 2 | 0.5 | 0.15 | Sand--2 Slime--0.1 | Sand--2 Slime--0.074 | Sand--2 Slime--0.074 | |||||||
Feeding Capacity (ton/hour) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |||||||
Feeding Density (%) | 25-30 | 20-25 | 15-25 | 10-30 | |||||||||
Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |||||||
Frequency (t/s) | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | |||||||
Water added (t/h) | 1-3 | 1-3 | 1-3 | 0.4-2 | 0.2-1 | 0.1-0.5 | |||||||
Transverse Slope of Deck (°) | 2.3°-4. 3° | 1.3°-3.3° | 1° -2° | 0 -10° | 0 -8° | 0 -10° | |||||||
Longitudinal Slope of Deck (°) | 1.4 | 0.92 | / | / | / | / | |||||||
Cross-Section Shape of Deck | rectangle | Saw-Tooth/Indention | Triangle | Rectangle, Saw Tooth, Triangle Available | |||||||||
Motor Power (KW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |||||||
Transimission Mechanism | Eccentric Linkage Type | ||||||||||||
Remark:
The tables have three distinct deck designs available.
- The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm;
- The fine sand deck is designed for recovering fine particles in the range of 0.074mm to 0.5mm;
- The slime deck is designed for recovering super extremely fine particles in the range of 0.15mm to 0.074mm
Packing & Delivery
Packing

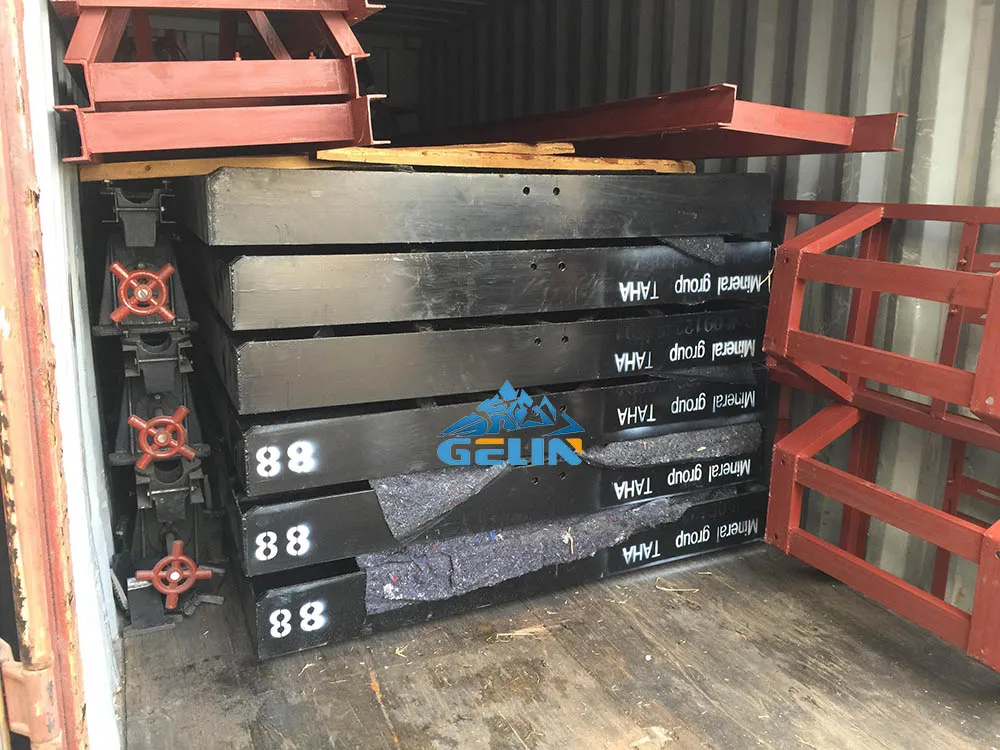

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Related Products
Spiral Classifier
It is widely used to pre-grading and inspection grading in closed circuits when used in the production flow of metal processing.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Gelin has a strong production capacity and full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc.. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
For accurate equipment selection and quotation, better learn below info:
2). If rock stone, what is particle size(mm) of the raw ore?
Q:
1).What type is the mining? Is it rock stone? or it is sand?2). If rock stone, what is particle size(mm) of the raw ore?
3).What is the elements of the raw ore? How much percent % of each minerals?
4). How about the handling capacity(T/H) you plan to work with?
Q: How long is the guarantee period of your products?
Q: If I need the complete mineral processing line, will you be able to help me build it?
4). How about the handling capacity(T/H) you plan to work with?
Others:
Q: Are you a trading company or a factory?
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.
Welcome to our factory at any time.
For more details, please refer to our website: www.gelinmachinery.com
