Product Description

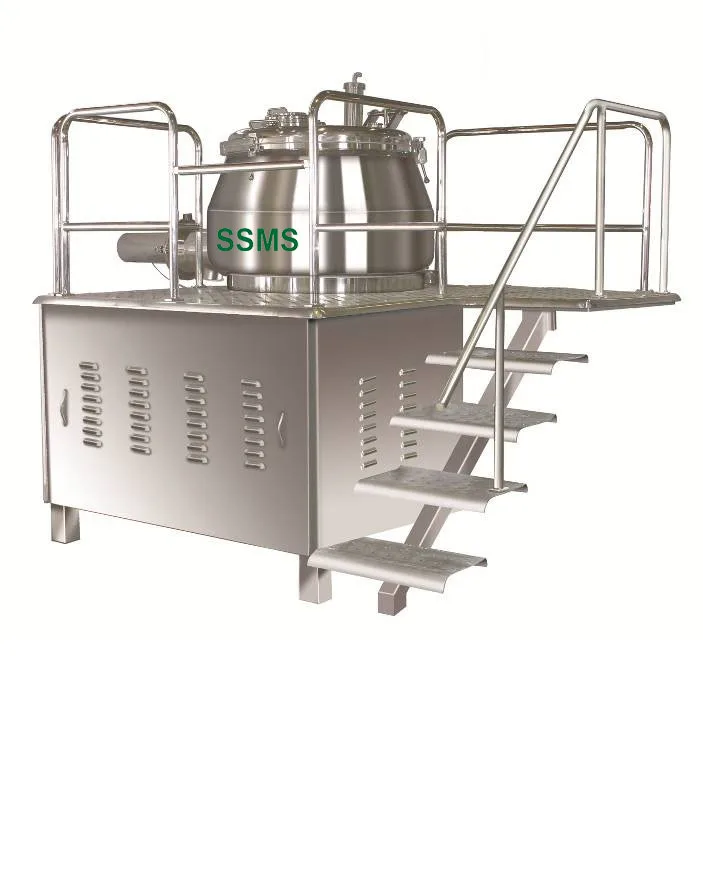

 RAPID MIXER GRANULATOR.jpg

























Rapid Mixer and Wet Granulator are used to perform dry mixing and wet granulation at same time in the same bowl. There are two impellers inside the RMG bowl. Main impeller runs in horizontal plane and chopper /granulation impeller runs in vertical plane. RMG produces a highly efficient, fast & gives superior results in homogenous mixing & granulation of material All process contact parts like bowl, chopper etc.,are in AISI SS 316, with high pharmaceutical finish & other non contact parts like staircase / railings are in AISI SS 304. The process is fully dust free and automated with the help of PLC including its Discharge etc.








Special Characteristics of our Rapid Mixer Granulator (RMG):





















































Air purged shaft seals eliminating powder entering the seal.
Built in cleaning system for both shaft seals .
Can be provided with loading & unloading units to form an assembly line & reduce material handling (Optional feature)
In Compliance with cGMP Norms/ guidelines.
Aseptic, hygienic system designs
In Compliance with FDA regulations.
Intrinsically safe Earth / electrical system generated due to static charge
Validation documents provided like DQ, IQ/OQ, FAT/ SAT
All product process area of the equipment is in AISI 316/ 316L stainless steel, mirror polish.
Stainless steel and pressurized control panel.
Microprocessor based control panels
Online sampling port.

TECHNICAL SPECIFICATIONS
























































































































 MODEL Useful Volume Gear Box Ratio Main Motor HP (1500/750RPM) Chopper Motor HP(1500/3000 RPM)Discharge ht.
 LitersKgs
SS/ RMG-25255/7.54”3/51.5/2600
SS/ RMG-5050254”3/51.5/2600
SS/ RMG-10080407.5:17.5/102/3700
SS/ RMG-150120607.5:110/153/5780
SS/ RMG-25020010010:122.5/303/51055
SS/ RMG-30024012010:122.7/303/51200
SS/ RMG-40032016010:135/405/7.51200
SS/ RMG-60048024010:140/505/7.51200
SS/ RMG-80064032015:150/605/7.51200
SS/ RMG-100080040015:163/8510/151200
SS/ RMG-1200100050015:180/10010/151200
