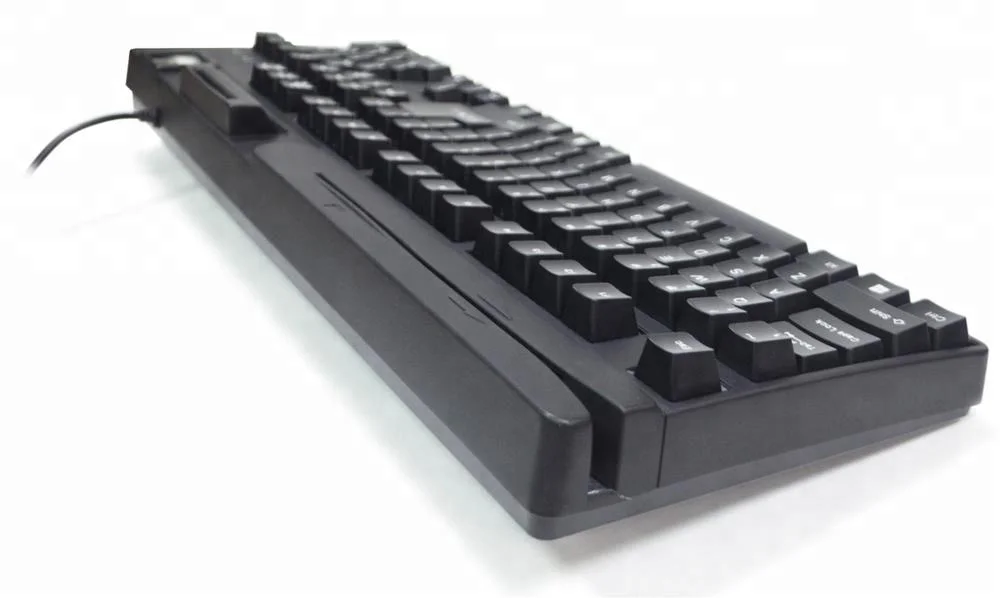

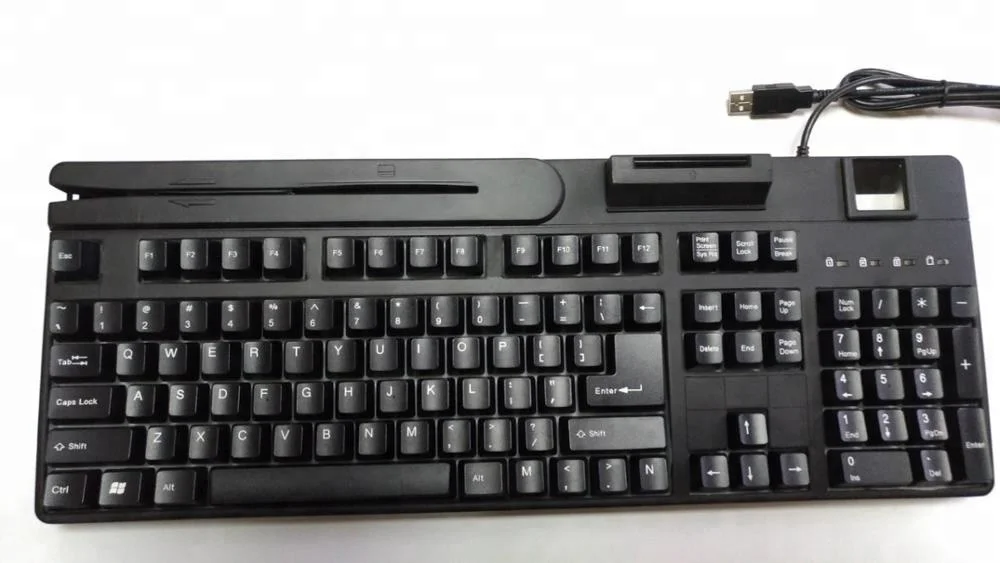

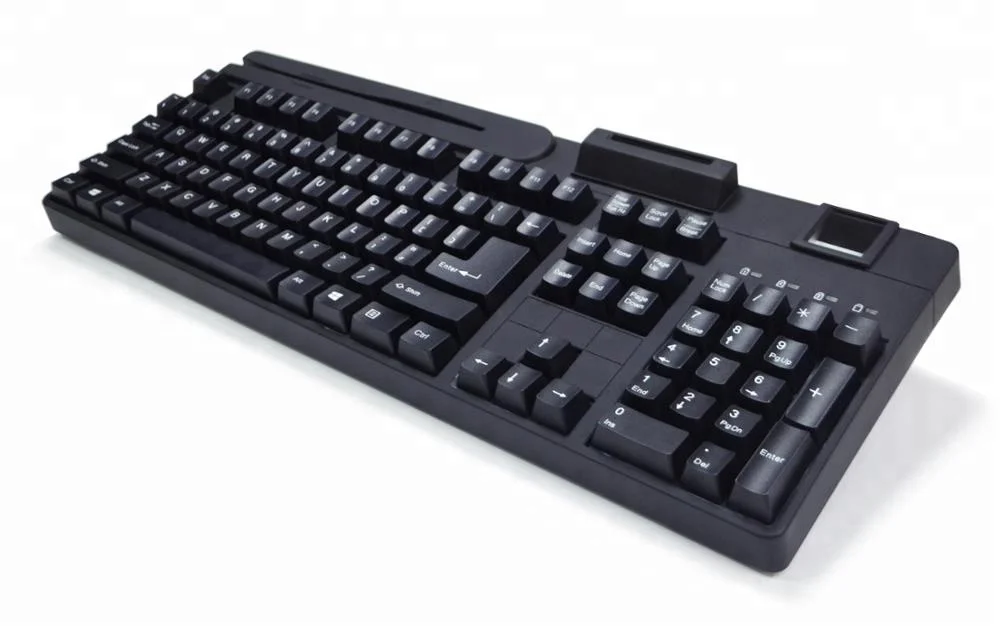

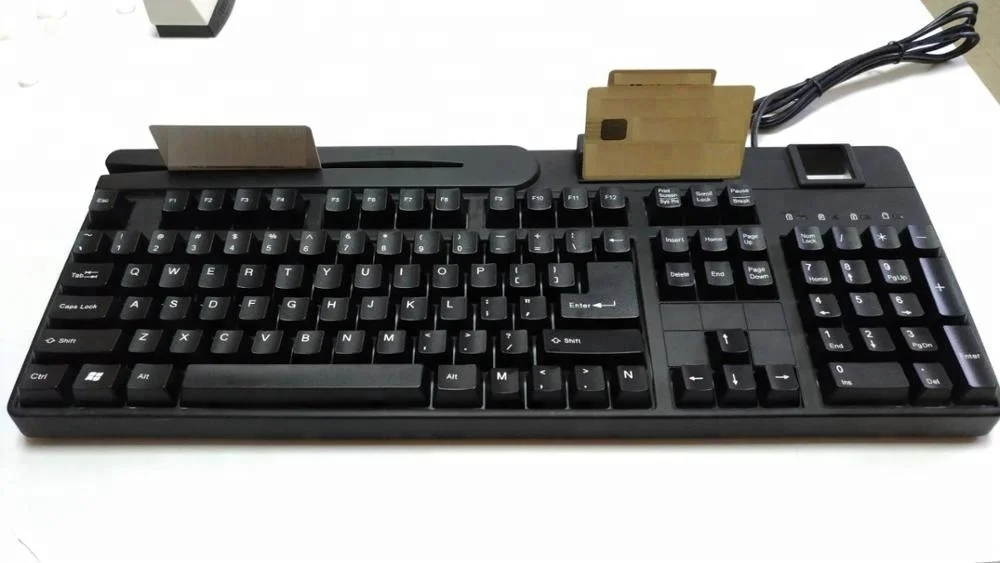

Пос клавиатура с ФБР PIV оптический сканер отпечатков пальцев безопасный чип считыватель NFC магнитный полос

Keyboard

Key Number

104/105 Keys (US/ EU)

Key Switch

Membrane with 20 million life cycle time

Key Force/ Traveling Distance

50 +/- 7 gm; 4 +/- 0.5 mm

Led Indicator

4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write

Input Power / Interface

5 VDC, 100mA  / USB 1.1 version; (PS/2 mini-DIN, optional)

Key Cap

Ergonomic keycap design with 5 different height

 Magnetic Stripe Card Reader

Number of Tracks

Track 1 & 2 or Track 1, 2 & 3

Compatibility

ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards

Communications

Decoded track data sent through keyboard communication cable

Output Data Formatting

Default card data output format or customized data output format is programmable through PC configuration utility. See Appendix A for default settings

Operating Life

1,000,000 card swipes

Card Speed Range

3 to 60 IPS (inches per second)

Audio Beeper

Indicates error free card data reading

Options - Encryption key

Also provide key Injection, Production Injection and TG3 Key Injection

Smart Card Reader

Standard

ISO7816

Protocols

T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)

Reading Speed/ Frequency

420 Kbps / up to 8MHz

Card Type Support

5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C

API Support

PCSC, CTAPI, Synchronous-API, OCF

PCSC Driver Support

Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux

Reliability

100K card insertions  (500K life cycle time also available)

Optical Fingerprint Scanner

Capture Mode

Touch

Sensor Type

Optical (FBI, PIV, FIPS 201, STQC)

Image Size

300 x 400 pixels

Platen Size

14.5 mm x 19 mm

Effective Sensing Area

15 mm x 18.5 mm

Resolution

500 DPI

Matching

1:1, 1:N

Supported Standards

ANSI INCITS 378, BioAPI, FIPS 201 and FAP10 (PIV-071006), ISO/IEC 19794-2, ISO/IEC 19794-4, SP 800-76

Others

Physical

Dimension

450.17 (L) x 171 (W) x 46.37 (H)

Box / Weight

500 (L) x 220 (W) x 55 (H) mm/ 1.3 Kg (G.W.)

Packing Information

5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.); Carton Dimension: 51.5 x 30.5 x 25 cm

Options

Antimicrobial ABS material; compliance with JIS Z2801 standard
