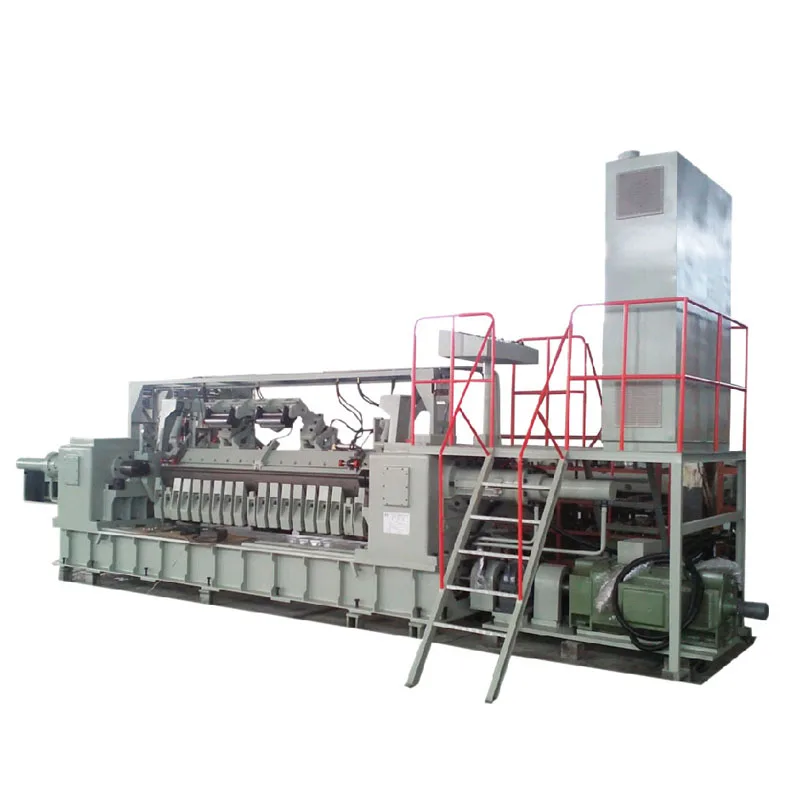

Сверхмощная машина для производства фанеры гидравлическая очистки древесного шпона с одним патроном

Сохранить в закладки 568645688:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description

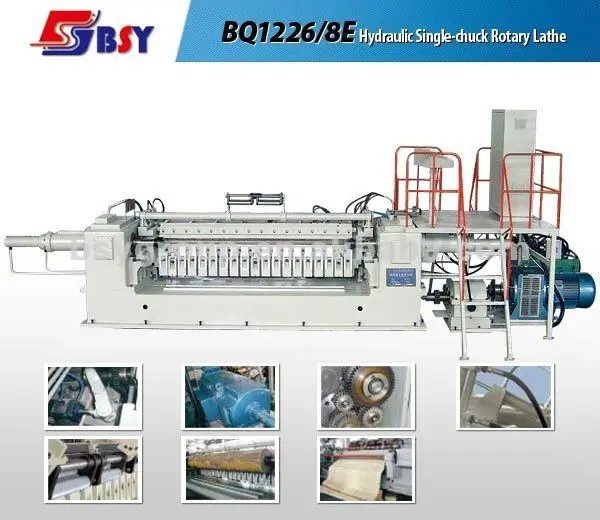

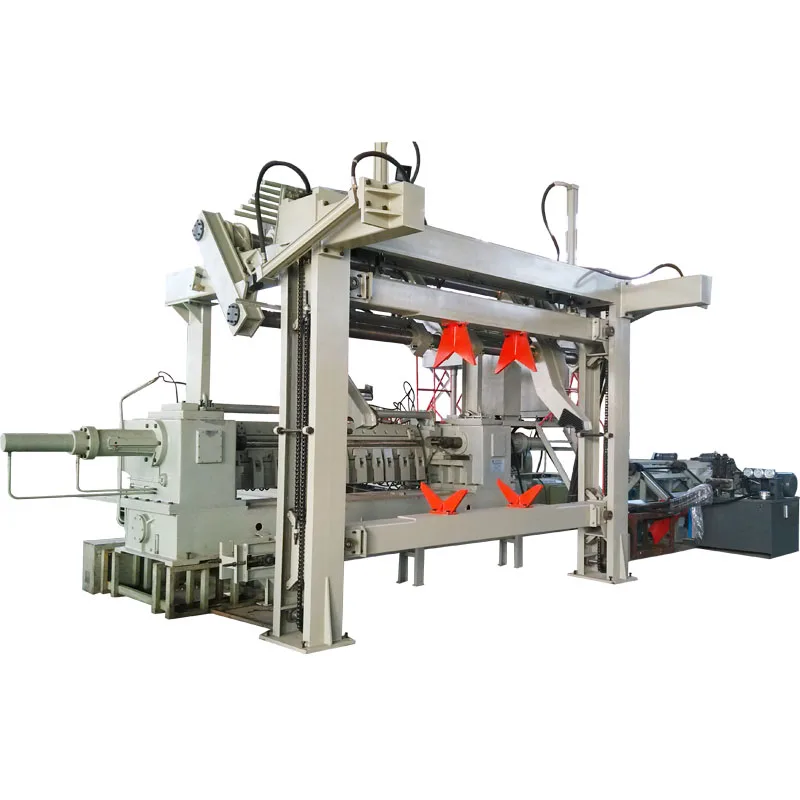

Heavy duty plywood machine Hydraulic single-chuck Wood Veneer peeling machine

BSY Brand Heavy duty plywood machine Hydraulic single-chuck Wood Veneer peeling machine is designed for plywood industry for large diameter log peeling.

The machine use high power A/C motor as main motor, D/C motor for option. It can peel 600/800 mm diameter log. The machine is build of cast iron and well welded thick steel plate, whole machine weight 38 ton.

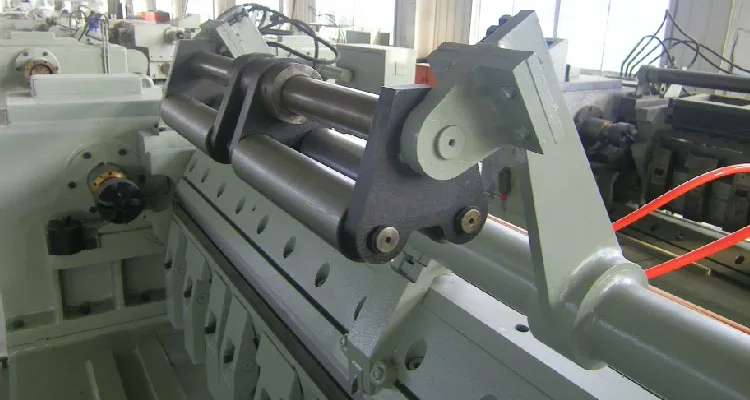

The machine has a nose bar which guarantee the smooth surface of wood veneer, so it's good choice for face veneer production.











Specification


Model
BQ1215/6A2
BQ1226/6F2
BQ1215/8A2
BQ1226/8F2
Working length:
700-1450mm
1900-2700mm
700-1450mm
1900-2700mm
Working diameter:
140-600mm
140-600mm
130-800mm
150-800mm
Veneer thickness:
0.35-3.4mm
0.35-3.4mm
0.35-3.4mm
0.35-3.4mm
Chuck Diameter:
100mm
130mm
100mm
130mm
Spindle speed:
0-160rpm
0-160rpm
0-160rpm
0-160rpm
Tool carrier no-loading speed
1.8m/min
1.8m/min
1.8m/min
1.8m/min
Main motor power:
45kw
67kw
45kw
75kw
Total power:
59.85kw
83.75kw
59.85kw
91.75kw
Weight:
12200kg
15200kg
13000kg
16000kg
Dimension:
7080*1550*2400mm
8620*1550*2400mm
1080*1750*2400mm
8620*1750*2400mm


Packing & Delivery


Hydraulic single-chuck Wood Veneer peeling machine

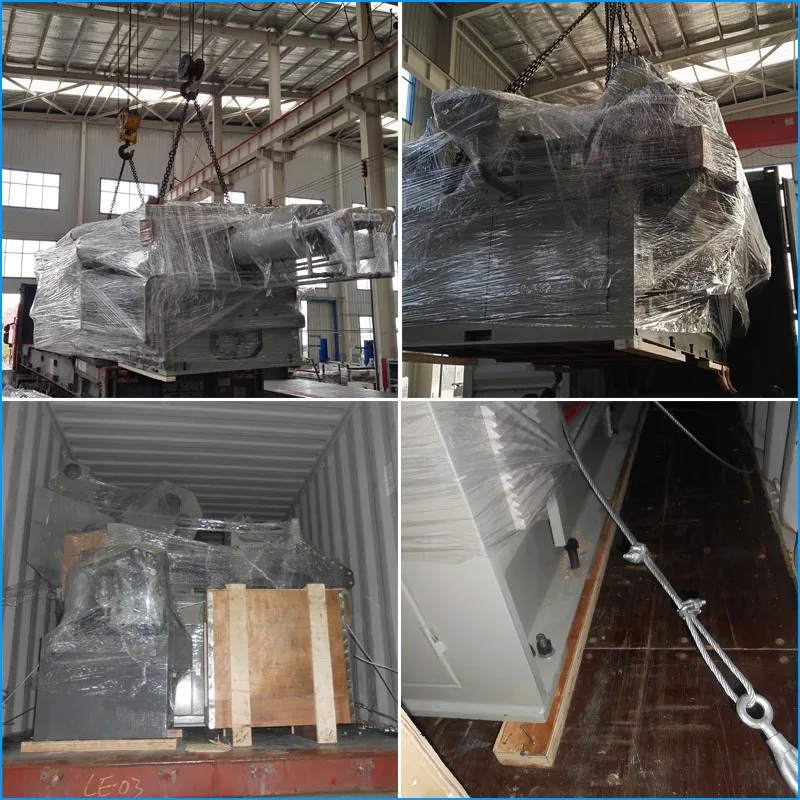

Packing & Shipping

1 Machine will be wrapped by plastic film for container loading;

2. Machine will be well fixed inside container for shipment.


Company Profile


Weihai Baishengyuan Industry Co.,Ltd
Professional Plywood Machine Manufacturer
Found in 1956;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:

Log debarking machine, Single-spindle veneer rotary lathe, CNC Spindle less veneer peeling machine, Veneer Rotary Clipper, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press machine, plywood Sizer, plywood Sander etc.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own
service technicians.

Welcome visit us for win-win cooperation.








FAQ


Who are we?

We are Leader manufacturer for plywood & wood veneer machine located in Shandong, China. Start sell abroad from 2006, has our own technical team, sales teams, and after-sales service teams.

What can you buy from us?

The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less
Veneer Peeling machine, veneer rotary clipper, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.

How can we guarantee quality?

The machine will have test running before put into warehouse and ready for shipment.

Why should you buy from us not from other suppliers?

BSY Veneer & Plywood Machine Manufacturing since 1956. High quality, high auto level, high working performance, long working life and good after-sales service

What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
