Молочная белая пленка для электрической изоляции
1,85 $ - 2,10 $
Кабель трансформатор моторная обмотка изоляция молочный белый майлар полиэфир ПЭТ пленка
- Категория: >>>
- Поставщик: Xuchang Eric Insulation Products Co. Ltd.
Сохранить в закладки 593961058:
Описание и отзывы
Характеристики
Product Description

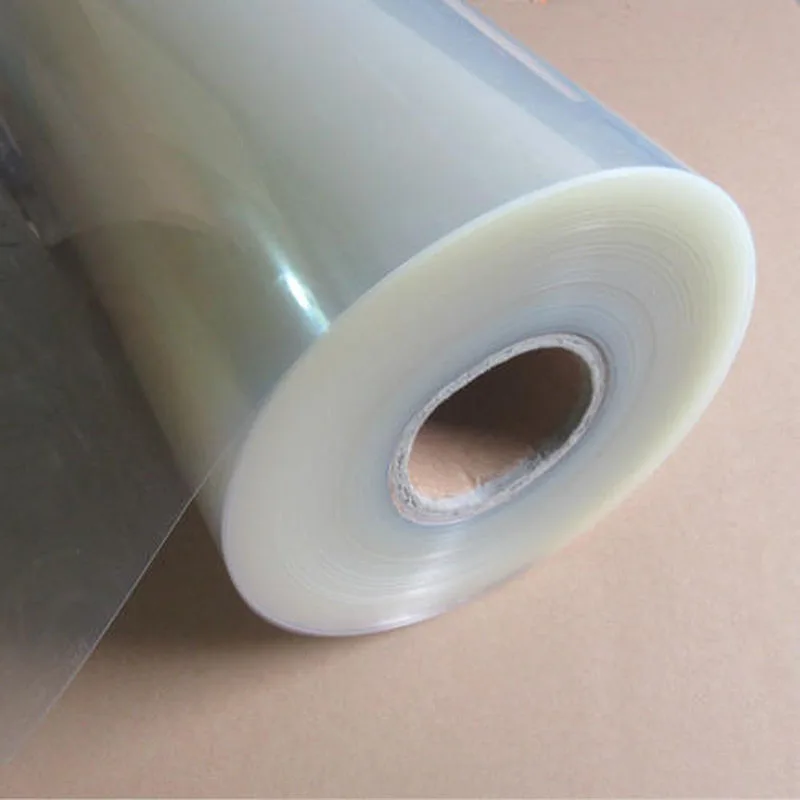

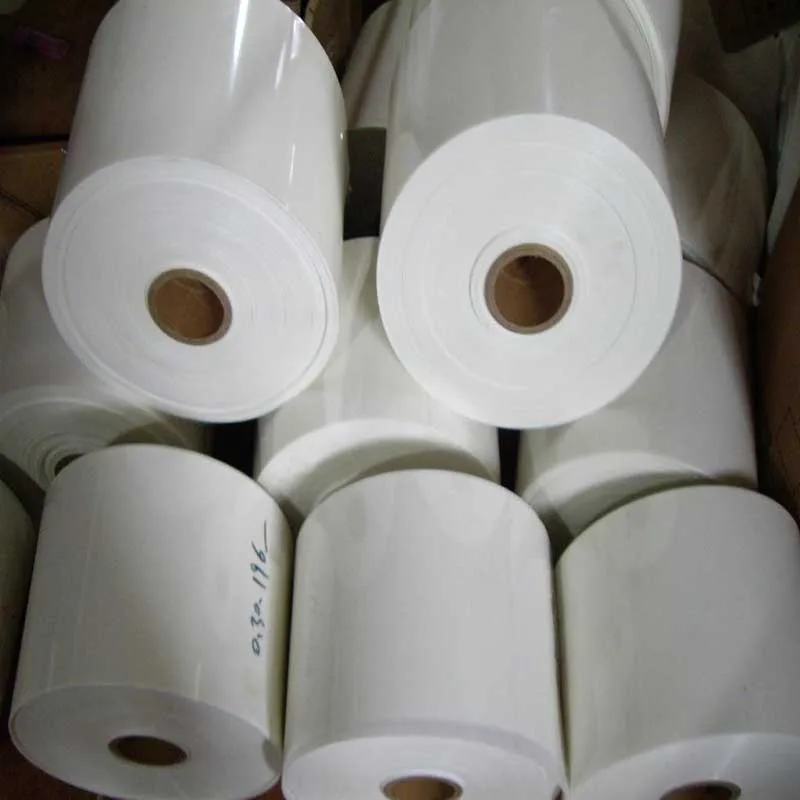

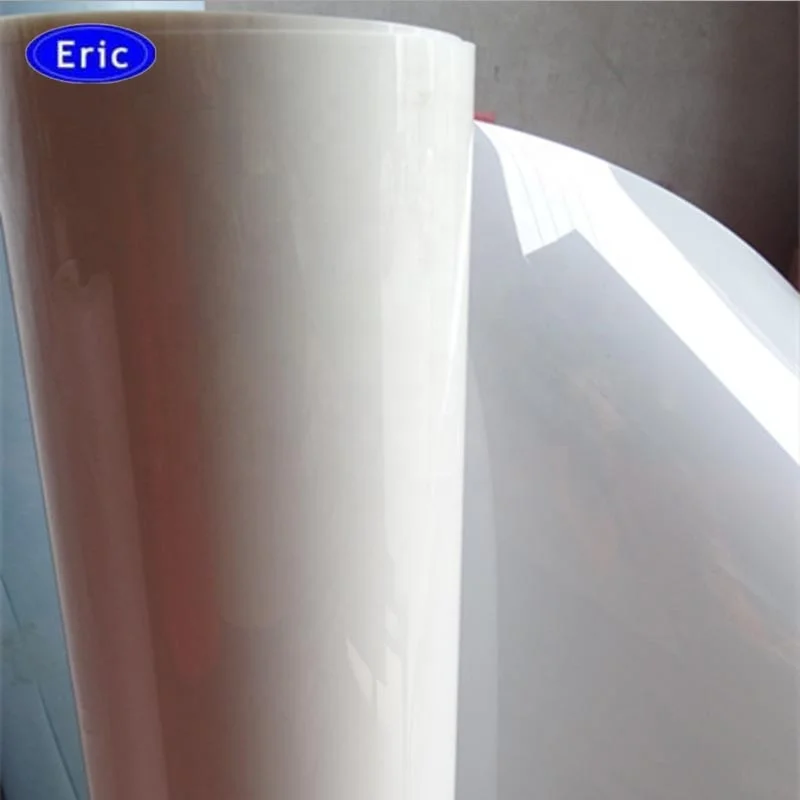

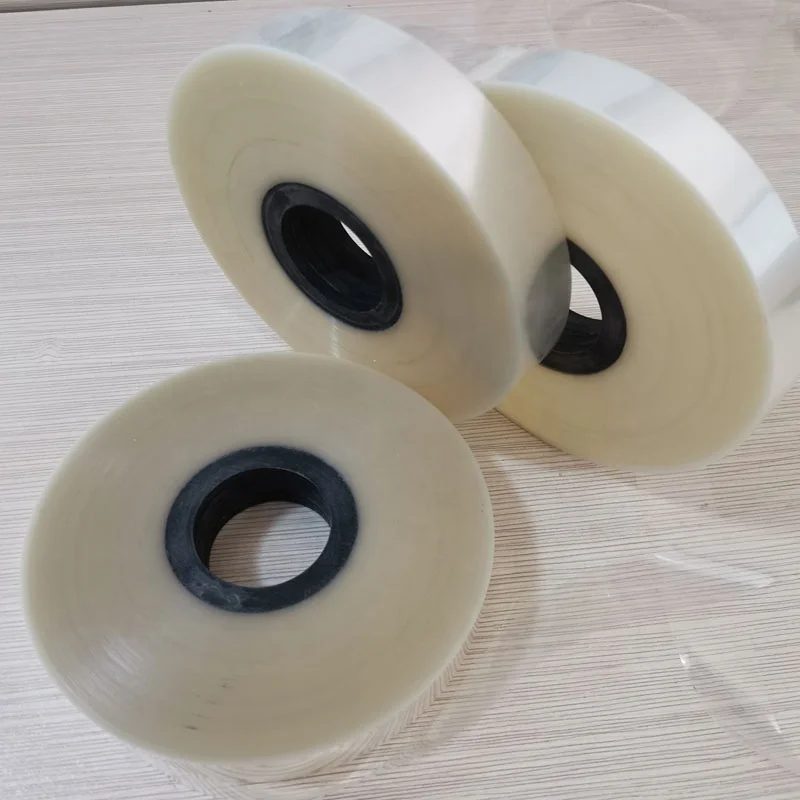

Cable transformer motor winding insulation milky white mylar polyester PET film
1 Production: polyester particles
2 specification: Cable transformer motor winding insulation milky white mylar polyester PET film
1) color: milky white and opaque white
2) Thickness: 12micron to 350 micron.
3) Width: 1000mm to 3000mm.
4) It can be cut into tapes from 10mm
3 Property:
1) 130-155degree heat resistance.
2) High mechanical and tensile strength, better dielectric property.
3) Best raw materials for insulating flexible composite material, DMD, NMN.
4 Application:
Best wear resistance for as slot, inter turn and liner insulation for coils and cables
5Package:
1) weight of roll: 100kg- 200kg. Other items weight is available.
2) Package: Carton or pallet
Application
Our insulation materials are suitable for motor, transformer, arrester, inductor and other electrics.
Cable transformer motor winding insulation milky white mylar polyester PET film
Our Services
Technology date of Cable transformer motor winding insulation milky white mylar polyester PET film:
Properties | Polyester film is biaxially oriented polyethelene terephthalate (PET) mylar film | ||
Properties
| Units | Typical Value | |
Nominal Thickness
| μm | 15 | |
Thickness Tolerance | μm | ±1.5 | |
width | 1m,1.38m. width can be cut with special. | ||
Tensile Strength | 15 | MPa | ≥100 |
25-100 | ≥150 | ||
100-190 | ≥110 | ||
>190 | ≥110 | ||
Elongation | 15 | % | ≥35 |
25-50 | ≥60 | ||
50-250 | ≥80 | ||
Shrinkage | 25-190 | % | ≤3.0 |
>190 | ≤2.0 | ||
Line Frequently Electrical Intensity | V/μm | ≥174 | |
Volume Resistance Rate | Ω·m | ≥1.0×1014 | |
Relative dielectric Strength(50HZ) | / | 2.9-3.4 | |
Dielectric dissipation factor | / | ≤5.0×10-3 | |
Density | kg/m3 | 1390±10 | |
Melting Point | °C | ≥256 | |
Surface Resistivity | Ω | ≥1.0×1013 | |
Electrolytic etching | Ocular Estimate | Grade | A1 |
The tensile strength of plain conductor | % | ≤2 | |
Dimensional Stability at High temperatures | In Tension | °C | ≥200 |
Under Pressure | ≥200 | ||
Long-term heat resistance | Temperature Index | °C | ≥115 |
Storage Require | Store in dry and clean. Keep from fire, heating, beating. | ||
Guarantee period | 18 months from the date of industrial products. | ||
Packing | Packed in waterproof paper, out layer packing in plastic bags and putting in the box overhead support. | ||
Hot Products
NMN nomex paper 6051 polyimide film Milky White mylar polyester film
Phenolic bakelite sheet G10 FR4 Epoxy sheet 3240 Epoxy sheet
Company Information
Eric insulation is committed to various electrical insulations.
1 laminated sheet: epoxy resin sheet, phenolicbakelite sheet, rod etc
2 fiber glass sleeves: pvc fiberglass sleeving, silicone sleeve, Acrylic resin coated glass fiber sleeve etc
3 Insulation paper: DMD, NMN/NPN, Nomex paper, transformer pressboard, cable paper etc
Moreover, DONG-BONE, varnished cloth and fiberglass banding tape are recommented products.
Market: Asia, Middle East and America etc.
Cable transformer motor winding insulation milky white mylar polyester PET film
FAQ
Q1: How about MOQ?
MOQ is according to different products. Whatever you need, we are glad to quote best price with good quality.
Q2: Can you send samples for testing?
500g Samples are free supplied, but express freight should be taken by client. After making order, we’d like to return freight back.
Q3: How can you guarantee the quality of mass goods is same as the sample sent to me before?
We kept another same sample and marked on company when we sent to customer. So our production will be based on.
Q4: Which package do you use?
Package is important part to avoid goods breaking in transportation. We will choose suitable packing depend on materials.
Q5: When customer respond quality issues after pick up goods, how to deal with?
1) Customer could supply photos of issued goods for our sales staff and then we’ll verify which part is wrong.
2) If the issue is confirmed, company will negotiate with customers and compensate in coming orders.
Cable transformer motor winding insulation milky white mylar polyester PET film
Contact Us
Calendar Wang
Xuchang Eric Insulation Products Co., Ltd. |
Mobile: 008615893737890 |
Email: insulationmaterial at chinaeric.cn Skype/Whatsapp/Wechat: 0086 15893737890 QQ:1156657262; Cable transformer motor winding insulation milky white mylar polyester PET film
|
Web: //www.chinaeric.net |
Products Showroom on Alibaba.com |
Похожие товары
Популярный продукт, молочно-белая изоляционная пленка из полиэстера, полиэфирная пленка maylar
Хорошая тонкая цена, Полиимидная Пленка для конденсатора трансформатора двигателя
5,59 $ - 9,59 $
Полиимидная Пленка 6051, изоляционный материал для двигателя и трансформатора, устойчивый к высоким температурам
Изоляционная Полиимидная Пленка класса C с высокой термостойкостью и радиационной устойчивостью
Полиэфирная пленка для электрической изоляции, композитная пленка из полиэфирной пленки

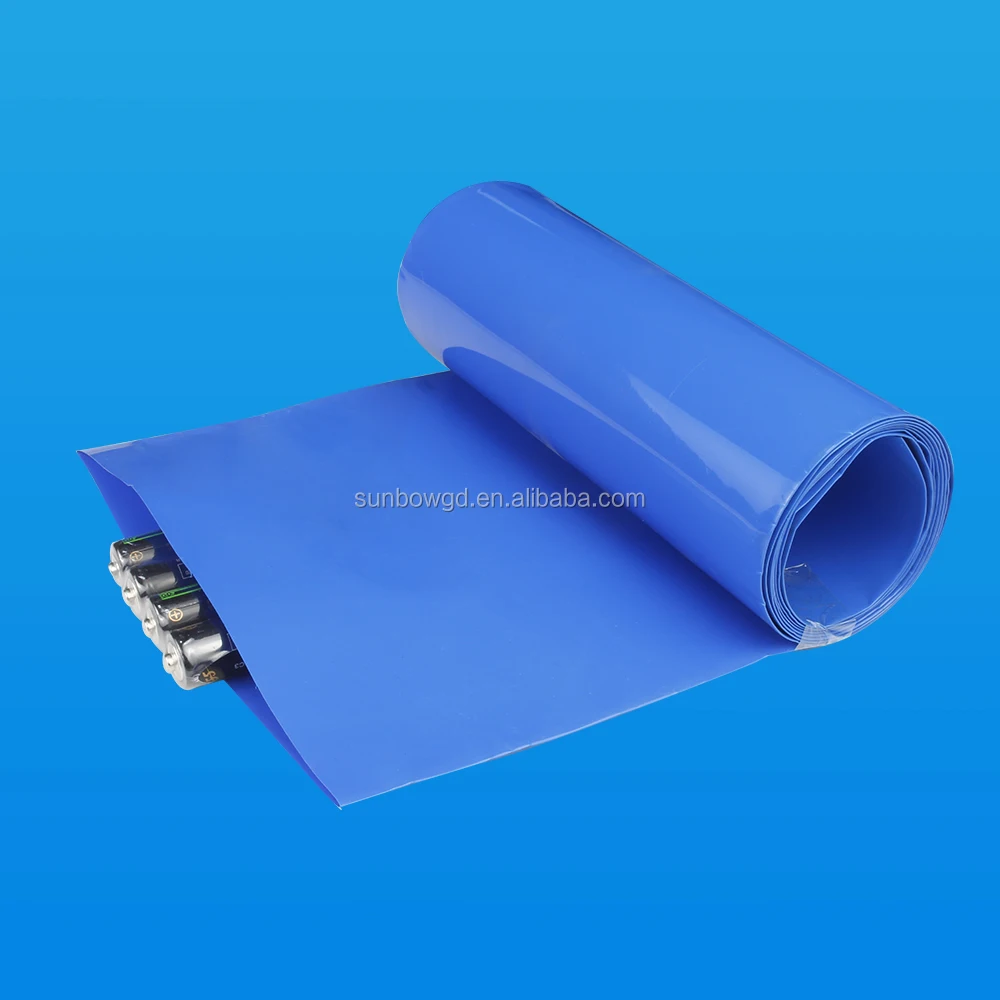

Упаковка аккумулятора ПВХ термоусадочная пленка оберточная трубка

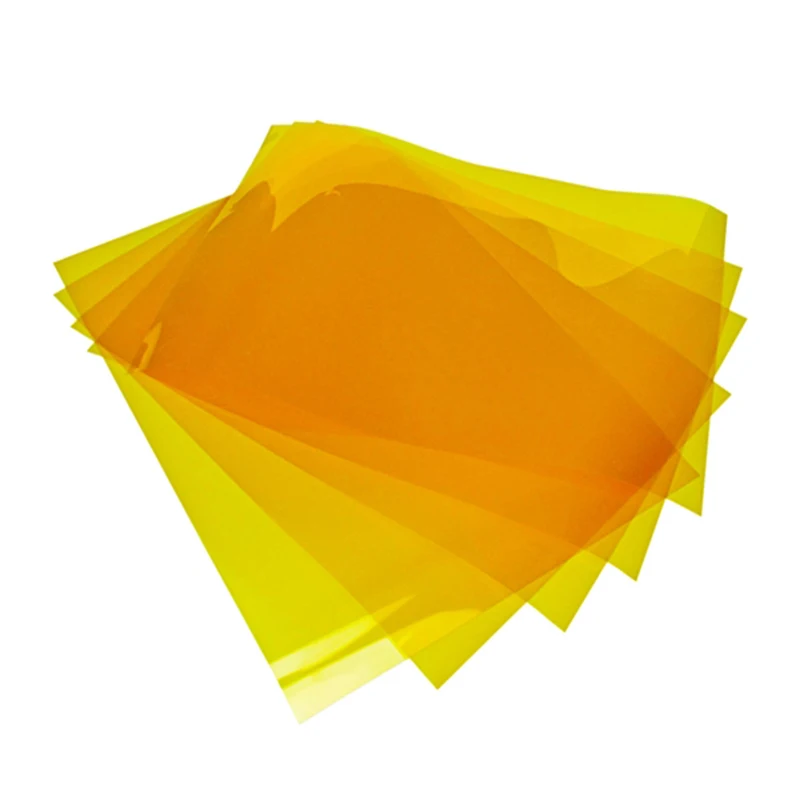

Полиимидные пленки для электроизоляции двигателей и других электроприборов
