Оборудование для экструзии пластиковых труб

Категория: Экструдеры для пластика >>>
Поставщик: Wanrooe Machinery Co. Ltd. (zhangjiagang)

Цена:8 000,00 $ - 25 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Plastic Pipe Extruder Line PE Extrusion Equipment

Description:
This PE Drainage Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter PE pipes start to play very important role in the city water and gas supply systems.

Flow chart of PE pipe extrusion line :

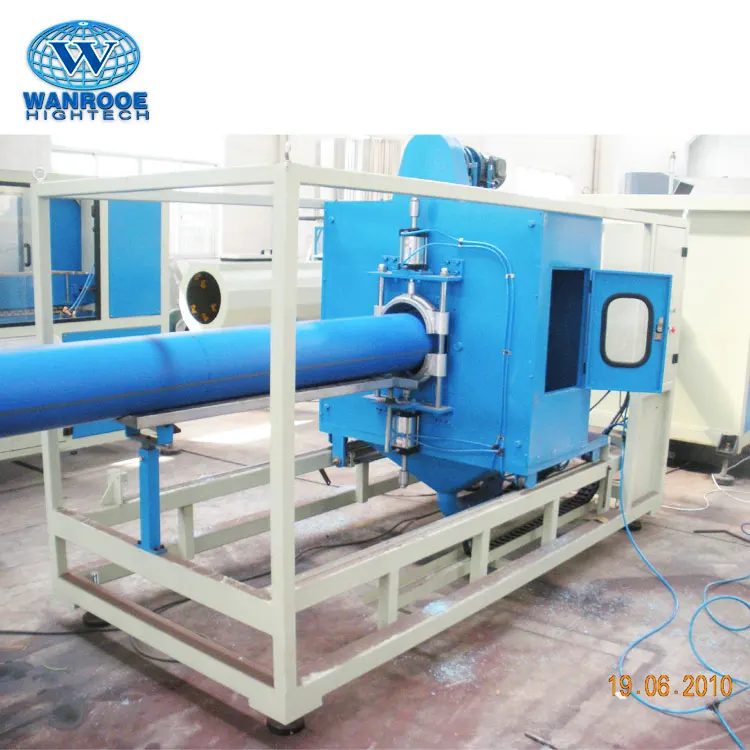

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color band extruder → mould and calibrator → vacuum calibration machine → cooling tank → haul-off machine → cutting machine → stacker

Feature:
1.High speed, big capacity and low power consumption the fastest lineal speed up to 35m/min and power saving of 30%
2.Achieved co-extrusion with 1-5 layers and one mould with several output
3.High speed calibration and good cooling effect with spiral mould structure design and special pipe inner cooling system
4.High speed material feeding with special spiral groove feeding design and outside water jacket cooling
5.Excellent shearing, mixing and stable extrusion with professional barrier type screw, creative shearing and mixing design.


Model	Screw Diameter	L/D	Pipe Range(mm)	Machine Motor Power (kw)	Total Power(kw)	Line Length (M)
PE-63	65mm	33:1	16-63	37	80	24
PE-110	65mm	33:1	75-110	55	110	30
PE-160	75mm	33:1	90-160	90	150	32
PE-250	75mm	33:1	110-250	110	200	42
PE-315	90mm	33:1	160-315	160	240	44
PE-400	90mm	33:1	200-400	185	300	50
PE-500	120mm	33:1	250-500	280	350	56
PE-630	120mm	33:1	315-630	280	480	56
PE-800	150mm	33:1	400-800	315	550	72
