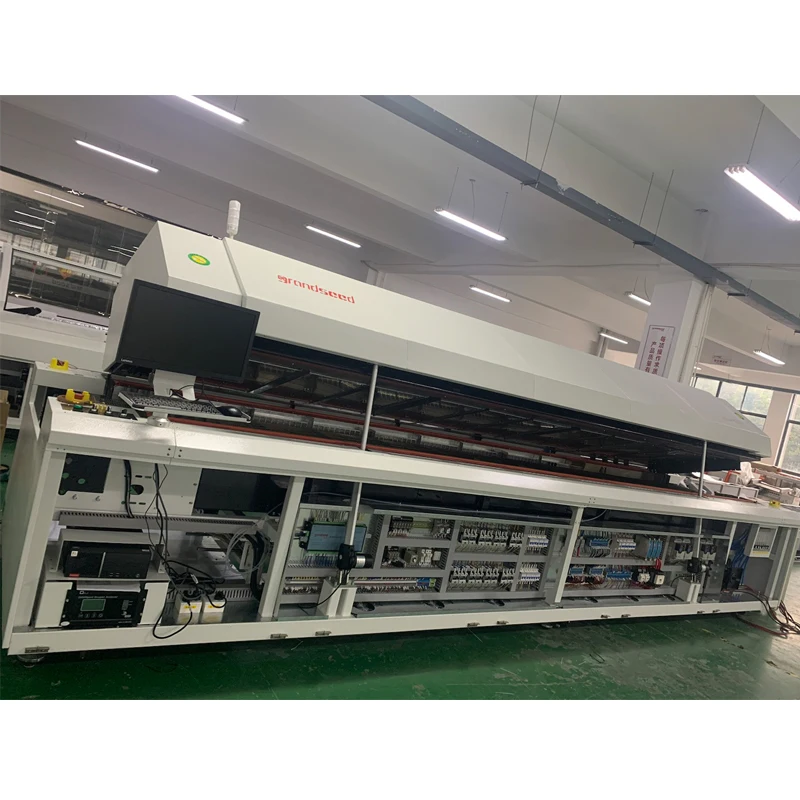

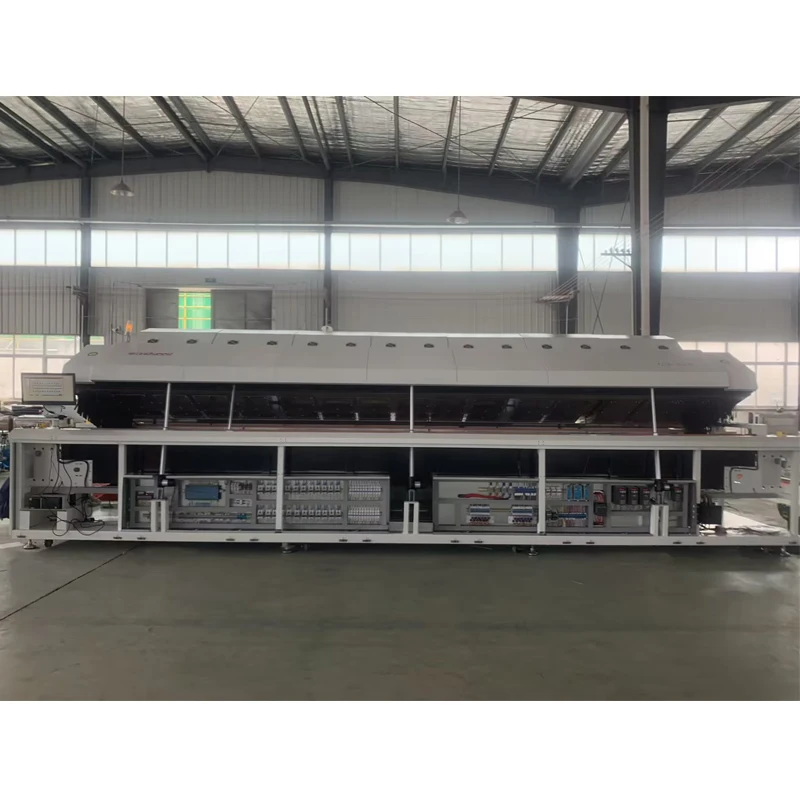

Reflow oven welding equipment machine for making circuit board smt equipment































































































ITEMS



SPECIFICATIONS



Control system



 PC+PLC



Heating/cooling



20 heating zone  2 cooling zone



Heating zone length



3650mm



Temperature range



Room temperature-350°C



Temperature accuracy



±1°C



Three temperature



±2°C



Cooling



Forced cooling


(nitrogen gas input style is water colling)



PCB size



50(W)-420mm(W)



A high degree of PCB transfer



900±20mm



Transmission



(Double) Chain rails&mesh belt



Transmission direction



L→R(R→L) Optional



Transmission speed



0-2000mm/min  adjustable



Wide range of track notes



50-420mm



Net width



500mm



Power failure   protection



UPS



Power supply



A3ø380V 50HZ/ 60HZ



Normal working power/total power consumption



14/88KW



Dimensions(l*w*h)



6180mm(L)*1500mm(W)*1550mm(H)



Weight



2350KG









Features:


1. Dimension:



  •  L : 5500 mm / 5.5 m

  •  W: 1500 mm / 1.5m

  •  H: 1550 mm / 1.55m


2. Control System:



  • Automatic monitoring & Display the working status of equipment

  • Manual control for emergency & PC control for normal use

  • Powerful Software can measure & analysis & storage & printing         the temperature data curve of PCB during soldering

  • PC/PP protocol is used  for PC&PLC communications ( Stable Operation)


3. Heating System:



  • Leading heating method solve dead angle problem & suitable for CSP/ BGA/ 0202CHIP etc

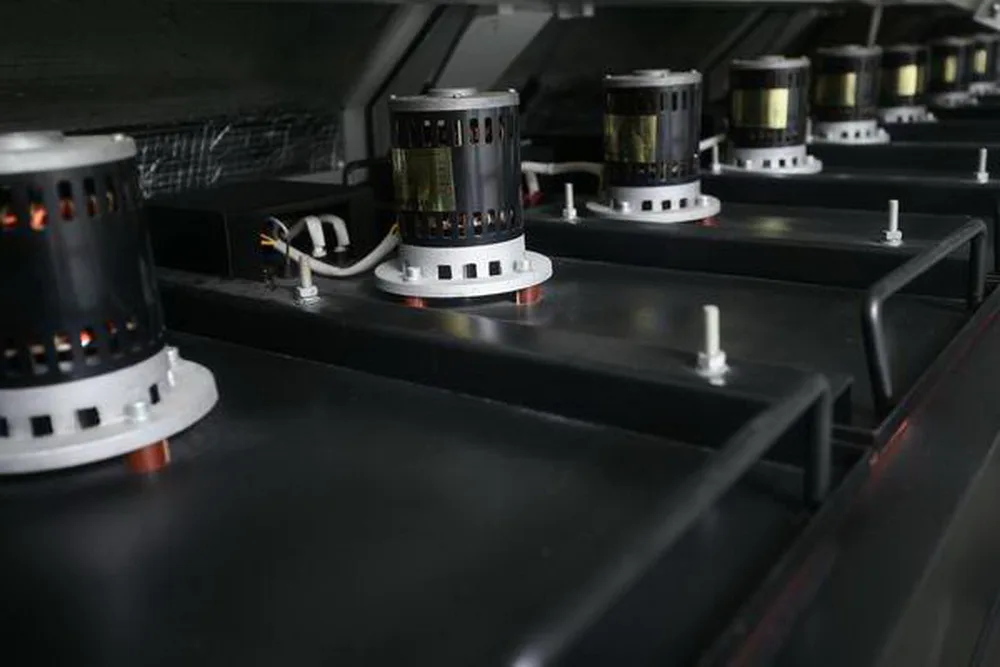

  • Professional wind wheel with stable wind speed

  • High quality & High Speed Motor brings stable wind

  • Forced independent circulation for each temperature zone

  • Independent PID control

  • Upper & Lower heating

  • High quality aluminum silicate insulation materials used in insulation layer

  • Furnace lead-free design, all made of high quality stainless steel plate

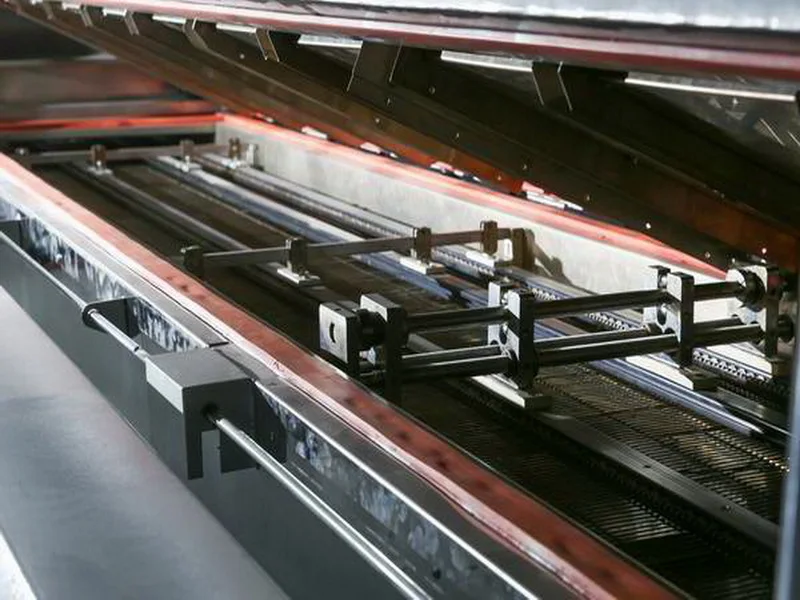

4. Transmission System:



  • Stepless variable-frequency variable -speed (VSVF) with the synchronized mesh chain& excellent stability

  • Special quality aluminum guide rails & automatic refueling system ensure the accuracy of rail width adjustment & long service life


5. Cooling



  • Forced air cooling ensure the temperature of output PCB ≤ 60℃


6.  Exhaust



  • Soldering flux automatic recollection system to keeps a clean furnace for long time






FAQ


1.If we're reliable and professional?


Reply:our company established in 2002,we started to develop and produce SMT machines since then,till today we already serviced more than 60 countries.





2.How about the warranty and service?


Reply:The whole machine is guaranteed for one year, and any problems within one year are repaired free of charge. Send accessories and maintenance tools, provide free installation and training operations (applicable to domestic and foreign customers).


3.How about delivery capability and quality control?


Reply:We have stable inventory of standard models and can generally ship them within two weeks.Every set machine before packing,we did testing and inspection here to ensure perfomance well.


4.Are machines 100% new and original?


Reply:We never do second hand machines and do not use recycled materials.We have certification like CE,ROHS,TUV and ISO.
























Our Services


* Favorable price


* customization service according to specifications


* 7*24 Hours on line Service


* Professional Technology Team


* Considerate training service





Grandseed owns professional after-sales service team with over 10 years experiences of maintenance. Customer satisfaction reachs 96%. Grandseed team promise: customer satisfaction must be or above 96%, make every effort to ensure customer normal production, increase customer work effeciency. We are now striving hard to build up our after-sales service department to be a powerful team, including high-grade maintenance technicians and training instructors.





Our advantages:

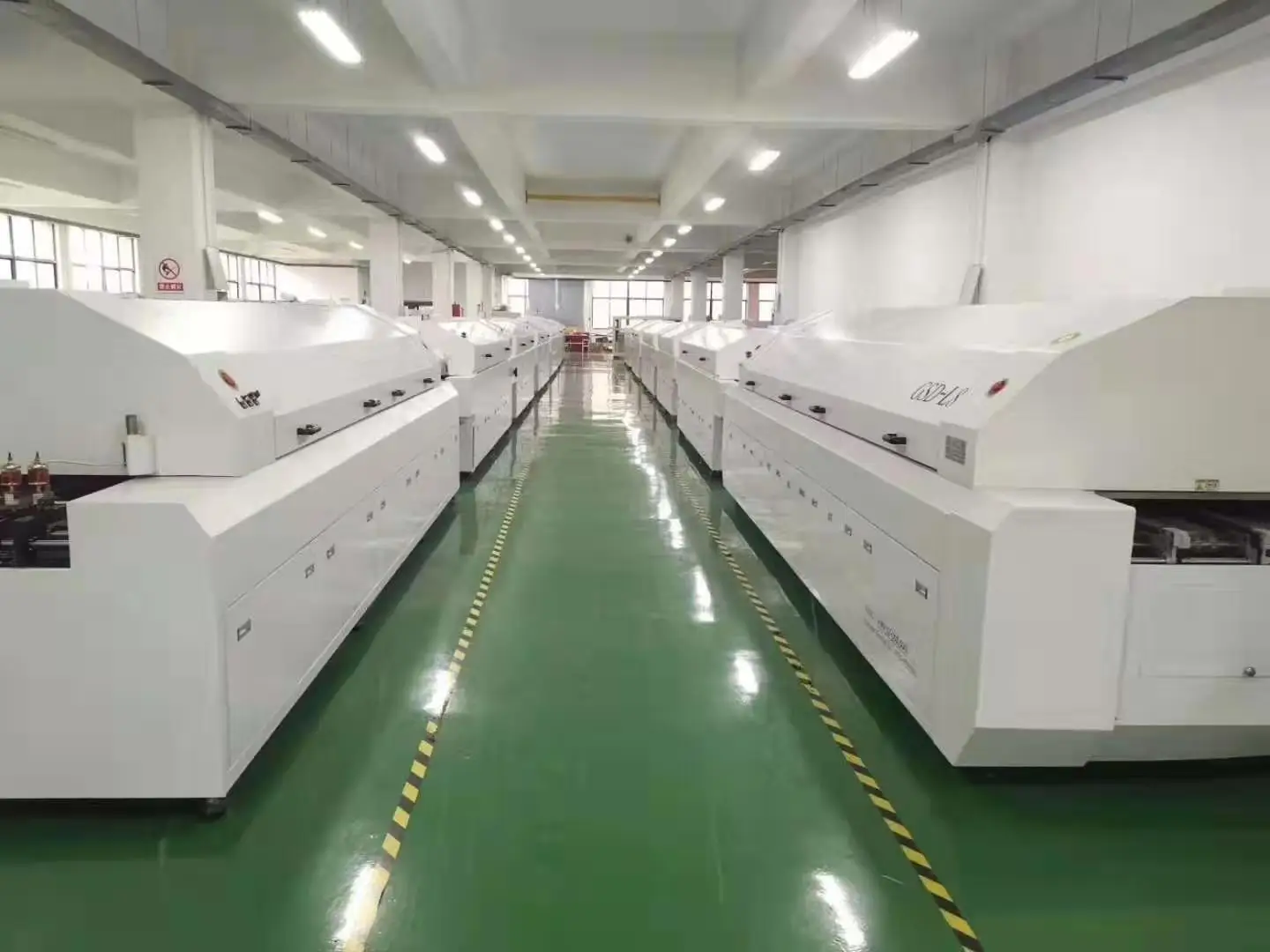

Production  advantages: mass production,assembly line work


Management advantages: simplification of procedures, standard operation


Procurement Advantages: all the accessories supplied by the manufactures directly.


Delivery  advantages  :supply with stock


Durability advantages: free warranty for one year, three years free of labor costs, maintenance of life;


Service  advantages: quickly response, on call 24 hours a day
