16 ASI Mux Scrambling QAM RF Modulator

 Outline

SNK3121A 4 in 1 mux-scrambling QAM Modulator is a high performance and cost-effective mux-scrambling QAM modulating device latest designed by Shineco Company. It provides optional interface:16 ASI input, 4 ASI input, 8 DVB-S2 and 6 DVB-S2 tuner+4 ASI input. After 4 channels multiplexing, scrambling and QAM modulating process, then it gives 4 RF output (4 adjacent frequencies by 1 RF port) and gigabit IP output. The device is characterized with high integrated level, high performance and low cost. This is very adapting to newly generation CATV broadcasting system.

Key Features

  * Support 16 ASI input, 4 ASI input, 8 DVB-S2 ,6 DVB-S2 tuner+4 ASI input optional

*   Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C

*   Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197

*   Support 4 channels multiplexing, 4 channels scrambling and 4 channels QAM modulating

*   Support gigabit IP output

*   Simultaneously support 4 simulcrypt CA

*   Symbol rate adjusting range: 2.5Msps~4.66Msps, 5.0Msps~8.0Msps

*   Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

*   Support accurate PCR adjusting

*   Support PSI/SI editing and inserting

*   Excellent RF output performance index, MER≥40db

*   Support LCD display and keyboard

*   Support SNMP managementt

Specifications

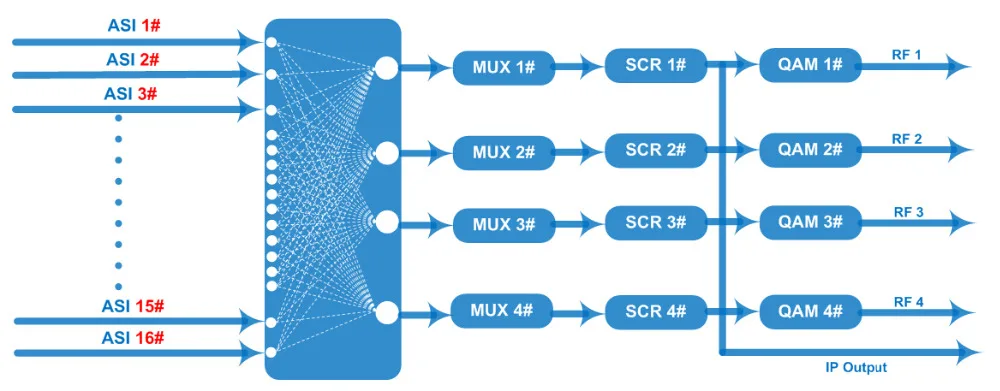

Principle Chart

Advantage

Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend

DVB-C/T/T2/S2/IPTV and DSNG system.

we submitted to support our distributors and clients by means of successful experiences and perfect services.

These added values make our products more worthy.

Shineco Team members are kindly and warmly enough to help you find the best solution for your project and market,

 we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve

a win-win situation in the future cooperation.

Q1:Do you support Sample order?

We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,

sample are not free charge.

Sample delivery will take approximately 1-3 working days after  payment received,

bulk order lead time is about 5-15 days based on

your quantity.

Q2:What is your Payment Terms?

We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,

our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.

Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?

1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,

and all products will aging above 15 days before ship out,so excent quality is promised.

2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.

3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can

 provide remote maintenance by teamviewer or telephone

Q4:Do you support OEM?

 Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.

Q5:How to place the order:

Send your requirement to Jacky email or add skype:Jacky.shineco for details or invoice.

About the Packing and Power Plug:

1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose

2.By Air for bulk goods, you pick up at Airport.
