Серия DK высокое качество тонущий EDM ZNC

Name: Серия DK высокое качество тонущий EDM ZNC
SKU: 60455043111
Price: 10 700,00 $ - 11 000,00 $ USD
Availability: InStock

Категория: >>>
Поставщик: Jiangsu Dongqing Cnc Machine Tool Co. Ltd.

Цена:10 700,00 $ - 11 000,00 $*

Количество:

В избранное

Product Description

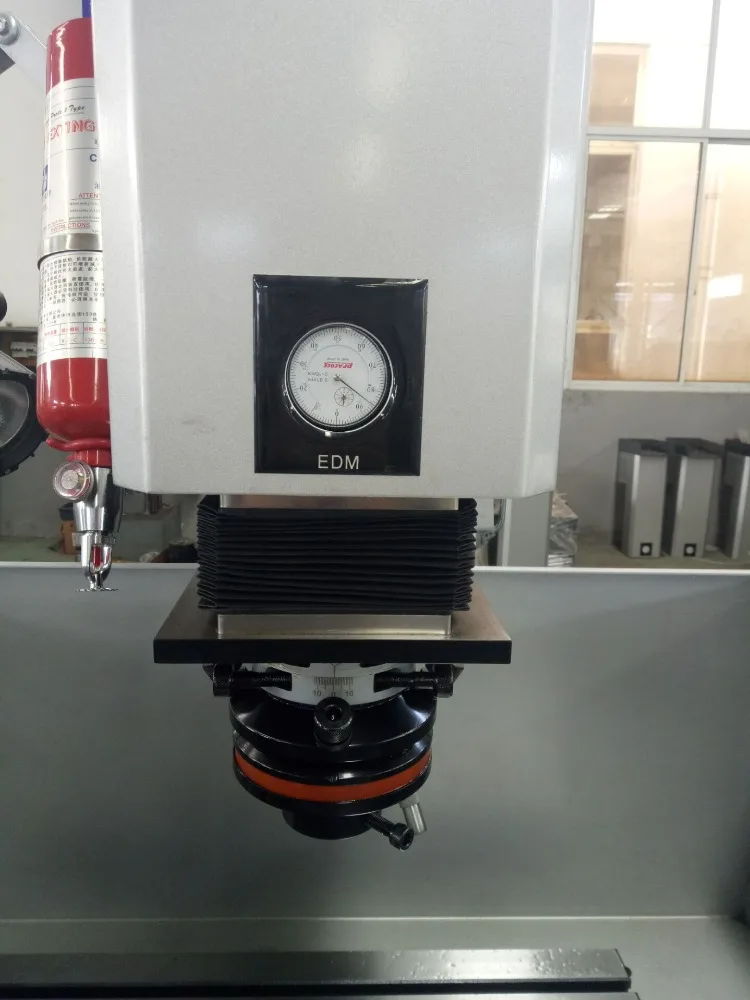

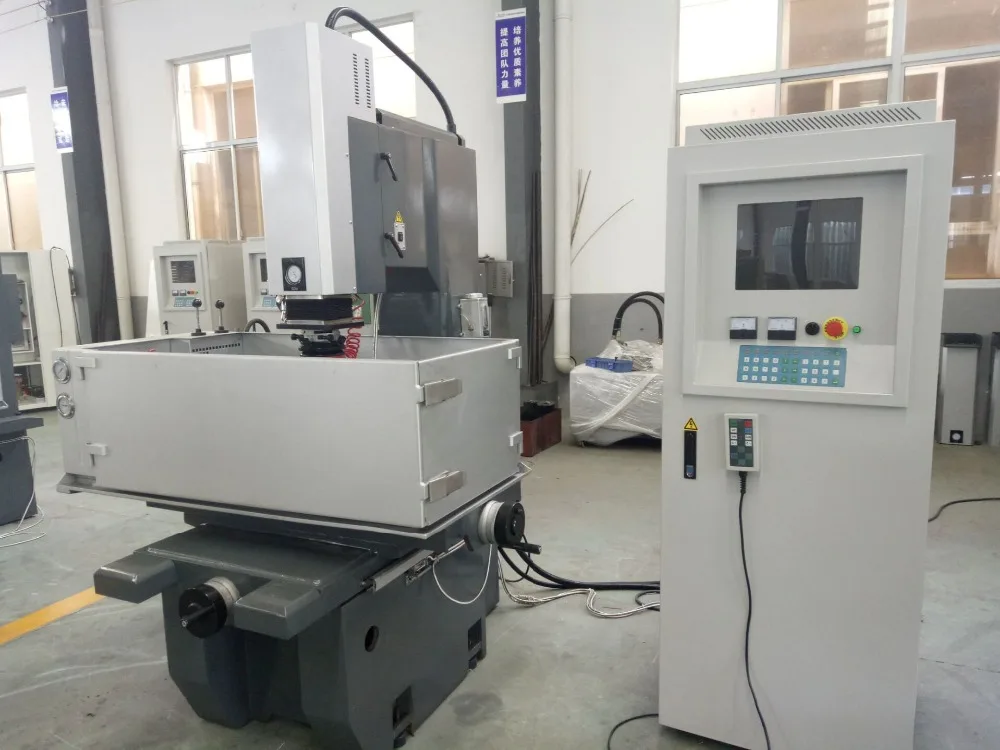

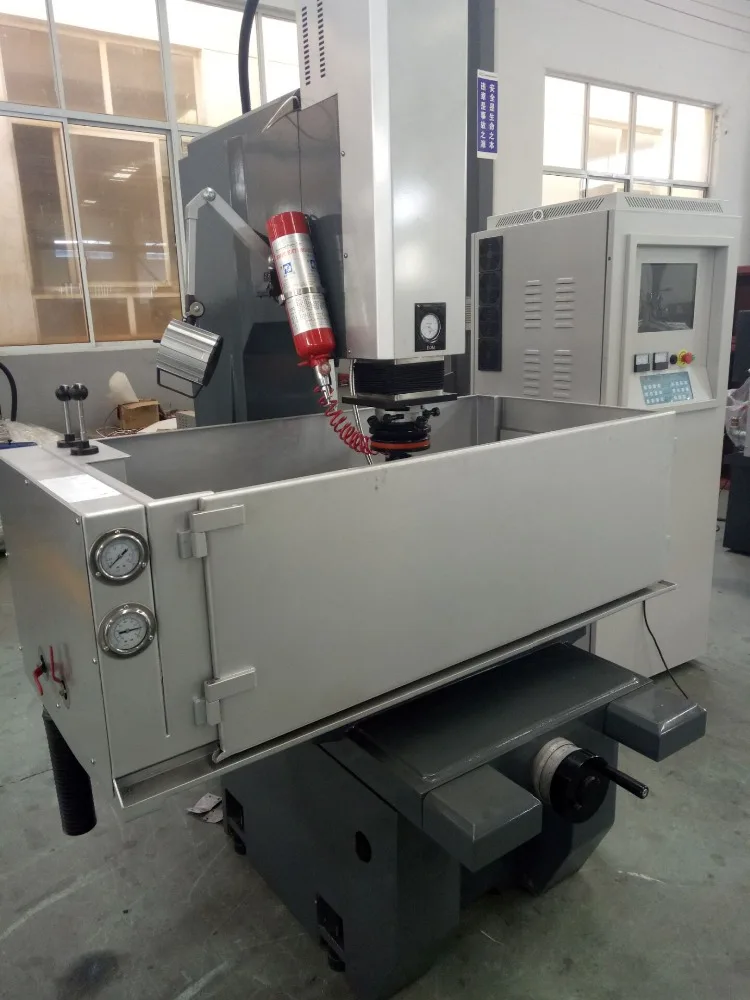

ZNC Die Sinking EDM

Model	unit	DK7130	DK7140	DK7150	DK7160
worktable size	mm	600×350	700×420	800×500	1000×600
Work tank dimension(L×W×H)	mm	880×570×350	1150×660×450	1300×750×500	1720×1050×500
X-axis travel	mm	350	450	500	650
Y-axis travel	mm	250	350	400	550
Z-axis travel	mm	180	200	250	250
Main spindle demision	mm	180(motor)	200(motor)	250(motor)	300(motor)
Max.electrode loading weight	kg	50	70	120	250
Max.worktable loading weight	kg	350	600	1200	3500
Distance between electrode&worktable	mm	200-560mm	260-660	300-800	260-860
Work tank capacity	L	280	300	470	940
Machine dimension	mm	1360×1430×2100	1400×1200×2050	1530×1850×2250	2150×1800×2400
Machine weight	kg	1600	2200	2600	3600

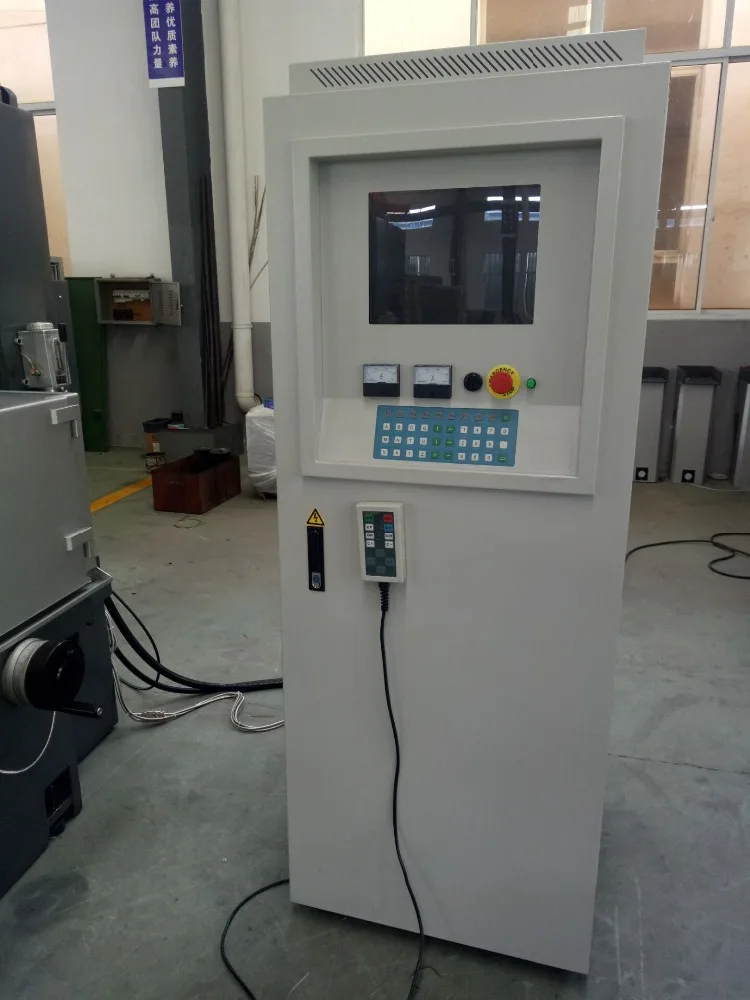

ZNC/Electric parameter
Type		ZNC-50	ZNC-75	ZNC-100	ZNC-150
Max. working current	A	50	75	100	150
Max. power consumption	KVA	6	12	18	25
Control cabinet dimension	mm	700×800×1800	700×800×1800	700×1200×1800	700×1200×1800
Net weight of control cabinet	kgs	230	280	380	420
Max. work efficiency	mm3/min	400	680	960	1280
Surface roughness	μm	Ra≤0.3 Rz≤1.2
Min. electrode loss		≤0.2%
Grating rosolution	mm	0.001
Min. number of programming		9999
Max.programmable processing section number		12

Our Company

Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!

Customer Photo

Our Service

1)\tTerm payment: T/T30% with the order, the rest 70% of total amount T/T before shipment.

2)\tLead time : 40 days after received the first T/T payment.

3)\tWarranty: one year after shipment , consumables are not included.

Packing & Delivery

A: We are factory.

A: Generally it is 25-30. days

A: No, we could not offer the sample .

A: T/T 30% with the order,the rest 70% of total amount T/T before shipment.

If you have any questions ,. pls feel free to contact me .

Packing Details : To be packed in wooden cases, suitable for export.

Delivery Details : 25-30 days .

MOQ: 1 set

Port: Shanghai or any China port

Payment Method : L/C or T/T
