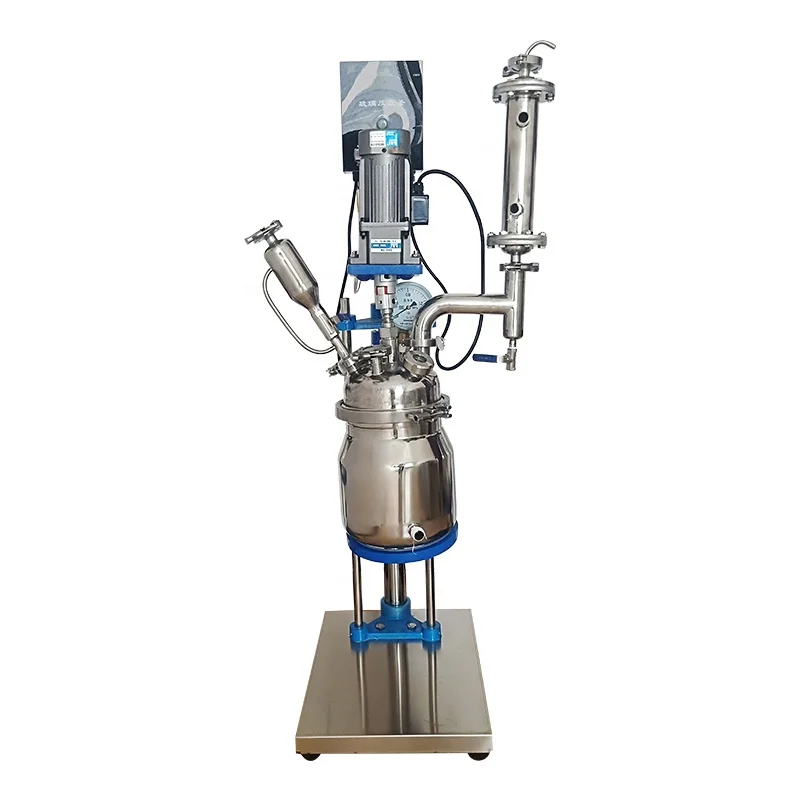

Небольшой лабораторный резервуар для реактора из нержавеющей стали с рубашкой от 2 до 10 л цена
120,00 $ - 150,00 $
Заводская поставка реактор давления из нержавеющей стали для химического смешивания
- Категория: Reactors >>>
- Поставщик: Zhejiang Jhen Ten Machinery Co. Ltd.
Сохранить в закладки 60481946411:
Описание и отзывы
Характеристики
Products Description
Feature
• Reactor made of 316L or 304 has excellent mechanical properties bearing high pressure, also it can withstand the force of the
massive solid materials during feeding process. It features rapid heating, high temperature resistant, corrosion resistance, no
rust, sanitary, no pollution etc.
• Agitator with anchor type, frame type, impeller or turbine, using cycloidal reducer, gear reducer, and frequency control;
Mechanical seal sealing device meeting sanitary standard. full jacket, half pipe coil, cooling / heating coil structure available,
heating mode with steam, electric heating; heat conduction oil. Can be arbitrarily selected according to the user's technique.
• Reactor has 600L and 20000L, and other specifications, according to the actual requirement of customers.
Application
• Apply to petrochemical, fine chemicals, rubber industry, agricultural chemicals, colourants, pharmaceutics, food and beverage,
to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process
Tank Optional Configuration
Reactor can configure aseptic air filter, thermometer (Digital display or Dial type), PH meter, pressure gauge, steam
sterilization hole, sight glasses,sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control
system (Bearing module, non-contact ultrasonic, static pressuretransmitting device) and so on, also can configure as customer's requirement.
• Reactor made of 316L or 304 has excellent mechanical properties bearing high pressure, also it can withstand the force of the
massive solid materials during feeding process. It features rapid heating, high temperature resistant, corrosion resistance, no
rust, sanitary, no pollution etc.
• Agitator with anchor type, frame type, impeller or turbine, using cycloidal reducer, gear reducer, and frequency control;
Mechanical seal sealing device meeting sanitary standard. full jacket, half pipe coil, cooling / heating coil structure available,
heating mode with steam, electric heating; heat conduction oil. Can be arbitrarily selected according to the user's technique.
• Reactor has 600L and 20000L, and other specifications, according to the actual requirement of customers.
Application
• Apply to petrochemical, fine chemicals, rubber industry, agricultural chemicals, colourants, pharmaceutics, food and beverage,
to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process
Tank Optional Configuration
Reactor can configure aseptic air filter, thermometer (Digital display or Dial type), PH meter, pressure gauge, steam
sterilization hole, sight glasses,sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control
system (Bearing module, non-contact ultrasonic, static pressuretransmitting device) and so on, also can configure as customer's requirement.
Design Parameter | ||
Design pressure | Tank body (-0.MPa~2.0MPa) | |
Jacket (ATM-0.6MPa) | ||
Design temperature | Tank body and Jacket (0℃~160℃) | |
Material | ||
Liner | 304, 316L | |
Jacket | 304 | |
Insulation | Rockwool or polyurethane | |
Legs | 304 | |
Connection | ||
In-outlet | Tri-clamp, Flange | |
Surface Finish | ||
Finish type | Mechanical / electrolytic polishing, sand blasting, pickling | |
Polishing precision | Inner surface Ra≤0.4um | |
Outside surface Ra≤0.6um | ||
Model | JTRFY-600 | JTRFY-1000 | JTRFY-2000 | JTRFY3000 | JTRFY-4000 | JTRFY-5000 | ||||||
Effective volume(L) | 600 | 1000 | 2000 | 3000 | 4000 | 5000 | ||||||
Tank | Diameter(mm) | Φ900 | Φ1100 | Φ1300 | Φ1600 | Φ1700 | Φ1800 | |||||
Height(mm) | 900 | 1000 | 1500 | 1500 | 1800 | 1800 | ||||||
Mixng | Power (KW) | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 | |||||
RPM(r/min) | 200(propeller) / 60(anchor type) (Can adjust the design according to the customer's usage) | |||||||||||
Model | JTRFY-6000 | JTRFY-8000 | JTRFY-10000 | JTRFY-12000 | JTRFY-15000 | JTRFY-20000 | ||||||
Effective volume(L) | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | ||||||
Tank | Diameter(mm) | Φ1900 | Φ2000 | Φ2200 | Φ2400 | Φ2600 | Φ2800 | |||||
Height(mm) | 2000 | 2200 | 2400 | 2500 | 2700 | 3000 | ||||||
Mixng | Power (KW) | 04 | 5.5 | 7.5 | 7.5 | 11 | 11 | |||||
RPM(r/min) | 200(propeller) / 60(anchor type) (Can adjust the design according to the customer's usage) | |||||||||||
Recommend Products
Company Profile
Certifications
FAQ
Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.
Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.
Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.
Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
Contact Us
Похожие товары

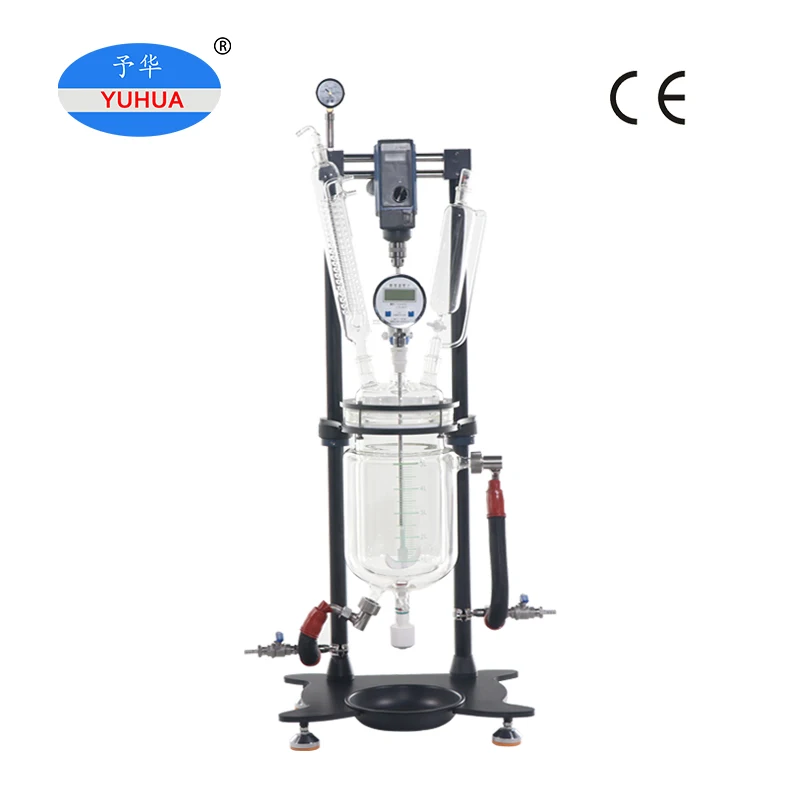

YUHUA взрывозащищенный промышленный химический реактор стеклянные
455,00 $ - 651,00 $

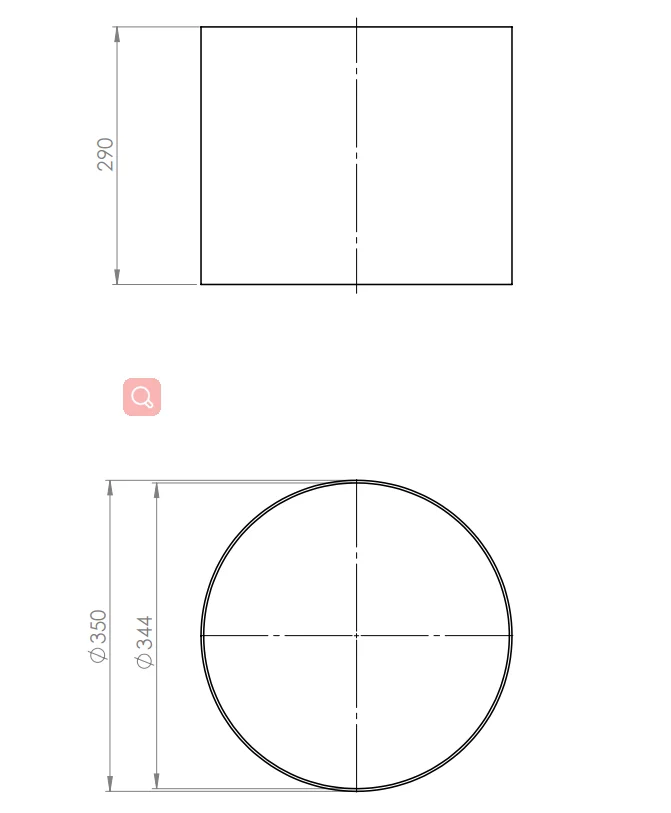

Контейнер 28L
240,00 $
Химический смесительный резервуар из нержавеющей стали 316L

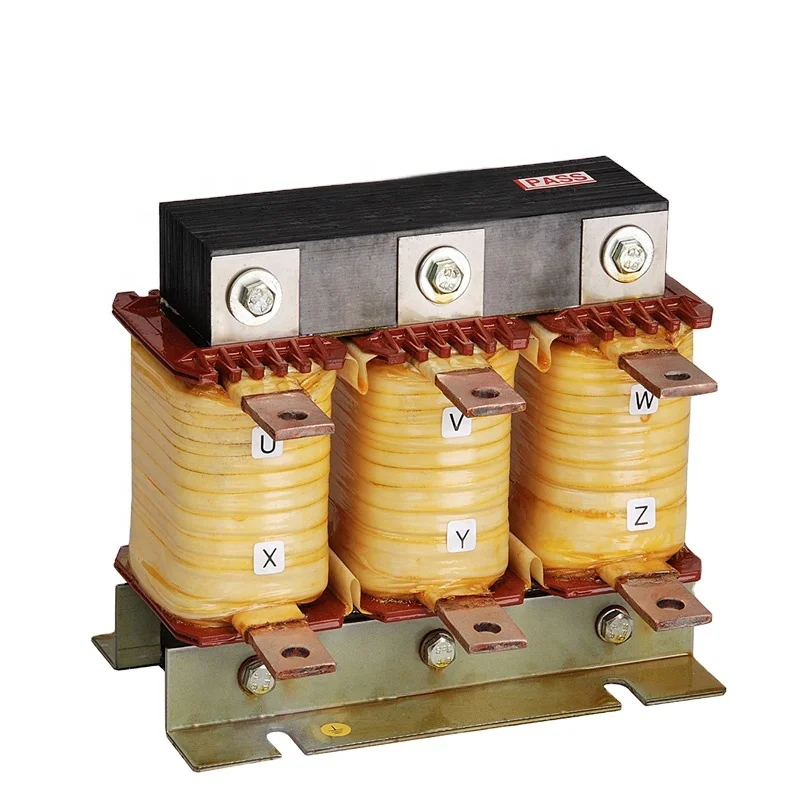

Линейный реактор SIEMENS SINAMICS для 36 кВт модуль интеллектуальной линии входной Входной волновой фильтр трехфазный
34,00 $ - 37,00 $
Химический смесительный реакционный чайник для обработки краски 500L-10000L высокопроизводительный реактор из нержавеющей
18 550,00 $ - 18 765,00 $
Надежная работа реактора PFR с PTFE
12 000,00 $

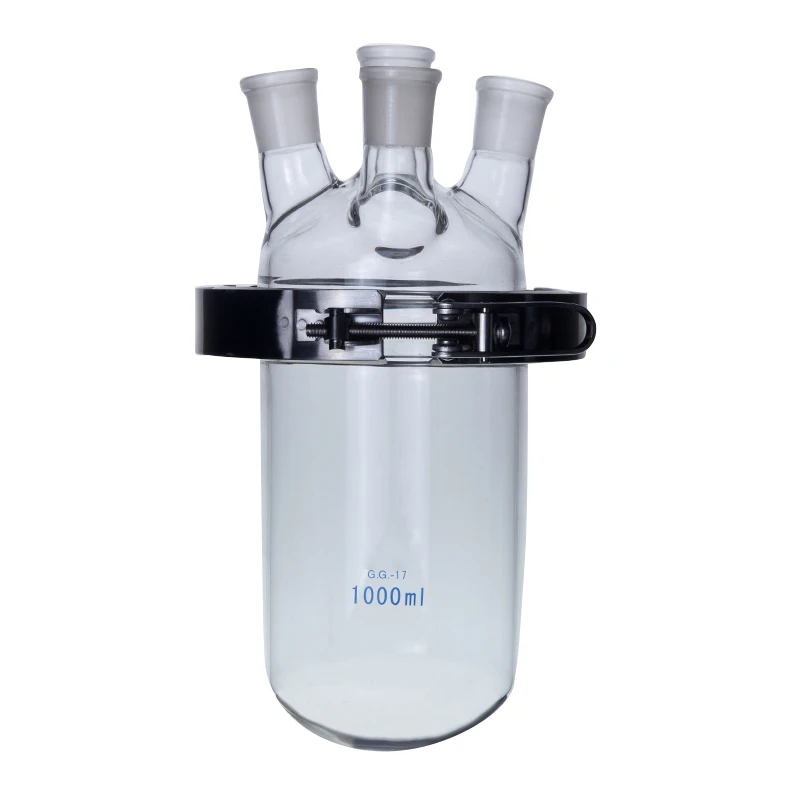

Лабораторный однослойный плоский фланец с открытым горлышком отдельный цилиндрический Сферический одногорловой стеклянный реакционный чайник двумя
