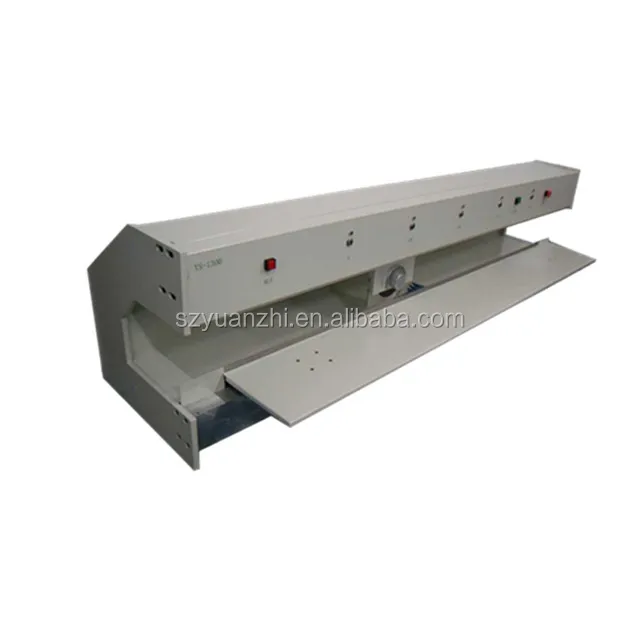

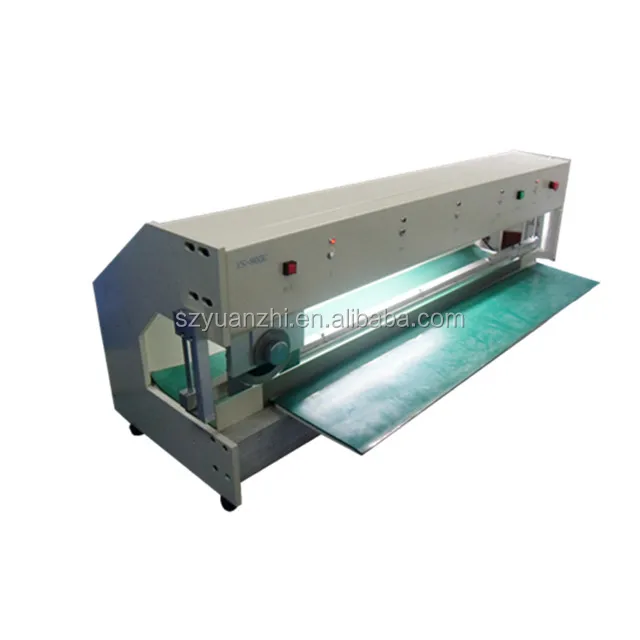

Китайский производитель v cut pcb depanel алюминиевая машина для резки печатных плат

We have four models PCB separator, suitable for 0-1200mm length PCB.

Features:

1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control the action of circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.

9. Available PCB thickness: 0.2-3.2mm

10. PCB V-cut thickness: 0.2-2mm

About Packing

All machines will be packed in wooden case. Export standard packing ensures shipment safety.

About Delivery

All machines will be surely shipped in lead time: Small machines 5~7 working days after payment, Large machines 10~15 working days after payment. Customized machines and large quantities will be executed according to the contract.

Warranty and Maintenance

CE, RoHS certified.

One year warranty and whole life maintenance!
