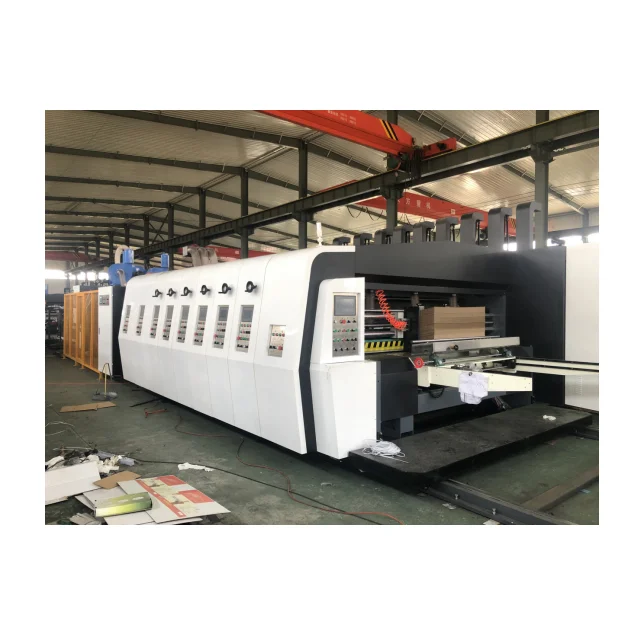

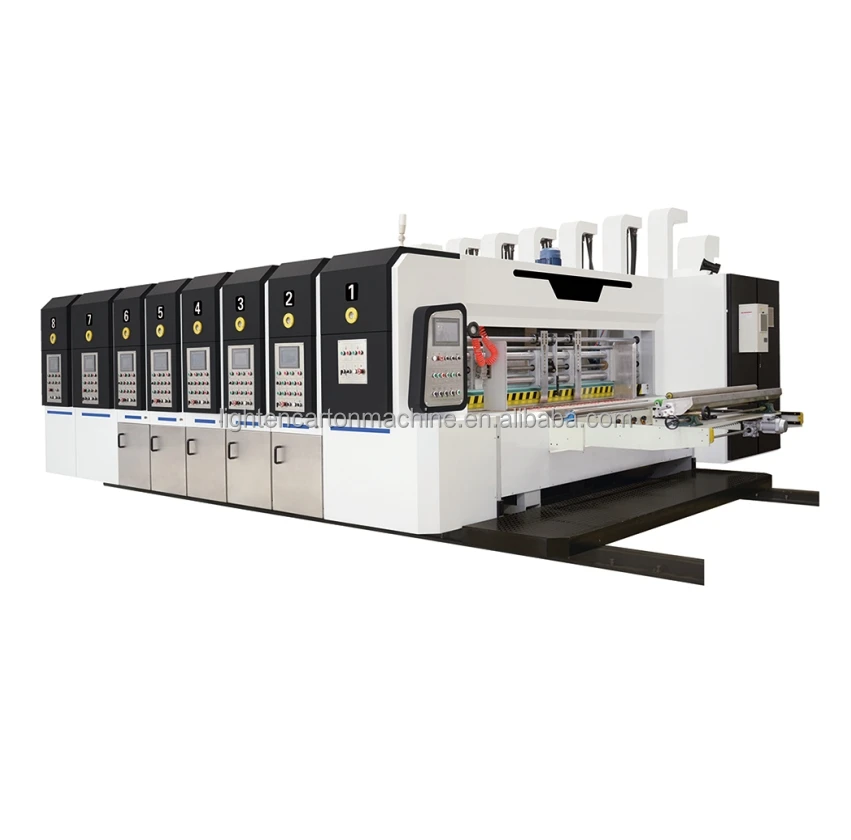

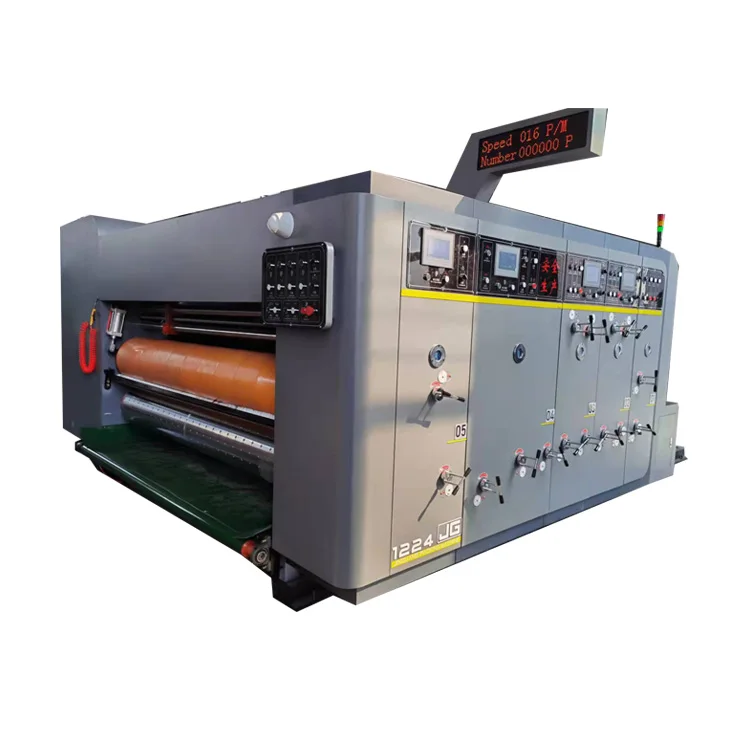

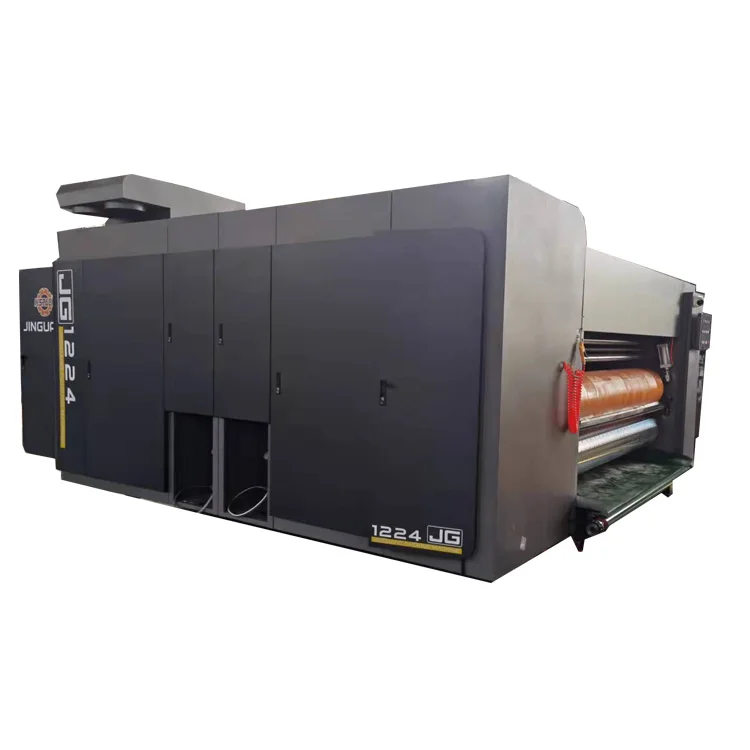

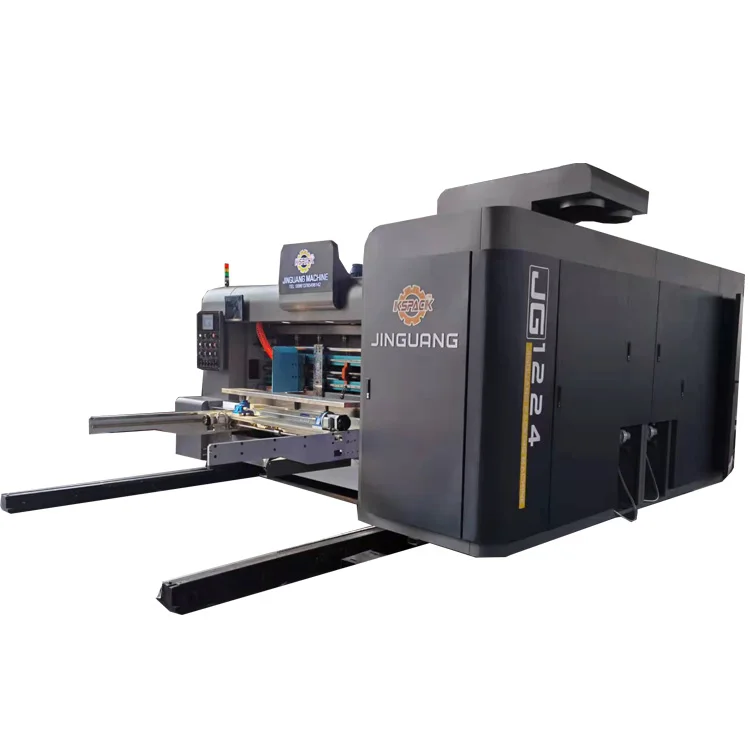

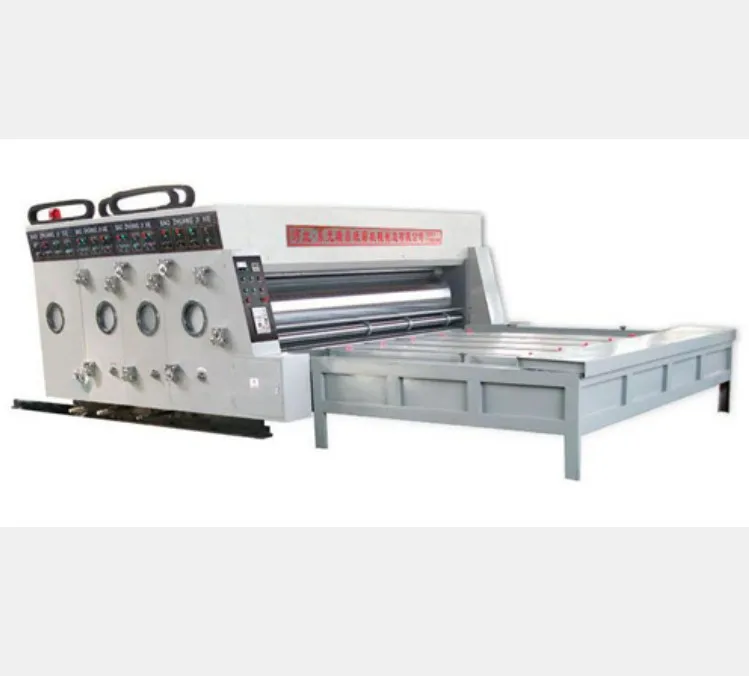

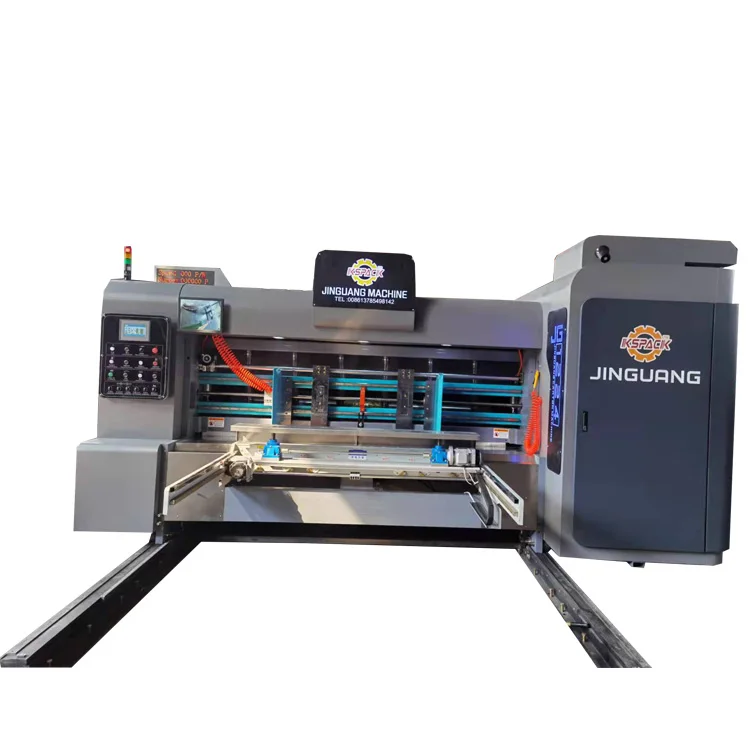

5 Ply Corrugated Box Printer Rotary Slotter Die Cutter

Сохранить в закладки 60578469469:


Цена:26 500,00-28 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




Carton box picture




Specification


Width size(mm)
2200
2400
2600
2800
Roller diameter(mm)
480
480
480
480
Max feeder paper size(mm)
2100*1470
2300*1470
2500*1470
2700*1470
Min feeder paper size(mm)
350*560
350*560
350*560
350*560
Economic speed ( pcs/min )
130
130
130
130
Power(kw)
18
18
18
18
Weight(T)
13
13.5
14
14.5


Machine introduce


Feeder part
1.Light pressure edge -leader feeding system- reduce 60% frction between paperboard and the platform,avoiding
damaging the corrugated and avoiding pressing to tin
2.Vaccum assorption- warping paperboard is also no problem ,air volum and air speed is adjustable
3.Fully automatic feeder - makes machine with high speed
4.With dust remove device


Printing part
1.Printing roller and driving roller adopt high quality steel,Printing Roller Ink Anilox Roller computer dynamic balance, eliminate the off-center force,grinder face and chrome plated.
2.Printing roller adopt holding plate equipment: Ratchet wheel Fixed type the holding plate roller, whole plate holding groove, foot step electric control positive and negative rotate, install and uninstall the plate quickly and conveniently.
3. Rubber roller even ink system: steel pipe face with wearable rubber, middle part higher the special grinding, perfect for conveying ink(option:scraper even ink system).
4.Ink anilox roller steel tube face is abraded, embossed in meshs and hard chrome plate(option.ceramic roller, anilox
net quantity is 160--500, user can choose).


Slotter part
1. All the carton size, include the carton height and phase Slotter Unit is finished by computer, human machine interface, save time and labor, improved work efficiency,can memory 500 orders.
2. Adopt double roller configuration,large diameter pressing line wheel, with good pressing line shafts.
3. Slotter blade base, pressing line wheel and cutting side blade crosswise moving configuration adopt precise ball
screw, moving with high precision,makecutting or position between upper and down blade more precisely, prolongusing life of blade.
4. Flexible cutting cormer blade configuration, can cut off 3-ply or 5-ply paperboard and don't need to adjust.henor


Die cutter part
1. Rubber roller of cutter casting steel pipe, computer dynamic balance, Steel pipe face is grinded and chrome plated,
Die-Cutter Unit adopt mechanical crosswise t20mm moving equipment,to improve the using lifte of the rubber. the speed different automatic compensate equipment,is used for correcting die cutter error because the rubber wear and tear.double grade worm box adjust gap,gravimetric show digital.convenient to adjust ,with self-lock equipment.
2. Die-cutter olleofof- center casting steel pipe, computer Dynamic balance, Steel pipe face is grinded and chrome
plated




Company Profile






Factory picture
