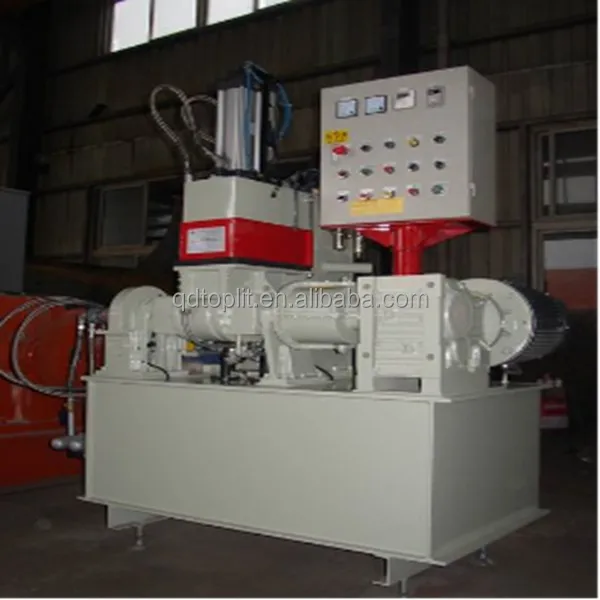

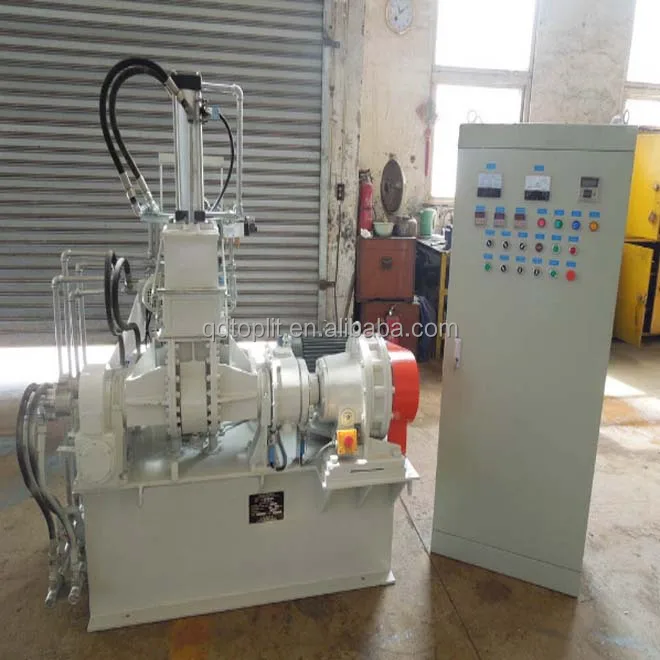

Лабораторный резиновый меситель 5 л/лабораторный миксер banbury

Лабораторный резиновый меситель 5 л/лабораторный миксер banbury

Категория: Резиновые тестомешалки >>>
Поставщик: Qingdao Toplit Industry Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

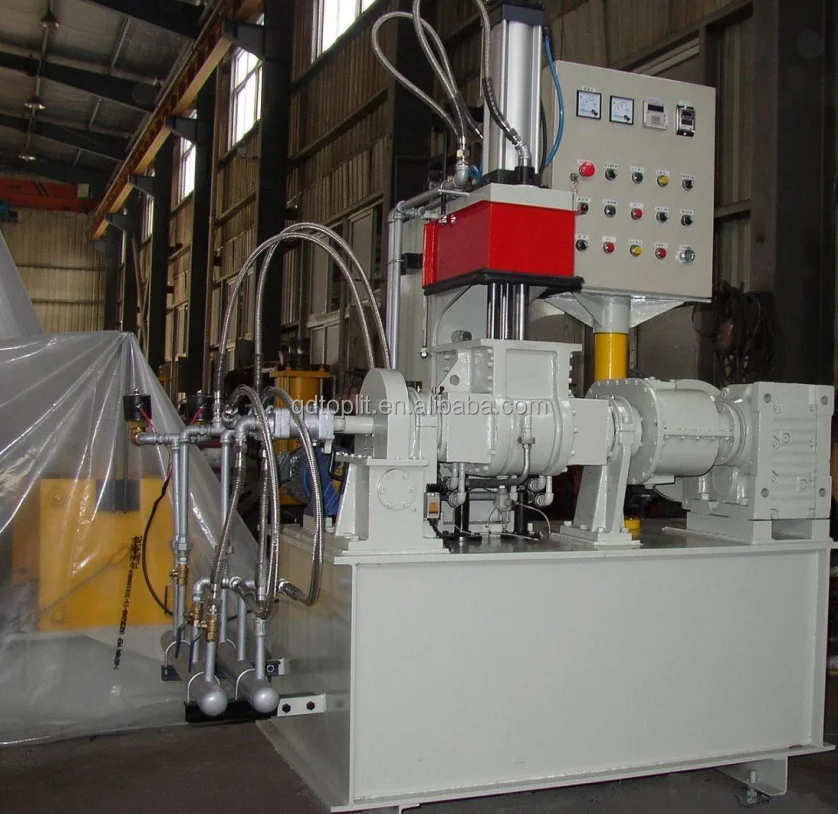

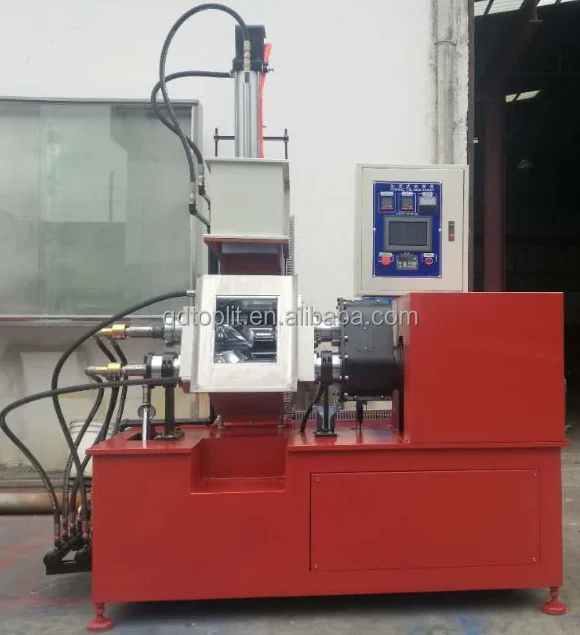

Lab Rubber Kneader / Lab Banbury Kneader Mixer

Wechat / Whats app: 0086-13963951313

Product Description

Technical spec.:

Item	Specification
1.Effective capacity of mixing	3L	5L
2.Total capacity of mixing chamber	8L	15L
3.Main motor power	5.5KW	11KW
4.Rotor speed(Front/Rear)	32/24.5r/min	32/23.5r/min
5.Cylinder of material pressing diameter	140°	140°
6. Tilting motor power	0.55KW	1.1KW
7.Pressure of compressed air	0.5-0.8Mpa	0.6-0.8Mpa
8 Pressure of cooling water	0.2-0.4Mpa	0.2-0.4Mpa
9. Pressure of heating steam	0.5-0.8Mpa	0.5-0.8Mpa
10.Overall dimensions ( L×W×H)	200010002220mm	185012002580mm
11. Weight	about 2 tons	About 2.1tons

Usage:

Usable for rubber or plastic plasticzing and mixing or rubber and plastic blending.

Features:

1.The motor is 3- phase asynchronous motor.

2.Rotor surface of wearing parts and interior cavity of mixing chamber are hard chromium plating, chrome plating thickness is of 0.08 ~0.12mm, the rotor shaft end is inlaid with alloy ring.

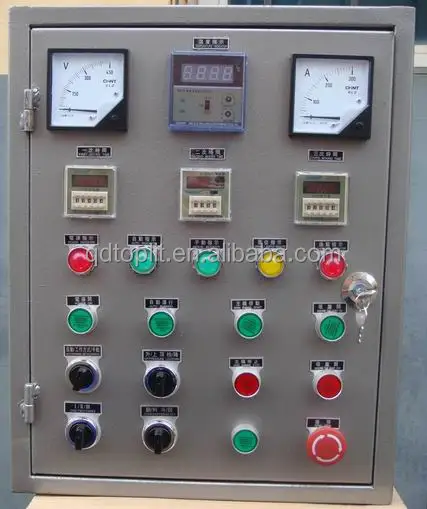

3.Mixing chamber equipped with a thermocouple, operation cabinet equipped with a thermometer, to monitor the mixing chamber temperature

4.Electric use of PLC control, PLC use Omron products in Japan.

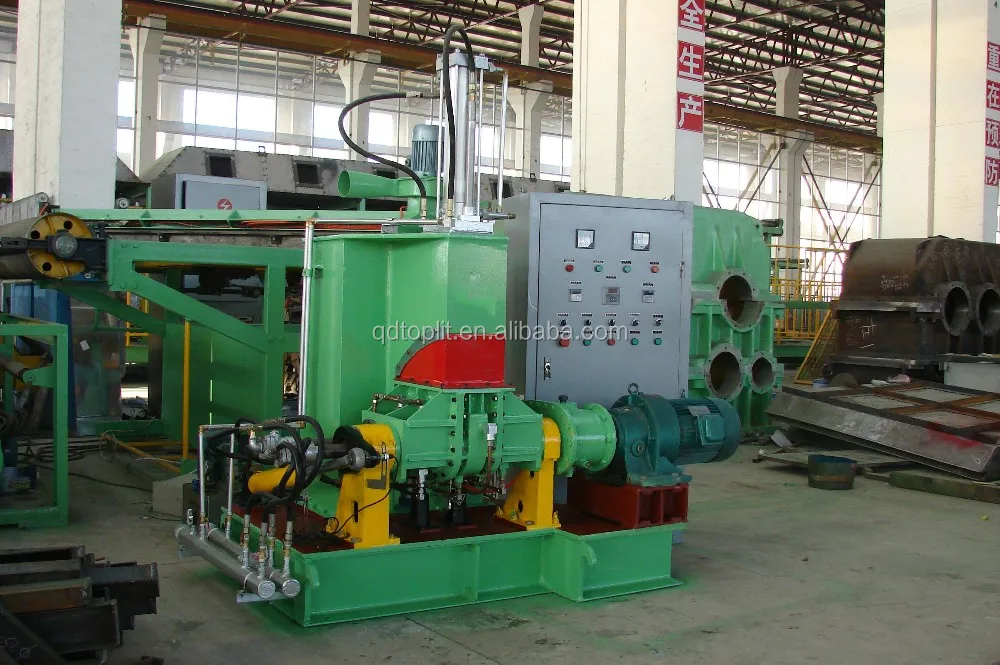

3L Lab kneader \\
