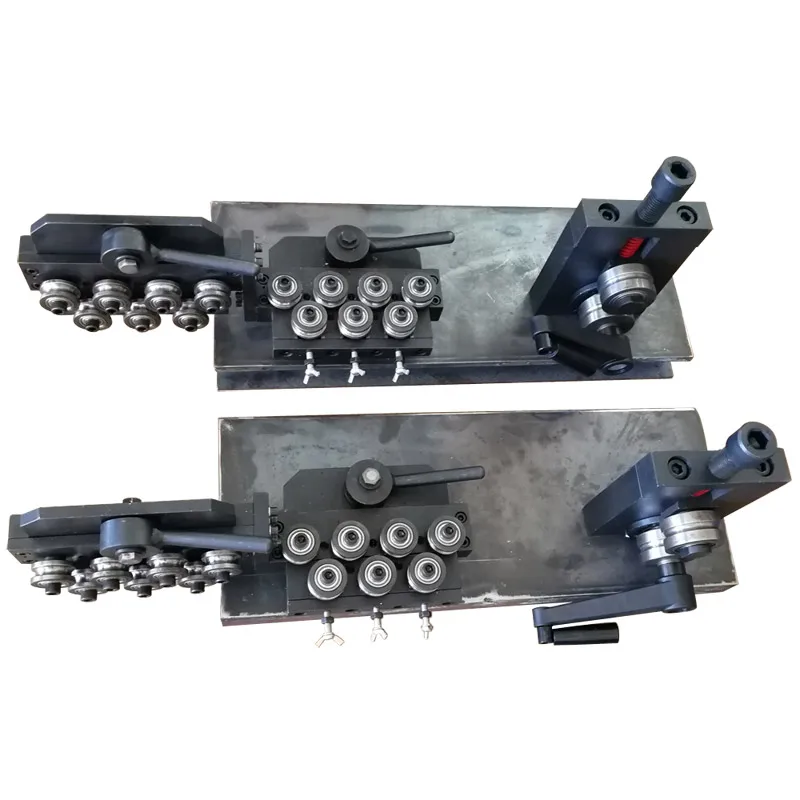

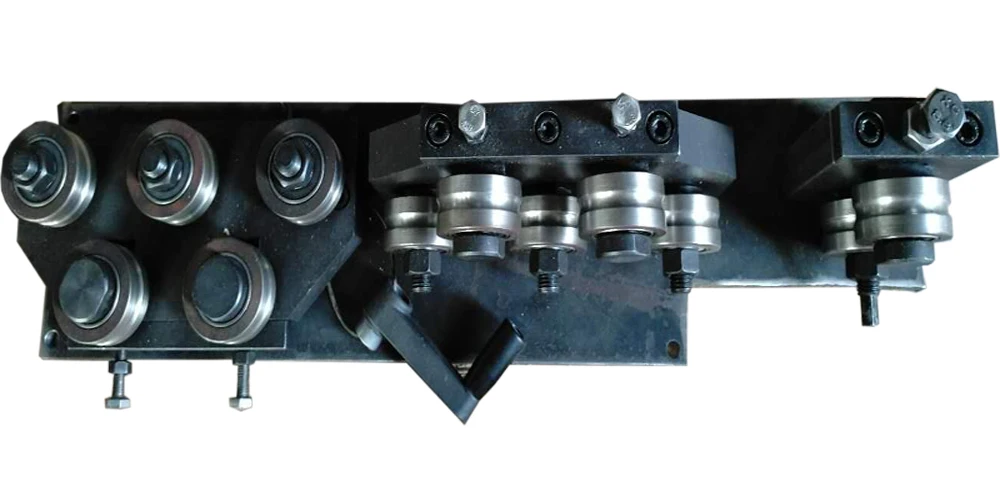

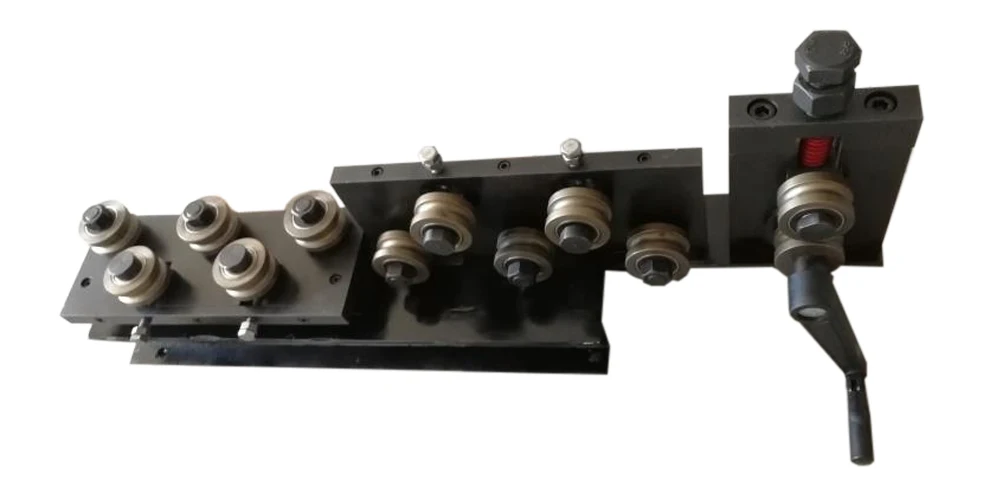

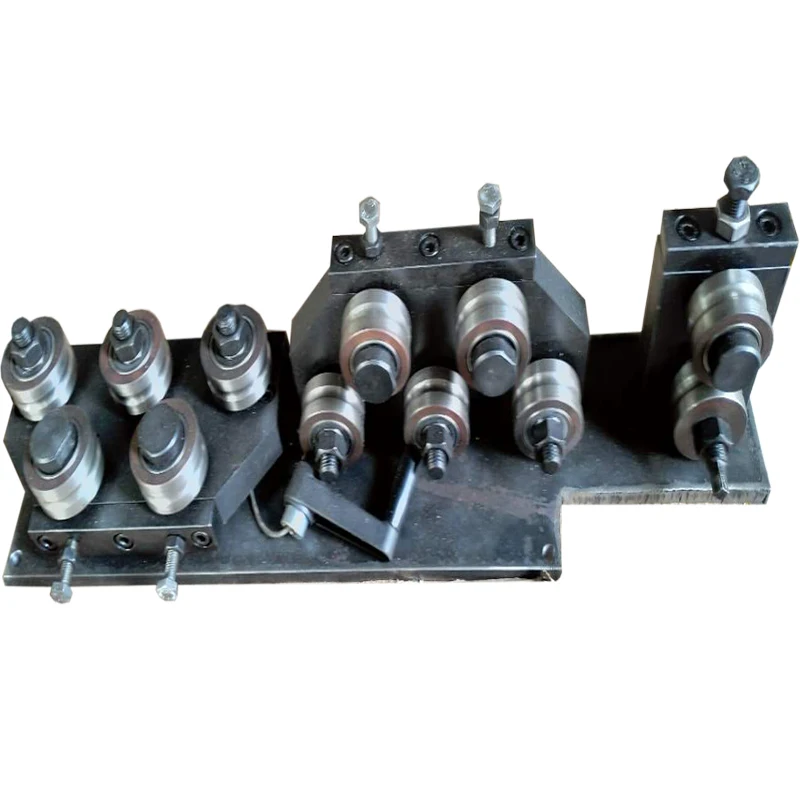

Ручная машина для выпрямления проводов 14 роликов колесо

manual wire straightener machine 14 rollers

Straightening wheel

Model :XZQ--10/47 B.V is suitable for the material between 4---12mm.

(note: 2 pieces: 5 rounds of single sheet 5 rounds according to customer's requirement)

Straightening wire specifications: Φ 4 mm - Φ 12 mm

Materials: low, medium, high carbon steel wire, copper wire, welding wire, enameled wire, du magnesium wire, etc.

Straightening wheel diameter: Φ 47 mm

The straight wheel groove is V groove and U groove.

The number of straighteners is 10

Straight wire form: single group: horizontal straightener;Combination: vertical + horizontal.

The adjustment of the straightening wheel is: the moving part of the straightening wheel is, the six wheels are separately regulated, and the other eight wheels are fixed.

Total quality of straightener: 22KG of naked machine, about 25kg package.

The size of the straightener is: 10 rounds, the length of 555mm * width 200mm x height 155mm, the center distance of the wheel is 55mm, and the thickness of the bottom plate is 12mm.
