Product Description

FT4401 Four wheels electric garbage transport vehicle mainly used for the collection of household garbage,industrial and commercial garbage.widely used in municipal,environmental sanitation,construction,mine and chemical industry. with auto-dumping function can be used as supporting for large-middle sized refuse transport station.

Main Features

1) Automobile chassis,enduring and  anti-rust;frame structure design withstand great impact,front crash structure,protect the operator safety.

2) Non independent suspension system,more robust and and stable.

3) All closed cab with luxury dashboard; soft interior.

4) Equipped with large capacity batteries,green energy and environment protection.

5) American curtis controller, can be programmed online and setting according to customer different requirement.

6) 4-wheel hydraulic braking system.ensure the safety of driver.

7) Operation cab installed with Radio,MP3,USB interface,SD card,and speaker,providing a comfortable environment for driver.

Technical Parameter
\t
Key Components
\t
Item
\t
Description
\t
Controller
\t
Curtis controller, imported from USA directly
\t
Motor
\t
Rated power 4200w,AC motor
\t
Battery
\t
165Ah maintenance-free battery
\t
Charger
\t
72V/30A transfered smart charger
\t
Performance
\t
Item
\t
Description
\t
Passenger Capacity
\t
2
\t
Range (km)
\t
≥80
\t
Max .speed (km/h)
\t
≥30
\t
Min. turning radius (m)
\t
≤5
\t
Climbing ability(loaded)
\t
20%
\t
Max. loading weight (kg)
\t
1500
\t
Body and Frame
\t
Item
\t
Description
\t
Frame & Chassis
\t
Welded steel framework with sand blasting and painting
\t
Windshield
\t
Laminated glass with wiper
\t
Roof supports
\t
Steel
\t
Seat
\t
Reborn sponge with artificial leather, high back, with formed armrest
\t
Rear garbage box
\t
Steel material, with hydraulic lifting function, side cover and rear door with air-spring
\t
Floor
\t
Bamboo floor with Skidproof leather
\t
Steering Location
\t
Left hand drive
\t
Side rear view mirror
\t
2pcs
\t
Dimension
\t
Item
\t
Description
\t
Overall dimensions (mm)
\t
3780*1450*1950 (LxWxH)
\t
Rear garbage box dimensions (mm)
\t
2050*1260*1160 (LxWxH)
\t
Min.ground clearance (mm)
\t
170
\t
Wheelbase (mm)
\t
2470
\t
Front wheel tread (mm)
\t
1120
\t
Rear wheel tread (mm)
\t
1150
\t
Electric System
\t
Item
\t
Description
\t
Lights
\t
Headlamp+brake & tail light+turn signals+hazard lights+ +reversing buzzer
\t
Horn
\t
Electric horn
\t
Reverse buzzer
\t
Electric
\t
Combination switch
\t
including switch for headlight, turning light, wiper and horn
\t
DC/DC converter
\t
48V/12V
\t
Audio system
\t
Radio+MP3+USB+SD+Speaker
Related Products

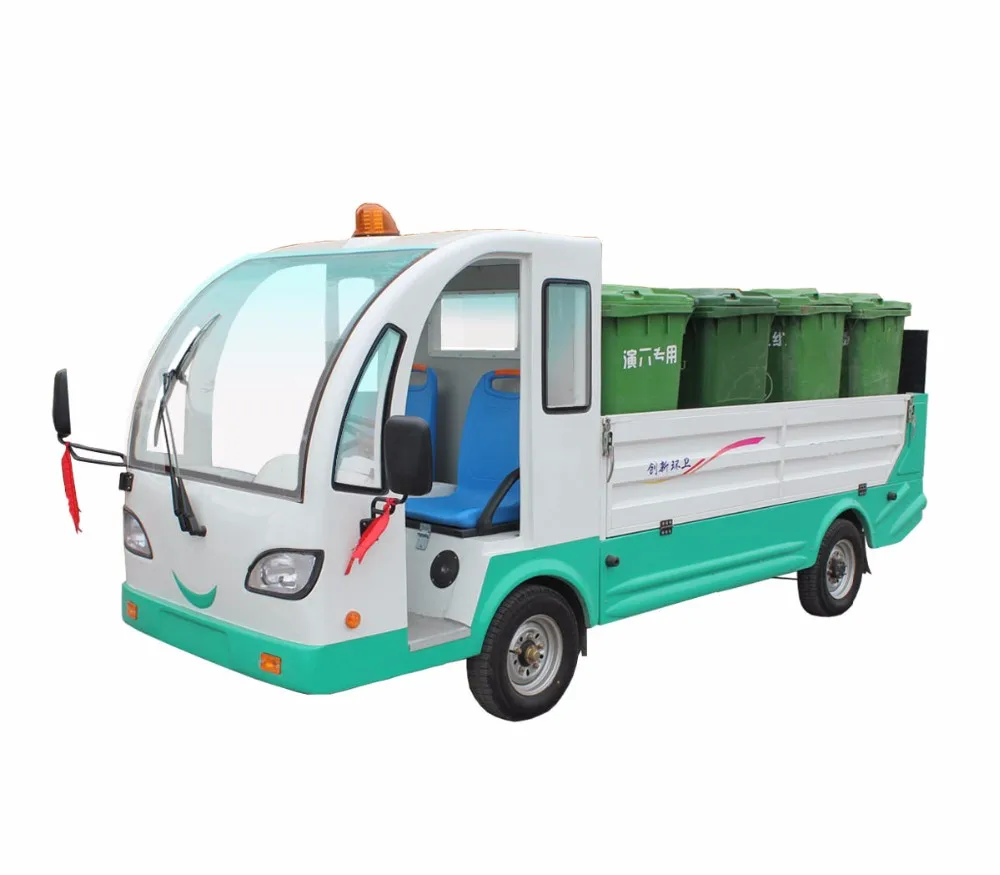

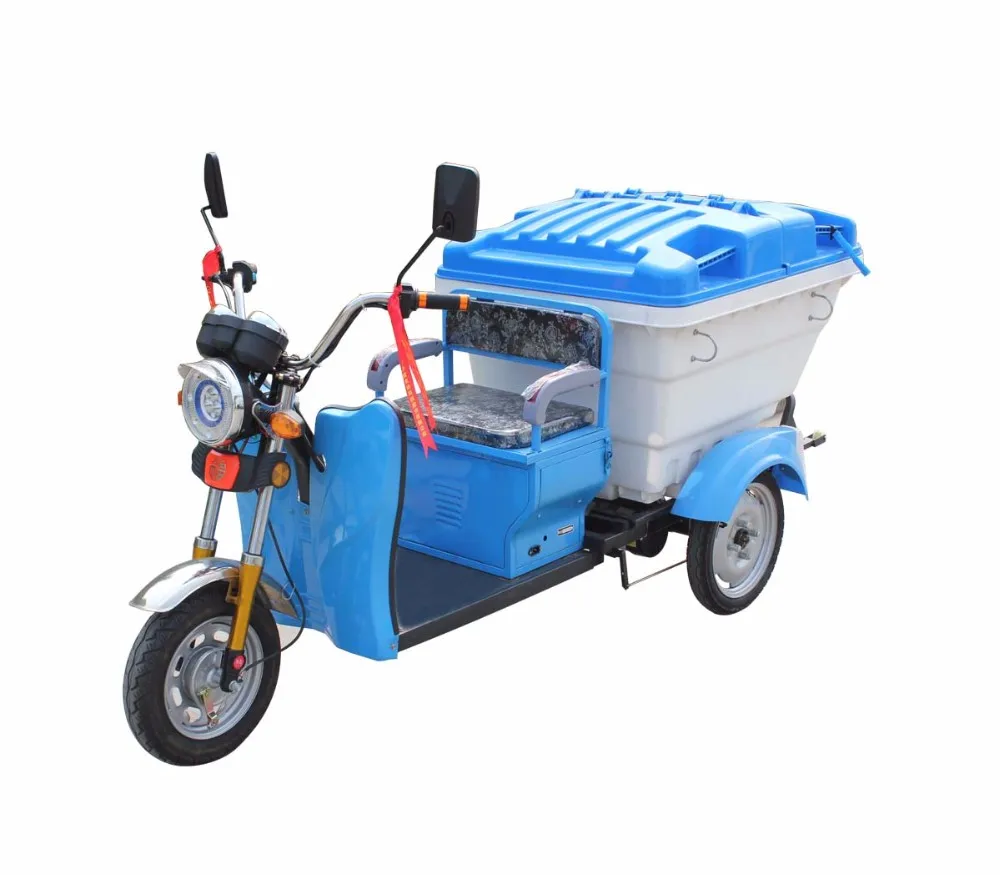

          Electric Garbage Tricycle

                 3-wheel Garbage Truck

                      Street Sweeper

Certifications
Working on Site
Packing & Delivery
Company Profile
ANHUI HUAXIN ELECTRIC TECHNOLOGY CO., LTD was founded in year 2007 (stock code:870774), is a leading manufacturer of electric sanitation vehicles, such as electric waste collection vehicle,electric garbage transport vehicle,electric high-pressure washing vehicle , electric road sweepers,electric fire fighting truck,electric patrol car, electric sightseeing car and various vehicles. We have 2 advanced product lines with the yearly production capacity of 30,000 vehicles. Now our products have been widely sold to more than 20 countries in the world.
HUAXIN also invests a lot to the production of mould making, jigs and checking moulds to ensure the precise of components, and the key components (Battery, Controller) imported from USA and Japan directly to ensure the performance of the vehicles. HUAXIN follows International Quality Standard to produce, control and inspect the electric vehicles. At present,our company passed the certification ISO9001-2008,ISO14001 and OHSAS18001 helth and safety certification,and CE.
We the commitment of "Green the World,Clean service", we are fully dedicated to providing people safe,economical and environmental friendly electric sanitation vehicles.
FAQ

Q1. Where is your factory located?

Our factory located in Hefei city which is the capital of Anhui province. Transport is very comvinient. just 2 and half hours from Shanghai by high speed train and only one hour by plane.

Q2. How many workers in your factory?

HUAXIN established in 2007year with 10 years experience and more than 200 hundred workers now.

Q3. What's the advantage of your company?

    1.The first host company which set the electric sanitation vehicle in China.

    2.The first engineering technology research center of electric sanitation vehicle.

   3.Full series products line,including electric garbage truck,electric garbage transport truck,high-pressure road washer,road sweeper,electric patrol vehicle,etc.

   4.Standarlized assembly line,each procedure must be strictly under requirement and all of the product has laser code to realized the quality traceability.

  5.Strictl testing,all of products must be under strict testing when leave factory.

Q4. Can you produce as per customer special requirement,such as customer brand?

Of cause, it's ok.
