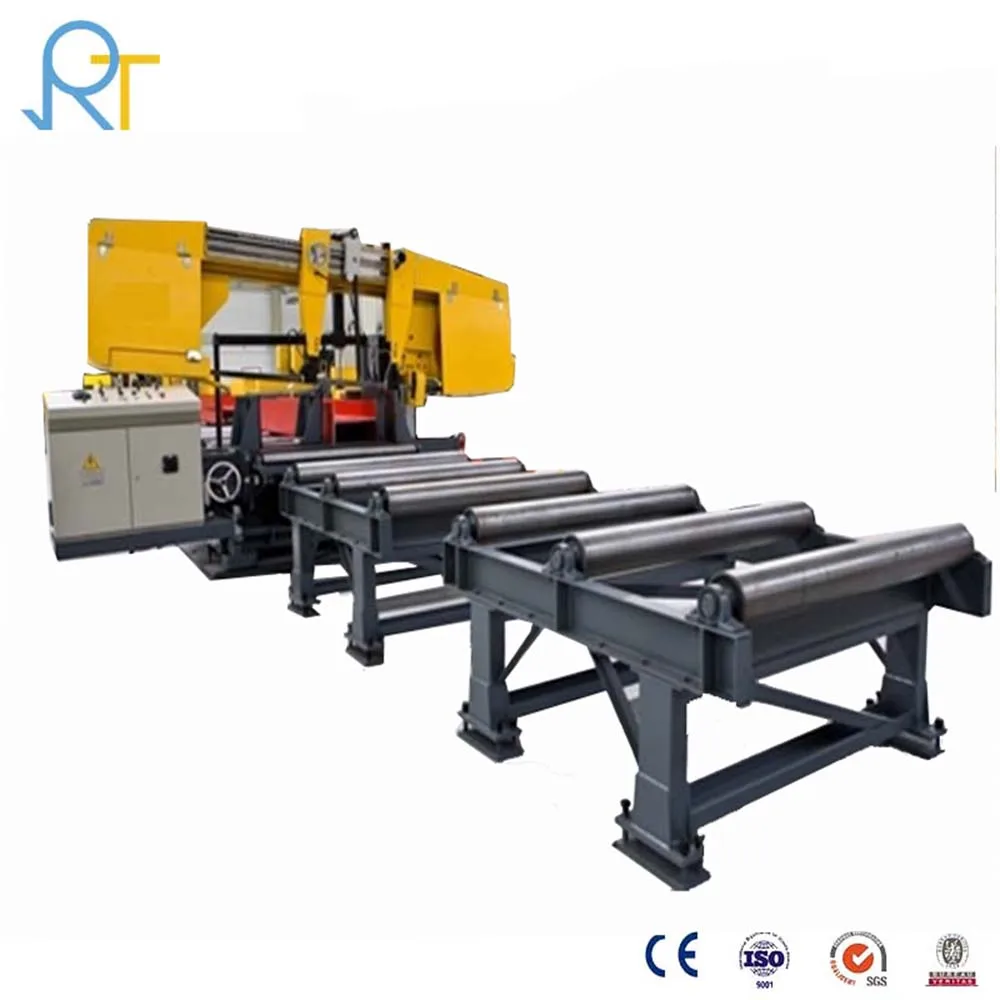

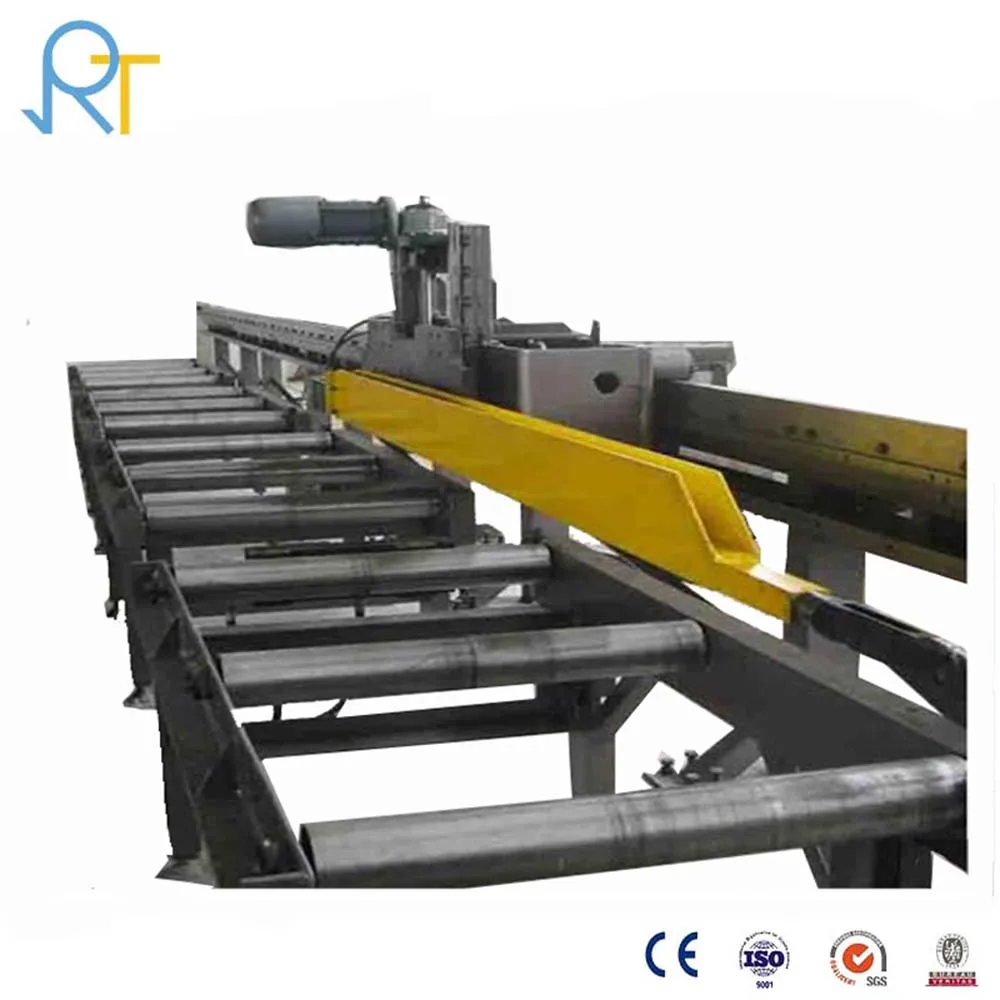

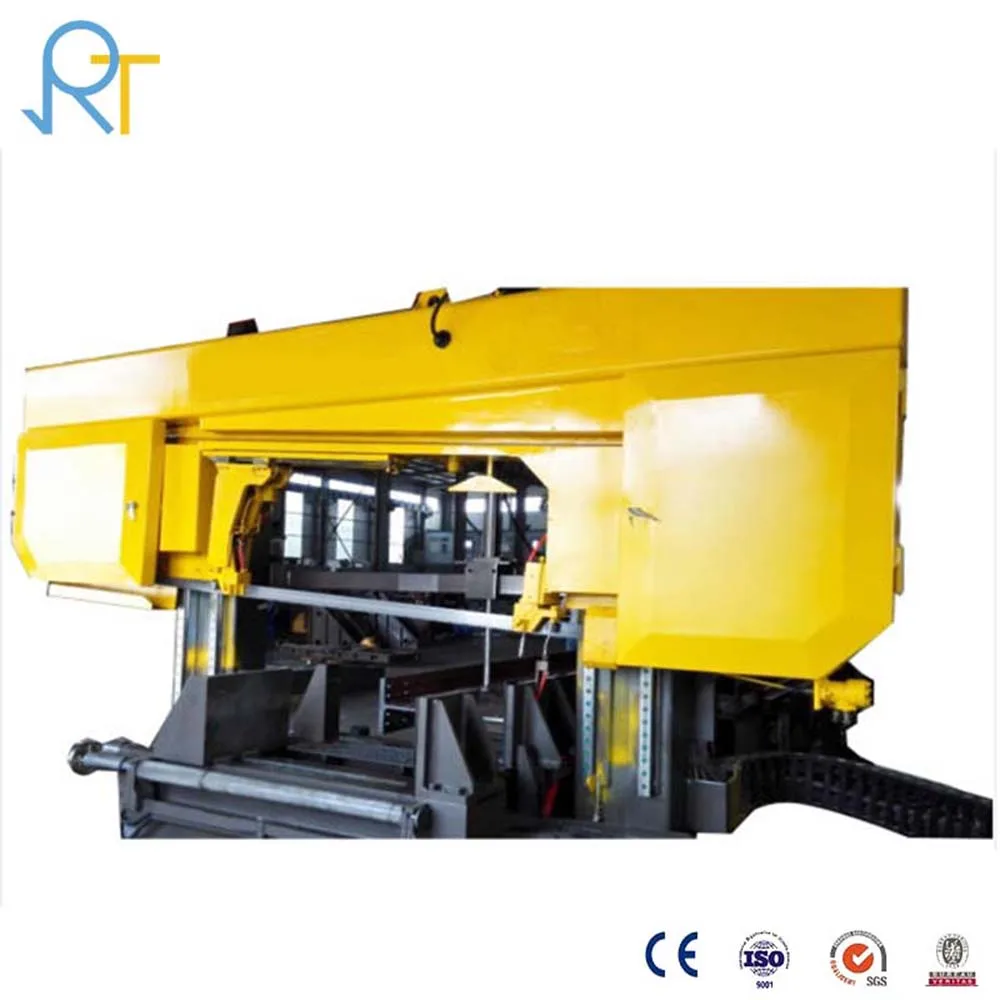

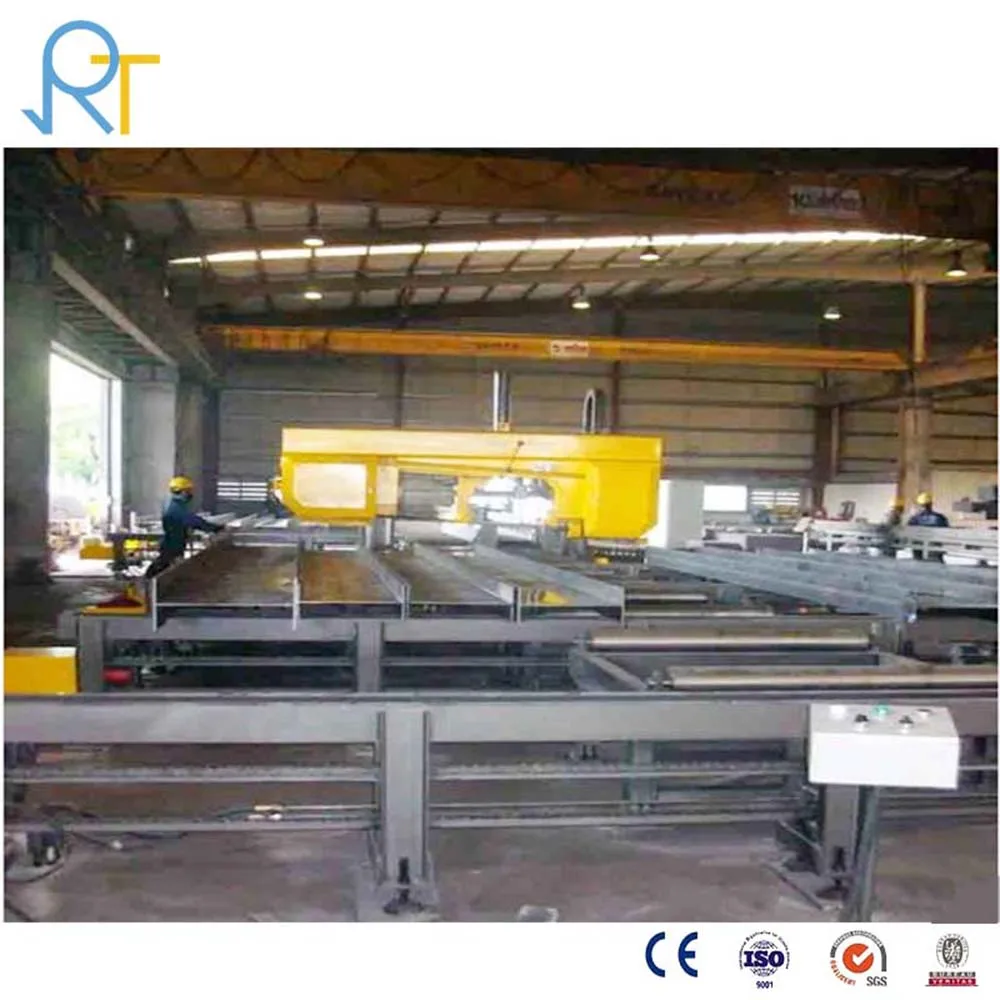

Китайская Автоматическая ленточная пила с ЧПУ металлическим лучом

Китайская Автоматическая ленточная пила с ЧПУ металлическим лучом

Категория: >>>
Поставщик: Jinan Ritec Machinery Technology Co. Ltd.

Цена:38 000,00 $ - 45 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

China CNC Automatic Metal Beam Cutting Band Saw Machine

Application:

PD series CNC plate drilling machine mainly do the drilling process of the junction plate and base anchor which used widely in steel structure, iron tower, bridge, and machining industries etc., and also used widely for flange drilling process.

application01

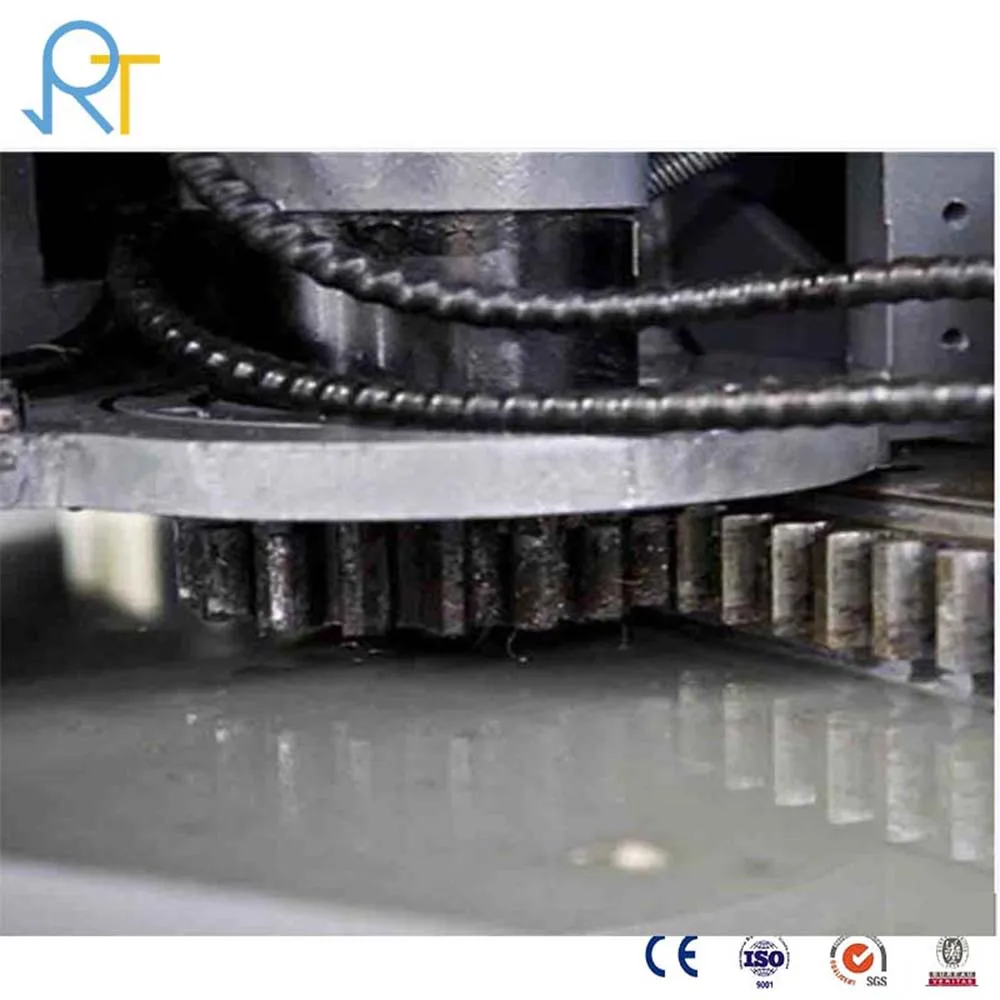

Drilling Parts

Features:

1. CNC slid drilling head, can control the depth of hole, have the function of drilling blind hole, expanding hole, and chamfering.

2. PLC control system can assure the drilling positional accuracy

3. The machine have four processing area, 12 hydraulic clamp can clamping four groups of working pieces, can assemble and disassemble the work piece at the same time of drilling

4. LCD display by PLC control system

5. Programme based on windows, Auto CAD , and support lofting software TEKLA

6. Auto chip-removal system, cooling liquid are circular

7. The Key machanical, hydraulic, electronic parts adopts global brand name

8. The whole machine are integrated designed, don’t need to lay the foundation

Model		BS750	BS1000	BS1250
Sawing Capacity (mm)	Round Steel	φ550 mm	φ600 mm	φ660 mm
	Square Steel	480x480 mm	550x550 mm	630x630 mm
	H Beam	750x450 mm	1000x500 mm	1250x500 mm
Motor Power(kW)	Saw Blade	7.5kW	11kW	11kW
	Rotary Table	0.04kW	0.04kW	0.04kW
Saw Blade Size (mm)(TxWxL)		1.3x41x6650 mm	1.6x54x7600 mm	1.6x54x8300 mm
Saw Blade Linear Speed(m/min)		20-80m/min (adjustable)
Table Height		800mm
Hydraulic Motor Power		2.2kW
Feeding Speed		Stepless feeding
Rotation Angle		0°-45°
Overall Dimension(LWH)(M)		3.52.52.6 m	3.82.62.6 m
Gross Weight(kg)		5500kg	6000kg	7000kg

Can be Customized

We can make the main body of the drilling machine according to every customer, the maximum size of the body is 8 m. with 4 drilling heads, the machine body welding have treatment for stronger and not easy to be deformed

Standard

Main Axis:BT40

Rotation Speed:120~560

Transducer:Stepless speed adjust

Max. Drilling Diameter:

Φ50
