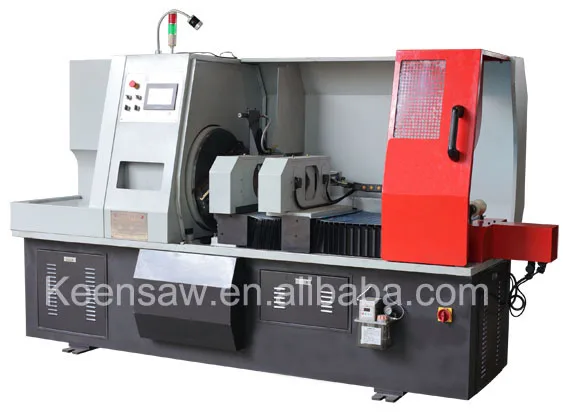

Роторный автомат для резки стальных труб резак

Категория: Труборезные станки >>>
Поставщик: Lishui Keensaw Machine Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Presentation

Machine Details

Product Application

Keensaw Pipe rotary cutting machine have broken through the traditional way of cutting pipes, such as using sawing machine with saw blade, disc saws, machine uses rotary tool way to cut the pipes. Cut the pipes by rotating the cutting tool instead of rotating the pipes. With PLC control technology, it is an automatic pipe cutting equipment. As the device shows high cutting speed, high precision, low cost of the cutters, it has been widely applied in many industries.

Machine adopts unique servo feed mode, it is more stable, accurate, and with high speed. It is Self centering hydraulic clamping, working stable and reliable.Its' nylon clamps are suitable the pipe with thickness 0.8-3mm, it is not easy to damage the pipe surface; and over 3mm, we use V-type clamp, this clamp model is more convenient.

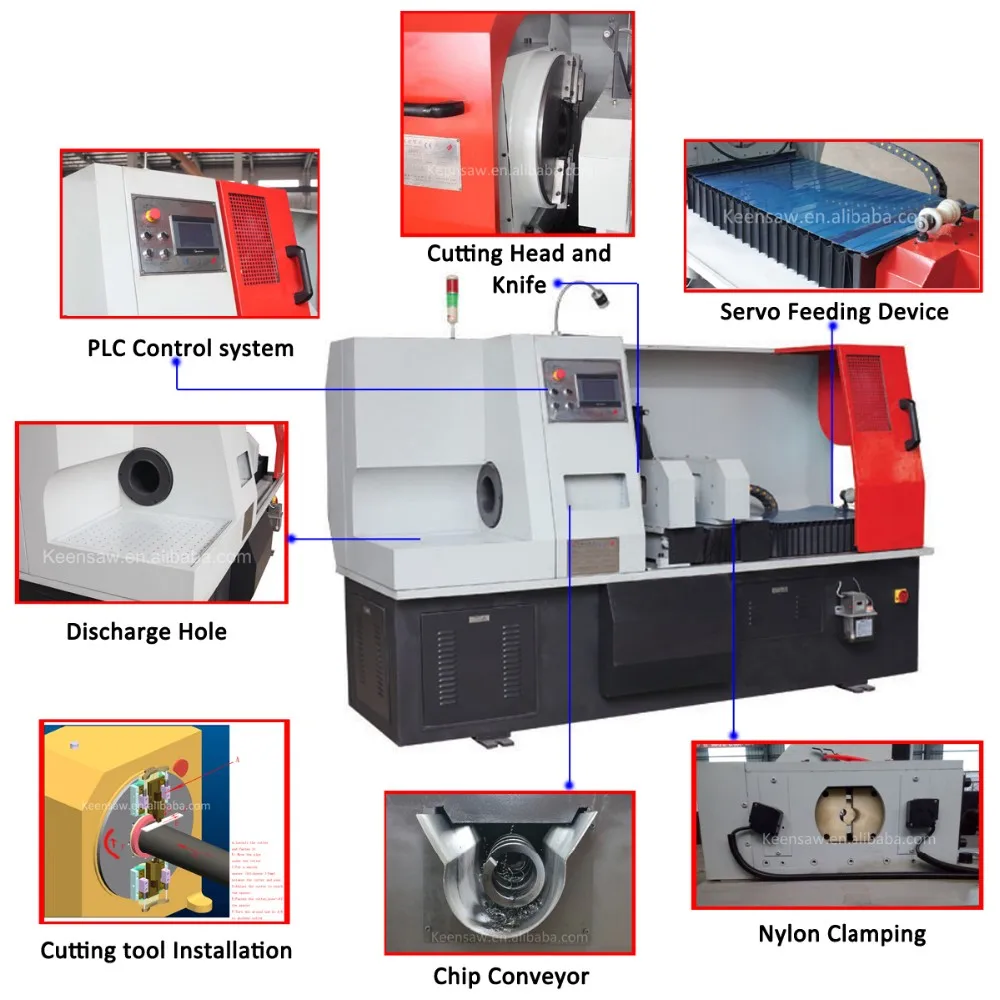

Detailed Image

Machine Part

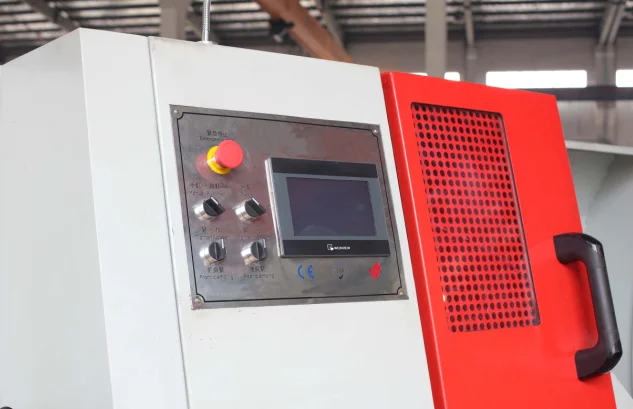

Name: PLC Interface Control System

This machine adopts man-machine interface control and touch screen with easy operation ,which can adjust the cutting length directly and ensure precision be to +/-0.05mm.

Machine Part

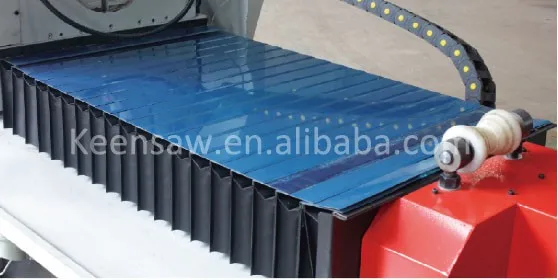

Name: Servo Feeding Device

The feeding is controlled by servo motor, ball screw and linear guideway, with high precision and accurate size

Machine Part

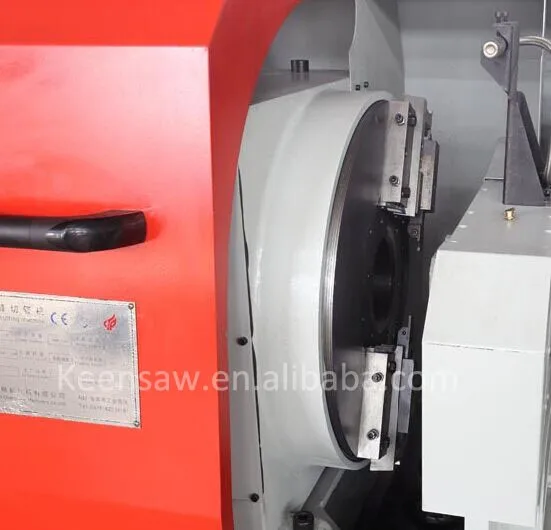

Name: Cutting head and cutting knife

Broken traditional circular saw cutting modle, Using rotary knife tool to cut pipe by rotating the cutting tool instead of rotating the pipes.

Machine Part

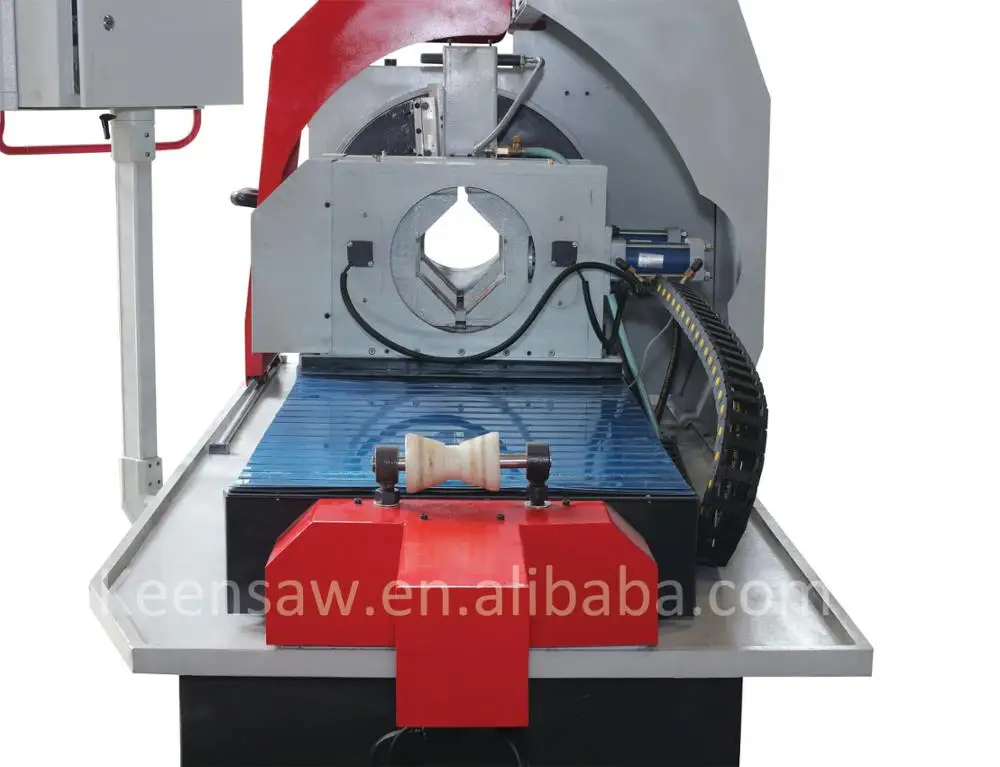

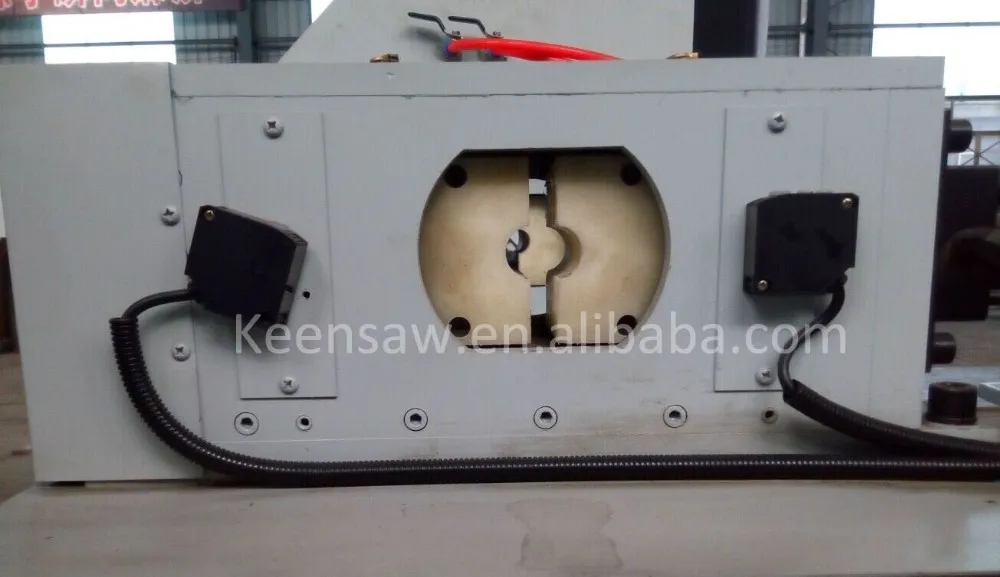

Name: Nylon Clamping Device

Nylon clamps are suitable the pipe with thickness 0.8-3mm, it is not easy to damage the pipe surface; and over 3mm, we use V-type clamp, this clamp model is more convenient.

Machine Feature

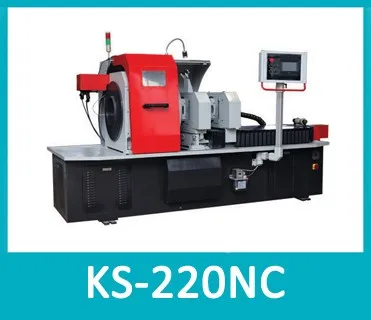

What Features Of KS-220CNC

1.Machine has broken through the traditional way of cutting pipes, such as using sawing machine with saw blade, disc saws, we use rotary tool way to cut the pipes. Cut the pipes by rotating the cutting tool instead of rotating the pipes.

2.Using the mature PLC technology, through the human-computer interaction interface and equipment, the operation can be manual and automatic, it is easy to operate and learn.

3.Adopt unique servo feed mode, it is more stable, accurate, and with high speed.

4.Being made of alloy steel cutting tool, it is low cost.

5.Self centering hydraulic clamping, working stable and reliable.

6.Nylon clamps are suitable the pipe with thickness 0.8-3mm, it is not easy to damage the pipe surface; and over 3mm, we use V-type clamp, this clamp model is more convenient.

7.The feeding is controlled by servo motor, ball screw and linear guideway, with high precision and accurate size.

8.Stepless speed spindle, it can adjust the cutting speed.

9.The dates of the pipe cutting length can input the automatic control with permanent memory. The calculator function will show the number of processing at any time.

10.The height of the pipe bracket can be adjustable, it is easy to use.

\t Model	\t KS-220CNC
\t Pipe diameter	\t Φ133-219mm
\t Pipe thickness	\t 3-12mm
\t Single Feeding length	\t 20-650/20-120mm
\t Spindle motor	\t 7.5kw
\t Feeding speed	\t ≤250mm/s
\t Precision	\t ±0.15mm(500mm)
\t Cutting Speed	\t Φ187*5mm(20s)
\t Loading	\t Manual
\t Control Mode	\t PLC
\t Servo Motor	\t 2 pieces
\t Clamping Mode	\t Circle clamp(1-3mm thickness)/V-type clamp(3-12mm thickness)
\t Speed Control	\t Stepless speed regulation
\t Loading Table	\t 2 pieces suitable for 6 meters tube
\t Clamping Mode	\t Self-centering hydraulic clamping
\t Feeding Mode	\t By servo motor ball screw linear guideway
\t Cooling Mode	\t self circulation liquid cooling
\t Cutter	\t NC cutting tools(2 pieces)
\t Working Mode	\t Pipe keeps stationary cutters are rotating to cut
\t Feeding Amount	\t Controlled by servo motor it is adjustable
\t Size(LWH)	\t 305011701730mm
