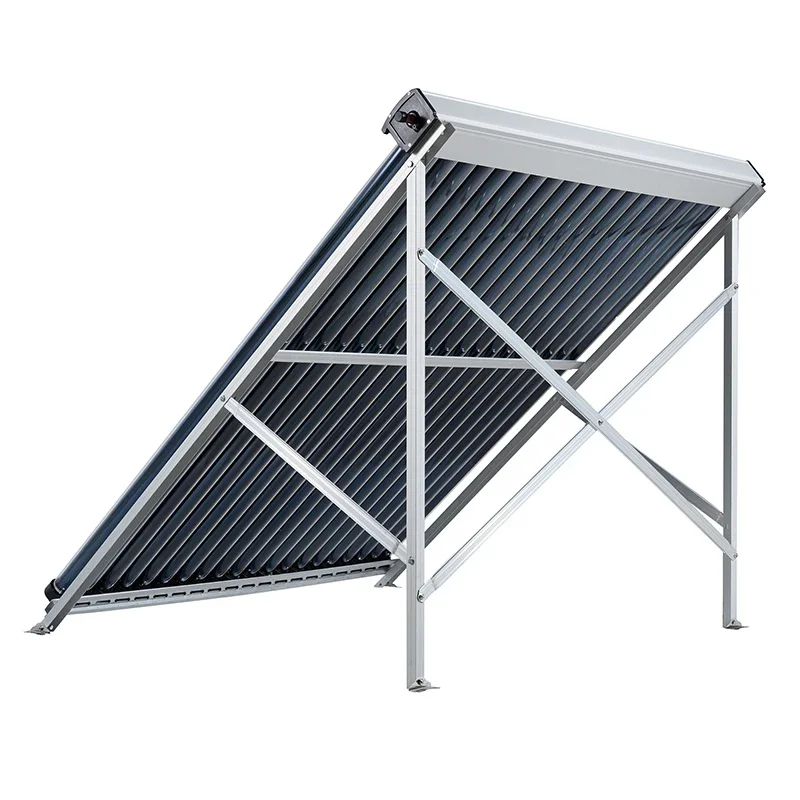

Хит продаж высокопроизводительные вакуумные трубки тепловая труба китайская Солнечная 15 трубчатая солнечный коллектор
- Категория: >>>
- Поставщик: Haiyan Uniepu New Material Co. Ltd.
Сохранить в закладки 60798608228:
Описание и отзывы
Характеристики
Detail Date

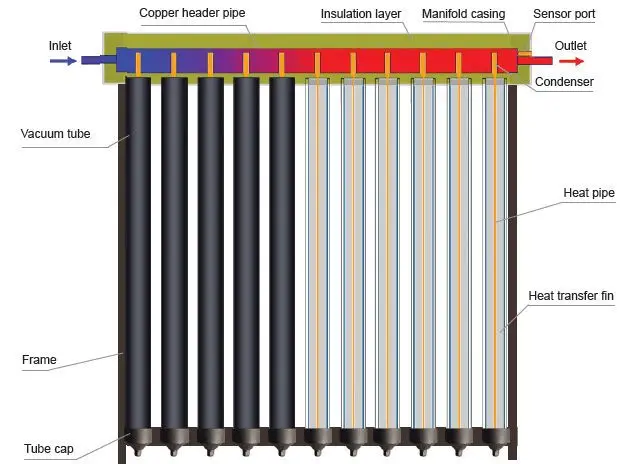

How Does The U pipe Collector Work?
The selective absorber coating on the inner cover of vacuum tubes absorbs solar energy, then converts solar energy into thermal energy and transfers thermal energy to heat pipe by aluminum fin. The heated liquid inside the heat pipe changes into vapor which rises to the top condenser, then thermal energy heat transfer liquid passes through heat exchanger and the cooled vapor becomes liquid, returning to the base of heat pipe.
The thermal energy is conducted to transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.
The thermal energy is conducted to transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

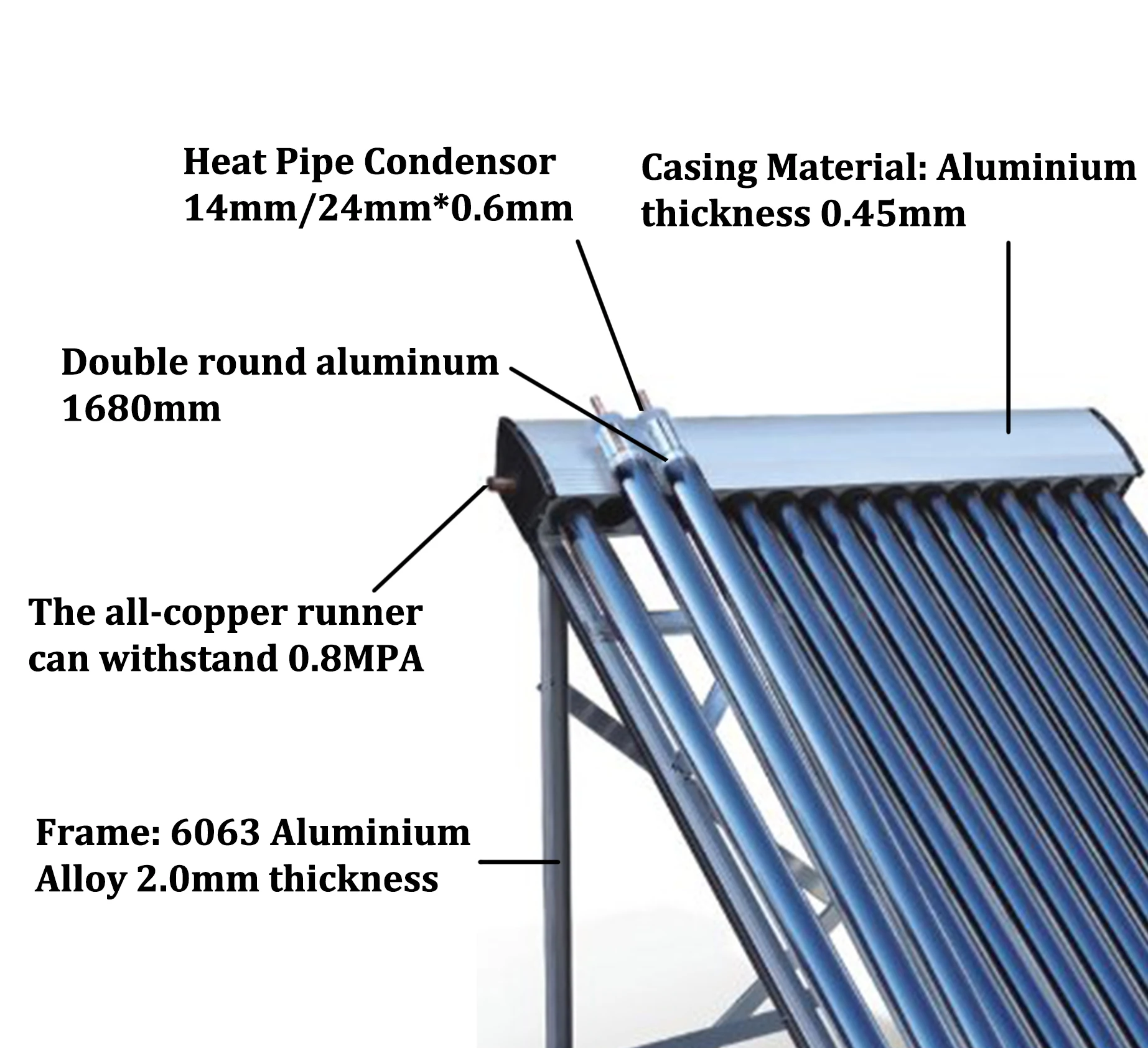

UNIEPU Heat Pipe Solar Collector General Specifications(Contact us for customised parameters) | ||||||||
Manifold (interior) | T2 Copper | |||||||
Manifold (exterior) | Aluminum Alloy, thickness:0.45mm | |||||||
Tube | 58*1800mm Three Target Vacuum Tube With Heat Pipe and Aluminum Fin | |||||||
Coating | ALN/SS-ALN-CU | |||||||
Thickness of cover tube | 1.8 to 2.0mm Optional Choices | |||||||
Efficiency | ＞91% | |||||||
Max. operation pressure | 0.8 Mpa | |||||||
Max. testing pressure | 1.2 MPa | |||||||
Header Pipe Material | 99.93% pure copper&lead free 45% silver brazing | |||||||
Heat pipe sepc | 14mm/24mm condenser, thickness 0.6mm | |||||||
Insulation | Compressed glass wool | |||||||
Frame Material | 6063 Aluminum Alloy (2.0mm) | |||||||
Installation | Pitch Roof, Flat Roof | |||||||
Model No. | Tube Pcs | Tube Size/MM | Absorber Area(sqm) | Daily Output (50C-90C) | Quantites In Container (20GP/40GP/40HQ) |
UNP-HP01-12 | 12 | Diameter58*1800 | 0.96 | 100-120L | 130/253/285 |
UNP-HP01-15 | 15 | 1.2 | 120-150L | 115/210/240 | |
UNP-HP01-18 | 18 | 1.44 | 150-175L | 78/185/201 | |
UNP-HP01-20 | 20 | 1.6 | 160-200L | 87/193/217 | |
UNP-HP01-24 | 24 | 1.92 | 200-250L | 70/170/189 | |
UNP-HP01-30 | 30 | 2.4 | 240-280L | 57/127/141 |
Application
Accessories
20-stage shower head filter, which provides clean soft water for your body. Say goodbye to dry, itchy skin, dandruff, and eczema,
and hello to improved skin, hair, and nail condition!
and hello to improved skin, hair, and nail condition!
Recommend Products
Company Profile
Exhibition

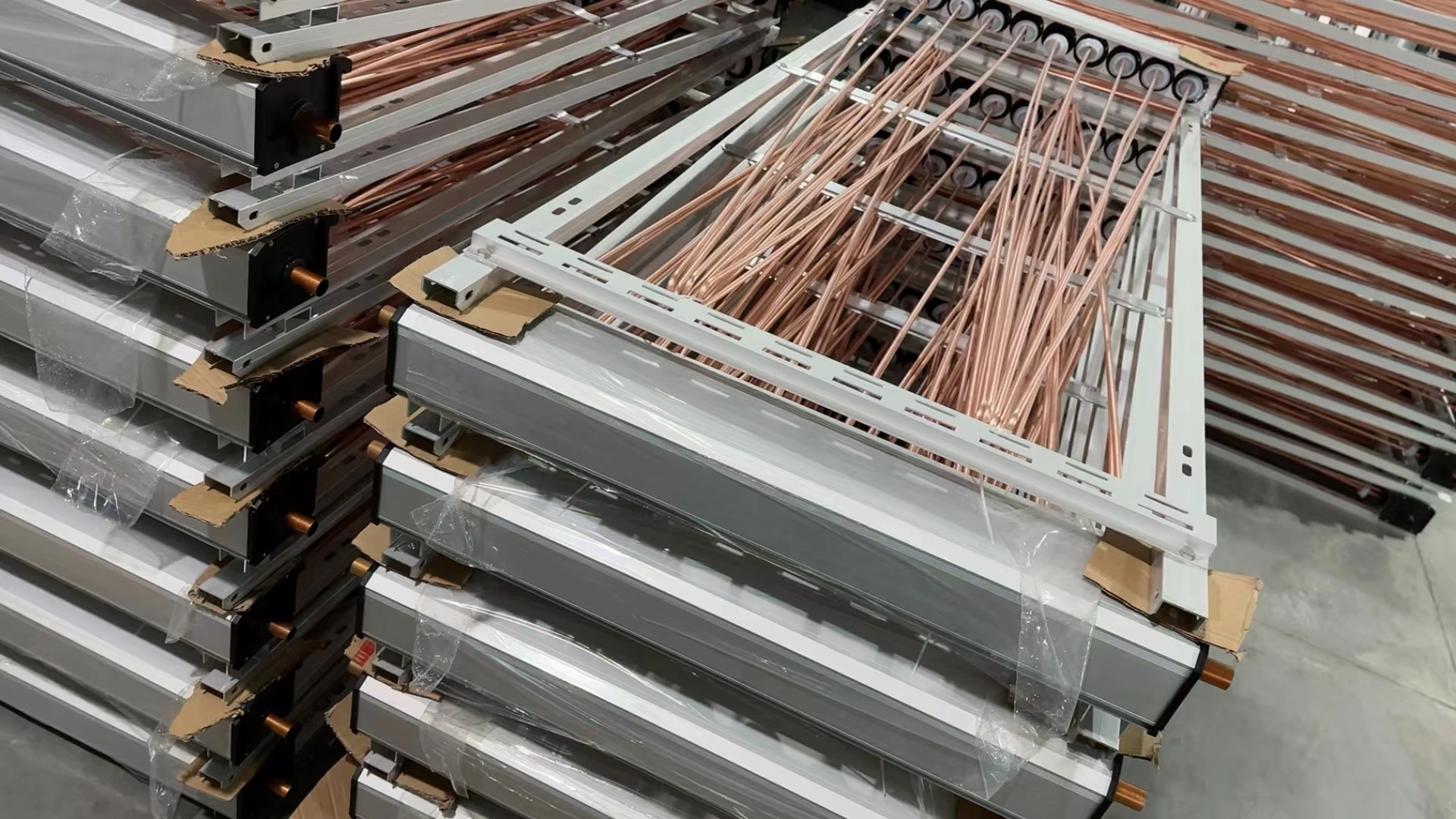

Product packaging
Warranty Policy
Compoent | Warranty period |
Manifold and Mounting Frames | 10 years |
Evacuated Tubes and Heat Pipes | 5 years |
Tank (does not include element and thermostat) and Frames for SP,SPP,SPHE | 7 years |
Separated pressure tank | 7 years |
Tank Thermostat and Heating Element | 1 year |
Controller | 1 year |
1. This Warranty is effective for uniepu solar water heater systems manufactured and installed after 1 January 2023.
2. If the customer has not paid in full for the uniepu solar water heating system then this warranty does not apply.
3. Warranty against defective factory parts from the date of BL.
4. This Warranty does not apply to any defects or damage NOT due to faulty factory parts or workmanship including, but not limited to, defects or damage caused by or resulting from:
(a) accidental damage, storm damage, vandalism, failure due to misuse or abuse, or neglect of any kind;
(b) incorrect or improper installation of the Uniepu Solar Water Heating System, including but not limited to, installation
otherwise than in accordance with the instructions contained in the owner’s manual supplied by Uniepu or incorrect system selection;
(c) attachment of any parts or accessories other than those manufactured or approved by Uniepu;
(d) power surges;
(e) animals, birds, and/or rodents;
(f) the solar collector being left dry (no liquid circulation) and exposed to daily sunlight (i.e. not covered) for a period
exceeding 14 consecutive days;
(g) excessive water pressure, negative pressure (partial vacuum), excessive temperature, corrosive atmosphere, faulty plumbing and/or electrical wiring;
(h) sludge/sediment as a result of connection to a water supply from filtered or treated sources ie. spring, dam, bore, river, or town supply from a bore;
(i) contamination and corrosion from particles in the water supply;
(j) serial tags/stickers on any of the components being removed or defaced;
(k) the water stored in the cylinder exceeding at any time the following:
Levels: Total hardness 200 mg/litre or p.p.m
Total dissolved solids 600 mg/litre or p.p.m
Electrical conductivity 850 μS/cm
Chloride 250 mg/litre or p.p.m
Magnesium 10 mg/litre or p.p.m
Sodium 150 mg/litre or p.p.m
PH Min 6.5 to Max 8.5.
5. According to the national standard warranty is 3 years, if you want to put the conditions of 5 - 10 years extended warranty, you need to add a 5% fee.
2. If the customer has not paid in full for the uniepu solar water heating system then this warranty does not apply.
3. Warranty against defective factory parts from the date of BL.
4. This Warranty does not apply to any defects or damage NOT due to faulty factory parts or workmanship including, but not limited to, defects or damage caused by or resulting from:
(a) accidental damage, storm damage, vandalism, failure due to misuse or abuse, or neglect of any kind;
(b) incorrect or improper installation of the Uniepu Solar Water Heating System, including but not limited to, installation
otherwise than in accordance with the instructions contained in the owner’s manual supplied by Uniepu or incorrect system selection;
(c) attachment of any parts or accessories other than those manufactured or approved by Uniepu;
(d) power surges;
(e) animals, birds, and/or rodents;
(f) the solar collector being left dry (no liquid circulation) and exposed to daily sunlight (i.e. not covered) for a period
exceeding 14 consecutive days;
(g) excessive water pressure, negative pressure (partial vacuum), excessive temperature, corrosive atmosphere, faulty plumbing and/or electrical wiring;
(h) sludge/sediment as a result of connection to a water supply from filtered or treated sources ie. spring, dam, bore, river, or town supply from a bore;
(i) contamination and corrosion from particles in the water supply;
(j) serial tags/stickers on any of the components being removed or defaced;
(k) the water stored in the cylinder exceeding at any time the following:
Levels: Total hardness 200 mg/litre or p.p.m
Total dissolved solids 600 mg/litre or p.p.m
Electrical conductivity 850 μS/cm
Chloride 250 mg/litre or p.p.m
Magnesium 10 mg/litre or p.p.m
Sodium 150 mg/litre or p.p.m
PH Min 6.5 to Max 8.5.
5. According to the national standard warranty is 3 years, if you want to put the conditions of 5 - 10 years extended warranty, you need to add a 5% fee.
FAQ
Contact us if you have other question！
Q: Are you a factory or trading company?
A: Yes, we are a solar water heater factory in China. Zhejiang Uniepu New Energy is our factory name, and Haiyan Uniepu New Material is our trade company name. Both are us!
Q: Do the products have any certificates?
A: Yes. We have solar keymark. For the air source heat pump monoblock, we have CE.
Q: What's the shipping method and delivery time?
A: Shipped by sea express. Need 20 to 40 days by sea.
Q: How to get the price list?
A:Price list Pls Email/Message/Call to us with your interested products together with your details(name,detailsaddress,telephone,etc), so we can reply to you as soon as possible.
Q: Can I use my own forwarder to transport the products for me?
A:Yes, you can let your forwarder ship the products for you. And then you will no need to pay the freight to us.
If you have another question, pls feel free to contact us!
A: Yes, we are a solar water heater factory in China. Zhejiang Uniepu New Energy is our factory name, and Haiyan Uniepu New Material is our trade company name. Both are us!
Q: Do the products have any certificates?
A: Yes. We have solar keymark. For the air source heat pump monoblock, we have CE.
Q: What's the shipping method and delivery time?
A: Shipped by sea express. Need 20 to 40 days by sea.
Q: How to get the price list?
A:Price list Pls Email/Message/Call to us with your interested products together with your details(name,detailsaddress,telephone,etc), so we can reply to you as soon as possible.
Q: Can I use my own forwarder to transport the products for me?
A:Yes, you can let your forwarder ship the products for you. And then you will no need to pay the freight to us.
If you have another question, pls feel free to contact us!
