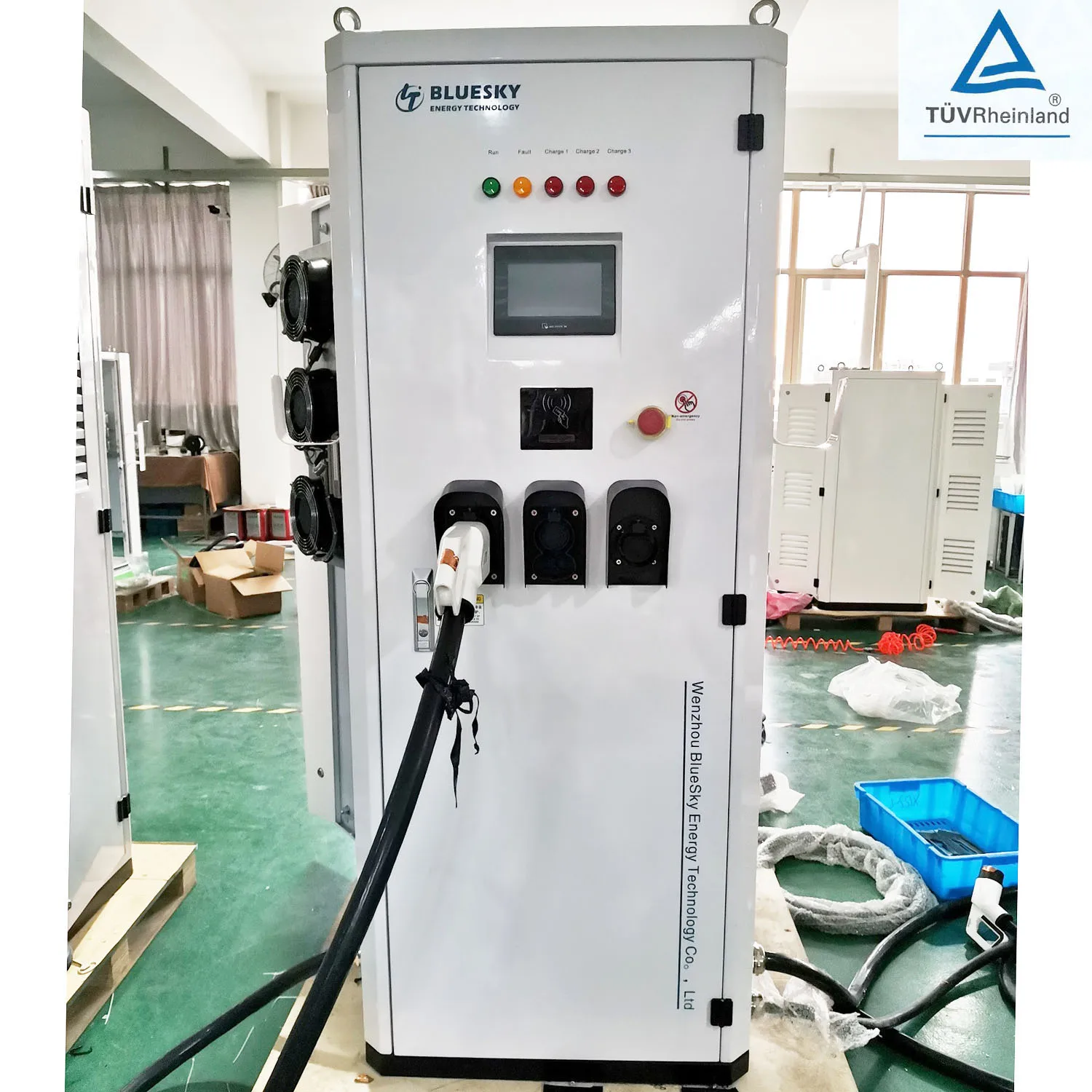

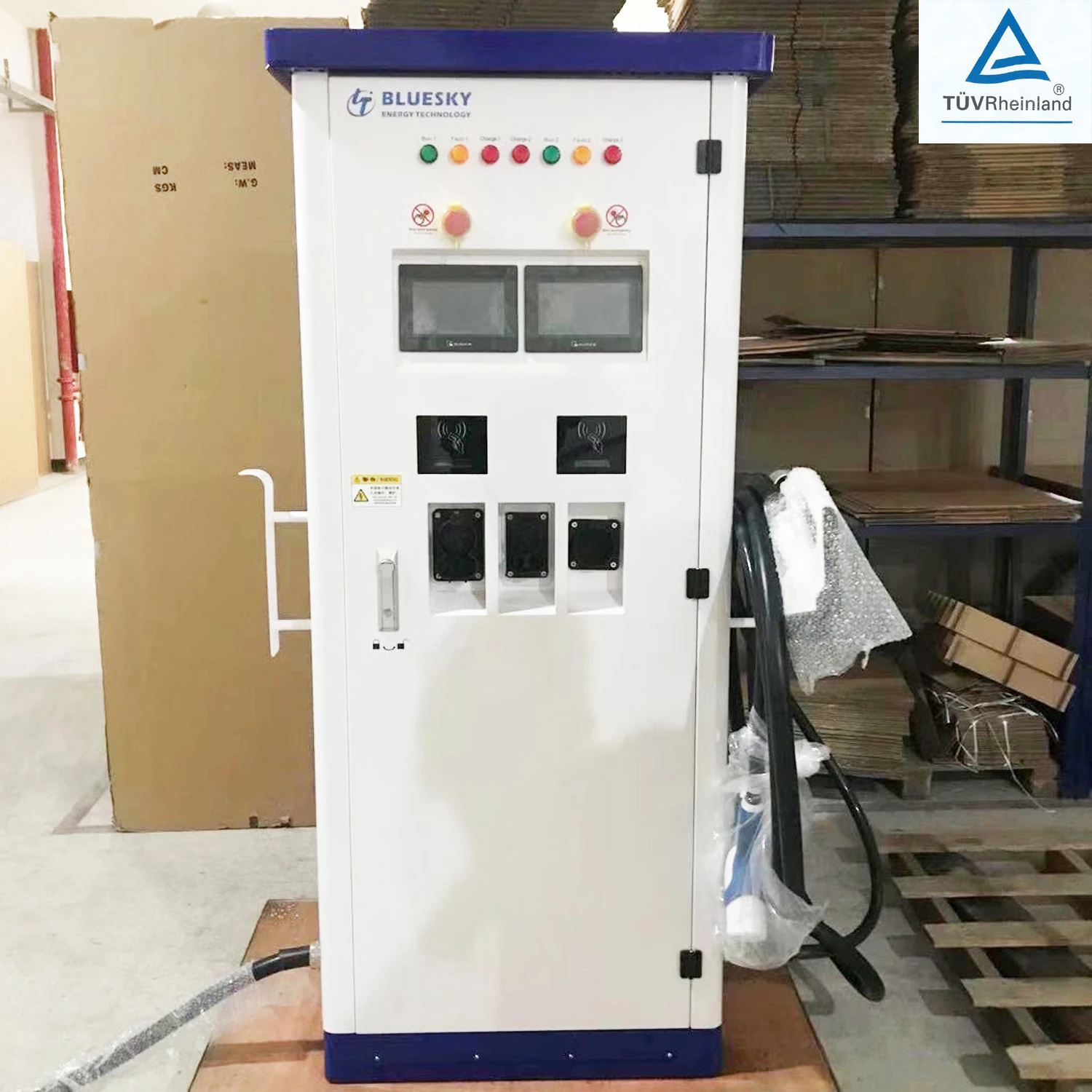

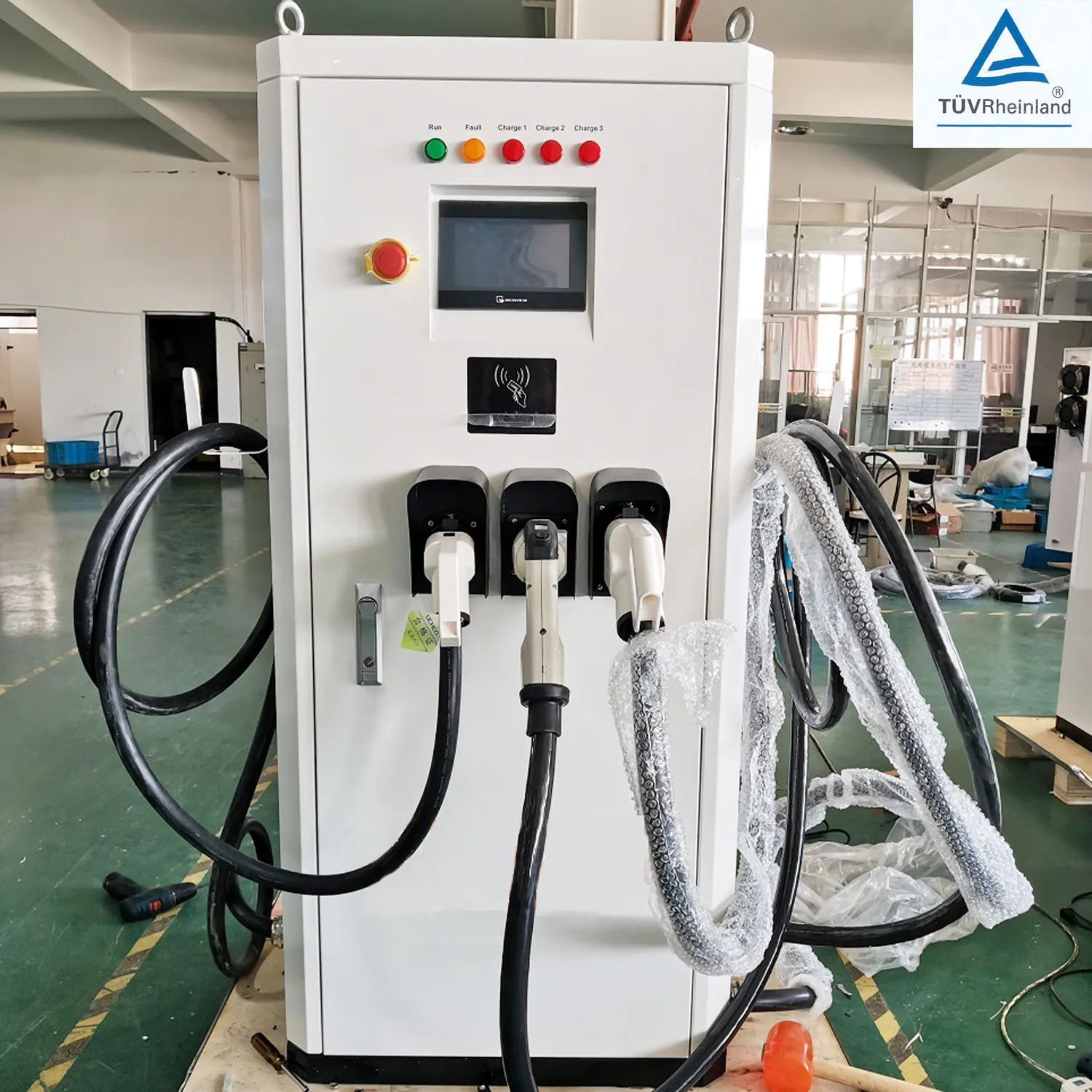

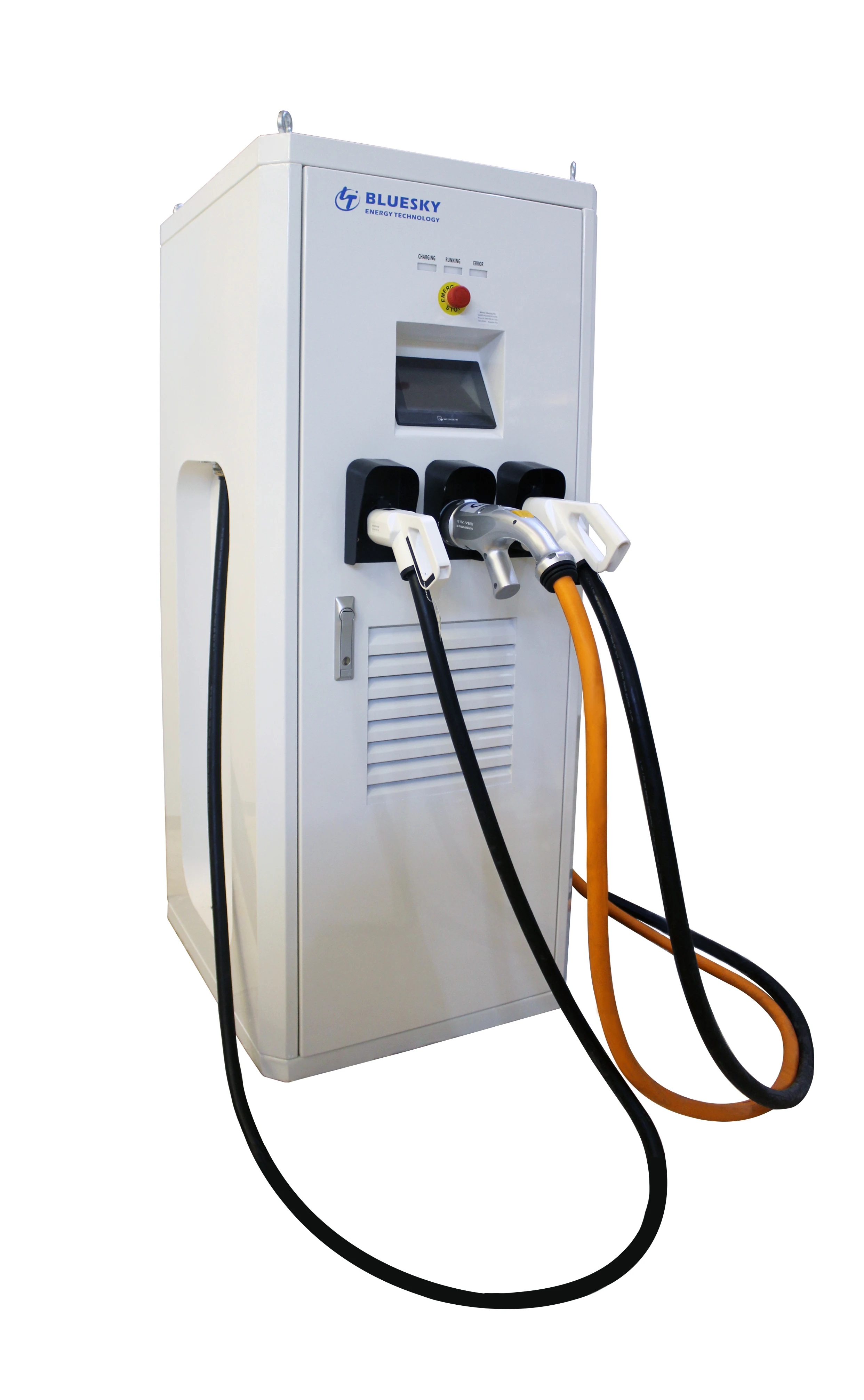

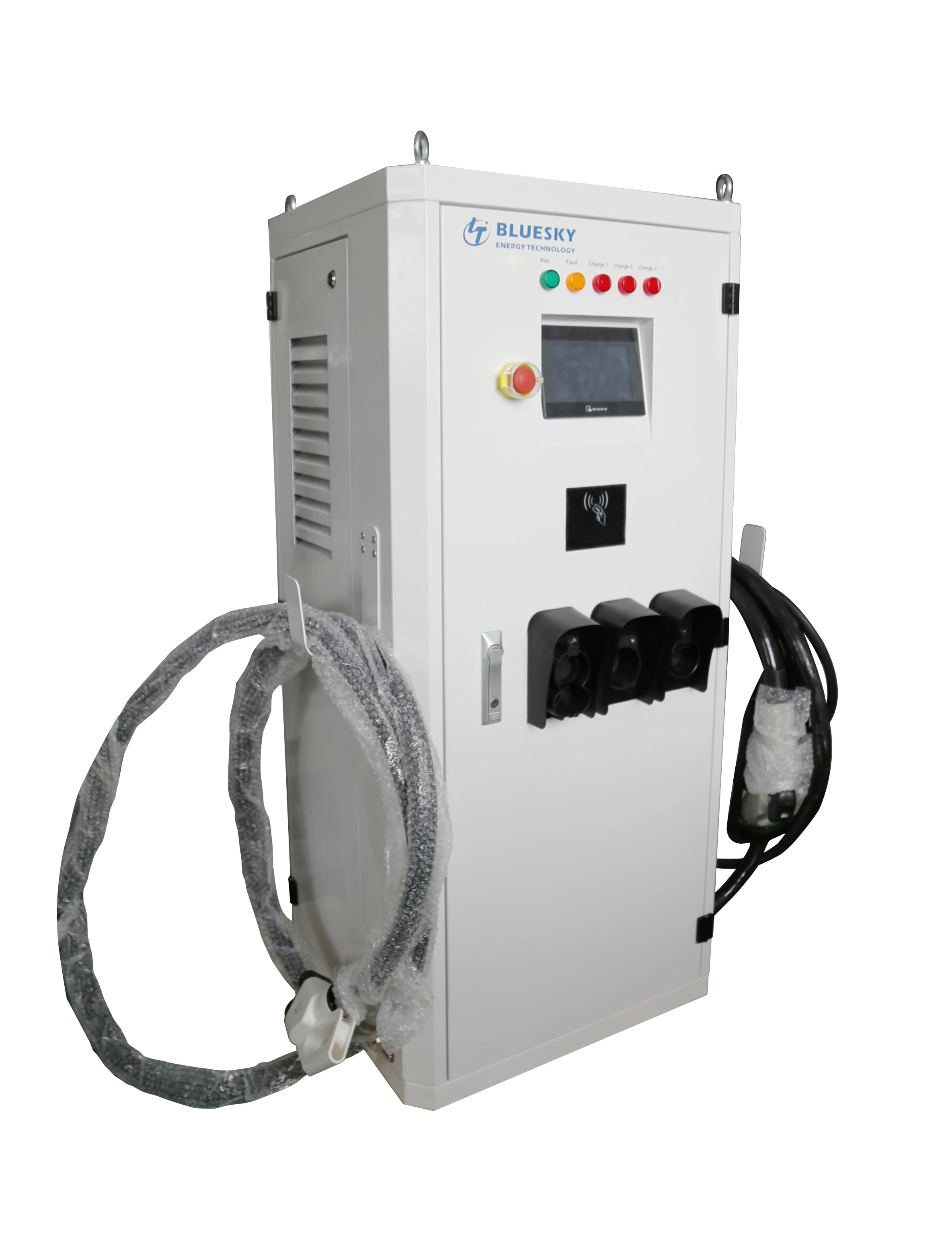

TUV одобрено 223KW DC и AC Встроенная зарядная батарея для автомобильной зарядки три разъема

Product information

The advanced charging pile design concept is beautiful in appearance.
Optimized human-machine interface design for user convenience.
The site installation structure is firm and the environment is adaptable.

Functional description

IC card identification and charging transaction: read the information in the IC card,identify the user's identity and related information, and conduct charging power trading.
Fast charging function: high-current charging of fast-charging battery for fast charging
Battery information collection function: Effectively detect the battery operation, detect the battery, and find the battery failure in time and effectively.
Metering and billing management: Built-in AC meter, real-time access to charging power information, billing based on billing strategy.
Fee collection: charge the charging fee and read and write the balance information in the IC card.
Customize special features based on user needs.

Technical indicators

Input voltage: AC400V±10%
Output voltage: DC 0 ~ 500V ~ 750V ~ (optional as needed)
Output current: 0~30A~200A~ (optional as needed)

Output power:0-60kw,60-120kw,120-180kw,180-200kw(optional as needed)

The voltage regulation accuracy is not more than ±0.5% (at 0% to 100% output rated current).
Steady current accuracy is no more than ±1% (at 20% to 100% output rated current).

Charging electricity metering, accurate to 0.01kWh

Output Interface: CCS,CHAdeMO and GB/T.

Display:7 inch LED touch TFT color screen.

RFID system:ISO/IEC14443A/B,Mifare

Network connection: 4G/LAN (optional as needed)

Communication Protocols: OCPP 1.6

Environment: Indoor/Outdoor
Voltage and current stability accuracy: ≤1%
Working environment temperature: -35°C ~ 50°C (-20°C to -35°C,heating required)

Storage temperature: -40°C to 70°C

Operating humidity: ≤95% non-condensing

Altitude: Up to 2000m

Status indicator
Termination indication: full, card balance is low, power is off
Emergency stop function
Leakage current The DC integrated earth leakage current is less than 3.5mA.

Noise requirements Noise is less than or equal to 55dB

Indoor IP32, outdoor IP54 is blocked, outdoor IP55 is unobstructed.
Three defenses: anti-moist, anti-mildew, anti-salt

Anti-rust (anti-oxidation) protection, resistant to abnormal heat and fire
With overvoltage, undervoltage, overcurrent, overheat, short circuit, surge, output reverse connection and other protection
Compliance and safety: CE,EN 61851,EN62196,DIN70121,ISO 15118
