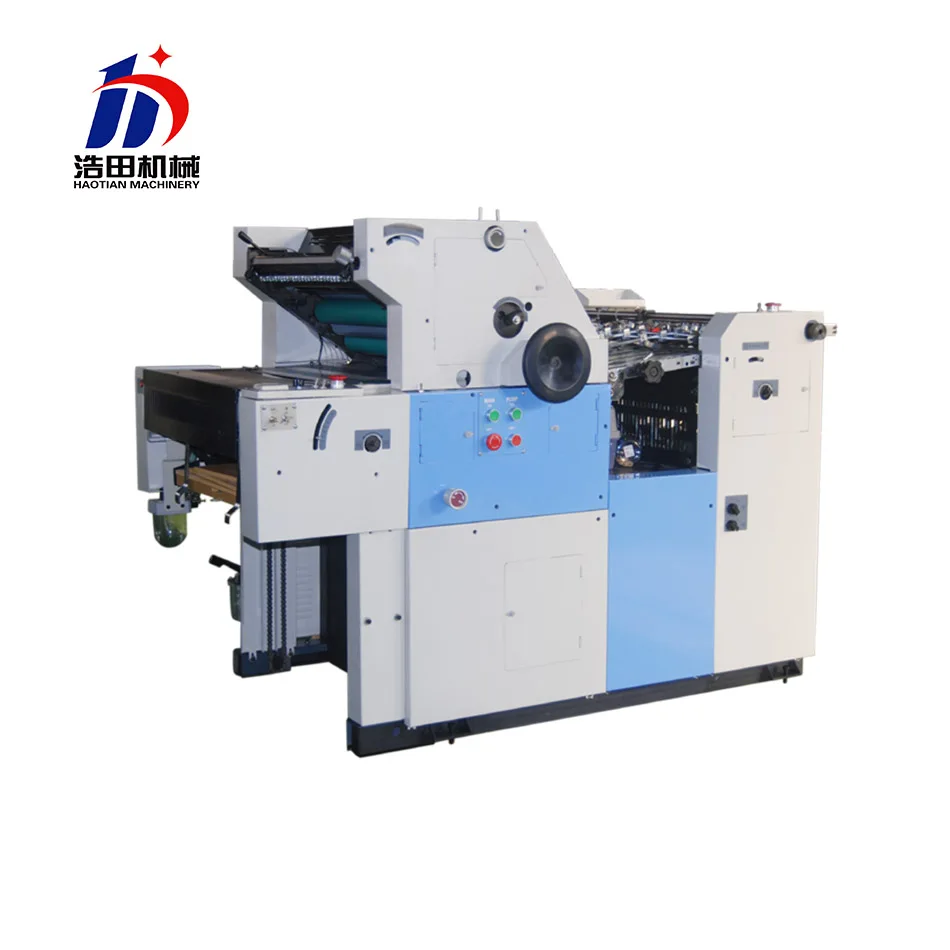

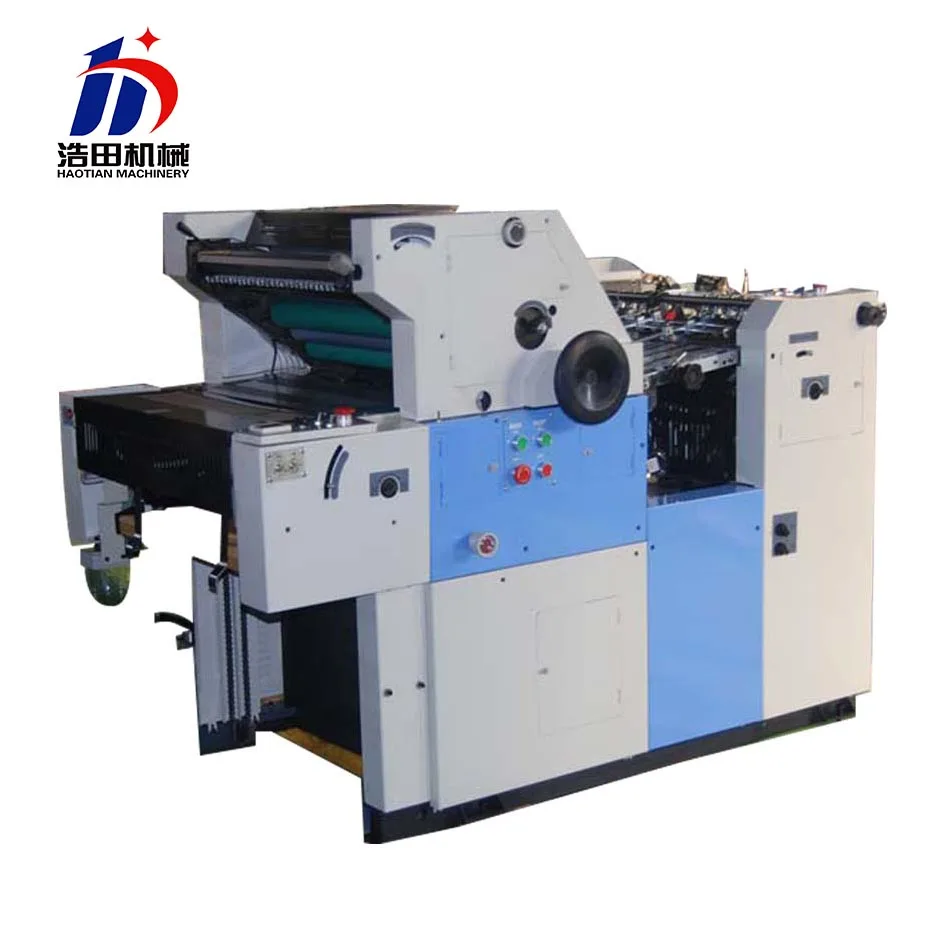

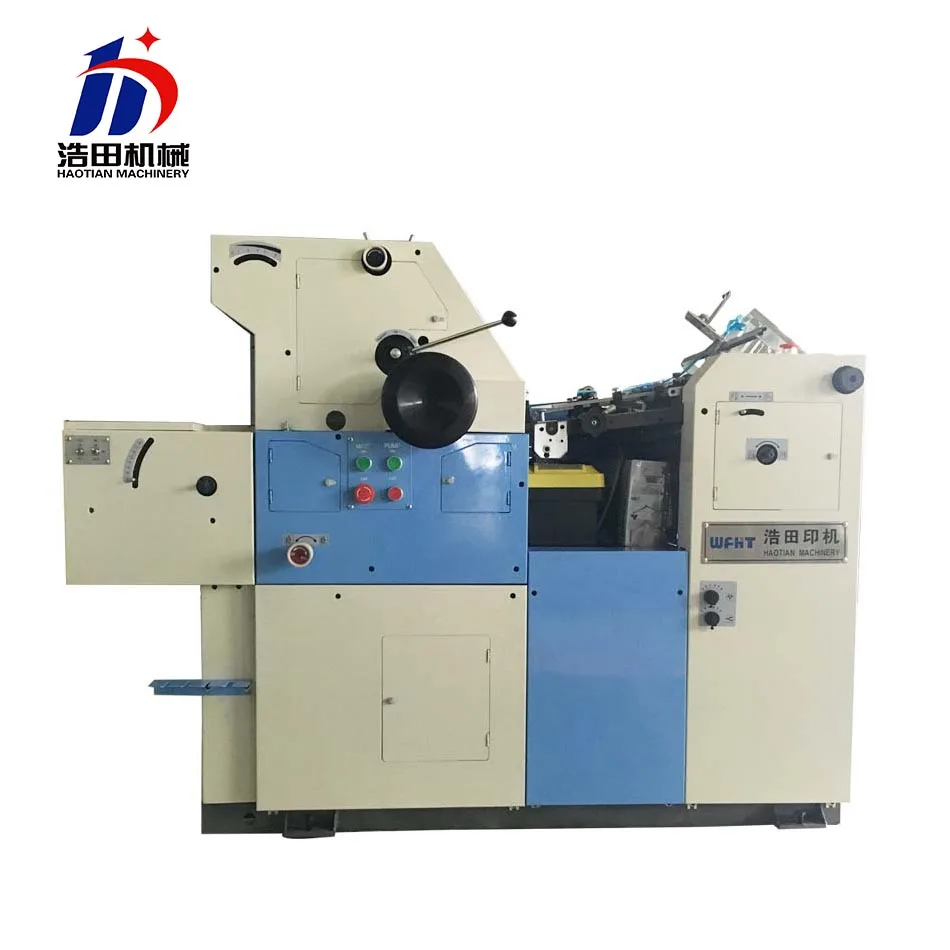

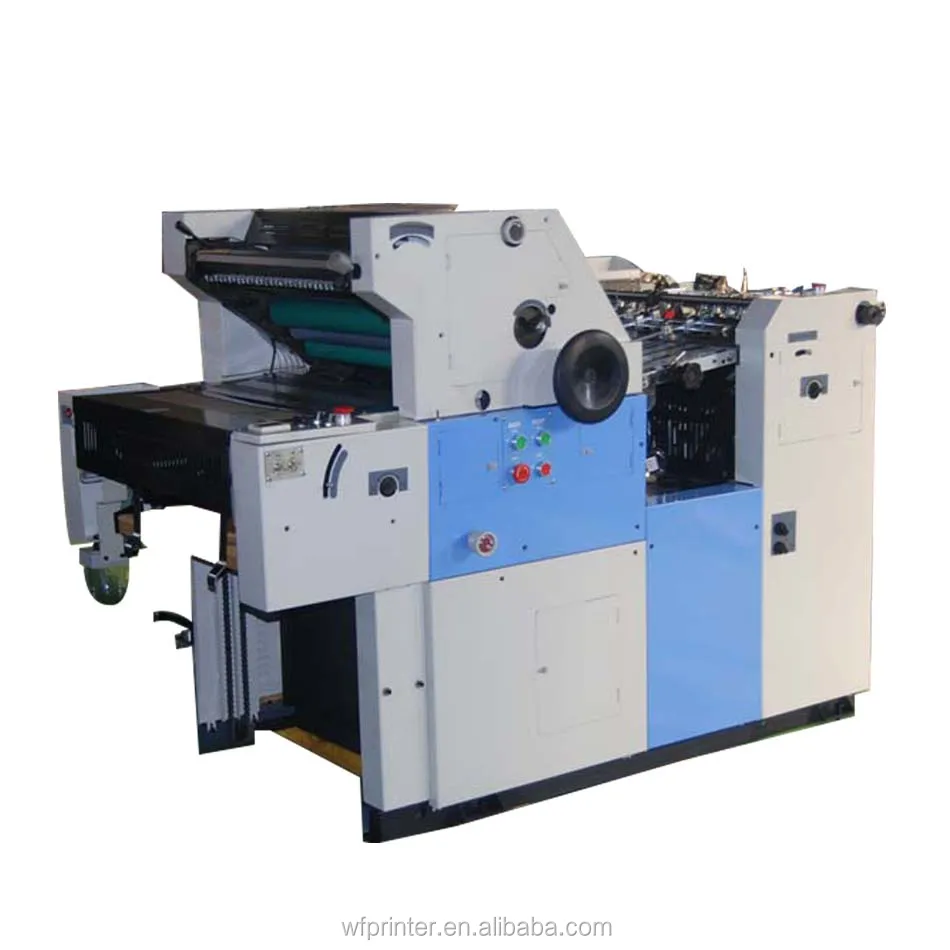

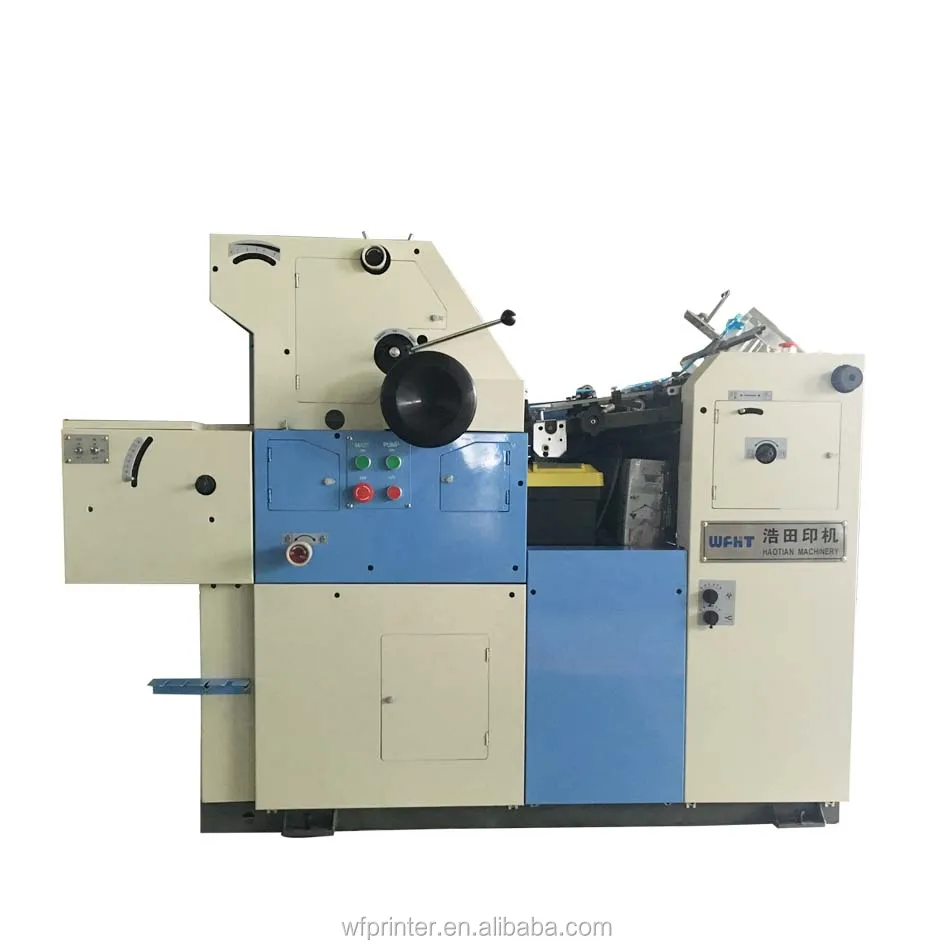

HT56IINP хит продаж офсетная печатная машина с нумерацией и перфорацией одного

Сохранить в закладки 62063249346:


Цена:6 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



HT62II,62IINP














































































































Model



           HT62ⅡNP



HT47ⅡNP


HT47ANP

HT56ANP




HT56ⅡNP




Max.paper size



620*450mm


 470*365mm

470*365mm



560*400mm



560*400mm



Min.paper size



620*450mm


 130*180mm 130*180mm

150*200mm




150*200mm



Max.printing area



610*440mm



450*345mm



450*345mm



550*375mm




550*375mm



Paper weight



28-250gsm



28-250gsm


 28-250gsm

28-250gsm



28-300gsm



Printing speed



2000-7000sheets/hour


 2000-7000sheets/hour 2000-7000sheets/hour

2000-7000sheets/hour



2000-7000sheets/hour



Plate size



610*485mm


 470*395mm 470*395mm

560*420mm



560*420mm



Ink roller



16pieces(3 ink form rollers)



16pieces(3 ink form rollers)



10pieces(2 ink form rollers)



10pieces(2 ink form rollers)


 14pieces(3 ink form rollers)

Total power



2.75KW


1.3KW

1.3KW



1.65KW




1.65KW



Paper feed mode



Suction cross feed



Register device



Wheel-type side pull guide



Moistening mode



water



Power supply



220V/50HZ



Package size(mm)



2300*1200*1500



2100*1000*1350mm



2100*1000*1350mm



2100*1100*1350mm



2110*1110*1570mm



Total weight



1100kg



850kg



750kg



850kg



950kg

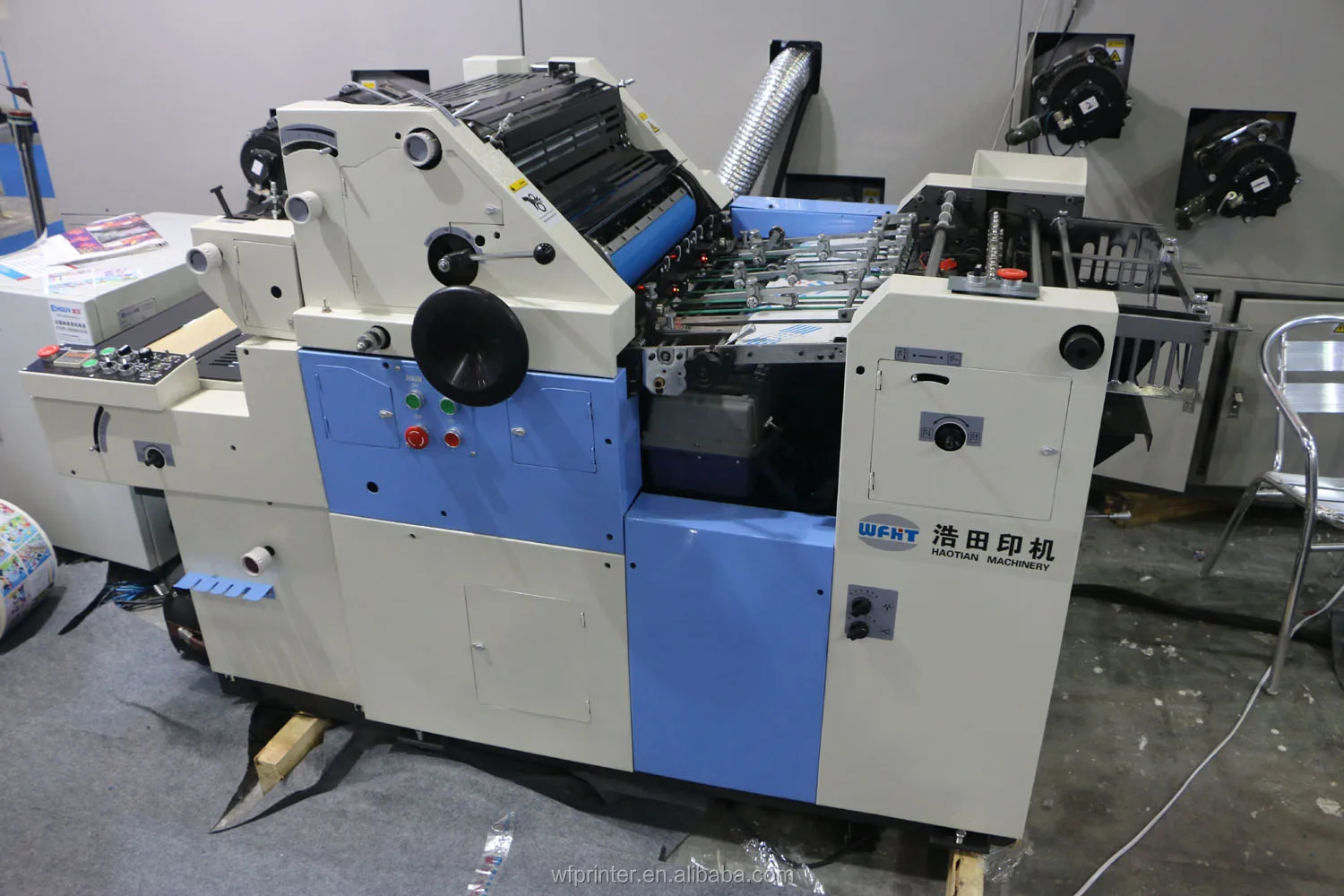

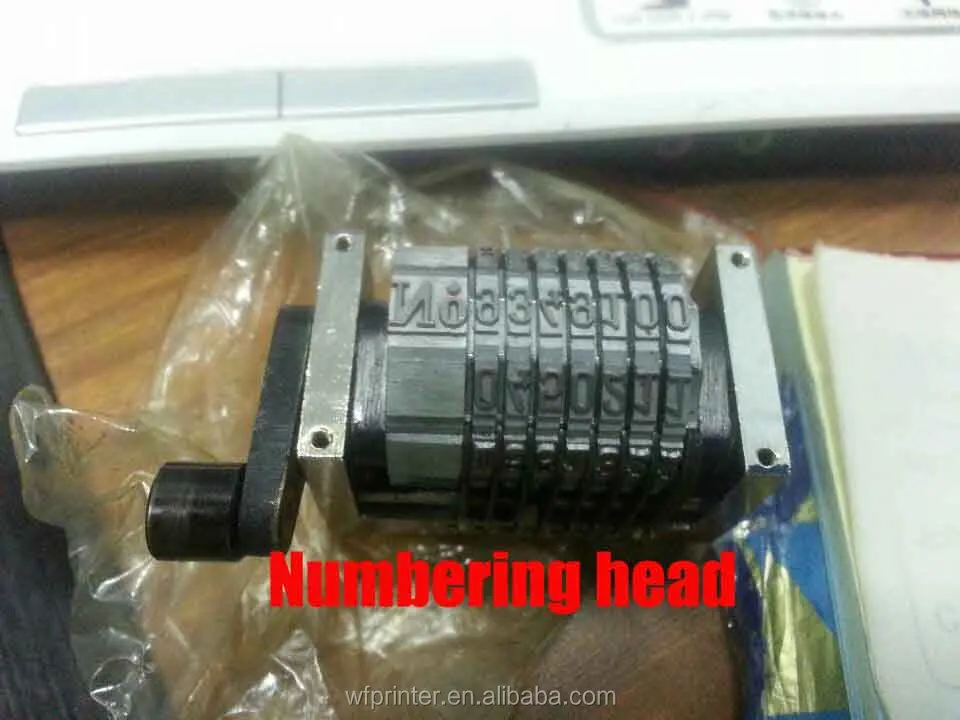

IMG_0124.JPGnumbering head.jpg.jpgsingle color with NP.jpg

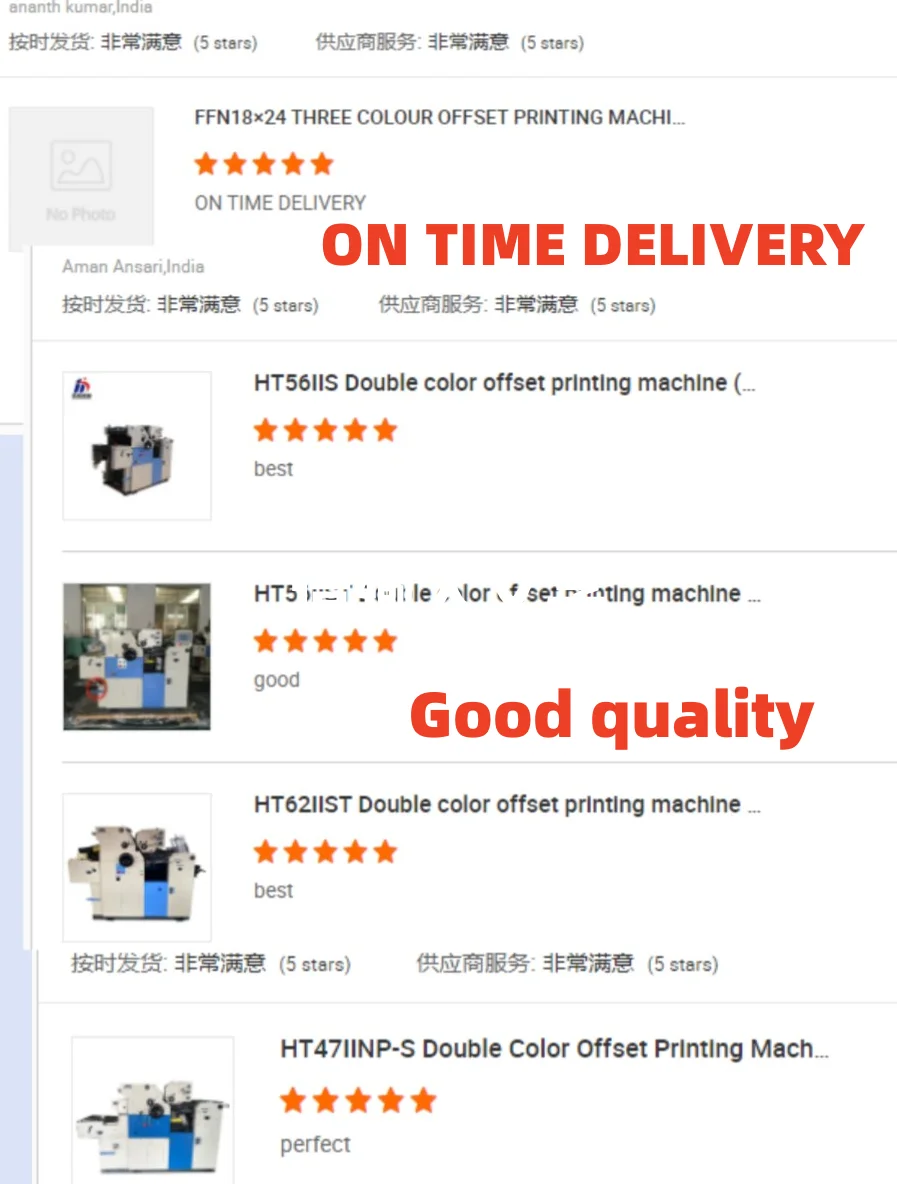

Buyer Feedback


1690179754384





Packaging & Shipping











load (3)packing&loading





Our Services


All of our machine have one year warranty,life-long maintance.
Lowest price,best quality.
24hours online answer your questions.
Delivery it to you as soon as possible.IMG_8318

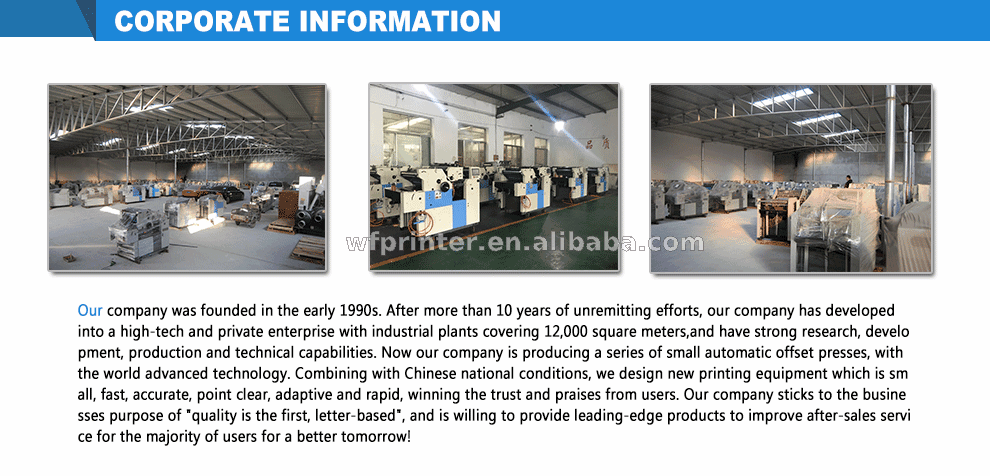

Company Information


_04_02





FAQ


1.What’s the product range?





Printing machine,such as mini offset printing machine, heavy-duty offset printing machine, flexo&plate lable printing machine,tape printing machine and some small machine like pre-press and post-press.








2.Are you a manufacture?





Yes, we are located in weifang, shandong province which close to qingdao port.








3.How does your factory do regarding quality control?





Most our machine mechanical parts are processed by ourselves.So we can better control    our quality from beginning.Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa,   Siemens, NSK, Delta, Panasonic etc.And all our machine will do running test before shipping.








4.  What’s the paper feed system and delivery system?





Multi-sucker universal feeder/Chain Delivers with three gripper Bars.





5.What’s the registration?





Wheel-type pull side/front side.





6.What’s the different between the offset printing and flexography?





Offset printing: Toppan printing (PS plate, resin plate).


Flexography: Intaglio printing .


The offset printing is more precision than flexography.





7.What’s the the different between satellite model and 2 color unit model ?





Satellite model : one imprint, two ink duct. Suitable for printing normal two-color prints.


2 color unit model : two imprints. Suitable for printing high quality prints.
