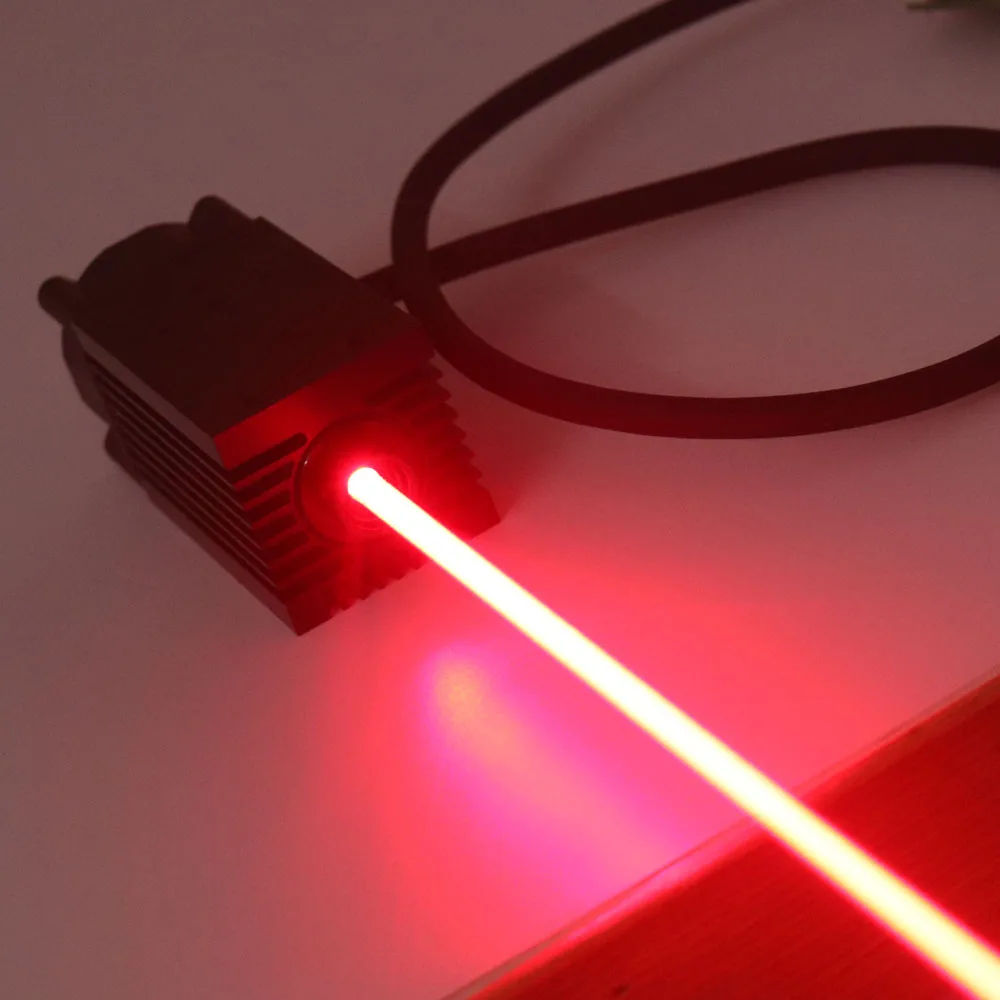

XPL 12M635R2000 635nm 2000 мВт красный лазерный модуль

Сохранить в закладки 62153330857:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


ATTENTION :


1.   DANGER!  Don't shine the beam to eyes!


2.   Becauful the operating voltage!  It will destroy the LD when the voltage is too high.





Specification





























































































Technical Specs Name:



XPL-12M635R2000



Wavelength:



635nm nominal center



Type:



Diode Laser



Lasing medium:



GaAs Laser



Transverse mode:



Multimode



Min power:



2000mw



Arctic series class:



Class  IV



Beam Diameter:



5x5mm



Beam divergence:



<1.5mrad



Stability(at 25  )



<10%



Preheating time (at 25  )



<10s



Best working temperature



25



Operating temperature



0---55



Temperature control



Air-cooled



Color of shell:



silver



Size:



Dia12 x46mm



Weight:



15g (laser + driver)



Power consumption:



2.25V @ <3.0A



Power supply:



DC3.0V



Continuous expected lifetime:



>10,000 hours



Warranty:



1 year











About order:  When you don't know how to make your order, please tell me your mail box, address, zip code and contact phone, alibaba need them. I will do well your order with alibaba trade assurance asap.





order way.JPG
